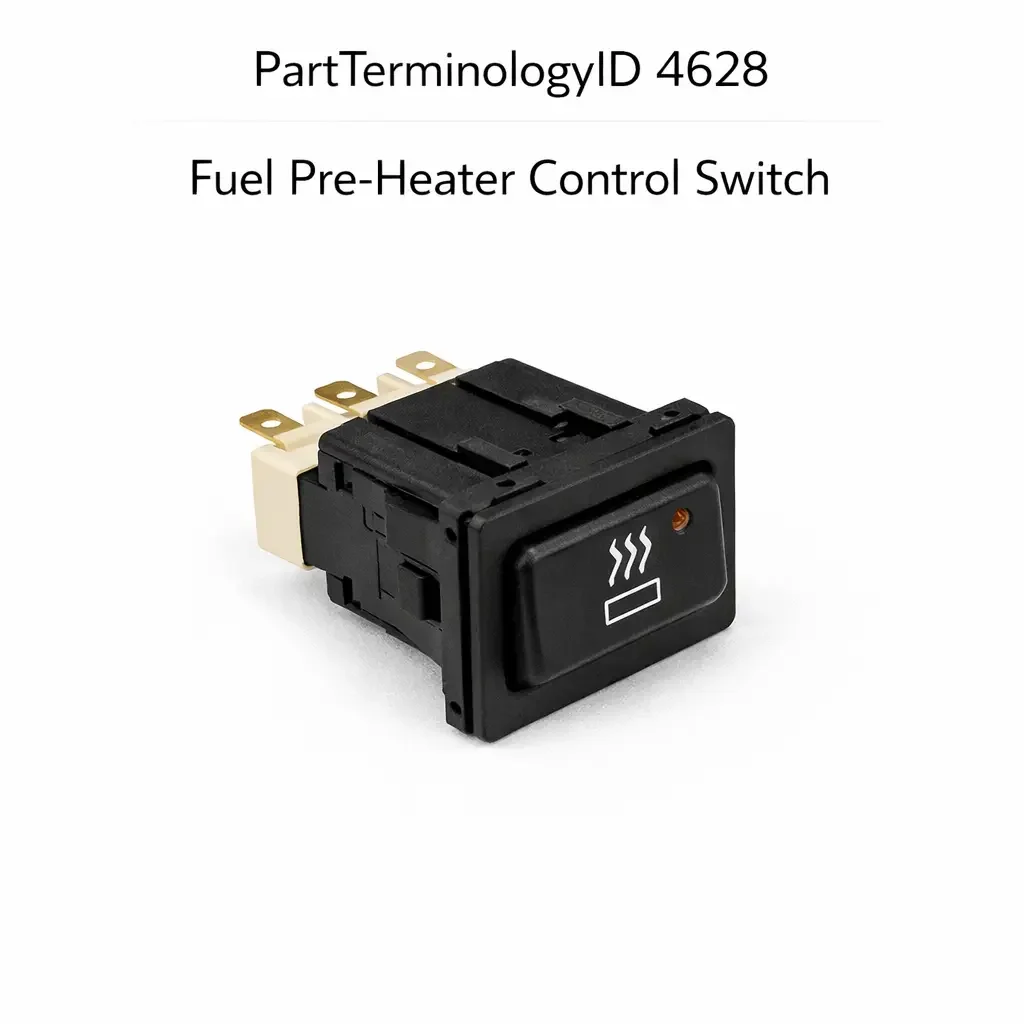

Fuel Pre-Heater Control Switch (PartTerminologyID 4628): Activation Threshold, Circuit Output Type, and Fuel System Compatibility

Written by Arthur Simitian | PartsAdvisory

Introduction

The fuel pre-heater control switch is a thermostatic or electronic switch that governs the activation of the fuel pre-heater element in diesel fuel systems. Its function is straightforward: monitor fuel or ambient temperature and energize the fuel heater circuit when temperature drops below the calibrated threshold, preventing diesel fuel from gelling in cold conditions and maintaining fuel flow to the injection system. When it fails or is replaced with an incorrectly specified part, the result is either a fuel heater that never activates or one that runs continuously, both of which compromise cold-weather starting reliability and fuel heater element longevity.

What the Fuel Pre-Heater Control Switch Does

The fuel pre-heater control switch monitors fuel temperature or ambient temperature through a sensing element and closes or opens its output circuit when temperature crosses the calibrated activation threshold. The output circuit energizes the fuel heater relay or the heater element directly, depending on the circuit architecture. When fuel temperature rises above the deactivation threshold, the switch opens or closes its output in the opposite direction, cutting power to the heater circuit to prevent overheating the fuel.

The switch protects the diesel fuel system from two cold-weather conditions. The first is fuel gelling, where paraffin wax in diesel fuel crystallizes at low temperatures and restricts or blocks fuel flow through the filter and lines. The second is fuel filter plugging from wax crystals accumulating on the filter media. Both conditions cause a loss of fuel supply pressure that produces hard starting, rough running, or a no-start condition on cold mornings.

On some applications the switch also illuminates a dash indicator when the fuel heater is active, signaling the driver that cold-weather fuel heating is in operation.

What Makes This Part Generate Returns

Returns on PartTerminologyID 4628 come from three sources: wrong activation temperature threshold, wrong circuit output type, and wrong system voltage.

Activation temperature threshold is the most consequential attribute. The switch activates the fuel heater at a calibrated temperature, typically expressed in degrees Celsius. Common thresholds range from 0 degrees Celsius down to minus 10 or minus 15 degrees Celsius depending on the application and the fuel blend used in the target market. A switch calibrated to activate at 0 degrees Celsius installed in an application requiring a minus 10 degree threshold will energize the fuel heater during cool autumn weather when gelling is not a risk, running the heater element unnecessarily and shortening its service life. A switch calibrated for minus 10 degrees installed in a 0-degree application will not activate until fuel has already begun to gel, arriving too late to prevent filter restriction on cold starts.

Circuit output type is the second return driver. Fuel pre-heater control switches are available in normally open and normally closed configurations. A normally open switch closes its output circuit when temperature drops below the threshold, energizing the heater. A normally closed switch opens its output when temperature rises above the threshold, de-energizing the heater. Installing the wrong type reverses the heater activation logic entirely, causing the heater to run when fuel is warm and shut off when fuel is cold.

System voltage applies on commercial diesel applications where 24-volt systems are common. A switch rated for 12-volt operation installed in a 24-volt system will apply double the rated voltage to its internal switching circuit, producing rapid failure of the switch or the downstream relay coil.

Cataloging Attributes: What to Confirm Before Listing

Activation temperature threshold: State the activation temperature in degrees Celsius. Do not omit this value. Two switches covering the same vehicle application may have different thresholds if the vehicle was sold in multiple markets with different winter fuel blends.

Circuit output type: State normally open or normally closed explicitly. This is frequently omitted and produces a heater that runs continuously in warm weather when the wrong type is installed.

System voltage: State 12-volt or 24-volt. Mandatory for all commercial diesel applications and any application where dual-voltage variants exist.

Sensing element type: State whether the switch senses fuel temperature directly through a fuel passage fitting or ambient temperature through an external probe. These two sensing types are not interchangeable and produce different activation timing relative to actual fuel gelling risk.

Thread specification: For fuel passage-mounted switches, state the thread diameter, pitch, and thread form. A switch with the wrong thread will not seal in the fuel passage fitting.

Connector pin count: State the pin count. Fuel pre-heater control switches range from two-pin to four-pin depending on whether the switch includes an indicator lamp output in addition to the heater circuit output.

Common Cataloging Mistakes

The most common mistake is omitting the activation temperature threshold from the listing. On vehicles sold in both temperate and arctic market configurations, the threshold differs between variants and both share the same vehicle application data. Without the threshold value the buyer cannot determine which variant their vehicle requires.

The second mistake is conflating the fuel pre-heater control switch with the fuel heater element or the fuel heater relay. These are distinct components. The switch controls the relay that powers the element. A listing that cross-references these components as equivalent will route the wrong part to the buyer.

Status in New Databases

• PIES/PCdb: PartTerminologyID 4628, Fuel Pre-Heater Control Switch

• PIES 8.0 / PCdb 2.0: No change in PartTerminologyID or terminology label

Summary

PartTerminologyID 4628, Fuel Pre-Heater Control Switch, is a cold-weather reliability component whose return rate is driven by three omitted attributes: activation temperature threshold, circuit output type, and system voltage. Every listing must state all three explicitly. A switch with the wrong threshold activates the heater at the wrong temperature. A switch with the wrong output type runs the heater continuously in warm conditions. A switch with the wrong voltage rating fails prematurely in 24-volt applications. State the sensing element type and thread specification as secondary attributes to prevent installation failures.
