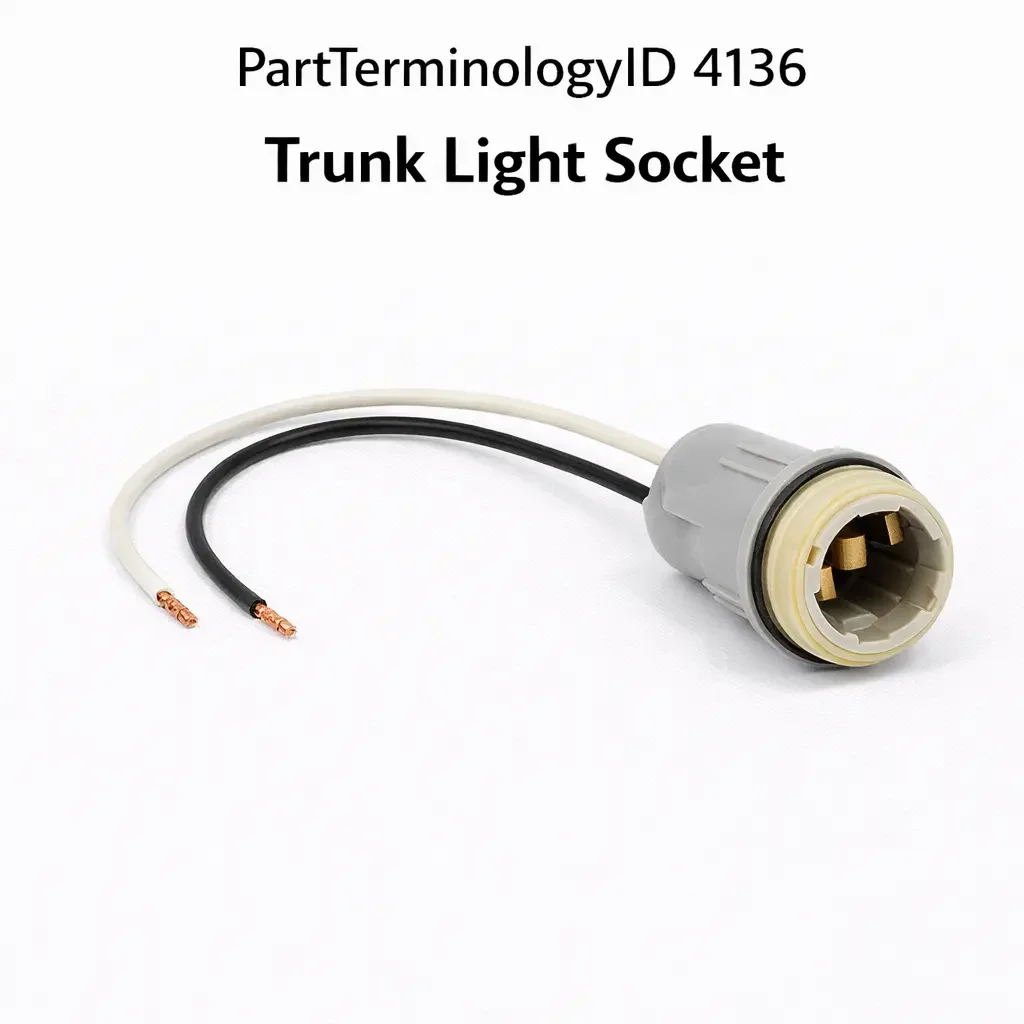

Trunk Light Socket (PartTerminologyID 4136): Where Trunk Switch Validation and Bulb Pre-Check Prevent Socket Replacement
Written by Arthur Simitian | PartsAdvisory
PartTerminologyID 4136, Trunk Light Socket, is the bulb socket that provides illumination inside the trunk or cargo compartment, receiving switched power from the trunk lid switch circuit when the trunk lid is opened to illuminate the cargo area for loading and unloading in low-light conditions. That definition covers the trunk light socket function correctly and leaves unresolved whether the socket is activated by a plunger-style switch mounted in the trunk lid opening that releases when the lid opens, a magnetic reed switch that activates when the lid magnet separates from the switch body, a latch-integrated contact switch that activates when the latch releases, or a BCM-commanded courtesy light output that activates the trunk light alongside other courtesy lights when the trunk is opened through a key fob release or interior release lever, whether the trunk lighting circuit is always-on and draws from the fuse panel regardless of ignition state or is ignition-switched, whether the trunk light circuit shares a fuse with interior courtesy lights including the dome light and glove box light, whether the socket is a discrete replaceable component mounted in the trunk liner or lid, or is integrated into a trunk light assembly requiring full assembly replacement, and whether a trunk lid switch stuck in the open position will continuously illuminate the trunk light and drain the battery.
For sellers, PartTerminologyID 4136 is the trunk light socket where trunk lid switch validation is the most return-generating attribute, because the trunk light socket receives supply voltage only when the trunk lid switch completes the activation circuit. A failed plunger switch that does not extend when the trunk lid opens prevents socket activation regardless of socket condition. A failed magnetic reed switch that does not activate when the lid magnet moves away leaves the circuit open. Both produce identical no-light symptoms at the socket that a buyer attributes to the socket rather than the switch. The trunk lid switch is the most commonly failed component in the trunk light circuit and the socket is almost never the primary fault source on a no-light trunk complaint.
What the Trunk Light Socket Does
Trunk lid switch activation and the always-on circuit architecture
The trunk light circuit on most vehicles is always-on, drawing power directly from the fuse panel regardless of ignition state. This architecture allows the trunk light to illuminate when the trunk is opened with the ignition off, which is the most common use case for trunk access. The trunk lid switch is the only component that controls the circuit: when the switch is open the light is off, when the switch closes the light is on.
A trunk light that remains on continuously with the trunk closed has a trunk lid switch stuck in the open-lid position that is continuously completing the circuit. The trunk light illuminates inside the closed trunk, which may not be immediately obvious to the driver. The continuously illuminated trunk light draws current from the battery and will discharge the battery over an extended park period. A buyer who traces a battery drain to the trunk light circuit has a stuck trunk lid switch rather than a socket fault.
BCM-commanded trunk courtesy light output
On current-generation vehicles the BCM monitors the trunk lid position through the trunk lid switch input and activates the trunk light through a BCM courtesy light output driver alongside the dome light and other courtesy lights. The BCM may also activate the trunk light in response to a key fob trunk release command or an interior trunk release button. On these applications the trunk light circuit is BCM-commanded and a BCM output driver fault produces no trunk light activation from the switch or the fob regardless of socket condition.
A buyer whose trunk light does not activate when the trunk is opened on a BCM-commanded application has either a failed trunk lid switch input, a BCM output driver fault, a failed socket, or a failed bulb. Confirming whether the dome light activates simultaneously when the trunk is opened separates a shared BCM output fault from a trunk-light-specific socket fault. If the dome light does not activate either, the fault is upstream in the BCM courtesy output rather than the trunk socket.
Shared courtesy fuse and multi-circuit outage
The trunk light circuit on most vehicles shares a fuse with the dome light, glove box light, and other interior courtesy lighting circuits. A blown courtesy fuse disables all interior courtesy lights simultaneously. A buyer who finds the trunk light non-functional should confirm whether the dome light is also non-functional. Simultaneous loss of both confirms a blown shared fuse rather than an individual socket fault.
Why This Part Generates Returns
Buyers return trunk light sockets because the trunk lid switch has failed and the circuit is not activated when the trunk lid opens, the courtesy light fuse has blown and the dome light is also non-functional along with the trunk light, the trunk light bulb has failed and the socket is undamaged, the trunk lid switch is stuck in the open position producing continuous trunk light illumination and the buyer replaces the socket expecting the continuous light to stop, and the BCM output driver for the courtesy light circuit has failed and neither the trunk light nor the dome light activate from any trigger.
Status in New Databases
PartTerminologyID 4136 is cataloged in PIES/PCdb as Trunk Light Socket. Under PIES 8.0 and PCdb 2.0 there is no change to the terminology or classification for this PartTerminologyID.
Top Return Scenarios
Scenario 1: "Failed trunk lid switch, no activation, socket replaced with no change"
The trunk light does not illuminate when the trunk lid is opened. The plunger switch has a broken spring and does not extend when the lid opens. The circuit remains open. No supply voltage reaches the socket. The buyer replaces the socket. The switch fault remains. No change in trunk light behavior.
Prevention language: "Trunk lid switch validation: Confirm supply voltage is present at the trunk light socket terminal with the trunk lid open before replacing the socket. No voltage with the trunk lid open indicates a failed trunk lid switch, a blown courtesy fuse, or an open circuit in the supply wiring rather than a socket fault. Manually press and release the trunk lid switch plunger and confirm the circuit activates before diagnosing the socket."
Scenario 2: "Blown courtesy fuse, dome light also non-functional, socket replaced without fuse check"
The trunk light does not illuminate when the trunk is opened. The dome light is also non-functional from door opening. The shared courtesy fuse has blown. The buyer replaces the trunk light socket. The blown fuse remains. The replacement socket also has no supply voltage.
Prevention language: "Courtesy fuse check: Confirm the dome light activates when a door is opened before diagnosing the trunk light socket. If the dome light is also non-functional, the fault is the shared courtesy fuse rather than the trunk socket. Check the courtesy fuse before ordering a socket on a combined trunk light and dome light outage complaint."
Scenario 3: "Failed trunk light bulb, functional socket, socket returned after bulb replacement resolves dark trunk"
The trunk light does not illuminate when the trunk is opened. The trunk lid switch is confirmed activating the circuit. Supply voltage is confirmed at the socket terminal with the trunk open. The bulb has a failed filament. The buyer replaces the socket. The trunk light illuminates. The buyer returns the original socket as defective when the bulb was the failed component.
Prevention language: "Bulb pre-check: Confirm supply voltage is present at the socket terminal with the trunk open. If supply voltage is present but the trunk light does not illuminate, remove the socket and inspect the bulb filament before replacing the socket. Replace the bulb first on a dark trunk light with confirmed supply voltage."
Scenario 4: "Stuck trunk lid switch, trunk light on continuously, battery drains, socket replaced with no change"
The trunk light remains illuminated with the trunk closed. The trunk lid plunger switch is stuck in the extended position, continuously completing the circuit. The battery drains overnight. The buyer traces the drain to the trunk light circuit and replaces the socket expecting the continuous illumination to stop. The stuck switch remains. The trunk light continues illuminating continuously.
Prevention language: "Continuous illumination diagnosis: A trunk light that remains on with the trunk closed has a stuck trunk lid switch rather than a socket fault. The switch is holding the circuit active continuously. Identify and replace the trunk lid switch rather than the socket. Socket replacement will not resolve continuous illumination from a stuck switch."
Listing Requirements
PartTerminologyID: 4136
Trunk lid switch type: plunger, magnetic reed, or latch contact (mandatory)
Circuit architecture: always-on or BCM-commanded (mandatory)
Shared courtesy fuse note (mandatory)
Bulb base type and wattage specification (mandatory)
Socket architecture: discrete replaceable or integrated assembly (mandatory)
Trunk lid switch validation note (mandatory)
Courtesy fuse check note (mandatory)
Continuous illumination diagnosis note (mandatory)
Bulb pre-check note (mandatory)
OEM part number cross-reference (mandatory)
Catalog Checklist for ACES/PIES Teams
PartTerminologyID = 4136
Require trunk lid switch type (mandatory)
Require circuit architecture: always-on or BCM-commanded (mandatory)
Require shared courtesy fuse note (mandatory)
Require bulb base type and specification (mandatory)
Prevent trunk lid switch socket return: failed switch produces no activation identically to a failed socket; switch circuit validation must precede socket diagnosis
Prevent shared fuse socket return: blown courtesy fuse disables trunk and dome lights simultaneously; multi-circuit outage check must precede socket diagnosis
Prevent continuous illumination socket return: stuck switch producing continuous illumination is not a socket fault; switch identification must precede socket replacement
FAQ (Buyer Language)
Why does my trunk light not come on when I open the trunk?
Confirm supply voltage is reaching the socket by manually pressing the trunk lid switch plunger with the trunk open and checking for illumination. If supply voltage is confirmed at the socket terminal but the light does not illuminate, the bulb has likely failed. If no supply voltage is present at the socket terminal, the fault is the trunk lid switch or the courtesy fuse rather than the socket.
How do I check if the trunk lid switch is working?
Locate the plunger switch in the trunk lid opening frame. With the trunk lid open the plunger should extend fully. Press the plunger manually with a finger and confirm the trunk light activates and deactivates with plunger movement. A plunger that does not produce circuit activation when released indicates a failed switch rather than a socket fault.
My trunk light stays on even when the trunk is closed. Is it the socket?
A trunk light that remains on with the trunk closed has a stuck trunk lid switch rather than a socket fault. The switch is holding the circuit active continuously. Open and close the trunk and observe whether the light responds to the lid position. If the light remains on regardless of trunk position, the switch is stuck. Replace the trunk lid switch.
My trunk light and dome light both stopped working. What is the fault?
Simultaneous loss of the trunk light and dome light points to the shared courtesy fuse rather than individual socket faults. Check the courtesy fuse in the fuse panel before diagnosing either socket.
Can I replace just the bulb in the trunk light socket?
Yes on applications where the bulb is separately removable from the socket housing. Remove the socket from its mounting position in the trunk liner or lid, pull the bulb from the socket, and replace it with the correct base type and wattage. A bulb replacement resolves a dark trunk light at lower cost than socket replacement when the socket housing is undamaged.
What Sellers Get Wrong About PartTerminologyID 4136
The most common error is omitting the trunk lid switch validation note. The trunk light socket activates only when the trunk lid switch completes the circuit. A failed trunk lid switch produces no socket activation and no supply voltage at the socket terminal, which is indistinguishable from a failed socket contact without probing the switch separately. Without the validation note buyers replace the socket when the switch is the fault source and return the socket when no change occurs. The switch validation note with the plunger manual press test converts this return into a switch replacement order.
The second error is omitting the courtesy fuse check note. A blown courtesy fuse disables the trunk light and dome light simultaneously. Without the courtesy fuse note buyers replace the trunk socket on what is a fuse fault and find the dome light and trunk light both restore when the fuse is eventually replaced, making the socket replacement unnecessary.
The third error is omitting the continuous illumination diagnosis note. A stuck trunk lid switch producing continuous illumination drains the battery and the buyer expects socket replacement to extinguish the light. Without the diagnosis note buyers replace the socket and find the light remains on because the stuck switch is still completing the circuit.
Cross-Sell Logic
Trunk Light Bulb: for buyers where the socket is confirmed functional, supply voltage is confirmed at the terminal with the trunk open, but the trunk light does not illuminate, indicating a failed bulb filament is the correct repair.
Trunk Lid Switch: for buyers where no supply voltage is present at the socket terminal with the trunk open and the fault traces to a failed trunk lid switch rather than a fuse or socket fault, and for buyers with continuous trunk light illumination from a switch stuck in the closed-circuit position.
Courtesy Light Fuse: for buyers where the trunk light and dome light are both non-functional simultaneously, indicating a blown shared courtesy fuse rather than individual socket faults.
BCM: for buyers on BCM-commanded applications where the courtesy fuse is intact, the trunk lid switch is confirmed activating, and neither the trunk light nor the dome light activate from any trigger, indicating a BCM courtesy output driver fault.
Final Take for PartTerminologyID 4136
Trunk Light Socket (PartTerminologyID 4136) is the cargo compartment illumination component where trunk lid switch validation, courtesy fuse check, continuous illumination diagnosis, and bulb pre-check are the four attributes that prevent the four most common return scenarios. Every listing without switch validation sends buyers through a socket replacement that changes nothing because the switch fault remains. Every listing without the courtesy fuse note generates returns from buyers who replaced a socket on a blown fuse circuit. Every listing without the continuous illumination note generates returns from buyers who expected socket replacement to stop a light kept active by a stuck switch. Every listing without bulb pre-check generates returns from buyers who replaced a functional socket when a bulb was the correct repair.
Together these four attributes make every listing under this PartTerminologyID complete.
