Emblem Light Socket (PartTerminologyID 4036): Where Panel Lighting Circuit Validation and Bulb Pre-Check Prevent Socket Replacement

Written by Arthur Simitian | PartsAdvisory

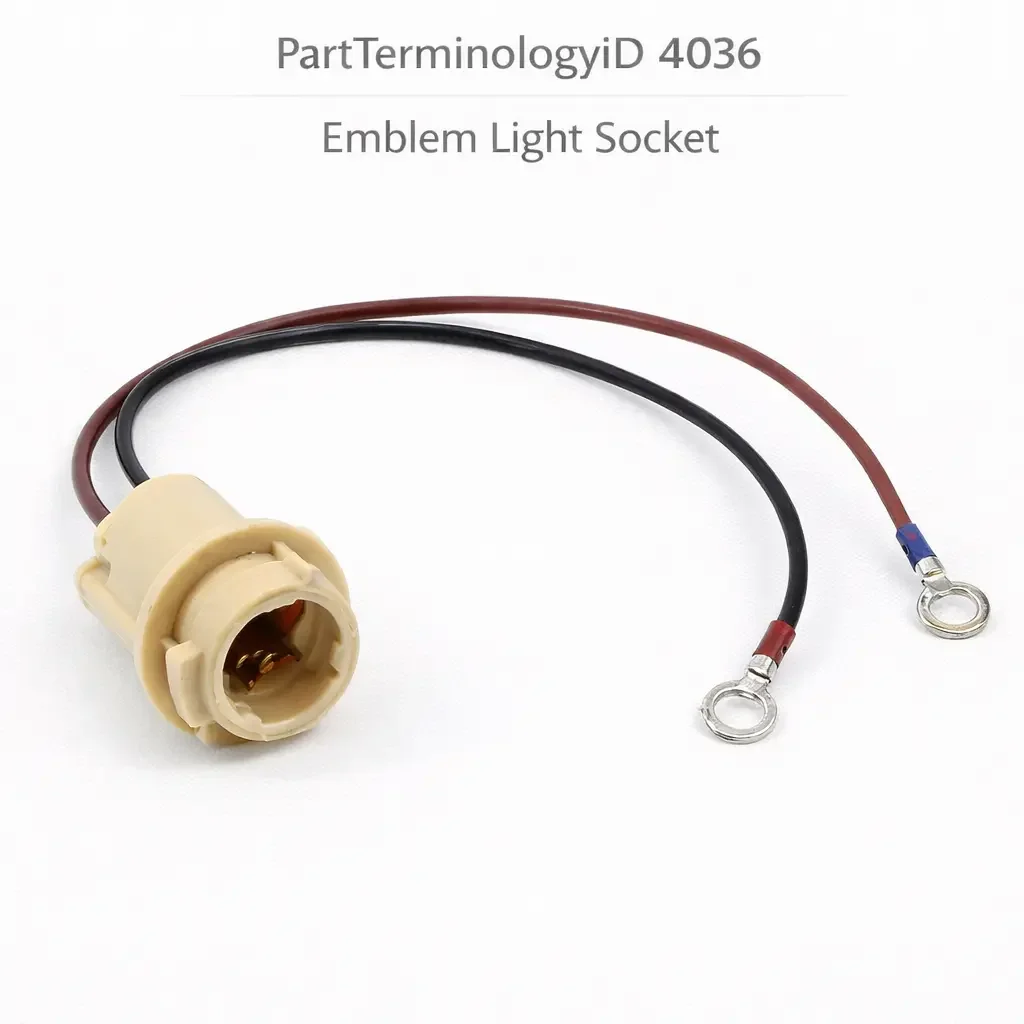

PartTerminologyID 4036, Emblem Light Socket, is the bulb socket that provides illumination to a vehicle nameplate, badge, or emblem mounted on the exterior body, receiving switched power from the parking lamp or instrument panel lighting circuit to backlight or edge-light the emblem when the vehicle lighting is active. That definition covers the emblem light socket function correctly and leaves unresolved whether the socket illuminates the emblem from behind through a translucent emblem panel, from the side through a light-pipe or fiber optic edge-lighting element within the emblem housing, or from a position below or above the emblem that directs light onto the emblem surface, the bulb base type and wattage the socket accepts, whether the emblem light circuit is switched by the parking lamp circuit and activates when the parking lamps or headlamps are turned on, or is switched by the ignition-accessory circuit and activates whenever the ignition is on, whether the socket is mounted in a discrete socket housing within the emblem assembly or in a body panel socket position adjacent to the emblem, and whether the emblem light socket is a discrete replaceable component or is integrated into the emblem assembly itself requiring full emblem replacement to address a lighting fault.

For sellers, PartTerminologyID 4036 is the emblem light socket where the parking lamp switching condition is the most return-generating attribute, because the emblem light circuit on most applications is switched by the parking lamp circuit and activates only when the parking lamps or headlamps are on. A buyer who tests emblem light function in daylight with the ignition on but headlamps off will find no emblem illumination on a correctly functioning parking-lamp-switched socket. The buyer may conclude the socket has failed when it is correctly inactive under the test condition. Socket replacement produces the same result under the same test condition and generates a return.

What the Emblem Light Socket Does

Parking lamp switching versus ignition switching

Emblem light sockets on the majority of applications are switched by the parking lamp circuit, connecting them to the same supply that activates the instrument panel backlighting, tail lights, and marker lights when the headlamp switch is turned to the parking or headlamp position. The emblem illumination activates with the exterior lighting and deactivates when the headlamp switch is turned off. Testing the emblem light requires the headlamp switch to be in the parking lamp or headlamp position regardless of ignition state.

On a smaller number of applications the emblem light is switched by the ignition-accessory circuit and illuminates whenever the ignition is on at any time of day. These applications are less common and are typically found on vehicles where the emblem illumination is considered a branding feature that the manufacturer wants visible during daylight operation. Identifying the switching architecture in the listing is mandatory so buyers confirm the correct test condition before diagnosing a socket fault.

Emblem assembly integration and the discrete socket question

Emblem light sockets on many applications are integrated into the emblem assembly itself and are not individually replaceable without emblem replacement. A failed socket on an integrated emblem assembly requires the complete emblem to be replaced rather than a discrete socket swap. Buyers who order a discrete socket under PartTerminologyID 4036 for an integrated emblem assembly application will receive a part with no installation path on their vehicle.

On applications where the socket is discrete and replaceable, the socket is typically accessed from behind the body panel through a cutout behind the emblem mounting position, or through a small access opening in the emblem housing. The socket twists or clips into the housing and can be replaced without removing the emblem from the vehicle in most cases. The listing must identify whether the socket is discrete and replaceable or integrated into the emblem assembly before a buyer can determine whether this part number addresses their fault.

Why This Part Generates Returns

Buyers return emblem light sockets because the parking lamp circuit is inactive and the socket correctly receives no supply voltage during daylight testing without the headlamps on, the emblem light bulb has failed and the socket is undamaged so a bulb replacement is the correct repair, the socket is integrated into the emblem assembly and the ordered discrete socket has no installation point, and the instrument panel dimmer has been set to minimum reducing the parking lamp circuit supply voltage to near zero producing no visible emblem illumination from a functioning socket.

Status in New Databases

PartTerminologyID 4036 is cataloged in PIES/PCdb as Emblem Light Socket. Under PIES 8.0 and PCdb 2.0 there is no change to the terminology or classification for this PartTerminologyID.

Top Return Scenarios

Scenario 1: "Parking lamp circuit inactive, buyer tests without headlamps, no illumination misdiagnosed as socket fault"

The buyer notices the emblem does not illuminate and tests with the ignition on and headlamps off during daytime. The parking lamp-switched socket receives no supply voltage without the headlamps active. The buyer replaces the socket. Testing continues without the headlamps on. No change.

Prevention language: "Switching circuit: On this application the emblem light socket is switched by the parking lamp circuit and illuminates only when the headlamps or parking lamps are active. No emblem illumination with the ignition on and headlamps off is correct operation. Confirm the socket is tested with the parking lamps or headlamps active before diagnosing a socket fault."

Scenario 2: "Failed emblem bulb, functional socket, socket returned after bulb replacement resolves dark emblem"

The emblem does not illuminate with the headlamps on. The socket is undamaged and seated correctly. The small wedge or festoon bulb has a failed filament. The buyer replaces the socket. The emblem illuminates. The buyer returns the original socket as defective when the bulb was the failed component.

Prevention language: "Bulb pre-check: Remove the emblem light socket and inspect the bulb filament before replacing the socket. Replace the bulb first if the filament is broken. A bulb replacement resolves a dark emblem at lower cost than socket replacement on applications where the bulb is separately replaceable."

Scenario 3: "Integrated emblem assembly, no discrete socket, ordered part has no installation point"

The buyer's emblem does not illuminate. The emblem assembly on this vehicle integrates the lighting circuit into the emblem housing with no discrete replaceable socket. The buyer orders a socket under PartTerminologyID 4036. No installation point exists. The buyer returns it as incorrect.

Prevention language: "Integrated assembly note: On some applications the emblem light circuit is integrated into the emblem assembly with no discrete replaceable socket. If your emblem assembly does not have a removable socket position, this PartTerminologyID does not apply. A dark emblem on an integrated assembly application requires emblem assembly replacement."

Listing Requirements

• PartTerminologyID: 4036

• Socket architecture: discrete replaceable or integrated emblem assembly (mandatory)

• Switching circuit: parking lamp-switched or ignition-accessory-switched (mandatory)

• Bulb base type and wattage specification (mandatory)

• Parking lamp switching test condition note (mandatory)

• Bulb pre-check note (mandatory)

• Integrated assembly note where applicable (mandatory)

• OEM part number cross-reference (mandatory)

Catalog Checklist for ACES/PIES Teams

• PartTerminologyID = 4036

• Require socket architecture: discrete or integrated (mandatory)

• Require switching circuit identification (mandatory)

• Require bulb base type and specification (mandatory)

• Prevent parking lamp switching misdiagnosis: socket inactive without headlamps is correct operation; switching circuit and correct test condition must be identified

• Prevent integrated assembly return: no discrete socket installation point on integrated emblem assemblies; architecture must be identified before order

• Prevent bulb-only repair socket return: failed bulb in functional socket resolved by bulb replacement; bulb inspection must precede socket diagnosis

FAQ (Buyer Language)

Why does my emblem not light up when I start the car?

The emblem light on most applications is switched by the parking lamp circuit and illuminates only when the headlamps or parking lamps are active, not simply when the ignition is on. Turn on the headlamps and confirm whether the emblem illuminates before diagnosing a socket fault.

How do I check if the socket is receiving power?

With the headlamps or parking lamps active, probe the supply terminal of the emblem light socket connector with a test light. Voltage at the supply terminal with no emblem illumination points to a failed bulb or failed socket contact. No voltage with the headlamps on indicates a supply circuit fault upstream of the socket.

My vehicle has an illuminated emblem but I cannot find a removable socket. What does that mean?

Some emblem assemblies integrate the lighting circuit directly into the emblem housing with no discrete removable socket. On these applications the emblem assembly is the service unit and a dark emblem requires emblem replacement rather than a socket swap. Confirm your emblem has a removable socket before ordering under this PartTerminologyID.

What Sellers Get Wrong About PartTerminologyID 4036

The most common error is omitting the parking lamp switching circuit identification. An emblem light socket that illuminates only with the headlamps on is correctly functioning and will produce no illumination under daylight testing without the headlamps active. Without the switching circuit note buyers test under incorrect conditions, order a replacement socket, and find the same result under the same test condition. A single sentence identifying the switching architecture and the correct test condition prevents this return entirely.

The second error is omitting the integrated assembly note. A meaningful share of current emblem assemblies have no discrete replaceable socket. Without the architecture note buyers order a discrete socket that has no installation point and return it as incorrect. Confirming the socket architecture before the order is placed is the only prevention for this return.

The third error is omitting the bulb pre-check. Emblem light bulbs are small, low-wattage components that fail more frequently than the socket housing. A bulb replacement resolves the dark emblem in the majority of cases where the socket itself is undamaged.

Cross-Sell Logic

Emblem Light Bulb: for buyers where the socket is confirmed functional and supply voltage is present at the terminal with the headlamps active but the emblem does not illuminate, indicating a failed bulb filament is the correct repair.

Emblem Assembly: for buyers on integrated assembly applications where no discrete socket exists, and for buyers where the emblem housing itself is damaged and cannot retain the socket in correct contact position.

Parking Lamp Switch or Headlamp Switch: for buyers where no supply voltage is present at the emblem socket terminal with the headlamps active and the fault traces to the parking lamp supply circuit rather than the socket.

Final Take for PartTerminologyID 4036

Emblem Light Socket (PartTerminologyID 4036) is the exterior branding illumination component where parking lamp switching disclosure, integrated assembly identification, and bulb pre-check are the three attributes that prevent the three most common return scenarios. Every listing without switching circuit disclosure generates returns from buyers who tested under incorrect conditions. Every listing without integrated assembly identification generates returns from buyers with no socket installation point. Every listing without bulb pre-check generates returns from buyers who replaced a functional socket when a bulb was the correct repair.

Together these three attributes make every listing under this PartTerminologyID complete.
