Back Up Light Socket (PartTerminologyID 4004): Where Reverse Switch Signal Validation and Bulb Pre-Check Prevent Socket Replacement

Written by Arthur Simitian | PartsAdvisory

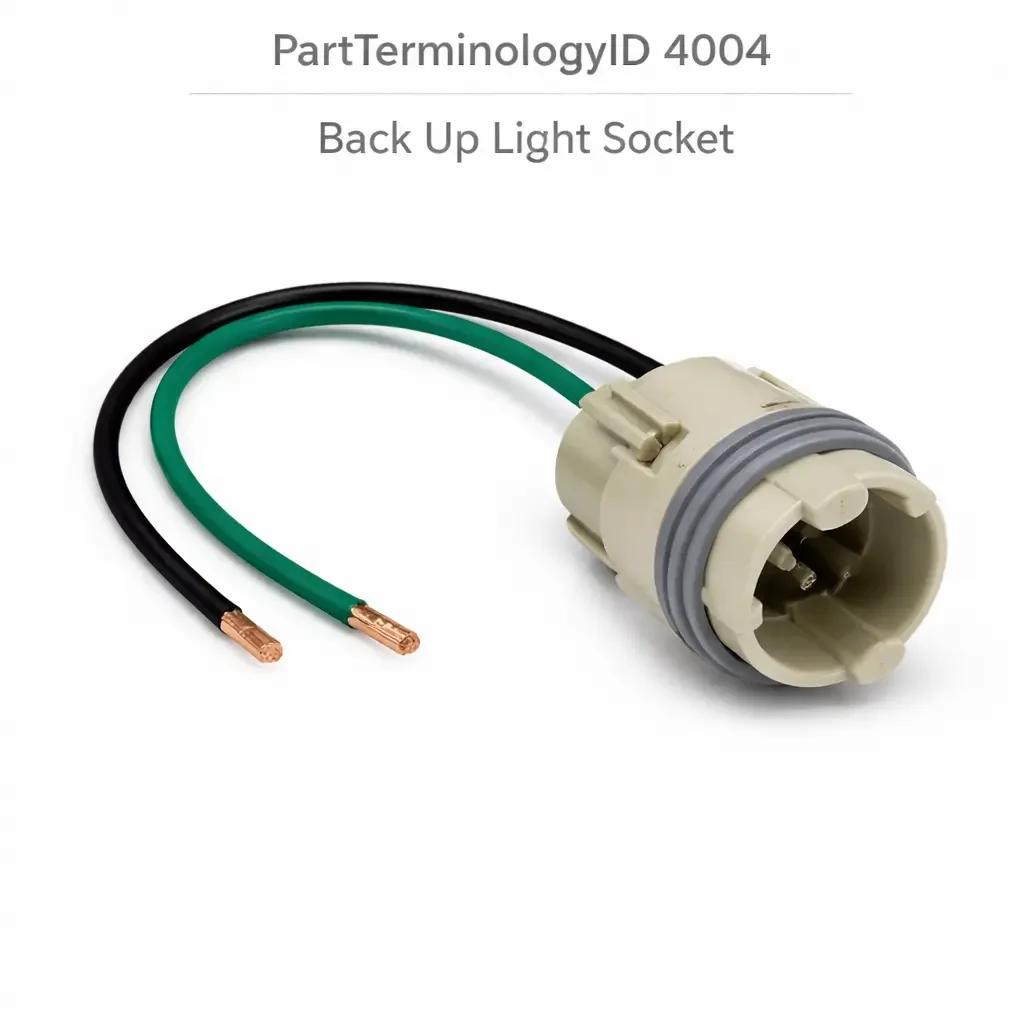

PartTerminologyID 4004, Back Up Light Socket, is the bulb socket that holds the reverse illumination bulb in the tail lamp assembly, receiving switched power from the backup light circuit when the transmission is placed in reverse and delivering current to the bulb to illuminate the area behind the vehicle. That definition covers the backup light socket function correctly and leaves unresolved whether the socket is a discrete replaceable component that clips or twists into the tail lamp housing or is integrated into a tail lamp assembly that requires full assembly replacement to address a socket fault, whether the socket accepts a single-filament bulb or a dual-filament bulb that serves both the backup light and an additional tail or stop function on a combined-circuit application, the bulb base type the socket accepts including wedge, bayonet, or festoon, whether the backup light circuit on this vehicle is switched by a mechanical reverse switch on the transmission, a transmission range sensor output, or a BCM output that interprets the gear selector position signal, and whether a failed backup light socket on this vehicle will trigger a BCM outage warning or produce a fault code in the transmission or body system modules due to the loss of expected current draw in the backup light circuit.

For sellers, PartTerminologyID 4004 is the backup light socket where the reverse switch or transmission range sensor validation is the most return-generating attribute, because the backup light socket receives power only when the reverse circuit is active and a socket that appears non-functional during testing may be correctly receiving no power due to a failed reverse switch, a failed transmission range sensor output for the reverse position, or a BCM output driver fault rather than a failed socket. A buyer who tests the backup light in a parked vehicle with the shifter in reverse and finds no illumination has either a failed socket, a failed bulb, a failed reverse switch, or an open circuit in the backup light wiring, all of which produce identical no-light symptoms at the socket without signal path isolation.

What the Back Up Light Socket Does

Mechanical reverse switch versus transmission range sensor activation

On manual transmission vehicles and older automatic transmission vehicles a dedicated mechanical reverse switch mounted on the transmission or gearbox closes when reverse gear is engaged, completing the backup light circuit. This switch is the only component between the fuse and the backup light socket in the activation chain. A failed mechanical reverse switch produces no backup light activation regardless of socket condition. A buyer who tests for switched voltage at the backup light socket terminals with the vehicle in reverse and finds no voltage has a reverse switch fault or wiring fault upstream of the socket rather than a socket fault.

On current automatic transmission vehicles the transmission range sensor generates a position signal that the PCM or BCM interprets to activate the backup light circuit output. The backup light socket receives power from a BCM or PCM output rather than directly from a mechanical switch. A failed transmission range sensor, a failed BCM output driver for the backup light circuit, or a range sensor calibration fault that does not register the reverse position can each produce no backup light activation with a functional socket. The listing must identify the activation architecture so buyers probe the correct point in the supply chain before diagnosing the socket.

Single-filament versus dual-filament socket and the combined circuit application

Most backup light applications use a single-filament bulb dedicated to reverse illumination only. The socket on these applications has two terminals, one for switched power from the reverse circuit and one for ground. A failed socket contact on a single-filament application produces a dark backup light only and does not affect any other lighting function.

Some vehicles use a dual-filament bulb in the backup light socket where one filament handles reverse illumination and a second filament handles an additional function such as a combined reverse and fog light application or a combined reverse and rear position light application. On these applications a failed socket that shorts the two filament circuits together can activate one filament function when the other is commanded, producing unexpected lighting behavior that the buyer may not associate with a socket fault. A dual-filament socket with a failed contact on the reverse filament circuit produces a dark backup light while the secondary filament function continues to operate, which may lead the buyer to conclude the socket is partially functional rather than identifying the reverse circuit contact as the specific fault.

Why This Part Generates Returns

Buyers return backup light sockets because the reverse switch or transmission range sensor has failed and the socket correctly receives no switched power in the reverse position, the bulb in the existing socket has a failed filament and the socket itself is undamaged so the correct repair is a bulb replacement rather than a socket replacement, the socket is an integrated component of the tail lamp assembly on this vehicle and a discrete replaceable socket does not exist for this application, the backup light wiring has a corroded or open-circuit connector between the reverse switch and the socket that prevents voltage delivery regardless of socket condition, and the tail lamp assembly housing retaining feature that holds the socket in position has broken causing intermittent contact that the buyer attributes to a failed socket rather than a housing seating fault.

Status in New Databases

PartTerminologyID 4004 is cataloged in PIES/PCdb as Back Up Light Socket. Under PIES 8.0 and PCdb 2.0 there is no change to the terminology or classification for this PartTerminologyID.

Top Return Scenarios

Scenario 1: "Failed reverse switch, no switched voltage at socket, socket replaced with no change"

The buyer's backup lights do not illuminate when reverse is engaged. The mechanical reverse switch on the transmission has failed open. No switched voltage is present at the backup light socket terminals with the vehicle in reverse. The buyer replaces the socket. The reverse switch fault remains. The replacement socket also receives no switched voltage. No change in backup light behavior.

Prevention language: "Reverse switch validation: Confirm switched voltage is present at the backup light socket supply terminal with the vehicle in reverse before replacing the socket. No voltage at the socket terminal with the vehicle in reverse indicates a failed reverse switch, a failed transmission range sensor reverse output, or an open circuit in the backup light supply wiring rather than a socket fault. A socket that receives no supply voltage is functioning correctly."

Scenario 2: "Failed bulb filament, functional socket, socket returned after bulb replacement resolves dark light"

The backup light is dark. The socket is undamaged and seated correctly in the tail lamp housing. The single-filament bulb has a failed filament. The buyer replaces the socket assembly. The backup light illuminates. The buyer returns the original socket as defective when the bulb was the failed component throughout.

Prevention language: "Bulb pre-check: Remove the socket from the tail lamp housing and inspect the bulb filament for failure before replacing the socket. A failed bulb filament is visible as a broken wire inside the bulb glass. On applications where the bulb is separately replaceable, a bulb-only replacement resolves a dark backup light at lower cost. Confirm the bulb has failed before ordering a socket replacement."

Scenario 3: "Integrated tail lamp assembly, no discrete socket, ordered part has no installation point"

The buyer's backup light is dark. The tail lamp assembly on this vehicle integrates the backup light circuit into a sealed LED assembly or a printed circuit board with no discrete replaceable socket. The buyer orders a socket under PartTerminologyID 4004. The socket has no installation point on the vehicle. The buyer returns it as incorrect for the application.

Prevention language: "Integrated assembly note: On some applications the backup light circuit is integrated into a sealed tail lamp assembly or LED board with no discrete replaceable bulb socket. If your tail lamp assembly does not have a removable socket, this PartTerminologyID does not apply to your vehicle. A dark backup light on an integrated assembly application requires tail lamp assembly replacement rather than socket replacement."

Scenario 4: "Corroded supply wiring connector, no voltage at socket, socket replaced with no change"

The wiring connector between the reverse switch and the backup light socket has a corroded terminal that presents an open circuit. No switched voltage reaches the socket in reverse. The buyer replaces the socket. The corroded connector remains in the supply wiring. The replacement socket also receives no voltage through the corroded connector. No change in backup light behavior.

Prevention language: "Supply wiring continuity check: Confirm switched voltage is present at the socket supply terminal with the vehicle in reverse, not only at the reverse switch output. A corroded or open-circuit connector between the reverse switch and the socket will prevent voltage delivery to the socket regardless of socket condition. Inspect the supply wiring and connectors before replacing the socket on a no-voltage complaint."

Listing Requirements

• PartTerminologyID: 4004

• Socket architecture: discrete replaceable or integrated assembly (mandatory)

• Bulb base type: wedge, bayonet, or festoon (mandatory)

• Filament type: single-filament or dual-filament combined circuit (mandatory)

• Bulb voltage and wattage specification (mandatory)

• Activation architecture: mechanical reverse switch or range sensor or BCM output (mandatory)

• Reverse switch validation note (mandatory)

• Bulb pre-check note (mandatory)

• Integrated assembly note where applicable (mandatory)

• OEM part number cross-reference (mandatory)

Catalog Checklist for ACES/PIES Teams

• PartTerminologyID = 4004

• Require socket architecture: discrete or integrated (mandatory)

• Require bulb base type and filament type (mandatory)

• Require activation architecture: mechanical switch, range sensor, or BCM (mandatory)

• Require reverse switch validation note (mandatory)

• Require bulb pre-check note (mandatory)

• Prevent no-voltage socket return: no switched voltage at socket terminal in reverse is a reverse switch or range sensor fault, not a socket fault; supply voltage validation is required before socket diagnosis

• Prevent bulb-only repair socket return: a failed bulb in a functional socket is resolved by bulb replacement; bulb inspection must precede socket replacement diagnosis

• Prevent integrated assembly return: applications without a discrete replaceable socket have no installation point; integrated assembly architecture must be identified to prevent orders on non-applicable vehicles

FAQ (Buyer Language)

How do I confirm the backup light socket is receiving power before replacing it?

Place the vehicle in reverse with the ignition on. Using a test light or multimeter, probe the supply terminal of the backup light socket connector. A functioning supply circuit will show battery voltage at the supply terminal. No voltage indicates a reverse switch fault, transmission range sensor fault, or open circuit in the supply wiring upstream of the socket rather than a socket fault.

Should I replace the socket or the bulb first?

Remove the socket from the tail lamp housing and inspect the bulb filament. A visible broken wire inside the bulb glass confirms a failed filament. Replace the bulb first. If the bulb is intact and the backup light is still dark with confirmed supply voltage at the socket terminal, the socket contact is the next diagnostic step.

How do I know if my vehicle has a discrete replaceable socket or an integrated assembly?

Access the back of the tail lamp assembly by opening the trunk or tailgate. A discrete replaceable socket will be visible as a separate component that twists or pulls out of the housing with a bulb inside. A sealed assembly or a printed circuit board with no removable socket indicates an integrated design where this PartTerminologyID does not apply.

My backup lights worked before but stopped after I replaced the tail lamp bulb. What happened?

A bulb replacement that results in lost backup light function typically indicates the wrong bulb base type was installed, the replacement bulb filament is open, or the socket contact was damaged during the bulb replacement. Confirm the replacement bulb is the correct base type and wattage specification for the socket, inspect the socket terminals for bent or pushed-back contacts, and confirm the bulb seats fully before diagnosing a socket fault.

Can a transmission range sensor fault cause the backup lights to stop working?

Yes on automatic transmission vehicles where the backup light circuit is activated by a PCM or BCM output based on the transmission range sensor reverse position signal. A range sensor that does not register the reverse position will prevent backup light activation regardless of socket or bulb condition. Simultaneous loss of backup lights and a reverse gear engagement fault code or no reverse indication in the instrument cluster points to the range sensor rather than the socket.

What Sellers Get Wrong About PartTerminologyID 4004

The most common error is omitting the reverse switch validation note. The backup light socket receives supply voltage only when the reverse circuit is active. A buyer who finds no voltage at the socket terminal with the vehicle in reverse has a reverse switch, range sensor, or wiring fault rather than a socket fault in the majority of cases. Without the reverse switch validation note buyers replace the socket and find no change because the supply circuit fault remains. The listing that directs buyers to confirm supply voltage at the socket terminal before diagnosing the socket prevents this return and redirects the buyer to the actual fault source.

The second error is omitting the bulb pre-check note. A failed bulb filament is the most common cause of a dark backup light and the socket is undamaged in the majority of cases. A listing that directs buyers to inspect the bulb before ordering a socket converts a socket return into a bulb order that is both the correct repair and the lower-cost solution.

The third error is omitting the integrated assembly note. Current-generation tail lamp assemblies on a growing share of vehicles integrate the backup light circuit into a sealed LED assembly with no discrete socket. Without the integrated assembly note buyers on these vehicles order a socket that has no installation point and return it as incorrect for the application.

Cross-Sell Logic

Backup Light Bulb: for buyers where socket inspection confirms the socket is undamaged, supply voltage is confirmed at the socket terminal in reverse, but the backup light is dark, indicating a failed bulb filament is the correct and lower-cost repair rather than socket replacement.

Reverse Switch: for buyers on manual transmission or older automatic transmission vehicles where no supply voltage is present at the socket terminal in reverse and the fault traces to a failed mechanical reverse switch rather than a socket or wiring fault.

Transmission Range Sensor: for buyers on current automatic transmission vehicles where no supply voltage is present at the backup light socket in reverse and simultaneous loss of reverse indication or a range sensor fault code confirms the range sensor reverse output is the fault source.

Tail Lamp Assembly: for buyers on integrated assembly applications where no discrete replaceable socket exists and a dark backup light requires tail lamp assembly replacement, and for buyers where the tail lamp housing socket retaining feature is broken and cannot be repaired independently of the housing.

BCM: for buyers where supply voltage is absent at the backup light socket in reverse, the transmission range sensor is confirmed registering the reverse position correctly, and the fault traces to a BCM output driver fault for the backup light circuit.

Why Catalog Data Quality Matters for PartTerminologyID 4004

Backup light socket returns cluster around three scenarios that are fully preventable with listing language: the reverse switch validation return, the bulb-only repair misdirection, and the integrated assembly mismatch. The reverse switch validation return generates returns because the buyer replaced a socket that was correctly receiving no voltage due to a supply circuit fault. The bulb-only repair misdirection generates returns because the buyer replaced a functional socket when a bulb replacement was the correct and sufficient repair. The integrated assembly mismatch generates returns because the buyer ordered a discrete socket for a vehicle with an integrated LED tail lamp assembly that has no socket installation point.

None of these scenarios reflect a product defect. All three reflect missing listing information. The reverse switch validation note, the bulb pre-check note, and the integrated assembly note together address the three scenarios that account for the majority of returns under this PartTerminologyID. Each attribute requires one to two sentences in the listing and all three are absent in most aftermarket listings for this PartTerminologyID.

Application Range and Fitment Guidance for PartTerminologyID 4004

Backup light socket applications span vehicles from the early 1960s when backup lights became standard safety equipment through the present. Early applications used simple mechanical reverse switch circuits with direct bulb socket wiring and no module intermediary, making the reverse switch and socket the complete diagnostic chain. Applications from the mid-1990s onward increasingly route backup light activation through the transmission range sensor and PCM or BCM, adding module outputs and range sensor signals to the diagnostic chain that earlier applications did not include.

The transition from discrete replaceable sockets to integrated tail lamp assemblies accelerated from approximately 2010 onward as LED tail lamp assemblies replaced incandescent assemblies across most vehicle platforms. Applications from 2015 onward are more likely to use integrated LED assemblies than discrete socket designs, and fitment claims under PartTerminologyID 4004 for recent model year vehicles require confirmation that the specific application retains a discrete socket.

Bulb base type varies significantly across the application range. Domestic vehicles from the 1980s and 1990s commonly used 1156 single-contact bayonet base bulbs in backup light sockets. European vehicles of the same era frequently used W21W wedge base bulbs. Compact and mid-size vehicles from the 2000s onward used a wider variety of wedge and bayonet base types depending on tail lamp assembly design. Bulb base type is a mandatory fitment attribute that must be specified per application to prevent a socket with the wrong base type being ordered.

Final Take for PartTerminologyID 4004

Back Up Light Socket (PartTerminologyID 4004) is the reverse illumination component where reverse switch validation, bulb pre-check, and integrated assembly identification are the three attributes that prevent the three most common return scenarios. Every listing without reverse switch validation sends buyers through a socket replacement that changes nothing because the supply voltage fault remains. Every listing without bulb pre-check guidance generates returns from buyers who replaced a functional socket when a bulb replacement was the correct repair. Every listing without the integrated assembly note generates returns from buyers on LED tail lamp assembly vehicles with no discrete socket installation point.

The reverse switch validation note and the bulb pre-check note together address the two scenarios that account for the largest share of returns under this PartTerminologyID. Supply circuit misdiagnosis generates the frustrated-buyer return where the socket was functional and nothing changed. Bulb misdirection generates the over-repair return where a lower-cost component was the actual failed part. Adding both notes to the listing converts both return scenarios into either correct supply circuit diagnosis or correct bulb orders rather than socket returns.

Integrated assembly identification and supply wiring continuity check complete the set of attributes that ensure every buyer under this PartTerminologyID has the diagnostic information needed to confirm a socket fault before the order is placed.

Together with reverse switch validation and bulb pre-check, these four attributes make every listing under this PartTerminologyID complete.
