Automatic Transmission Indicator Light Socket (PartTerminologyID 4000): Where Gear Position Illumination Architecture and Bulb Specification Prevent Socket Replacement

Written by Arthur Simitian | PartsAdvisory

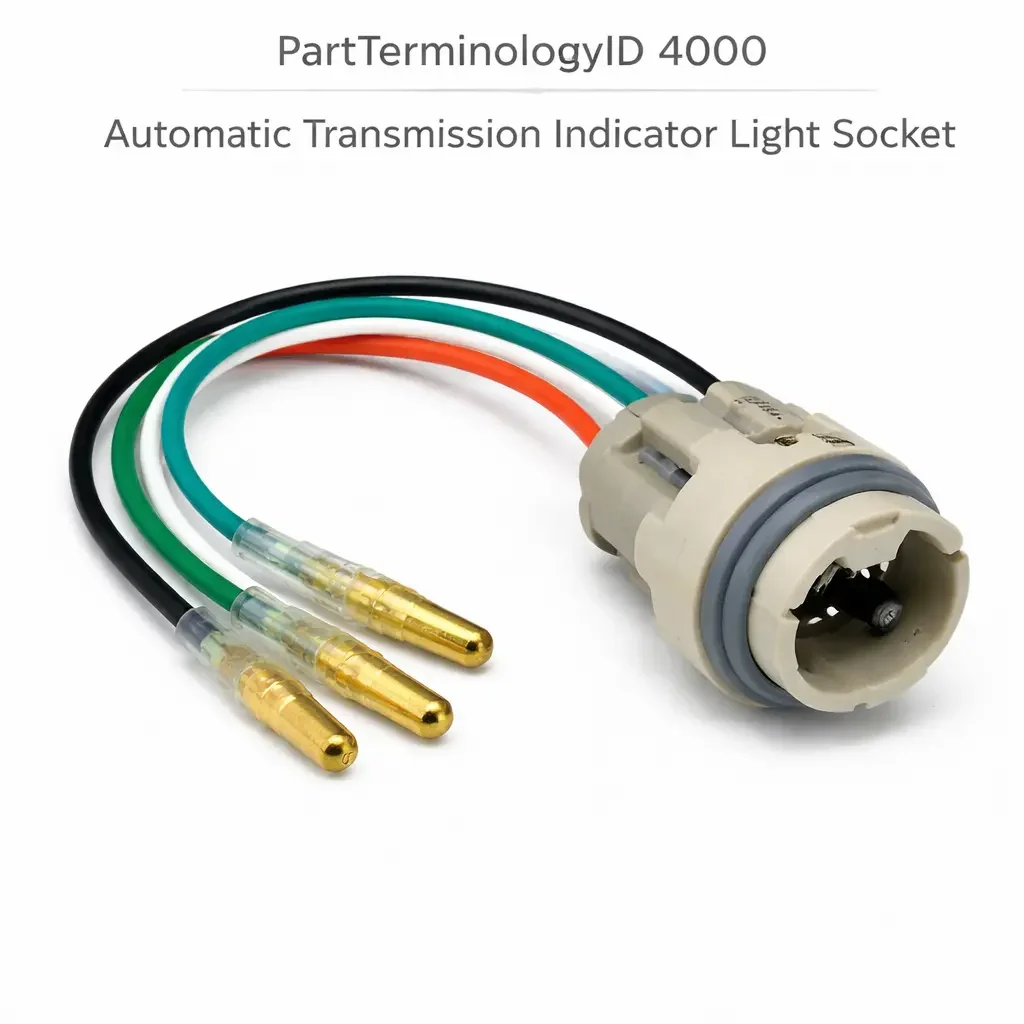

PartTerminologyID 4000, Automatic Transmission Indicator Light Socket, is the bulb socket that holds the illumination bulb for the automatic transmission gear position indicator, providing backlighting or direct illumination for the PRNDL display on the instrument panel, center console shifter bezel, or floor-mounted shifter assembly. That definition covers the gear position indicator socket function correctly and leaves unresolved whether the socket illuminates a backlit lens that displays all gear positions simultaneously with a single bulb, a discrete indicator that illuminates only the currently selected gear position through a separate switched circuit, or a fiber optic illumination system where the socket holds a single light source that distributes illumination to multiple gear position display points through fiber strands, whether the socket accepts a wedge-base bulb, a bayonet-base bulb, or a festoon bulb, the voltage and wattage rating of the bulb the socket is designed to accept, whether the socket is a discrete replaceable component that clips or threads into the shifter bezel housing or is integrated into a shifter assembly that requires full assembly replacement to address a socket fault, and whether the gear position indicator circuit is switched by the ignition to illuminate only when the vehicle is on or is permanently illuminated whenever the instrument cluster backlighting is active.

For sellers, PartTerminologyID 4000 is the transmission indicator light socket where the integrated versus discrete socket architecture is the most return-generating attribute, because a significant share of shifter assemblies on current-generation vehicles integrate the gear position indicator lighting into the shifter assembly printed circuit board or LED strip rather than using a discrete replaceable bulb socket. A buyer who orders a replacement socket under PartTerminologyID 4000 for a vehicle whose shifter assembly uses an integrated LED illumination circuit will receive a part that has no installation point on their vehicle. The listing must identify whether the vehicle application uses a discrete replaceable socket or an integrated LED assembly before the buyer can determine whether a socket replacement is the correct repair path.

What the Automatic Transmission Indicator Light Socket Does

Backlit lens versus discrete position indicator and the single-bulb versus multi-socket architecture

Backlit PRNDL displays use one or two bulb sockets to illuminate a translucent lens that shows all gear positions simultaneously. The bulb behind the lens illuminates the entire display and the currently selected gear position is indicated by a mechanical pointer or by a separately switched position indicator light in front of the backlit lens. On these applications the socket under PartTerminologyID 4000 is the backlit lens illumination socket, not the position indicator socket, and a failed socket produces a dark PRNDL display rather than a missing position indicator light.

Discrete position indicator displays use a separate illuminated indicator for each gear position. Each position has its own socket and bulb that illuminates when that gear is selected through a switched circuit from the transmission range sensor or neutral safety switch. On these applications a single failed socket produces a dark indicator for one specific gear position while all other positions illuminate correctly. A buyer whose P indicator does not illuminate but whose R, N, D, and L indicators illuminate correctly has a single failed socket for the P position rather than a complete display assembly fault.

Fiber optic illumination systems use a single socket and bulb as the light source, with plastic fiber strands distributing light to each gear position indicator point. On these applications the socket is the only replaceable lighting component and a failed socket or bulb produces a completely dark PRNDL display across all positions simultaneously. The fiber strands themselves do not fail as frequently as the bulb, so a complete display outage on a fiber optic system points to the socket or bulb rather than the fiber strand network.

Ignition-switched versus panel lighting-switched illumination circuits

Transmission indicator sockets on some vehicles are switched by the ignition circuit and illuminate whenever the ignition is in the run position regardless of whether the headlamps are on. On other vehicles the indicator socket is switched by the instrument panel lighting circuit and illuminates only when the panel backlighting is active, which typically requires the headlamps or parking lamps to be on. A buyer who cannot see the PRNDL display in daylight driving may have a panel lighting-switched socket that does not illuminate without the headlamps on rather than a failed socket.

A buyer who finds the PRNDL display dark only at night with the headlamps on has a socket fault on a panel lighting-switched application. A buyer whose PRNDL display is dark at all times including with the headlamps on has either a failed socket on either switching architecture or an open circuit in the socket supply wiring. Identifying the switching architecture in the listing allows buyers to confirm the correct conditions under which the socket should illuminate before diagnosing a fault.

Why This Part Generates Returns

Buyers return automatic transmission indicator light sockets because the vehicle uses an integrated LED shifter assembly illumination circuit with no discrete replaceable socket and the ordered part has no installation point, the bulb in the existing socket has failed and the socket itself is undamaged so the correct repair is a bulb replacement rather than a socket replacement, the socket is panel lighting-switched and the buyer has been testing socket function without the headlamps on, the socket is a discrete component but the shifter bezel retaining clip is broken and the socket cannot seat correctly in the housing causing intermittent illumination that the buyer attributes to a failed socket, and the transmission range sensor or neutral safety switch has failed and is not sending the gear position switched signal to the discrete position indicator sockets regardless of socket condition.

Status in New Databases

PartTerminologyID 4000 is cataloged in PIES/PCdb as Automatic Transmission Indicator Light Socket. Under PIES 8.0 and PCdb 2.0 there is no change to the terminology or classification for this PartTerminologyID.

Top Return Scenarios

Scenario 1: "Integrated LED shifter assembly, no discrete socket, ordered part has no installation point"

The buyer's PRNDL display is dark. The vehicle uses a shifter assembly with an integrated LED illumination strip on the printed circuit board. There is no discrete bulb socket in the shifter assembly. The buyer orders a replacement socket under PartTerminologyID 4000. The socket has no installation point. The buyer returns it as incorrect.

Prevention language: "Integrated LED architecture note: On some applications the gear position indicator illumination is provided by an integrated LED circuit on the shifter assembly printed circuit board rather than a discrete replaceable bulb socket. If your shifter assembly does not have a removable bulb socket, this PartTerminologyID does not apply to your vehicle. A dark PRNDL display on an integrated LED application requires shifter assembly or printed circuit board replacement rather than a socket replacement."

Scenario 2: "Failed bulb in functional socket, socket returned as defective after bulb-only replacement resolves issue"

The PRNDL display is dark. The socket is undamaged and seating correctly in the shifter bezel. The bulb filament has failed. The buyer replaces the socket assembly including the bulb. The display illuminates. The buyer then returns the original socket believing the socket was the failed component when the bulb alone was the fault. On applications where the socket and bulb are sold as separate components, a bulb-only replacement is the correct and lower-cost repair.

Prevention language: "Bulb pre-check: Before replacing the socket, remove the socket from the shifter bezel and inspect the bulb for a failed filament. On applications where the bulb is separately replaceable from the socket, a bulb-only replacement resolves a dark display at lower cost than full socket replacement. Confirm the bulb has failed before ordering a socket replacement."

Scenario 3: "Panel lighting-switched socket, buyer testing without headlamps, display dark in daylight diagnosed as socket fault"

The buyer cannot see the PRNDL display during daytime driving. The socket is panel lighting-switched and illuminates only when the instrument panel backlighting circuit is active, which requires the headlamps or parking lamps to be on. The buyer tests socket function with the ignition on and headlamps off and finds no illumination. The buyer orders a replacement socket. The replacement socket also does not illuminate with the headlamps off.

Prevention language: "Switching circuit note: On this application the transmission indicator socket is switched by the instrument panel lighting circuit and illuminates only when the headlamps or parking lamps are active. Testing socket function with the ignition on but headlamps off will show no illumination on a correctly functioning socket. Confirm the socket is being tested with the panel lighting circuit active before diagnosing a socket fault on a dark display complaint."

Scenario 4: "Broken bezel retaining clip, socket not seating, intermittent illumination misdiagnosed as socket fault"

The shifter bezel retaining clip that holds the socket in its housing has broken. The socket seats intermittently and loses contact when the shifter is moved. The PRNDL display illuminates inconsistently depending on socket contact. The buyer replaces the socket. The broken retaining clip remains. The replacement socket also seats intermittently in the broken clip housing. The intermittent display continues.

Prevention language: "Socket seating check: Before replacing the socket, confirm the socket seats fully and locks into its retaining clip in the shifter bezel housing. A broken or deformed retaining clip will prevent full socket seating and produce intermittent illumination regardless of socket condition. Inspect the bezel housing retaining clip before ordering a socket replacement on an intermittent display complaint."

Listing Requirements

• PartTerminologyID: 4000

• Display architecture: backlit lens, discrete position indicator, or fiber optic (mandatory)

• Socket architecture: discrete replaceable or integrated LED assembly (mandatory)

• Bulb base type: wedge, bayonet, or festoon (mandatory)

• Bulb voltage and wattage specification (mandatory)

• Switching circuit: ignition-switched or panel lighting-switched (mandatory)

• Bulb pre-check note (mandatory)

• Integrated LED architecture note where applicable (mandatory)

• OEM part number cross-reference (mandatory)

Catalog Checklist for ACES/PIES Teams

• PartTerminologyID = 4000

• Require display architecture: backlit, discrete, or fiber optic (mandatory)

• Require socket architecture: discrete replaceable or integrated LED (mandatory)

• Require bulb base type and specification (mandatory)

• Require switching circuit identification: ignition or panel lighting (mandatory)

• Prevent integrated LED architecture return: applications without a discrete replaceable socket have no installation point for this part; integrated LED architecture must be identified to prevent orders on non-applicable vehicles

• Prevent bulb-only repair socket return: a failed bulb in a functional socket is resolved by bulb replacement; bulb pre-check must precede socket diagnosis

• Prevent panel lighting switching misdiagnosis: socket that illuminates only with headlamps on is functioning correctly; switching circuit must be identified so buyers test under correct conditions

FAQ (Buyer Language)

How do I know if my vehicle has a discrete replaceable socket or an integrated LED display?

Remove the shifter bezel or access the back of the PRNDL display housing. A discrete replaceable socket will be visible as a separate component that twists or pulls out of the housing with a bulb inside. An integrated LED display will show a printed circuit board with surface-mounted LEDs and no removable socket. If no removable socket is present, PartTerminologyID 4000 does not apply to your vehicle.

My PRNDL display is dark. Should I replace the socket or the bulb?

Remove the socket from the housing and inspect the bulb filament first. A failed filament is visible as a broken wire inside the bulb glass. On applications where the bulb is sold separately from the socket, replace the bulb first. If the bulb is intact and the display is still dark, check for voltage at the socket terminals before ordering a socket replacement.

Why does my gear indicator only light up when I turn on my headlights?

Your vehicle uses a panel lighting-switched indicator socket that is connected to the instrument panel backlighting circuit rather than the ignition circuit. This is the designed behavior for this application. The display will not illuminate in daytime driving without the headlamps or parking lamps active. This is not a socket fault.

Only one gear position indicator is dark while the others work. What does that mean?

A single dark position indicator on a discrete position indicator display points to the socket or bulb for that specific gear position rather than a display assembly fault. Remove the socket for the dark position, inspect the bulb, and replace the bulb or socket for that position only. Confirm voltage is present at the socket terminals when that gear is selected before replacing the socket.

Can a bad transmission range sensor cause the gear position indicators to not illuminate?

Yes on discrete position indicator applications where each gear position indicator is switched by the transmission range sensor output for that gear position. A range sensor that does not send the switched signal for a specific gear position will produce a dark indicator for that position regardless of socket condition. If multiple position indicators are dark or the display behavior does not correspond to the actual selected gear, confirm the transmission range sensor output before diagnosing socket faults.

What Sellers Get Wrong About PartTerminologyID 4000

The most common error is omitting the integrated LED architecture note. A substantial portion of current-generation shifter assemblies do not use discrete replaceable bulb sockets and have no installation point for a part ordered under PartTerminologyID 4000. Without the integrated LED architecture note buyers on these vehicles order a socket, find no installation point, and return it as incorrect. A single sentence identifying the integrated LED architecture and directing buyers to confirm socket architecture before ordering prevents this return entirely.

The second error is omitting the bulb pre-check note. On the majority of dark PRNDL display complaints the socket itself is functional and the bulb filament has failed. A listing that directs buyers to inspect the bulb before ordering a socket converts a socket return into a bulb order, which is both the correct repair and the lower-cost solution for the buyer.

The third error is omitting the switching circuit identification. A panel lighting-switched socket that does not illuminate without the headlamps on is functioning correctly. Buyers who test socket function in daylight with the headlamps off and find no illumination order a replacement socket that behaves identically to the original under the same test conditions. The switching circuit identification prevents this return by giving buyers the correct test condition before they reach a fault diagnosis.

Cross-Sell Logic

Transmission Indicator Bulb: for buyers where socket inspection confirms the socket is undamaged and seating correctly but the bulb filament has failed, indicating a bulb-only replacement resolves the dark display at lower cost than full socket replacement.

Shifter Bezel Assembly: for buyers where the socket retaining clip in the shifter bezel housing is broken and cannot hold the socket in contact, producing intermittent illumination that requires bezel housing replacement rather than socket replacement to restore consistent contact.

Transmission Range Sensor: for buyers on discrete position indicator applications where specific gear position indicators are dark and socket inspection confirms functioning sockets and bulbs, indicating a range sensor output fault for the affected gear position is preventing the switched illumination signal from reaching the socket.

Shifter Assembly: for buyers on integrated LED applications where no discrete replaceable socket exists and a dark PRNDL display requires shifter assembly or printed circuit board replacement to restore illumination.

Instrument Cluster: for buyers where the panel lighting circuit that switches the indicator socket is confirmed inactive due to an instrument cluster backlighting fault rather than a headlamp or socket fault.

Why Catalog Data Quality Matters for PartTerminologyID 4000

Automatic transmission indicator light socket returns cluster around three scenarios that are fully preventable with listing language: the integrated LED architecture mismatch, the bulb-only repair misdirection, and the panel lighting switching misdiagnosis. The integrated LED architecture mismatch generates returns because the buyer ordered a discrete socket for a vehicle that uses an integrated LED assembly with no socket installation point. The bulb-only repair misdirection generates returns because the buyer replaced a functional socket when a bulb replacement was the correct and sufficient repair. The panel lighting switching misdiagnosis generates returns because the buyer tested socket function under incorrect conditions and concluded the socket was faulty when it was functioning correctly.

None of these scenarios reflect a product defect. All three reflect missing listing information. The integrated LED architecture note, the bulb pre-check note, and the switching circuit identification together address the three scenarios that account for the majority of returns under this PartTerminologyID. Each attribute requires one to two sentences in the listing and all three are absent in most aftermarket listings for this PartTerminologyID.

Application Range and Fitment Guidance for PartTerminologyID 4000

Automatic transmission indicator light socket applications are concentrated in vehicles produced from the early 1970s when floor-mounted automatic shifters with illuminated PRNDL displays became standard equipment through the mid-2010s when integrated LED shifter assemblies began displacing discrete bulb socket designs across most platforms. Domestic full-size trucks and passenger cars from the 1980s through the early 2000s represent the highest-volume application range for discrete replaceable sockets under this PartTerminologyID, as these platforms used consistent bulb socket designs across multiple model years.

The transition from discrete bulb socket to integrated LED illumination accelerated from approximately 2008 onward as shifter assembly designs incorporated printed circuit board lighting and eliminated individual replaceable sockets in favor of the complete assembly as the service unit. Applications from 2015 onward are predominantly integrated LED designs with no discrete replaceable socket, and fitment claims under PartTerminologyID 4000 for post-2015 vehicles require confirmation that the specific application retains a discrete socket architecture.

Column-mounted shifter applications on older domestic vehicles use a different socket location and housing than floor-mounted shifter applications on the same vehicle platform. Fitment claims must distinguish between column and floor shifter socket applications where both exist on the same vehicle to prevent a floor shifter socket being ordered for a column shifter application or vice versa.

Final Take for PartTerminologyID 4000

Automatic Transmission Indicator Light Socket (PartTerminologyID 4000) is the gear position display component where integrated LED architecture disclosure, bulb pre-check guidance, and switching circuit identification are the three attributes that prevent the three most common return scenarios. Every listing without integrated LED architecture disclosure generates returns from buyers on current-generation vehicles with no socket installation point. Every listing without bulb pre-check guidance generates returns from buyers who replaced a functional socket when a bulb replacement was the correct repair. Every listing without switching circuit identification generates returns from buyers who tested socket function under incorrect conditions and reached a false fault conclusion.

The integrated LED architecture note and the bulb pre-check note together address the two scenarios that account for the largest share of returns under this PartTerminologyID. Architecture mismatch generates the no-fit return where the part was correct in theory but inapplicable to the vehicle. Bulb misdirection generates the over-repair return where a lower-cost component was the actual failed part. Adding both notes to the listing converts both return scenarios into either a no-order outcome on non-applicable vehicles or a correct bulb order rather than a socket return.

Switching circuit identification and socket seating inspection complete the set of attributes that ensure every buyer under this PartTerminologyID has the diagnostic information needed to confirm a socket fault before the order is placed.

Together with integrated LED architecture disclosure and bulb pre-check, these four attributes make every listing under this PartTerminologyID complete.
