Windshield Washer Relay (PartTerminologyID 3952): Where Wiper Interlock Sequencing and Pump Motor Pre-Check Prevent Relay Replacement
Written by Arthur Simitian | PartsAdvisory

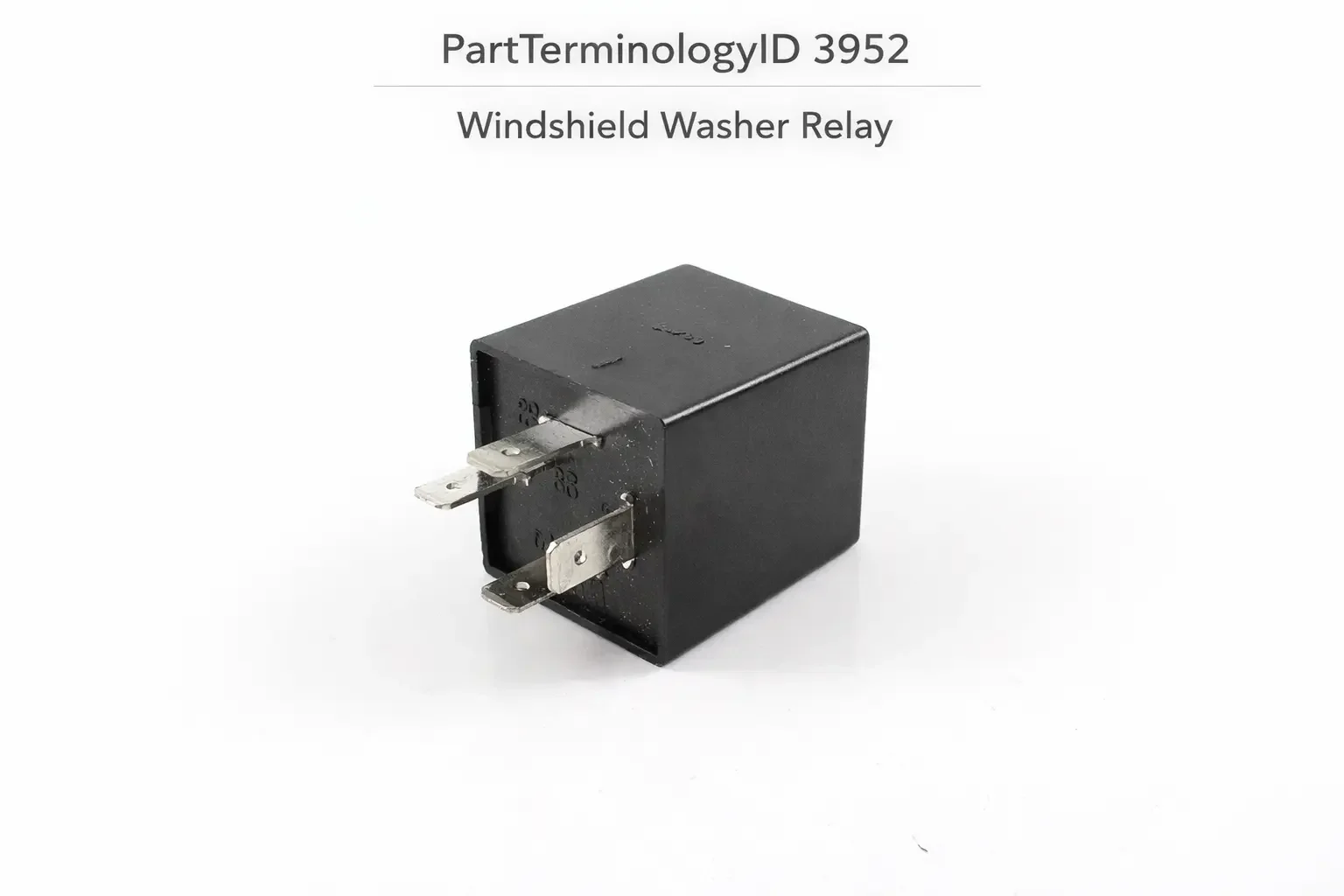

PartTerminologyID 3952, Windshield Washer Relay, is the relay that switches power to the windshield washer pump motor, enabling the wiper control module, BCM, or multifunction stalk switch to activate fluid delivery to the windshield when the driver pulls the wash stalk. That definition covers the windshield washer pump switching function correctly and leaves unresolved whether the relay is dedicated to the front windshield washer pump only or shares a contact with a rear window washer pump on the same relay output, the wiper interlock logic that sequences wiper blade activation with or immediately following pump activation on vehicles where the control module requires confirmed wiper operation before or during wash cycle authorization, whether the relay is activated by a direct stalk switch output or is commanded by the wiper control module or BCM as an intermediary between the stalk input and the pump circuit, the coil resistance tolerance that the control module or BCM driver output requires, whether the relay pulses briefly for a timed fluid burst or holds closed for the full duration of stalk engagement, and how this PartTerminologyID relates to PartTerminologyID 3936 Washer Pump Relay in applications where manufacturers catalog front windshield washer and general washer pump applications under separate terminology.
For sellers, PartTerminologyID 3952 is the windshield washer relay where the distinction between a direct stalk-switched relay and a BCM-commanded relay is the most return-generating architectural attribute, because buyers on BCM-commanded applications frequently replace the relay after finding the stalk switch produces no direct relay coil activation, not realizing the stalk input passes through the BCM before the BCM commands the relay. A stalk switch that is sending a valid input to the BCM but whose BCM output driver for the washer relay has failed will produce no relay coil activation regardless of stalk position. A stalk switch that has failed internally and sends no input to the BCM will also produce no relay coil activation. Both present identically at the relay socket and require different repairs. The listing must identify whether the relay is stalk-direct or BCM-commanded so buyers understand the activation path before diagnosing the relay.
What the Windshield Washer Relay Does
Direct stalk switch activation versus BCM-commanded activation
On direct stalk-switched applications the multifunction stalk switch supplies battery voltage directly to the relay coil when the wash position is engaged. The relay closes, activating the pump motor, for as long as the stalk is held in the wash position. Releasing the stalk de-energizes the relay coil and the contact opens, stopping the pump. Diagnosis on these applications is straightforward: stalk in wash position should produce coil voltage at the relay socket. No coil voltage with the stalk engaged indicates a stalk switch fault or an open circuit between the stalk and the relay coil terminal.
On BCM-commanded applications the stalk switch sends a signal input to the BCM. The BCM processes the input, applies any interlock conditions, and then commands the relay coil through a BCM output driver pin. The stalk switch does not directly supply the relay coil. A buyer who probes the relay coil terminal with the stalk engaged and finds no voltage may conclude the relay is not being commanded, when in fact the BCM output driver has failed while the stalk switch and relay are both functional. A buyer who replaces the relay on a BCM driver fault finds no change. The listing must identify the activation architecture so buyers probe the correct point in the activation chain.
Wiper interlock sequencing and the pump-only no-spray condition
Wiper interlock logic on windshield washer applications sequences pump activation with wiper blade movement to ensure fluid delivered to the windshield is immediately distributed and cleared by the wiper blades. On some implementations the wiper blades must be confirmed running before the BCM will authorize pump relay activation. On others the BCM activates the wiper motor and pump relay simultaneously and uses a timed delay to ensure the blades are moving before full pump output is delivered. On still others the interlock operates only during a combined wash-and-wipe stalk input and does not apply to pump-only activation modes.
A buyer whose washer pump does not spray during a combined wash-and-wipe stalk pull on an interlock-equipped vehicle has a wiper system fault that is blocking relay authorization rather than a relay fault. A buyer whose pump sprays correctly during a pump-only mode but not during a combined wash-and-wipe mode has an interlock condition that is specific to the combined mode rather than a relay fault that affects both modes equally. The listing must identify the interlock architecture and the modes it applies to so buyers can isolate whether the fault is in the wiper system or the washer relay circuit.
Why This Part Generates Returns
Buyers return windshield washer relays because the BCM output driver for the relay coil has failed and the relay correctly receives no activation signal despite a functional stalk switch, the washer pump motor has seized and draws locked-rotor current that welds the relay contact immediately after installation, the wiper interlock condition is unsatisfied due to a wiper park switch fault and the BCM will not authorize pump relay activation, the relay is correctly activating but the washer nozzle is blocked and no fluid reaches the windshield, and the stalk switch has an intermittent internal fault that produces intermittent relay coil activation that the buyer attributes to an intermittent relay rather than an intermittent stalk input.
Status in New Databases
PartTerminologyID 3952 is cataloged in PIES/PCdb as Windshield Washer Relay. Under PIES 8.0 and PCdb 2.0 there is no change to the terminology or classification for this PartTerminologyID.
Top Return Scenarios
Scenario 1: "BCM output driver fault, stalk input valid, relay coil receives no activation voltage"
The buyer's windshield washer does not spray when the stalk is pulled. The stalk switch is sending a valid wash input to the BCM. The BCM output driver pin for the washer relay coil has failed open internally. No coil activation voltage is present at the relay socket despite a confirmed stalk input. The buyer replaces the relay. The BCM driver fault remains. The replacement relay also receives no coil activation voltage. No change in washer behavior.
Prevention language: "BCM output driver validation: On this application the windshield washer relay coil is activated by a BCM output driver, not directly by the stalk switch. Confirm BCM output voltage is present at the relay coil terminal with the stalk engaged before replacing the relay. No coil voltage with a confirmed valid stalk input indicates a BCM output driver fault rather than a relay fault. Replacing the relay will not restore washer operation when the BCM driver is the fault source."
Scenario 2: "Seized pump motor, locked-rotor current welds relay contact at installation"
The windshield washer pump motor bearing has seized. When the relay closes on stalk or BCM command, the motor draws locked-rotor current through a contact rated for normal pump operation. The relay contact welds in the closed position. The pump runs continuously, draining the reservoir. The buyer returns the relay as defective. The seized pump motor must be replaced before any relay will survive the circuit.
Prevention language: "Pump motor pre-check: Before installing the replacement relay, apply direct 12-volt power to the washer pump motor terminals and confirm the motor runs freely and draws 2 to 5 amperes. A seized pump motor draws locked-rotor current that welds the replacement relay contact immediately. Replace a seized pump motor before installing a new relay."
Scenario 3: "Intermittent stalk switch fault, intermittent coil activation, misdiagnosed as intermittent relay"
The multifunction stalk switch has an intermittent internal contact fault. The wash stalk produces a coil activation signal on most pulls but fails to produce a signal on some pulls. The washer pump operates correctly most of the time but fails to spray intermittently. The buyer attributes the intermittent no-spray events to an intermittent relay contact rather than an intermittent stalk input. The replacement relay exhibits the same intermittent behavior because the stalk fault remains.
Prevention language: "Stalk switch input validation: Intermittent washer pump operation may reflect an intermittent stalk switch fault rather than an intermittent relay contact fault. Confirm coil activation voltage is consistently present at the relay socket on every stalk pull before replacing the relay. Intermittent coil voltage that corresponds to intermittent no-spray events indicates a stalk switch fault rather than a relay fault."
Scenario 4: "Wiper park switch fault, interlock unsatisfied, pump relay not authorized during wash-and-wipe mode"
The wiper motor park switch has an open-circuit fault. The BCM cannot confirm wiper blade position during a combined wash-and-wipe stalk input and will not authorize washer relay activation. The washer pump does not spray during the wash-and-wipe mode. The buyer replaces the washer relay. The park switch fault remains. The BCM interlock condition remains unsatisfied. No change in washer behavior during wash-and-wipe mode.
Prevention language: "Wiper interlock condition: On this application the BCM requires confirmed wiper blade operation through the park switch signal before authorizing washer relay activation during combined wash-and-wipe mode. A wiper motor park switch fault prevents the BCM from confirming blade position and blocks relay authorization. Confirm wiper park switch operation before diagnosing a washer relay fault on a no-spray complaint during wash-and-wipe mode."
Listing Requirements
PartTerminologyID: 3952
Activation architecture: direct stalk-switched or BCM-commanded (mandatory)
Wiper interlock condition and applicable modes (mandatory)
Pump architecture: front windshield only or shared front and rear (mandatory)
Contact current rating for pump motor load (mandatory)
Coil resistance within control module or BCM driver tolerance (mandatory)
Pump motor current pre-check note (mandatory)
Stalk switch input validation note on BCM-commanded applications (mandatory)
OEM part number cross-reference (mandatory)
Catalog Checklist for ACES/PIES Teams
PartTerminologyID = 3952
Require activation architecture: direct stalk or BCM-commanded (mandatory)
Require wiper interlock condition disclosure where applicable (mandatory)
Require pump architecture: front only or combined front and rear (mandatory)
Require pump motor current pre-check note (mandatory)
Prevent BCM driver fault misdiagnosis: no coil voltage on BCM-commanded applications does not confirm a relay fault; BCM output driver validation is required before relay replacement is diagnosed
Prevent intermittent stalk fault relay return: intermittent coil activation from an intermittent stalk switch presents identically to an intermittent relay contact; stalk input consistency check must precede relay diagnosis
Prevent seized pump relay destruction: locked-rotor pump current welds relay contact at installation; pump motor free-rotation and current check is a mandatory pre-installation step
FAQ (Buyer Language)
Why does my windshield washer not spray when I pull the stalk?
Confirm whether your vehicle uses a direct stalk-switched relay or a BCM-commanded relay. On BCM-commanded applications, probe the relay coil terminal for BCM output voltage with the stalk engaged. No coil voltage with a confirmed stalk input indicates a BCM output driver fault rather than a relay fault. On direct stalk-switched applications, no coil voltage with the stalk engaged indicates a stalk switch fault or an open circuit in the stalk-to-relay coil wiring.
How do I check the washer pump before replacing the relay?
Disconnect the pump motor connector and apply direct 12-volt power to the pump terminals. Confirm the motor runs and draws 2 to 5 amperes. A motor that does not spin or draws above 10 amperes has a mechanical or winding fault that will weld the replacement relay contact immediately. Replace a failed pump before installing a new relay.
My washer works most of the time but occasionally does not spray. Is it the relay?
Intermittent no-spray events may reflect an intermittent stalk switch fault rather than an intermittent relay contact. Confirm coil activation voltage is consistently present at the relay socket on every stalk pull during an intermittent event. If coil voltage is absent during the no-spray event, the fault is in the activation path upstream of the relay, not in the relay contact.
Why does my washer not work during the wash-and-wipe mode but sprays fine when I use the pump-only mode?
A fault that affects only the combined wash-and-wipe mode and not the pump-only mode indicates a wiper interlock condition rather than a relay fault. The BCM requires confirmed wiper blade operation before authorizing pump relay activation during wash-and-wipe mode. A wiper park switch fault that prevents the BCM from confirming blade position will block relay authorization in combined mode only. Confirm wiper park switch operation before diagnosing a relay fault.
What is the difference between PartTerminologyID 3952 and PartTerminologyID 3936?
PartTerminologyID 3936 is the general Washer Pump Relay terminology that may apply to front, rear, or combined washer pump applications. PartTerminologyID 3952 is specific to the Windshield Washer Relay application. On some vehicle platforms manufacturers catalog front windshield washer relay applications under 3952 and general or rear washer applications under 3936. Confirm which terminology your vehicle's catalog application uses before ordering to ensure the correct relay is specified for the correct circuit.
What Sellers Get Wrong About PartTerminologyID 3952
The most common error is omitting the activation architecture from the listing. Buyers on BCM-commanded applications probe the relay coil terminal, find no voltage with the stalk engaged, and conclude the relay is not being commanded. On a BCM-commanded architecture this observation does not confirm a relay fault. It may indicate a BCM output driver fault, a stalk switch fault, or a wiper interlock condition, none of which a relay replacement will resolve. The listing that identifies the BCM-commanded activation architecture and directs the buyer to validate BCM output voltage before replacing the relay prevents a wasted relay replacement and redirects the buyer to the correct diagnostic step.
The second error is omitting the pump motor pre-check note. A seized washer pump motor welds the replacement relay contact within seconds of installation. The buyer returns a relay with a visibly welded contact believing it was defective on arrival. Without the pre-check note the buyer has no indication that the pump motor caused the relay failure. The pre-check note converts this return into a pump motor replacement order.
The third error is omitting the wiper interlock condition and its applicable modes. A buyer whose washer pump does not operate during wash-and-wipe mode but operates correctly in pump-only mode has an interlock fault, not a relay fault. Without the interlock disclosure the buyer replaces the relay, finds no change in the wash-and-wipe mode, and returns the relay as non-functional.
Cross-Sell Logic
Windshield Washer Pump Motor: for buyers where the relay is confirmed delivering switched voltage to the pump terminals but no fluid is sprayed and the reservoir is full, indicating a seized or open-circuit pump motor that requires replacement before a new relay will survive the circuit.
Multifunction Stalk Switch: for buyers on direct stalk-switched applications where the relay coil receives no activation voltage with the stalk engaged, indicating a failed stalk switch internal contact rather than a relay fault, and for buyers with intermittent no-spray events where coil activation voltage is intermittently absent during stalk engagement.
BCM or Wiper Control Module: for buyers on BCM-commanded applications where the relay coil receives no activation voltage despite a confirmed valid stalk input and confirmed wiper operation, indicating a BCM output driver fault on the washer relay coil output.
Wiper Motor: for buyers where the wiper interlock condition is unsatisfied and diagnosis confirms the park switch signal is missing due to a failed wiper motor park switch contact, blocking BCM authorization of the washer relay.
Washer Nozzle Set: for buyers where the relay is confirmed functional and the pump motor draws normal current but spray output is absent or weak, indicating blocked nozzle orifices as the fluid delivery fault.
Why Catalog Data Quality Matters for PartTerminologyID 3952
Windshield washer relay returns cluster around three scenarios that are fully preventable with listing language: the BCM driver fault misdiagnosis, the seized pump motor relay destruction, and the wiper interlock mode-specific misdiagnosis. The BCM driver fault misdiagnosis generates returns because the buyer replaced a relay that was receiving no coil voltage due to a BCM driver fault, not a relay fault. The seized pump motor generates returns because the buyer found a physically welded relay contact and assumed the part was defective on arrival. The wiper interlock misdiagnosis generates returns because the buyer found the relay non-functional in wash-and-wipe mode and did not know the fault was in the wiper system rather than the washer relay circuit.
None of these scenarios reflect a product defect. All three reflect missing listing information. The activation architecture note, the pump motor pre-check note, and the wiper interlock condition disclosure together address the three scenarios that account for the majority of returns under this PartTerminologyID. Each attribute requires one to two sentences in the listing and all three are absent in most aftermarket listings for this PartTerminologyID.
Application Range and Fitment Guidance for PartTerminologyID 3952
Windshield washer relay applications span vehicles from the early 1970s when electric washer pump systems became standard equipment through the present. Early applications used direct stalk-switched relay architectures with no BCM intermediary, making the stalk switch and relay the complete activation chain. Applications from the mid-1990s onward increasingly route stalk inputs through the BCM or wiper control module before commanding the relay, adding the BCM output driver as a diagnostic component in the activation chain that early applications did not have.
The relationship between PartTerminologyID 3952 and PartTerminologyID 3936 requires careful fitment attention. Some catalog databases assign windshield-specific washer pump relay applications to 3952 and rear or combined washer applications to 3936. Others use 3936 as the universal washer pump relay terminology and do not use 3952 separately. Confirming which PartTerminologyID a specific vehicle application is cataloged under prevents fitment claims from appearing under the wrong terminology and generating buyer confusion when a part ordered under 3952 and a part ordered under 3936 are physically identical relays for the same socket.
Combined front and rear washer relay applications that share a single relay contact require contact current ratings that reflect both pump motors operating simultaneously. Front windshield washer pump motors draw 2 to 5 amperes and rear window washer pumps draw 1 to 3 amperes. A relay contact sized for front pump current only on a combined application will degrade from the combined load over time.
Final Take for PartTerminologyID 3952
Windshield Washer Relay (PartTerminologyID 3952) is the fluid delivery relay where activation architecture disclosure, pump motor pre-check, and wiper interlock condition identification are the three attributes that prevent the three most common return scenarios. Every listing without activation architecture disclosure sends BCM-commanded application buyers through a relay replacement that changes nothing because the BCM driver fault remains after relay replacement. Every listing without the pump motor pre-check note risks a relay returned with a welded contact from a seized pump motor the buyer did not know to check. Every listing without the wiper interlock condition disclosure risks a return from a buyer whose wash-and-wipe mode fault was in the wiper system, not the washer relay.
The activation architecture disclosure and the pump motor pre-check note together address the two scenarios that account for the largest share of returns under this PartTerminologyID. BCM driver misdiagnosis generates the frustrated-buyer return where the relay was functional and nothing changed. Seized pump motor generates the damaged-part return where the buyer assumes the relay was defective on arrival. Adding both notes to the listing converts both return scenarios into either correct orders or correct prior diagnoses that prevent the order entirely.
Wiper interlock disclosure and stalk switch input validation complete the set of attributes that ensure every buyer under this PartTerminologyID receives a relay that matches their circuit's functional requirements before installation begins.
Together with activation architecture and pump motor pre-check, these four attributes make every listing under this PartTerminologyID complete.
