Warning Buzzer Relay (PartTerminologyID 3928): BCM Gating Conditions That Prevent Relay Replacement

Written by Arthur Simitian | PartsAdvisory

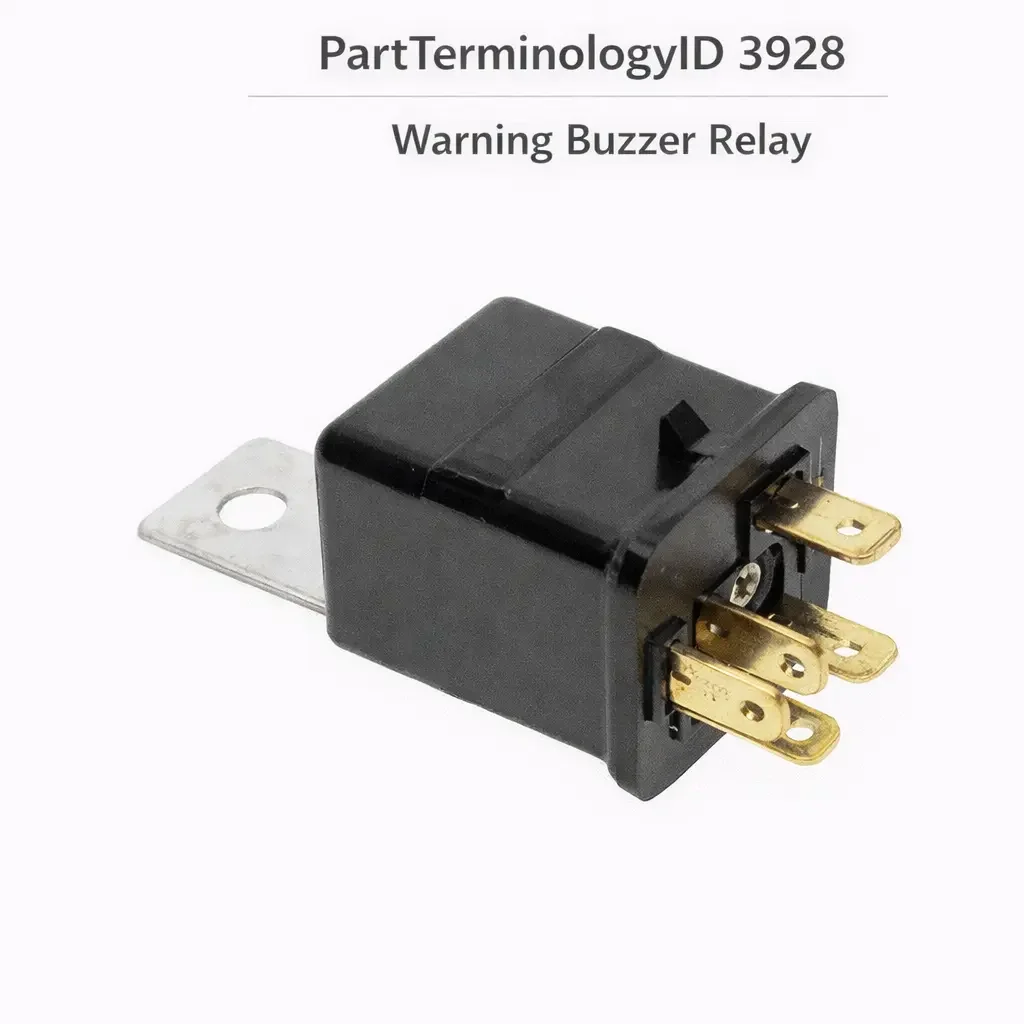

PartTerminologyID 3928, Warning Buzzer Relay, is the relay that switches power to the warning buzzer or alert tone generator, enabling the BCM, instrument cluster, or a dedicated warning logic module to activate audible alerts for conditions including seatbelt reminder, key-in-ignition reminder, door-ajar warning, parking brake engaged warning, and low-fluid or low-fuel alerts. That definition covers the buzzer activation switching function correctly and leaves unresolved whether the tone-generating load is a simple electromagnetic buzzer that produces a fixed tone, a piezoelectric buzzer with no moving parts, or a solid-state tone generator that produces a variable frequency or pattern, the BCM output logic that determines which warning condition activates the relay and whether multiple warning conditions share a single relay contact or use separate relay outputs, whether the relay is a normally-open contact that pulses to produce a repeating tone or holds closed for a continuous alert, the coil resistance tolerance that the BCM driver output requires, and whether the buzzer relay is shared with the chime module on vehicles where the same relay switches both the audible buzzer and a separate melodic chime speaker.

For sellers, PartTerminologyID 3928 is the warning buzzer relay where the BCM alert condition logic is the most return-generating architectural attribute, because the BCM gates every warning alert through a set of vehicle state conditions before activating the relay coil. A seatbelt reminder buzzer that is not sounding may be correctly inhibited because the seat occupancy sensor does not register a passenger in the monitored seat. A key-in-ignition buzzer that is not sounding with the key inserted may be correctly inhibited because the door-ajar sensor that triggers the key reminder circuit shows all doors closed on this specific vehicle architecture. A door-ajar buzzer that does not sound during a brief door contact event may be correctly inhibited by a BCM debounce timer that requires the door-ajar signal to persist for a minimum duration before triggering the audible alert. All of these conditions produce a no-buzzer symptom that appears to be a relay fault when the relay is correctly non-activated by the BCM gating logic.

What the Warning Buzzer Relay Does

Electromagnetic buzzer versus piezoelectric buzzer and the current draw difference

Electromagnetic buzzers use a vibrating armature to produce a tone and draw continuous current while energized, typically 50 to 200 milliamps depending on buzzer size and frequency. The relay must close and hold the buzzer energized for the full alert duration. Piezoelectric buzzers use a ceramic element with negligible current draw, often below 20 milliamps, and require only a brief activation pulse to initiate the alert cycle on self-oscillating designs. A relay with a contact rated for electromagnetic buzzer current applied to a piezoelectric load will operate correctly, but a relay with a contact rated only for low-current piezoelectric loads applied to an electromagnetic buzzer may overheat the contact from sustained energization current.

Solid-state tone generators on modern vehicles draw variable current depending on the alert pattern being generated and may include an internal oscillator that pulses the relay at audio frequencies on some implementations rather than relying on the relay to pulse. A relay on these applications must have a contact bounce specification that does not interfere with the oscillator frequency. A relay with excessive contact bounce time installed on a high-frequency pulsed buzzer application will produce a distorted or intermittent tone rather than the intended alert pattern, which a buyer may return as a defective relay when the contact specification is the mismatch.

BCM alert gating conditions and the non-activated relay misdiagnosis

The BCM gates warning buzzer relay activation through a set of vehicle state checks before allowing the relay coil to energize. Seat occupancy gating prevents the seatbelt reminder buzzer from activating when the occupancy sensor does not register a seated occupant, even if the seatbelt is unbuckled. Vehicle speed gating on some implementations prevents parking brake warning buzzers from activating below a minimum speed threshold, so a stationary vehicle with the parking brake engaged may not trigger the buzzer. Ignition state gating prevents certain alert categories from activating when the ignition is in accessory position rather than run position, so a buyer who tests the buzzer with the key in accessory may find no activation that would be present in the run position. Door latch sensor gating requires a confirmed door-ajar signal of sufficient duration before triggering the door-ajar buzzer, so a briefly contacted door that does not remain ajar past the debounce threshold produces no alert.

A buyer who cannot hear the seatbelt reminder buzzer may be seated on a faulty occupancy sensor mat that does not register body weight. A buyer whose parking brake buzzer does not sound may be testing with the vehicle stationary below the speed activation threshold on their vehicle's implementation. Both scenarios produce a no-alert symptom that the buyer attributes to a relay fault when the relay is correctly receiving no coil activation from the BCM gating logic.

Why This Part Generates Returns

Buyers return warning buzzer relays because the BCM gating condition is active and the relay correctly receives no activation signal, the warning buzzer element has failed internally and presents an open circuit that produces no sound even when the relay correctly closes, the relay is shared with the chime module and a chime module fault is generating a fault code that points to the relay when the chime module is the actual failed component, the relay coil resistance is outside the tolerance the BCM driver can sink and the BCM output pulls low but cannot energize the coil fully enough to close the contact, and the relay is integrated into the instrument cluster assembly with no separate replaceable socket on this vehicle.

Status in New Databases

PartTerminologyID 3928 is cataloged in PIES/PCdb as Warning Buzzer Relay. Under PIES 8.0 and PCdb 2.0 there is no change to the terminology or classification for this PartTerminologyID.

Top Return Scenarios

Scenario 1: "BCM occupancy gating active, seatbelt buzzer not activating, relay correctly non-energized"

The buyer's seatbelt reminder buzzer is not sounding. The seat occupancy sensor mat has a failed resistive element and does not register the driver's weight. The BCM receives no occupancy signal and does not gate the seatbelt reminder relay coil active. The buyer replaces the relay. The occupancy sensor remains failed. No change in buzzer behavior.

Prevention language: "BCM gating conditions: Warning buzzer relay activation requires the BCM to confirm the triggering condition through its sensor inputs. Seatbelt buzzer requires a seated-occupant signal from the seat occupancy sensor. Door-ajar buzzer requires a confirmed door-ajar signal persisting past the BCM debounce timer. Parking brake buzzer may require minimum vehicle speed on some implementations. Confirm the sensor input to the BCM is present and valid before diagnosing a relay fault. A relay that receives no coil voltage during a gated-off condition is functioning correctly."

Scenario 2: "Open-circuit buzzer element, relay closes correctly, no sound produced"

The warning buzzer element has an open-circuit failure in the piezoelectric disc or electromagnetic coil. The relay activates correctly on BCM command. Voltage is present at the buzzer terminals. The buzzer does not produce sound. The buyer measures no continuity through the buzzer element but returns the relay believing the relay is not delivering power. A continuity check across the buzzer terminals would have identified the open-circuit buzzer before the relay was ordered.

Prevention language: "Buzzer element pre-check: Before installing the replacement relay, verify continuity through the warning buzzer element. An electromagnetic buzzer should measure 50 to 200 ohms. A piezoelectric buzzer should not measure open circuit. An open-circuit buzzer will produce no sound regardless of relay condition. Confirm the buzzer element is functional before ordering a relay replacement."

Scenario 3: "Chime module fault code references relay, module is actual failed component"

The buyer receives a fault code referencing the warning buzzer relay circuit. The chime module on this vehicle shares the relay contact with both the buzzer and a melodic chime speaker. The chime module internal driver has failed, producing excessive current draw that the BCM detects as a relay circuit fault. The buyer replaces the relay. The chime module fault remains. The fault code reappears. The relay contact welds from the chime module's excess current draw within a short period.

Prevention language: "Shared chime module note: On this application the warning buzzer relay also powers the chime module speaker circuit. A fault code referencing the buzzer relay circuit may originate from the chime module rather than the relay. Confirm the chime module current draw is within specification before replacing the relay. A chime module drawing excess current will weld the replacement relay contact."

Scenario 4: "Relay coil resistance mismatch, BCM output cannot sink full coil current, contact does not close fully"

The replacement relay coil resistance is lower than the OEM specification. The BCM output driver pin for the relay coil is a current-sinking low-side driver rated for a specific maximum sink current. The lower coil resistance draws more current than the BCM driver can sink cleanly, causing the BCM output voltage to rise above the coil pull-in threshold during activation. The relay contact chatters or does not close fully. The buzzer produces an intermittent or distorted tone. The buyer returns the relay as defective.

Prevention language: "BCM driver coil tolerance: Verify the replacement relay coil resistance matches the OEM specification. BCM low-side driver outputs are rated for a specific sink current. A relay coil with lower-than-specified resistance will overdrive the BCM output and prevent clean contact closure. Match the coil resistance to the OEM specification before installation."

Listing Requirements

• PartTerminologyID: 3928

• Buzzer load type: electromagnetic, piezoelectric, or solid-state tone generator (mandatory)

• BCM alert gating conditions applicable to each warning function (mandatory)

• Contact current rating for the specific buzzer load type (mandatory)

• Coil resistance within BCM driver sink tolerance (mandatory)

• Shared chime module note where applicable (mandatory)

• Buzzer element continuity pre-check note (mandatory)

• OEM part number cross-reference (mandatory)

Catalog Checklist for ACES/PIES Teams

• PartTerminologyID = 3928

• Require buzzer load type: electromagnetic, piezoelectric, or solid-state tone generator (mandatory)

• Require BCM alert gating conditions listed explicitly per warning function (mandatory)

• Require buzzer element continuity pre-check note (mandatory)

• Require coil resistance specification within BCM driver tolerance (mandatory)

• Prevent BCM gating misdiagnosis: occupancy sensor, door-ajar debounce, speed threshold, and ignition-state gating conditions prevent relay activation; a relay that is not activating during a gated-off condition is functioning correctly; gating conditions must be listed to redirect buyer diagnosis before hardware order

• Prevent open-circuit buzzer relay return: a failed buzzer element produces no sound despite a correctly functioning relay; buzzer element continuity check is a mandatory pre-installation step

• Note shared chime module applications where applicable: chime module and warning buzzer may share a single relay contact on some platforms

FAQ (Buyer Language)

Why is my seatbelt buzzer not sounding even with the seatbelt unbuckled?

The BCM gates the seatbelt reminder buzzer through the seat occupancy sensor. If the occupancy sensor does not register a seated occupant, the BCM does not activate the buzzer relay regardless of seatbelt buckle state. Confirm the occupancy sensor is functioning before diagnosing a relay fault.

How do I check the warning buzzer before replacing the relay?

For an electromagnetic buzzer, measure resistance across the buzzer terminals. A reading of 50 to 200 ohms is normal for most applications. An open-circuit reading indicates a failed buzzer element that will produce no sound regardless of relay operation. For a piezoelectric buzzer, apply direct 12-volt power to the buzzer terminals and confirm it produces a tone. Replace a failed buzzer before ordering a relay.

Why does my door-ajar buzzer sound sometimes but not other times?

The BCM uses a debounce timer on the door-ajar signal to prevent false alerts from brief contact events. A door latch that produces intermittent ajar signals below the debounce threshold will not trigger the relay on every event. Inspect the door latch sensor and latch striker alignment before diagnosing a relay fault on an intermittent door-ajar buzzer.

Can the BCM itself prevent the warning buzzer relay from activating?

Yes. The BCM output driver pin for the warning buzzer relay coil can fail open internally, producing no coil activation voltage at the relay socket regardless of the triggering condition being present. Confirm the presence of coil activation voltage at the relay socket terminal before ordering a relay replacement. No coil voltage with the triggering condition active and all gating conditions satisfied indicates a BCM output driver fault rather than a relay fault.

Why does the replacement relay buzz the warning correctly at first but then stop after a few weeks?

The chime module or buzzer element on this application may be drawing excess current that is degrading the replacement relay contact over time. A buzzer element with an intermittent winding or a chime module with a failing driver stage draws above-rated current on each activation cycle, gradually eroding the contact surface. Measure the buzzer and chime module current draw and compare to the relay contact current rating.

What Sellers Get Wrong About PartTerminologyID 3928

The most common error is omitting the BCM alert gating conditions from the listing. The warning buzzer relay does not activate when the BCM has gated the alert off due to a missing occupancy signal, an unsatisfied speed threshold, an ignition state mismatch, or a door-ajar debounce condition. A relay that receives no coil activation voltage during a gated-off condition is functioning correctly, and replacing it produces no change in buzzer behavior. Buyers who replace the relay during a gated-off condition return it as defective because they found no change after installation. The listing that names the gating conditions and directs the buyer to confirm the triggering condition and all sensor inputs are valid before diagnosing a relay fault prevents this scenario entirely.

The second error is omitting the buzzer element continuity check note. A failed buzzer element produces no sound despite a relay that is closing correctly and delivering voltage to the buzzer terminals. Without the continuity check note, the buyer has no way to distinguish a failed buzzer from a failed relay from a gated-off BCM output. Adding the continuity check as an explicit pre-installation step converts this return scenario into a buzzer element replacement order rather than a relay return.

The third error is omitting the coil resistance specification. The BCM output driver for the warning buzzer relay is a low-side current-sinking driver with a maximum sink current rating. A replacement relay with lower coil resistance than the OEM specification overdrives the BCM output, causing contact chatter or incomplete closure that produces a distorted or intermittent alert tone. Buyers return these relays as producing incorrect buzzer behavior when the coil resistance mismatch is the actual cause.

Cross-Sell Logic

Warning Buzzer / Tone Generator: for buyers where the relay is confirmed delivering voltage to the buzzer terminals but no sound is produced, indicating a failed buzzer element, open-circuit piezoelectric disc, or seized electromagnetic armature.

Body Control Module: for buyers where the relay coil receives no activation voltage from the BCM despite all gating conditions being satisfied and the triggering condition confirmed present, indicating a BCM output driver fault on the buzzer relay coil output.

Seat Occupancy Sensor: for buyers where the seatbelt reminder buzzer does not activate, the relay is confirmed functional, and the BCM gating condition traces to a missing or invalid occupancy sensor signal.

Chime Module: on shared-relay applications where both the audible buzzer and melodic chime share the same relay contact, a chime module fault generates a relay circuit fault code and excess current draw that welds the relay contact; both components should be confirmed before concluding only one circuit is affected.

Door Latch Sensor: for buyers where the door-ajar buzzer does not activate and the BCM gating condition traces to a missing door-ajar signal from a faulty door latch sensor rather than a relay fault.

Why Catalog Data Quality Matters for PartTerminologyID 3928

Warning buzzer relay returns cluster around three scenarios that are fully preventable with listing language: the BCM gating misdiagnosis, the open-circuit buzzer element misdiagnosis, and the coil resistance mismatch. The gating misdiagnosis generates returns because the buyer replaced a correctly non-activated relay and found no change. The buzzer element misdiagnosis generates returns because the buyer found correct relay activation voltage at the buzzer terminals but no sound, and attributed the silence to the relay. The coil resistance mismatch generates returns because the relay appears to activate but produces an intermittent or distorted tone. None of these scenarios reflect a product defect. All three reflect missing listing information.

The BCM gating condition list, the buzzer element continuity check note, and the coil resistance specification together address the three scenarios that account for the majority of returns under this PartTerminologyID. Each attribute requires one to two sentences in the listing. All three are absent in most aftermarket listings for this PartTerminologyID.

Application Range and Fitment Guidance for PartTerminologyID 3928

Warning buzzer relay applications span vehicles from the mid-1970s when government-mandated seatbelt and ignition-key reminders drove widespread adoption of dedicated audible alert circuits through the present day. Early applications used standalone buzzer modules with simple relay switching and no BCM gating logic, making the relay the primary diagnostic focus. Current applications integrate the buzzer relay activation into the BCM alert management architecture with multiple gating conditions per alert function, shifting the diagnostic focus to the BCM sensor inputs before the relay is considered.

The shared chime module architecture is common on domestic and European vehicles from the late 1980s onward where a single relay switches both a buzzer element and a melodic chime speaker to reduce component count. Listings for these applications must identify the shared architecture and the combined load current for both the buzzer and chime speaker operating simultaneously. A relay contact rated only for the buzzer load that is also switching the chime speaker will fail prematurely from the combined current on each activation cycle.

Piezoelectric buzzer applications are increasingly common on vehicles from the mid-1990s onward as manufacturers replaced electromagnetic buzzers with solid-state piezoelectric elements for improved reliability and reduced current draw. A fitment claim that applies an electromagnetic buzzer relay with a higher-resistance coil calibrated for electromagnetic buzzer current to a piezoelectric buzzer application will function correctly in most cases, but a relay with a contact current rating sized only for piezoelectric loads applied to a legacy electromagnetic buzzer application may underperform under sustained electromagnetic buzzer current.

Final Take for PartTerminologyID 3928

Warning Buzzer Relay (PartTerminologyID 3928) is the alert activation relay where BCM gating condition disclosure, buzzer element continuity pre-check, and coil resistance specification are the three attributes that prevent the three most common return scenarios. Every listing without BCM gating condition guidance sends buyers through a relay replacement that changes nothing because the relay was correctly gated off, not failed. Every listing without the buzzer element continuity check note risks a relay returned as non-functional when the buzzer element was the failed component the entire time. Every listing without the coil resistance specification risks a relay returned as producing incorrect tone behavior when the BCM driver mismatch was the cause.

The BCM gating conditions list and the buzzer element continuity check note together address the two scenarios that individually account for the largest share of returns under this PartTerminologyID. Gating condition misdiagnosis generates the frustrated-buyer return where the relay was functional and nothing changed. Buzzer element failure generates the confused-buyer return where the relay was closing correctly but the load was open-circuit. Adding both notes to the listing converts both return scenarios into either correct orders or correct prior diagnoses that prevent the order entirely.

Coil resistance specification and shared chime module disclosure complete the set of attributes that ensure every buyer under this PartTerminologyID receives a relay that matches their circuit's functional requirements before installation begins.

Together with BCM gating conditions and buzzer element continuity pre-check, these four attributes make every listing under this PartTerminologyID complete.
