Forward Light Wiring Relay (PartTerminologyID 3388): Where Front Lighting Harness Power Distribution, Multi-Lamp Failure Pattern, and Circuit Architecture Determine Correct Diagnosis and Fitment

Written by Arthur Simitian | PartsAdvisory

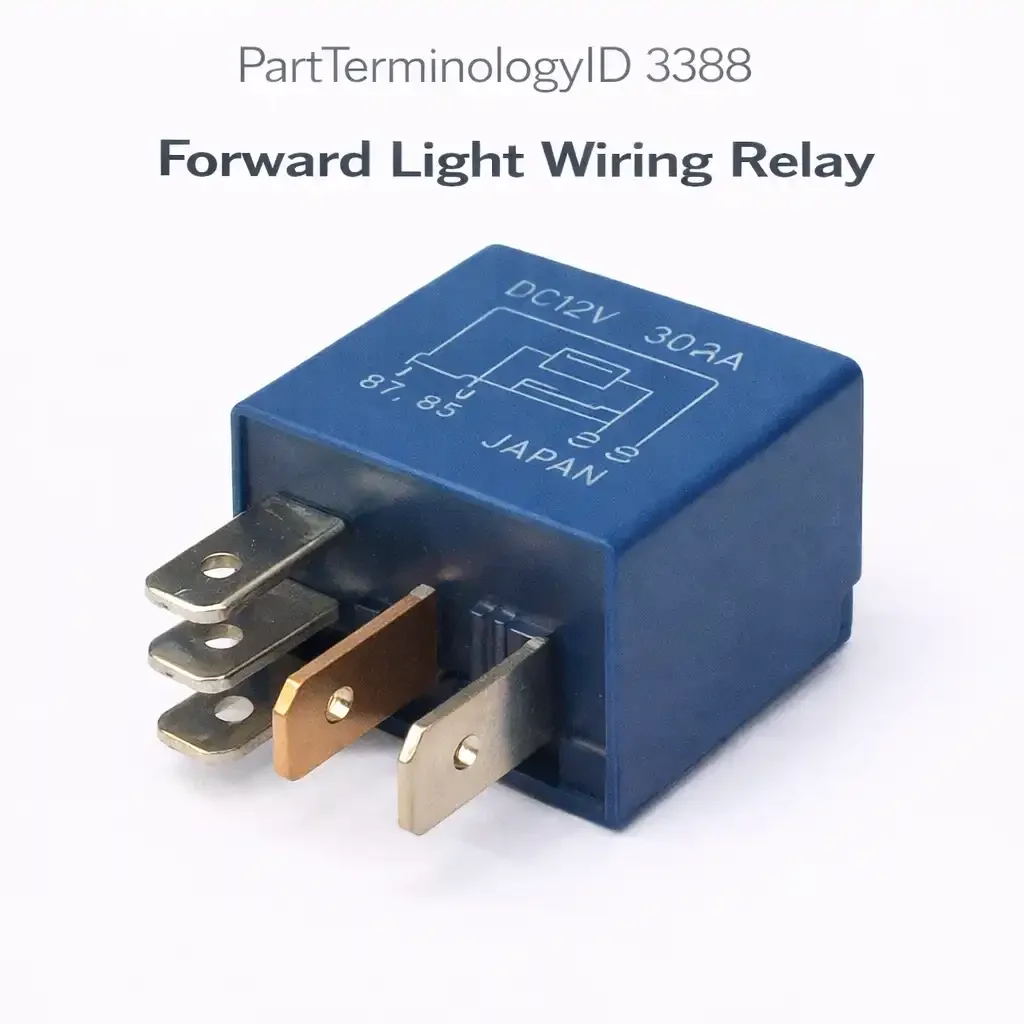

PartTerminologyID 3388, Forward Light Wiring Relay, is the relay that distributes switched power through the forward lighting wiring harness to multiple front-mounted lamp circuits simultaneously, supplying the upstream power that individual lamp relays, lamp sockets, and lighting control modules draw from to operate the vehicle's forward-facing lights. The relay sits between the ignition or lighting switch circuit and the front lighting harness distribution point, and its failure removes supply voltage from all lamp circuits served by the harness branch simultaneously. The three attributes that determine correct fitment are the specific lamp circuits included in the forward lighting harness branch the relay controls; the activation source, whether ignition-switched, headlight-switch-activated, or BCM-commanded; and the multi-lamp simultaneous failure pattern that is the diagnostic signature of this relay's fault and distinguishes it from individual lamp failures that affect only one circuit at a time.

What the Forward Light Wiring Relay Does

Front lighting harness power distribution and circuit scope

The forward light wiring relay supplies battery voltage to the front lighting wiring harness distribution point from which individual lamp circuits branch off to serve the headlights, parking lights, turn signals, side markers, and fog lights depending on the application's harness architecture. On applications where this relay is present, removing relay power from the harness simultaneously de-energizes every lamp circuit connected to that harness branch. A relay failure that is stuck open produces a complete loss of all forward lighting simultaneously, which is the symptom that distinguishes a forward light wiring relay fault from individual lamp relay faults that affect only one circuit. A complete simultaneous loss of multiple non-related forward lamp circuits is the primary indicator that directs diagnosis to the forward light wiring relay rather than to individual lamp components.

Activation source and lighting switch interaction

The relay coil activation source determines when the forward lighting harness is energized. On applications where the relay coil is activated by the headlight switch, the forward lighting harness is only live when the headlights are switched on, and the relay de-activates when the headlights are switched off. On applications where the coil is BCM-activated, the BCM controls the harness energization based on ambient light sensor input, auto-light mode, and driver input, and the relay may activate on ignition-on in auto-lighting mode before the driver manually activates any lamps. A relay that does not activate on ignition-on in auto mode on a BCM-activated application requires testing for BCM output voltage at the relay coil terminal before the relay is condemned, since an absent BCM activation signal produces the same no-harness-power symptom as a failed relay coil.

Top Return Scenario

Scenario 1: "All forward lights out simultaneously"

The forward light wiring relay contact has failed open and the front lighting harness has no supply voltage. All lamp circuits on the harness branch are inoperative simultaneously. Confirming the relay coil activation signal is present at the coil terminal before testing harness supply voltage verifies that the BCM or switch is commanding the relay correctly. Harness supply voltage absent with relay coil activation confirmed indicates a relay contact failure. A fuse check should precede the relay diagnosis, as a blown fuse feeding the relay contact supply terminal produces an identical all-forward-lights-out symptom and is resolved without relay replacement.

Prevention language: "Before replacing the forward light wiring relay on an all-forward-lights-out complaint, check the fuse feeding the relay contact supply terminal. A blown fuse produces an identical symptom and requires no relay replacement. With the fuse confirmed good, test relay coil activation and relay contact output voltage to identify a relay fault."

Listing Requirements

• PartTerminologyID: 3388

• lamp circuits included in the harness branch (mandatory)

• activation source: headlight switch, ignition, or BCM (mandatory)

• multi-lamp simultaneous failure as diagnostic signature (mandatory)

• fuse pre-check note before relay diagnosis (mandatory)

• OEM part number cross-reference (mandatory)

FAQ (Buyer Language)

How is this relay different from the headlight relay?

The Headlight Relay (PartTerminologyID 3400) controls power to the headlight bulbs specifically, operating the high-current headlight circuit independently of the other forward lamp circuits. The Forward Light Wiring Relay (3388) supplies the upstream harness branch from which multiple forward lamp circuits including the headlight relay circuit draw their power. A failed headlight relay produces no headlights but leaves parking lights, turn signals, and other forward lamps operational. A failed forward light wiring relay removes power from the entire forward harness branch, taking down all forward lamp circuits simultaneously.

What Sellers Get Wrong About PartTerminologyID 3388

The most common listing error is failing to specify which lamp circuits are included in the harness branch the relay supplies. Without this information, buyers cannot confirm whether the all-lights-out symptom they are diagnosing matches the scope of circuits the forward light wiring relay controls on their application. A vehicle with a separate harness branch for the headlight circuit and a separate branch for the parking and marker circuits may have two forward lighting distribution relays, and a listing that does not specify the circuit scope will generate an order for the wrong relay position. Every listing under PartTerminologyID 3388 must identify the lamp circuits in scope and must include the fuse pre-check note, since a blown upstream fuse is a more common cause of the all-forward-lights-out symptom than a relay contact failure on most applications.

Cross-Sell Logic

• Headlight Relay (PartTerminologyID 3400): the headlight relay controls the high-current headlight bulb circuit that may branch from the forward light wiring harness; a failed headlight relay affects only headlights while the forward light wiring relay affects all forward circuits simultaneously

• Dimmer Relay (PartTerminologyID 3264): the dimmer relay controls high and low beam switching within the headlight circuit; forward light wiring relay failure affects both beam modes simultaneously rather than only one

• BCM: on BCM-activated forward light wiring applications, an absent BCM activation output produces an identical symptom to a failed relay coil; the BCM output circuit must be tested before the relay is condemned

Final Take for PartTerminologyID 3388

Forward Light Wiring Relay (PartTerminologyID 3388) is the front lighting harness distribution relay where circuit scope identification, multi-lamp failure pattern recognition, and fuse pre-check guidance are the three listing attributes that direct buyers to the correct diagnosis sequence and correct component on an all-forward-lights-out complaint. The fuse pre-check is the most actionable first step and the one most likely to resolve the symptom without any part order, and its inclusion in every listing under this PartTerminologyID reduces the relay return rate from buyers who replaced the relay before checking the upstream fuse. Sellers who identify the harness scope, describe the multi-lamp failure signature, and lead with the fuse check note give buyers the complete diagnostic path from symptom to correct component.
