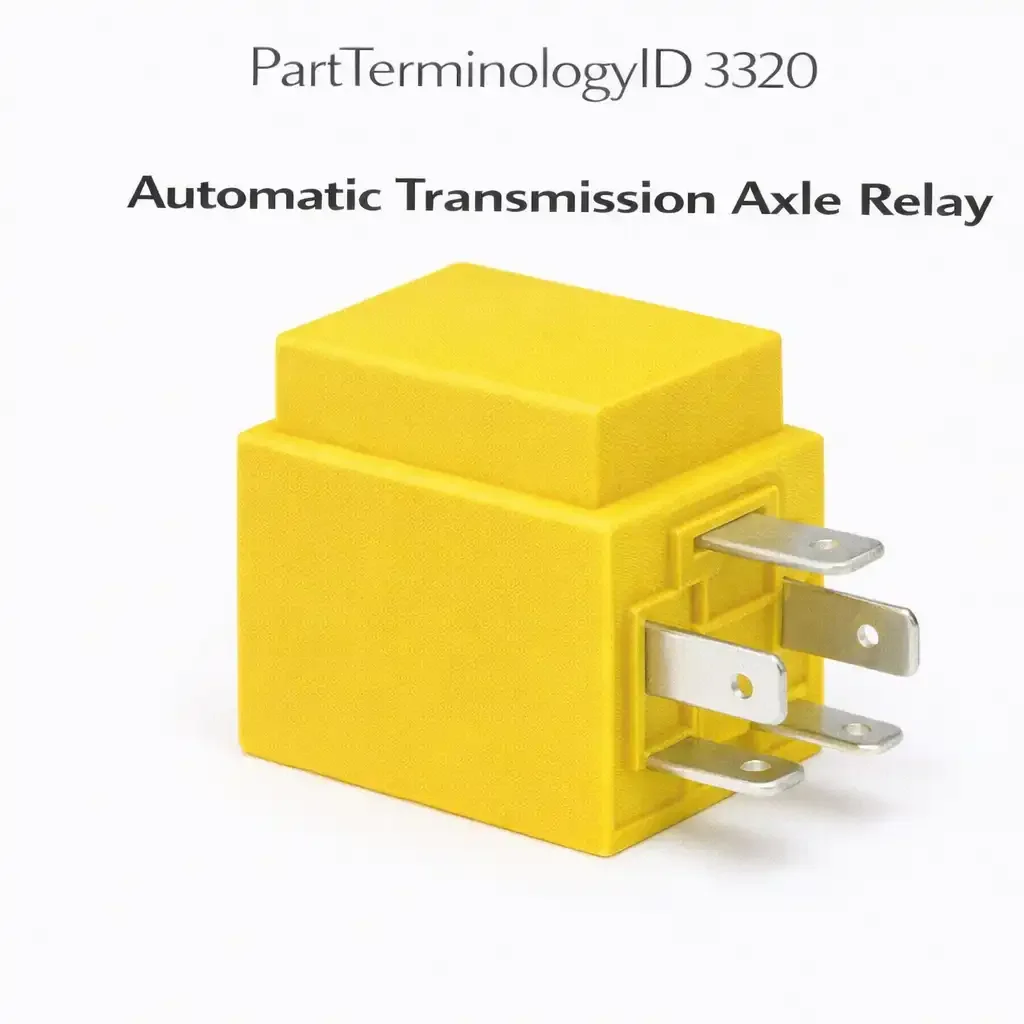

Automatic Transmission Axle Relay (PartTerminologyID 3320): Where Axle Engagement Circuit, TCM Activation, and 4WD Architecture Determine Correct Diagnosis and Fitment
Written by Arthur Simitian | PartsAdvisory
PartTerminologyID 3320, Automatic Transmission Axle Relay, is the relay that controls power delivery to the front axle engagement actuator on four-wheel drive vehicles equipped with an automatic transmission and an electrically actuated front axle disconnect or locking hub system. The relay bridges the transmission control module or transfer case control module command signal and the axle actuator motor or solenoid that physically engages the front axle when four-wheel drive is selected. The three attributes that determine correct fitment are the specific axle engagement mechanism the relay controls; whether the relay is activated by the TCM, a dedicated 4WD control module, or a direct driver switch input; and the application architecture that determines whether the axle relay and the transfer case shift relay operate as independent circuits or as a sequenced pair that must both activate in the correct order for 4WD engagement to complete.
What the Automatic Transmission Axle Relay Does
Axle engagement actuator control and sequencing
On automatic transmission four-wheel drive applications from approximately 1988 through 2010, the front axle engagement is handled by an electric actuator mounted at the front axle differential. When the driver selects 4WD, the control module activates the transfer case shift relay to engage the transfer case, then activates the automatic transmission axle relay to power the front axle actuator motor or solenoid. The axle actuator slides the front axle disconnect collar into engagement, connecting the front driveshaft to the front differential output shafts. A failed axle relay that is stuck open produces a symptom of 4WD selected but no front axle engagement, meaning the transfer case shifts into four-wheel drive mode but the front wheels receive no torque because the axle disconnect remains open. This symptom is frequently misdiagnosed as an axle actuator motor failure before the relay supply voltage is tested at the actuator connector.
TCM and 4WD module activation interaction
The relay coil is activated by a control module output rather than a direct switch input on most applications. The 4WD control module or TCM evaluates the driver's mode selection, vehicle speed, and transmission state before commanding the axle relay. On some applications, the module will not command axle engagement unless the vehicle is below a defined speed threshold and the transmission is in a specific gear range. A relay that appears to not activate when 4WD is selected may be correctly not activating because the control module's enabling conditions are not met, rather than because the relay has failed. Testing for module activation signal at the relay coil terminal before condemning the relay is the correct first diagnostic step.
Top Return Scenario
Scenario 1: "4WD selected but front wheels not engaging"
The relay coil activation signal from the control module is present but the relay contact has failed open. The axle actuator receives no power and the front axle disconnect remains open. Testing voltage at the axle actuator connector with 4WD selected, after confirming the relay coil is being activated, confirms a relay contact failure rather than an actuator failure. An actuator that receives correct voltage but fails to engage indicates an actuator motor fault. A relay that is activated but produces no output voltage at the actuator connector confirms the relay contact has failed.
Prevention language: "With 4WD selected and the relay coil confirmed active, test voltage at the front axle actuator connector. Voltage present but no engagement indicates an actuator fault. Zero voltage at the actuator connector with an active relay coil confirms a relay contact failure."
Listing Requirements
PartTerminologyID: 3320
axle engagement mechanism: actuator motor or solenoid (mandatory)
activation source: TCM, 4WD module, or direct switch (mandatory)
engagement sequence note with transfer case relay interaction (recommended)
module enabling condition note for speed and gear restrictions (mandatory)
OEM part number cross-reference (mandatory)
FAQ (Buyer Language)
My 4WD indicator light comes on but the front wheels still spin freely. Is this relay the problem?
Possibly. The 4WD indicator confirms the transfer case has shifted but does not confirm the front axle has engaged. Test voltage at the front axle actuator connector with 4WD selected. If no voltage is present and the relay coil is receiving its activation signal, the relay contact has failed and the actuator is receiving no power. If voltage is present at the actuator but the front wheels still spin freely, the actuator motor or axle disconnect mechanism has failed mechanically.
What Sellers Get Wrong About PartTerminologyID 3320
The most common listing error is omitting the module enabling condition note. Buyers who select 4WD at highway speed on applications where the module restricts axle engagement above a defined speed threshold will report that the relay does not work when the relay is functioning correctly and the module is correctly preventing engagement outside the approved operating conditions. Every listing under PartTerminologyID 3320 must state the speed and transmission state conditions under which the control module permits axle engagement. The second error is failing to distinguish between the axle relay and the transfer case shift relay. On vehicles with separate relays for each function, ordering only the axle relay when both have failed leaves the transfer case unshifted and the symptom unchanged after replacement.
Cross-Sell Logic
Transfer Case Shift Relay: the transfer case relay and axle relay operate in sequence on 4WD engagement; both should be tested when 4WD does not engage correctly
Front Axle Actuator: if relay output voltage is confirmed at the actuator connector but front axle engagement does not occur, the actuator motor is the next diagnostic target
4WD Control Module: if no relay coil activation signal is present despite correct driver input, the control module output driver is the fault source rather than the relay
Final Take for PartTerminologyID 3320
Automatic Transmission Axle Relay (PartTerminologyID 3320) is the 4WD axle engagement relay where actuator circuit identification, module enabling condition disclosure, and transfer case relay sequencing are the three listing attributes that prevent the most common misdiagnosis and wrong-component return scenarios. The module enabling condition note is the most critical piece of buyer guidance because it prevents the return of a correctly functioning relay from a buyer who selected 4WD at a speed or transmission state that the control module correctly blocked. Sellers who include the enabling condition, activation source, and actuator voltage test guidance in every listing give buyers the framework to confirm relay fault before ordering and to complete the diagnosis correctly after installation.
