Diesel Light Relay (PartTerminologyID 3260): Where Indicator Circuit Identification, Glow Plug System Interaction, and Legacy Application Window Determine Correct Diesel Warning Indicator Fitment
Written by Arthur Simitian | PartsAdvisory

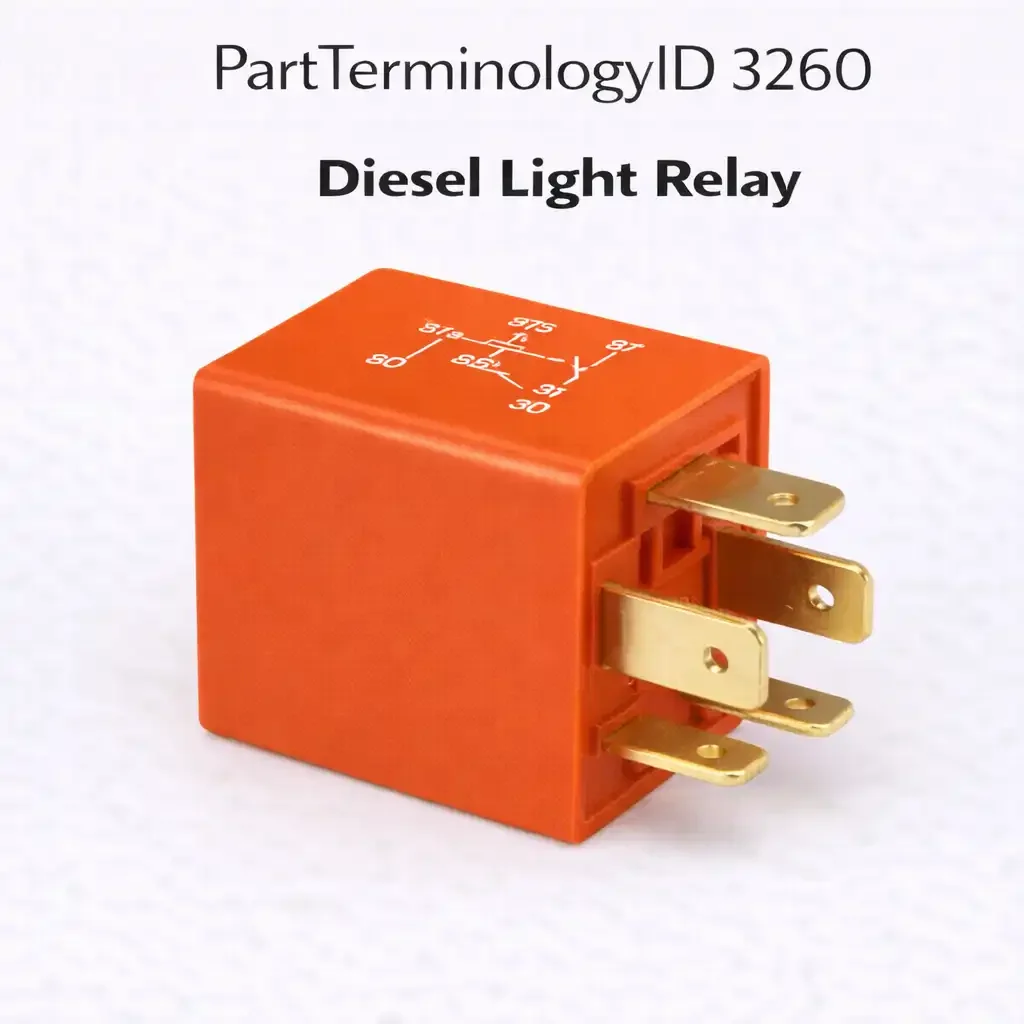

PartTerminologyID 3260, Diesel Light Relay, is the relay that controls the diesel system warning indicator lamp, typically the glow plug or wait-to-start indicator on the instrument cluster, signaling the driver to wait for glow plug preheat before cranking the engine in cold conditions. That definition identifies the diesel light relay's indicator control function and leaves unresolved the three attributes that determine correct fitment: which specific indicator circuit function the relay serves, whether it controls the wait-to-start light during preheat, the glow plug system fault warning, or a separate diesel system status indicator; how the relay interacts with the glow plug timer relay (PartTerminologyID 3392) that controls the actual glow plug heating cycle; and the legacy application window for this component, since modern diesel vehicles with ECM-integrated glow plug control typically drive the instrument cluster indicator directly from the ECM without a separate indicator relay in the circuit.
What the Diesel Light Relay Does
Wait-to-start indicator control and preheat timing
On legacy diesel systems from approximately 1978 through 2000, the wait-to-start indicator lamp is controlled by a dedicated relay that illuminates the lamp during the glow plug preheat cycle and extinguishes it when preheat is complete, signaling the driver to crank the engine. This relay is typically integrated into the glow plug control module or operates in parallel with the glow plug relay, sharing the same activation signal from the glow plug timer. A failed diesel light relay that is stuck open means the wait-to-start indicator never illuminates, leading drivers to crank the engine without waiting for preheat on cold mornings and causing hard starting, excessive starter motor use, and premature glow plug failure from starting without adequate preheat temperature. A relay stuck closed causes the indicator to remain illuminated after preheat is complete, preventing the driver from knowing when cranking is appropriate.
Legacy application window and ECM-integrated indicator control
The diesel light relay as a separately replaceable component is concentrated in diesel applications from the late 1970s through the late 1990s on domestic and import light-duty trucks and passenger cars. From approximately 2000 onward, most diesel vehicle platforms integrated the glow plug control function into the ECM or a dedicated glow plug control module, and the instrument cluster indicator is driven directly from the ECM's indicator output pin without an intermediate relay. On these modern applications, a failed indicator circuit is either a cluster fault, an ECM output fault, or a wiring fault, not a relay fault. Listings under PartTerminologyID 3260 must confirm the legacy relay architecture before publishing fitment claims that extend into post-2000 diesel applications.
Top Return Scenarios
Scenario 1: "Wait-to-start light stays on after engine warms up"
The relay contacts are stuck closed, keeping the indicator illuminated after the preheat cycle completes. On some applications this symptom also indicates a glow plug system fault where the glow plug relay or a failed glow plug is keeping the indicator active through a fault signal rather than through the relay itself. The diesel light relay is one diagnostic step but not the only possible cause of a continuously illuminated indicator.
Prevention language: "A continuously illuminated wait-to-start indicator may indicate a failed diesel light relay, a glow plug system fault, or a fault in the glow plug relay control circuit. Test the glow plug system for fault codes before replacing the diesel light relay if the indicator stays on after the engine is warm."
Scenario 2: "No relay position found on vehicle"
The buyer orders a diesel light relay for a post-2000 diesel application where the ECM drives the cluster indicator directly. No relay socket exists in the relay center for this function. The part cannot be installed.
Prevention language: "Application range: [specific year range]. This relay applies to legacy diesel systems where a dedicated indicator relay controls the wait-to-start lamp. On vehicles with ECM-integrated glow plug control, the indicator is driven directly from the ECM output pin without a separate relay. Confirm your application uses a standalone indicator relay before ordering."
Listing Requirements
PartTerminologyID: 3260
indicator circuit function: wait-to-start, glow plug fault, or diesel status (mandatory)
application range with legacy architecture confirmation (mandatory)
glow plug system fault check note for continuously illuminated indicator symptoms (mandatory)
differentiation from Diesel Glow Plug Relay (PartTerminologyID 3392) (mandatory)
OEM part number cross-reference (mandatory)
FAQ (Buyer Language)
What is the difference between the diesel light relay and the glow plug relay?
The glow plug relay (PartTerminologyID 3392) controls power delivery to the glow plug heating elements. The diesel light relay controls the instrument cluster indicator that tells the driver when preheat is in progress and when it is safe to crank. Both relays may operate on the same activation signal from the glow plug timer, but they serve different loads: one heats the glow plugs, the other illuminates an indicator lamp.
My wait-to-start light never comes on. Will replacing this relay fix it?
Possibly. But first confirm that the glow plug system itself is functioning by checking whether the glow plugs receive power during the preheat cycle. A glow plug system that powers correctly but shows no indicator is more likely a failed diesel light relay or a burned indicator bulb than a glow plug fault. Test the bulb and the activation signal at the relay coil terminal before ordering the relay.
What Sellers Get Wrong About PartTerminologyID 3260
The most common error is failing to state the application range clearly and allowing fitment claims to extend into post-2000 diesel applications where no standalone indicator relay exists. This PartTerminologyID has a well-defined legacy window, and most returns come from buyers with modern diesel vehicles who find no relay socket after the part arrives. Every listing under PartTerminologyID 3260 must state the applicable year range and confirm the relay architecture. The second common error is omitting the differentiation from the glow plug relay (PartTerminologyID 3392). Buyers frequently confuse these two components because they operate simultaneously during the preheat cycle and because neither illuminates the indicator nor heats the glow plugs in isolation when either one fails. Listing copy that explains the functional boundary between the two components directs buyers to the correct part for their symptom the first time.
Cross-Sell Logic
Diesel Glow Plug Relay (PartTerminologyID 3392): the glow plug relay controls actual preheat heating; often replaced at the same time as the diesel light relay when diagnosing cold-start issues
Glow Plugs: failed glow plugs are a common co-occurring fault with diesel light relay issues and should be tested when the preheat system is diagnosed
Glow Plug Timer Module: the timer module provides the activation signal to both the glow plug relay and the diesel light relay; a failed timer eliminates the activation signal to both components
Final Take for PartTerminologyID 3260
Diesel Light Relay (PartTerminologyID 3260) is the legacy diesel indicator relay where application window accuracy, glow plug system interaction disclosure, and differentiation from the glow plug relay are the three listing attributes that prevent the highest-frequency return scenarios. The application window is the most critical specification because this component simply does not exist on modern ECM-integrated diesel platforms. Every listing that does not explicitly state the applicable year range and confirm the standalone relay architecture will generate uninstallable returns from buyers with modern diesel vehicles. Sellers who include all three attributes in every diesel light relay listing provide buyers with the context needed to confirm they have the right architecture before ordering.
