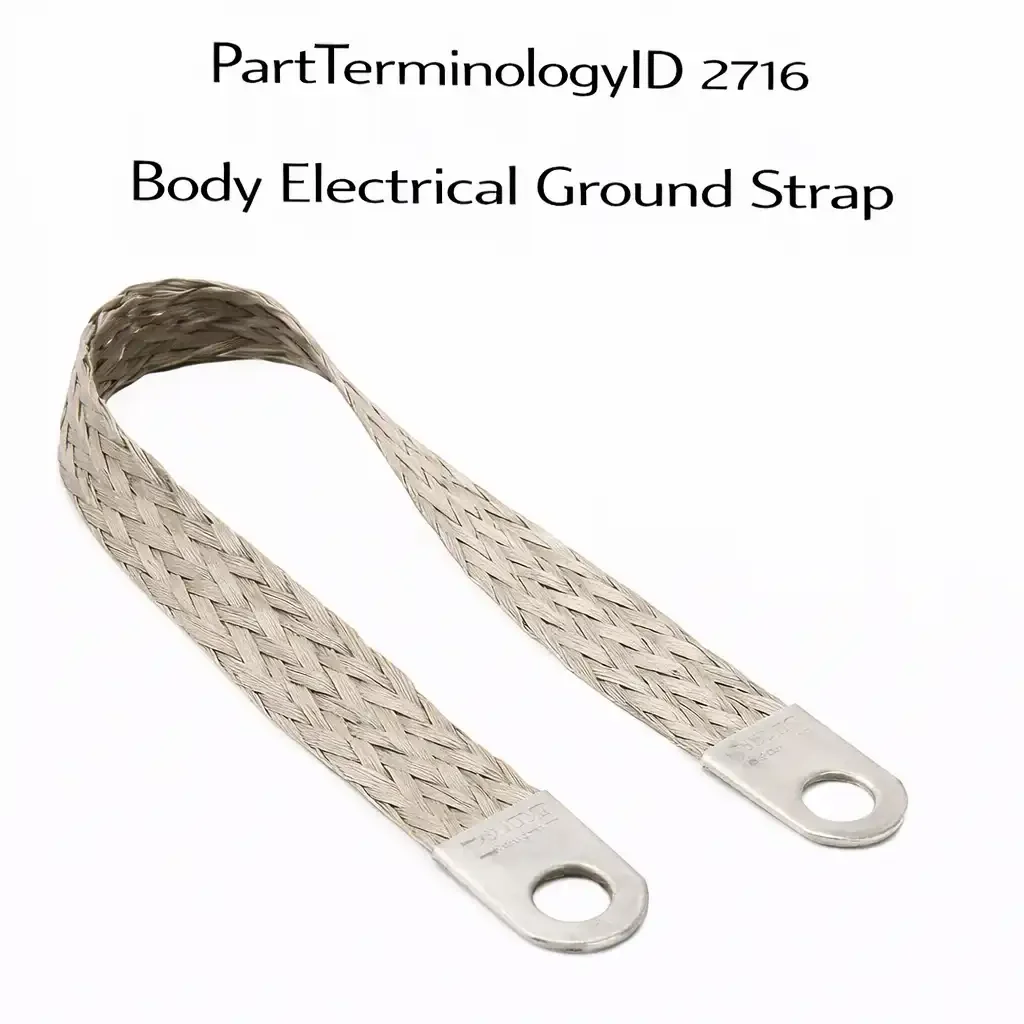

Body Electrical Ground Strap (PartTerminologyID 2716): Where Wire Gauge, Terminal Type, and Length Determine Whether the Chassis Ground Path Has Adequate Conductance for Every Circuit the Strap Serves
Written by Arthur Simitian | PartsAdvisory
PartTerminologyID 2716, Body Electrical Ground Strap, is the conductor assembly that provides a low-resistance return current path between two chassis, body, or powertrain components that would otherwise be connected through painted mating surfaces, corroded fastener threads, or rubber-isolated mounts that interrupt or impede the metal-to-metal electrical ground path required for the correct operation of every electrical circuit that returns current through those components to the battery negative terminal. That definition covers the ground path function correctly and leaves unresolved every question that determines whether the replacement strap's wire gauge is adequate for the aggregate return current of all circuits served by that ground connection, whether the terminal ring hole diameter matches the mounting bolt or stud at each end, whether the terminal plating is compatible with the mounting surface material to resist galvanic corrosion at the contact interface over the strap's service life, whether the strap length spans the distance between the two mounting points with the service loop required to accommodate powertrain movement without placing the conductor in tension, whether the conductor is bare copper, tinned copper, or aluminum with the correct crimp termination for each material type, whether the strap is a single conductor or a woven braided design whose flexibility accommodates relative motion between the two mounting points such as between the engine block and the chassis rail across the engine mounts, and whether the strap's terminal hardware is included or requires separate sourcing.
It does not specify the wire gauge or conductor cross-sectional area, the terminal ring hole diameter at each end, the terminal plating type, the conductor material, the strap length and service loop, whether the conductor is solid, stranded, or braided, the current rating of the complete assembly, the mounting position on the vehicle, which circuits are served by the ground connection the strap provides, whether the strap covers the engine block to chassis ground, the body to chassis ground, the transmission to chassis ground, or an ancillary module ground, or the number of straps per package. A listing under PartTerminologyID 2716 that specifies only a vehicle application without wire gauge, terminal hole diameter, and mounting position cannot be evaluated by a technician who is diagnosing a multi-system ground fault and needs to confirm the replacement strap's current rating is adequate for the aggregate return current of all circuits on that ground before removing the corroded original.
For sellers, PartTerminologyID 2716 is the PartTerminologyID in the chassis electrical category where the symptom profile of a failed strap is the most diagnostically confusing of any single component failure in the electrical system. A corroded body-to-chassis ground strap does not produce a single circuit failure. It produces shared ground resistance that affects every circuit returning current through that ground point simultaneously. A technician who encounters erratic gauge readings, multiple illuminated warning lamps, engine sensor signal errors, audio system noise, and sluggish power accessories simultaneously is facing a diagnostic picture that resembles a BCM failure, a CAN bus fault, and multiple individual component failures all at once. The strap failure is the single root cause producing all of those symptoms, but it is invisible in the symptom profile until a voltage drop test is performed across the suspect ground connection. A catalog that accurately identifies replacement ground straps by mounting position and current rating makes it possible for a technician to confirm the ground strap diagnosis and source the correct replacement in one transaction.
The additional complexity specific to PartTerminologyID 2716 is the mounting-position specificity problem. A vehicle may have six to twelve individual ground straps at different locations throughout the body and chassis, each serving a distinct group of circuits and each specifying a different wire gauge, length, and terminal configuration. A catalog entry that covers "body ground strap" without specifying the mounting position, the circuits served, and the wire gauge for that specific position will generate orders from technicians at every ground strap location on the vehicle, with the correct replacement arriving only for the subset of positions that happen to share the gauge and terminal configuration of the listed part. Every other position's technician will receive a strap that is the wrong length, the wrong gauge, or has the wrong terminal hole diameter for their specific mounting hardware.
What the Body Electrical Ground Strap Does
Providing the return current path that painted chassis surfaces cannot
Every electrical circuit in the vehicle requires a complete circuit: a supply path from the battery positive terminal to the load, and a return path from the load back to the battery negative terminal. For circuits whose loads are mounted to the vehicle body, the body sheet metal provides the return path through the chassis to the battery negative cable. But the body sheet metal is painted, and paint is an electrical insulator. The body-to-chassis ground strap bypasses the paint layer at the body-to-chassis joint by providing a direct conductor path from the body sheet metal to the chassis rail at a point where both terminations are secured to bare metal through the mounting bolt's thread contact with the underlying unpainted metal.
The aggregate return current through any single body ground strap is the sum of all return currents from every circuit grounded through that strap's body connection point. On a typical passenger vehicle, a body ground strap near the front left wheelhouse may carry the combined return current for the headlight assembly, the horn, the ABS module, the engine control module ground, and the forward lighting circuit, totaling 30 to 50 amperes under simultaneous full-load operation. The strap's wire gauge must be adequate for this aggregate current without developing voltage drop across the strap conductor that exceeds the ground path resistance budget for the most sensitive circuit served. For circuits containing precision sensors whose signal voltages are in the millivolt range, a ground path resistance of even 0.1 ohms produces a ground offset that shifts every sensor signal at that ground point by the product of the circuit current and the ground resistance, corrupting the sensor data that the ECM uses for fuel delivery and ignition timing calculations.
Braided versus stranded conductor and the relative motion requirement
Ground straps at positions where the two mounting points move relative to each other during vehicle operation require a braided or flexible stranded conductor rather than a solid or stiff stranded conductor. The engine block moves on its rubber mounts relative to the chassis rail by several millimeters in all directions during acceleration, braking, and cornering. A solid conductor or a stiff multi-strand conductor used as an engine block to chassis ground strap will be placed in tension and bending stress repeatedly with each engine movement event. Over tens of thousands of movement cycles, the conductor fatigues at the termination point where bending stress concentrates, eventually breaking individual strands until the conductor's cross-sectional area is reduced below the design current capacity and the ground path resistance increases.
A braided conductor, which is a multi-strand woven flat braid or a tubular braid rather than a twisted wire rope, distributes the bending stress across many fine strands rather than concentrating it at the termination. Each fine strand in the braid flexes through a small angle rather than a large angle at the crimp point, and the total fatigue life of the braid is vastly greater than a comparable gauge solid conductor under the same cyclic bending load. Ground straps for engine block to chassis, transmission to chassis, and any other powertrain-to-chassis positions must use braided conductors. A stiff stranded conductor substituted at a braided position will fail from fatigue within two to three years of installation, producing a ground fault that was not present when the replacement strap was first installed and tested.
Terminal plating and galvanic corrosion at the mounting surface
The ground strap's long-term effectiveness is determined as much by the terminal plating as by the conductor gauge. A ring terminal installed against steel chassis sheet metal undergoes galvanic corrosion at the copper-steel contact interface whenever moisture is present. The galvanic potential between copper and steel in salt water produces a corrosion current that deposits copper oxide on the terminal face and iron oxide on the adjacent steel surface, both of which are resistive compared to the clean copper and steel they replace. Over one to three seasons in a road-salt environment, a bare copper ring terminal can develop 0.5 ohms of contact resistance at the mounting surface, which at 30 amperes of ground current produces a 15-volt ground offset that is sufficient to corrupt every sensor signal at that ground point beyond the ECM's ability to interpret the data correctly.
Tin-plated ring terminals resist galvanic corrosion at steel mounting surfaces because the tin layer is sacrificial and corrodes preferentially to the copper conductor, maintaining a relatively low-resistance contact at the tin-steel interface for a longer service period than bare copper. Nickel-plated terminals provide even greater corrosion resistance and are appropriate for severe underbody environments where road salt exposure is sustained. The terminal plating type must be stated in the listing, and the application note must recommend cleaning the mounting surface to bare metal and applying dielectric grease or anti-oxidant compound to the terminal face at installation to establish the designed contact resistance from the first mounting.
The mounting-position-specific current rating and length requirement
The wire gauge for a body electrical ground strap is not determined by a single vehicle-wide standard. It is determined by the aggregate return current of all circuits served by that specific ground connection point. The engine block to battery negative cable strap carries the full engine management system return current plus the starter motor return current during cranking, which can reach 200 to 400 amperes on a diesel, and requires a 2-gauge or heavier conductor. The body rear section to chassis strap carries only the rear lighting and tail lamp circuits, typically 10 to 15 amperes, and may use a 14-gauge conductor. These two straps serve the same function but at vastly different current levels, and a catalog entry that specifies a single gauge for all body ground strap positions is either dangerous at the high-current positions or wasteful at the low-current positions.
Why This Part Generates Returns
Buyers return body electrical ground straps because the wire gauge is lighter than the original and the replacement develops measurable voltage drop under the full aggregate ground current of the circuits it serves, the terminal ring hole diameter is 8mm and the mounting bolt is 10mm producing a terminal that cannot be installed on the bolt without an adapter washer that elevates the terminal above the mounting surface, the strap length is 200mm and the original was 320mm and the replacement cannot span the distance between the two mounting points without pulling the terminal away from one mounting surface under powertrain movement, the conductor is stiff stranded rather than braided and the strap cracks at the front terminal crimp after 18 months of engine mount movement cycling, the terminal plating is bare copper and the mounting surface is aluminum body sheet metal producing an accelerated galvanic reaction that corrodes the terminal to a high-resistance oxide layer within one winter, the listing covers the body to chassis ground at the front of the vehicle and the buyer needed the engine block to chassis ground which is a heavier gauge at a different mounting position, the strap length includes no service loop and the powertrain movement during hard acceleration pulls the strap terminal away from the engine block mounting stud, and the package quantity is one strap and the vehicle requires two at the same position for the combined ground of two separate circuits whose wires terminate at the same chassis location.
Status in New Databases
PIES/PCdb: PartTerminologyID 2716, Body Electrical Ground Strap
PIES 8.0 / PCdb 2.0: No change in PartTerminologyID or terminology label.
Top Return Scenarios
Scenario 1: "Light gauge replacement on high-current engine ground, voltage drop corrupts ECM sensor data"
The original engine block to chassis ground strap is 4-gauge carrying the combined ECM ground, fuel injector ground, ignition system ground, and all engine sensor grounds totaling approximately 45 amperes under full engine load. The replacement is listed as a body ground strap in a generic application and is 10-gauge. At 45 amperes of combined ground current, the 10-gauge conductor develops a voltage drop of approximately 0.18 volts across its length. The ECM's sensor ground reference is 0.18 volts above chassis ground rather than 0 volts. The oxygen sensor signal, which operates in the 0 to 1 volt range, is shifted by 0.18 volts across its entire range, causing the ECM to interpret lean conditions as stoichiometric and stoichiometric conditions as rich. The engine runs rough and the fuel trims show persistent offset.
Prevention language: "Wire gauge: [X] AWG. Maximum continuous current rating: [X] amperes. Mounting position: [engine block to chassis / body to chassis front / body to chassis rear / transmission to chassis]. Verify the replacement strap's wire gauge and current rating match the aggregate return current of all circuits served at this ground connection point. For engine block to chassis ground straps, the minimum gauge is typically 4 AWG to accommodate the combined engine management system return current without developing a ground offset that corrupts sensor data."
Scenario 2: "Stiff stranded conductor on engine mount application, strap cracks at crimp within 18 months"
The replacement engine block to firewall ground strap uses a stiff stranded copper conductor rather than a braided conductor. The engine moves approximately 4mm on its mounts during hard acceleration events. After 18 months and approximately 15,000 mount movement cycles, individual strands begin cracking at the engine block terminal crimp where the bending stress concentrates. The conductor develops a progressive open circuit as strands fail one by one over the following 3,000 miles. The intermittent open ground produces random ECM reset events that occur under hard acceleration, exactly when the mount movement is greatest, making the fault appear to correlate with engine load rather than ground continuity.
Prevention language: "Conductor type: [braided flat / braided tubular / stranded]. This strap uses a [conductor type] conductor. For ground straps connecting powertrain components to the chassis across rubber-isolated mounts, a braided conductor is required. A stiff stranded conductor at a powertrain-to-chassis position will fail from vibration and movement fatigue at the terminal crimp within two to three years of installation."
Scenario 3: "Terminal hole 8mm, mounting stud 10mm, terminal cannot be installed flush"
The replacement strap has 8mm terminal ring holes at both ends. The vehicle's engine block ground mounting stud is M10. The 8mm ring terminal hole is too small to pass over the M10 stud. The technician attempts to force the terminal over the stud, deforming the ring and cracking the copper at the ring eye. The deformed ring makes contact on only a portion of its inner circumference against the stud shoulder, producing a high-resistance connection from the first installation.
Prevention language: "Terminal ring hole diameter: [X] mm at engine end, [X] mm at chassis end. Verify the terminal hole diameters match the mounting bolt or stud diameter at each end before installation. A terminal ring hole smaller than the mounting stud diameter cannot be installed without deforming the ring, which reduces the terminal contact area and increases ground path resistance from the first connection."
Scenario 4: "Strap too short, no service loop, terminal pulled off engine stud under hard acceleration"
The replacement strap is 180mm long, matching the straight-line distance between the two mounting points with no additional length for a service loop. Under hard acceleration, the engine moves 4mm rearward on its mounts. The 180mm strap is placed in tension by the powertrain movement. The tension pulls the engine block terminal off the mounting stud shoulder, breaking the ground connection during the acceleration event. The ECM loses its engine ground reference during full-throttle operation, producing a momentary complete loss of engine management that triggers multiple fault codes and, in some cases, an engine stall at high RPM.
Prevention language: "Strap length: [X] mm. For ground straps at powertrain-to-chassis positions, the strap length must include a minimum 30 to 50mm service loop beyond the straight-line distance between the two mounting points to accommodate powertrain movement without placing the conductor in tension. A strap installed without a service loop will be pulled taut under powertrain movement and may disconnect from the mounting point during hard acceleration."
Scenario 5: "Wrong mounting position specified, body front strap received for engine block application"
The listing covers a body ground strap without specifying the mounting position. The buyer needs to replace the engine block to chassis ground strap. The delivered strap is the lighter-gauge body front panel to chassis strap for the headlight and horn circuit ground, which happens to share the same vehicle application year, make, and model. The lighter-gauge body strap cannot carry the engine management system return current without developing significant voltage drop. The buyer installs it as the only available replacement before discovering the gauge mismatch during a subsequent voltage drop test.
Prevention language: "Mounting position: [engine block to chassis rail / engine block to firewall / body front panel to chassis / body side sill to chassis / body rear panel to chassis / transmission to chassis]. This strap is designed for the [mounting position] ground connection. Vehicles have multiple ground straps at different positions with different wire gauges. Verify the mounting position matches before ordering. Do not substitute a body panel ground strap for an engine block ground strap application."
Scenario 6: "Bare copper terminal on aluminum body sheet metal, galvanic corrosion within one season"
The replacement strap uses bare copper ring terminals. The mounting point at the body side is aluminum sheet metal. The copper-aluminum galvanic pair in the presence of road salt moisture produces an accelerated corrosion reaction at the terminal contact interface. After one winter season, the terminal face has a thick layer of copper oxide deposits and the aluminum mounting surface shows white aluminum oxide corrosion around the terminal area. The contact resistance at this terminal has increased to 0.8 ohms. At 15 amperes of body circuit ground current, the terminal develops a 12-volt ground offset that corrupts every body circuit ground reference at this point.
Prevention language: "Terminal material and plating: [bare copper / tin-plated copper / nickel-plated copper]. For mounting surfaces made of aluminum body sheet metal, use a tin-plated or nickel-plated terminal to reduce galvanic corrosion at the copper-aluminum contact interface. Always clean the mounting surface to bare metal, apply anti-oxidant compound to the terminal face, and torque the mounting fastener to the specified value to achieve the designed contact resistance at installation."
What to Include in the Listing
Core essentials
PartTerminologyID: 2716
component: Body Electrical Ground Strap
mounting position: engine block to chassis, body to chassis, transmission to chassis, or specific location (mandatory, in title)
wire gauge in AWG or cross-sectional area in mm squared (mandatory)
maximum continuous current rating in amperes (mandatory)
conductor type: braided flat, braided tubular, or stranded (mandatory)
conductor material: copper, tinned copper, or aluminum (mandatory)
total strap length in mm including service loop (mandatory)
terminal ring hole diameter at each end in mm (mandatory)
terminal plating: bare copper, tin-plated, or nickel-plated (mandatory)
terminal type: ring, eyelet, or spade (mandatory)
mounting hardware: included or not included (mandatory)
circuits served at this ground position (recommended)
OEM part number cross-reference (mandatory)
quantity per package (mandatory)
Fitment essentials
year/make/model/submodel
mounting position with chassis location description
note for vehicles with multiple ground strap positions: list all positions separately
note for high-current positions requiring braided conductor
note for aluminum body mounting surfaces requiring tin or nickel plating
installation requirement: mounting surface preparation to bare metal with anti-oxidant compound
Image essentials
strap shown full length with length measurement labeled
terminal ring holes shown at both ends with hole diameter labeled
conductor type shown: braid weave pattern visible for braided designs
terminal plating shown: plating type labeled on terminal face
service loop shown where applicable with loop position labeled
mounting position shown on vehicle diagram or installation photo
Catalog Checklist for ACES/PIES Teams
PartTerminologyID = 2716
require mounting position (mandatory, first attribute)
require wire gauge and current rating (mandatory)
require conductor type: braided or stranded (mandatory)
require conductor material (mandatory)
require total strap length (mandatory)
require terminal ring hole diameter at each end (mandatory)
require terminal plating type (mandatory)
require quantity per package (mandatory)
prevent mounting position omission: a vehicle has multiple ground straps at different positions with different gauges; a listing without mounting position will be ordered for every ground strap position on the vehicle and will be correct for none except by coincidence
prevent gauge-without-current-rating: the wire gauge must be accompanied by the maximum continuous current rating for the assembly; the aggregate return current at the specific ground position must be verifiable before ordering
prevent stiff stranded conductor at powertrain positions: engine block, transmission, and exhaust system ground straps must use braided conductors; stiff stranded conductors fatigue at powertrain-to-chassis positions within two to three years
prevent bare copper terminal on aluminum body: bare copper terminals on aluminum mounting surfaces produce accelerated galvanic corrosion; terminal plating type must be required and must be matched to the mounting surface material
flag service loop requirement: strap length must include the service loop for powertrain positions; a listing that states the straight-line mounting distance as the strap length will produce straps installed without service loops
flag multi-position catalog coverage: catalog teams must list each ground strap position separately; a single listing for all body ground strap positions on a vehicle produces mismatched gauge and terminal returns at every position except the one the listing was originally built for
differentiate from battery cable: the battery cable is the primary supply and return path between the battery terminals and the fuse block and chassis; the body ground strap provides supplemental return path conductance at body-to-chassis joints throughout the vehicle; both serve the ground distribution system but at different locations and current levels
differentiate from fusible link (PartTerminologyID 2692): the fusible link is an overcurrent protection element in the main supply circuit; the body ground strap is an unprotected return conductor; the ground strap has no overcurrent protection element and is sized to carry its maximum current continuously without a protection threshold
FAQ (Buyer Language)
What does a body electrical ground strap do?
A body electrical ground strap provides a low-resistance return current path between two components that would otherwise be connected only through painted mating surfaces or rubber-isolated mounts that interrupt the metal-to-metal ground path. It ensures every circuit grounded through that connection point can return current to the battery negative terminal without passing through a resistive paint or corrosion layer. A corroded ground strap produces shared ground resistance that simultaneously affects every circuit returning current through that connection point.
What are the symptoms of a failed body ground strap?
Multiple simultaneous electrical symptoms across unrelated circuits: erratic gauge readings, multiple warning lamps without a corresponding fault, rough engine operation from sensor signal corruption, audio system noise varying with engine speed, sluggish power windows and door locks, and headlights dimming when another high-current load activates. The simultaneous multi-system symptom profile distinguishes a ground strap failure from individual component failures.
How do I find all the ground straps on my vehicle?
The vehicle's factory service manual ground distribution diagram is the most reliable source. Common positions include engine block to battery negative, engine block to firewall or chassis rail, body to chassis at multiple points along the sills and floor, and transmission to chassis. Vehicles with towing packages may have additional rear body and trailer connector ground straps.
Can I use a heavier-gauge strap to improve grounding?
A heavier gauge reduces conductor resistance and increases current capacity, both of which are acceptable. However it does not compensate for poor terminal contact at either mounting surface. A heavy-gauge strap with corroded terminals on painted bolt holes has higher total ground path resistance than a correctly installed original-gauge strap with clean bare-metal terminal contact. Prepare the mounting surfaces to bare metal before installing any replacement.
Why does the ground strap corrode if it is made of copper?
Galvanic corrosion between the copper terminal and the steel or aluminum chassis mounting surface, accelerated by moisture and road salt at the junction. The resulting copper oxide and iron oxide deposits at the contact interface progressively elevate contact resistance. Tin-plated or nickel-plated terminals resist galvanic corrosion better than bare copper at dissimilar metal mounting surfaces and extend the service interval before resistance increases.
Cross-Sell Logic
Battery Cable: the main battery negative cable provides the primary ground path from the battery negative terminal to the chassis; the ground strap supplements the chassis distribution of that primary ground; both must be inspected together when diagnosing a ground fault, as corrosion in either elevates the ground path resistance for all circuits simultaneously
Fusible Link (PartTerminologyID 2692): the overcurrent protection in the main supply circuit whose return path the ground strap serves; a ground strap failure that produces a severe ground offset can corrupt the voltage regulator's reference and trigger fusible link replacement as a symptom rather than a root cause; verify ground strap integrity before replacing the fusible link on any multi-system electrical fault
Terminal Cleaning Kit: required at installation to prepare both mounting surfaces to bare metal before seating the replacement strap terminals; a replacement strap installed without surface preparation will develop the same contact resistance as the original within one to two seasons
Anti-Oxidant Compound: applied to the terminal face at installation to slow the galvanic corrosion reaction at the copper-to-steel or copper-to-aluminum interface; required for long service life at all underbody ground strap positions in road salt environments
Ground Strap Assortment Kit: for shops performing systematic ground system restoration on high-mileage vehicles; covers all ground strap positions in a single kit rather than sourcing each position individually
Frame as "the battery cable delivers the primary ground return path from the battery terminal to the chassis. The ground straps distribute that chassis ground to every body and powertrain component that needs a return path. The circuits served by each strap cannot return current reliably without it. All are in the same ground distribution hierarchy from the battery negative terminal to every grounded circuit in the vehicle."
Final Take for PartTerminologyID 2716
Body Electrical Ground Strap (PartTerminologyID 2716) is the PartTerminologyID in the chassis electrical category where a single component failure produces the most diagnostically confusing multi-system symptom profile in the vehicle's electrical system. A corroded engine block to chassis ground strap does not produce one fault code. It produces simultaneous corruption of every sensor signal at that ground point, multiple BCM communication errors, and audible symptoms in the audio system, all from a single 6-inch conductor that has developed 0.3 ohms of resistance at a corroded terminal ring. The diagnostic value of correctly identifying the ground strap as the root cause of a multi-system electrical complaint is proportional to the confusion the fault produces, and a listing that allows a technician to identify the correct replacement by mounting position and current rating before beginning the repair is the catalog entry that resolves the complaint efficiently.
State the mounting position in the title. State the wire gauge. State the conductor type: braided or stranded. State the current rating. State the terminal hole diameters at both ends. State the terminal plating type. State the total strap length including service loop. State the installation surface preparation requirement. State the conductor material. For PartTerminologyID 2716, mounting position, wire gauge, and conductor type are the three attributes that determine whether the replacement strap carries the aggregate return current of its circuits without ground offset, survives powertrain movement without conductor fatigue, and provides the correct terminal geometry for a flush low-resistance connection at both mounting points.
