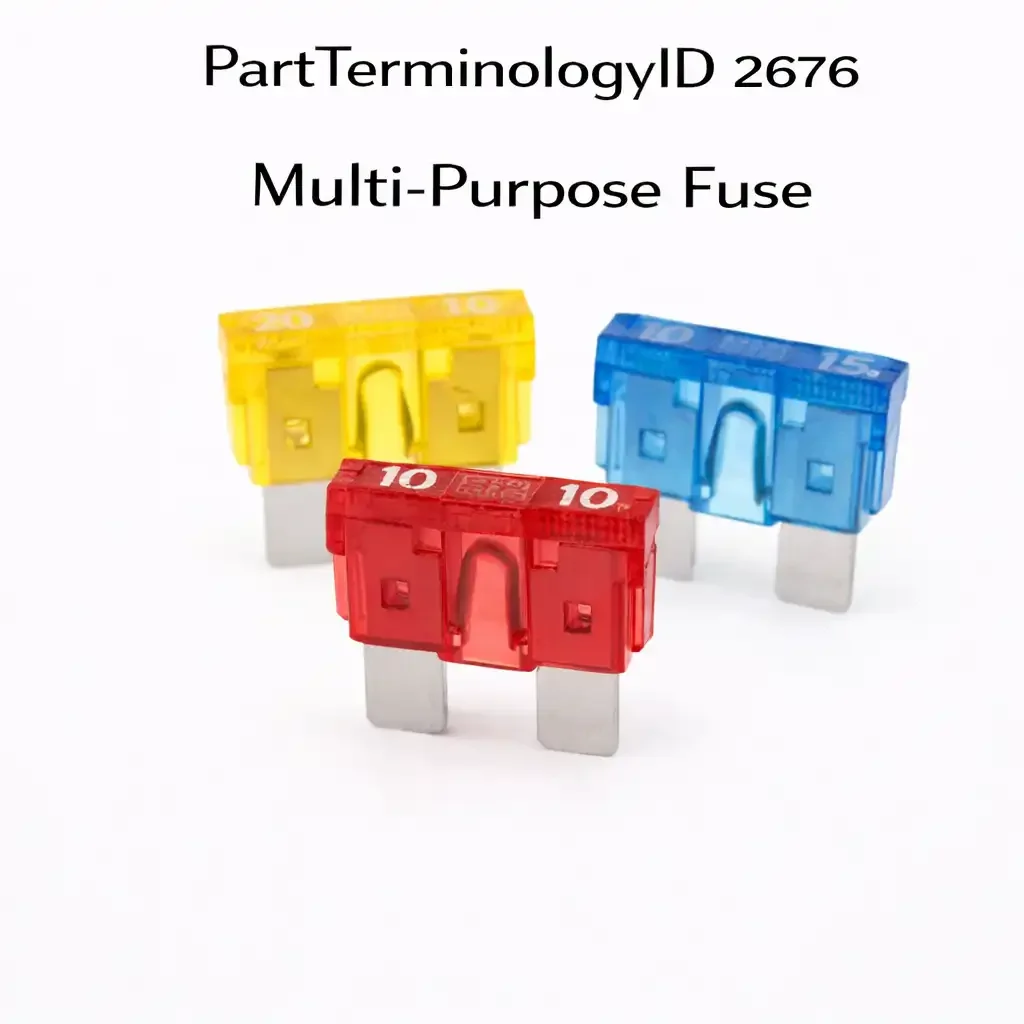

Multi-Purpose Fuse (PartTerminologyID 2676): Where Fuse Type, Ampere Rating, and Voltage Rating Determine Whether the Circuit Is Protected or the Fuse Block Is Damaged
Written by Arthur Simitian | PartsAdvisory
PartTerminologyID 2676, Multi-Purpose Fuse, is the overcurrent protection device installed in the vehicle's fuse block to protect individual electrical circuits from damage caused by fault currents that exceed the circuit wiring's safe current-carrying capacity. That definition covers the function correctly and leaves unresolved every question that determines whether the replacement fuse physically fits the fuse block cavity without forcing or loose contact, whether the fuse's ampere rating matches the circuit's designed overcurrent threshold, whether the fuse's voltage rating is adequate for the vehicle's electrical system voltage and its transient spikes, whether the fuse's physical size and blade geometry match the fuse block's contact spring design, whether the fuse's time-current characteristic matches the circuit's expected normal operating current profile to avoid nuisance blowing during high-inrush startup events, whether the fuse's interrupting capacity is adequate for the maximum fault current available at the fuse's location in the vehicle's electrical system, and whether the fuse's body material and element design are compatible with the fuse block's contact material and the circuit's expected operating temperature range.
It does not specify the fuse type, whether it is an ATO standard blade, ATC standard blade, mini blade, low-profile mini blade, maxi blade, ceramic tube, or glass tube design, the ampere rating, the voltage rating, the physical body dimensions and blade dimensions, the time-current characteristic and whether it is a fast-blow or slow-blow design, the interrupting capacity in amperes, the element material, the body material, or the quantity per package. A listing under PartTerminologyID 2676 that specifies only a color code and an ampere value without fuse type, voltage rating, and body dimensions cannot be evaluated by a technician who needs to confirm the replacement fits the fuse block cavity and provides adequate overcurrent protection for the specific circuit position before installation.
For sellers, PartTerminologyID 2676 presents the broadest physical format diversity of any single PartTerminologyID in the electrical protection category. The automotive fuse market includes at minimum six distinct fuse body formats in current production, each with multiple ampere ratings, and each format is physically incompatible with every other format regardless of matching ampere ratings. A buyer who orders a 15-ampere fuse without specifying the fuse type may receive an ATO blade fuse for a fuse block that requires a mini blade, or a maxi blade for a block that requires a standard ATO, and the delivered fuse will not fit the cavity in either case. The fuse type is therefore not a secondary attribute that can be inferred from the vehicle application. It is the primary physical specification that must be stated before any other attribute.
The additional complexity specific to PartTerminologyID 2676 is the safety consequence asymmetry between under-rating and over-rating errors. Installing a fuse with a lower ampere rating than specified for a circuit will cause nuisance blowing during normal high-current operating events such as motor startup, compressor cycling, or headlight activation on a cold morning. This is an annoying but physically safe failure mode because the lower-rated fuse is providing more protection than the circuit requires, not less. Installing a fuse with a higher ampere rating than specified removes protection from the circuit wiring. The higher-rated fuse will carry the full fault current of a short circuit in the protected wiring without blowing, allowing the fault current to flow through the wiring until the wiring insulation ignites. The under-rating error generates a complaint. The over-rating error generates a fire. Both are entirely preventable by stating the ampere rating as a required attribute and including explicit installation language directing buyers never to substitute a higher ampere rating than the original.
What the Multi-Purpose Fuse Does
Opening the circuit at the overcurrent threshold
The fuse's primary function is to interrupt current flow when the circuit current exceeds the fuse element's thermal melting threshold for longer than the fuse's time-current characteristic allows. The fuse element is a calibrated conductor, typically a zinc or zinc-alloy strip in blade fuses, whose cross-sectional area is sized to carry the fuse's rated current continuously without significant self-heating, but to generate enough heat at the rated overcurrent level to melt the element within the time specified by the fuse's time-current curve. The time-current curve defines how long the fuse can carry a given multiple of its rated current before the element melts, expressed as a curve of time versus current ratio.
A fuse rated at 15 amperes will typically carry 135 percent of its rated current, or approximately 20 amperes, for several minutes before blowing. It will carry 200 percent, or 30 amperes, for a few seconds. It will blow almost instantaneously at 400 percent, or 60 amperes. This graduated response is intentional and is designed to accommodate the inrush current spikes that occur during motor startup, relay actuation, and lamp warm-up without causing nuisance blowing, while still providing rapid protection against sustained fault currents that would overheat the wiring. A fuse whose time-current characteristic does not match the circuit's inrush profile will either blow during normal startup events, generating repeated nuisance blows that the buyer may attempt to solve by installing a higher-rated fuse, or will carry an intermediate fault current for long enough to damage the wiring before blowing.
Fitting the fuse block cavity without modification
The fuse's physical dimensions must match the fuse block cavity exactly. A blade fuse's body height, body width, blade width, blade thickness, and blade spacing are all specified to match the contact spring geometry of the fuse block cavity. A standard ATO fuse has blades spaced approximately 5mm apart. A mini blade fuse has blades spaced approximately 3.6mm apart. A maxi blade fuse has blades spaced approximately 6.3mm apart. These blade spacings correspond to the contact spring spacing in the respective fuse block cavities. A fuse with incorrect blade spacing will either not insert into the cavity or will insert loosely without making reliable contact, producing a high-resistance connection that generates heat at the contact interface.
The blade thickness is equally critical. A blade that is thicker than the contact spring's designed engagement gap will deform the contact springs when forced into the cavity, permanently widening the spring gap. Subsequent fuses installed in the same cavity after a too-thick blade has deformed the springs will fit loosely and may arc at the contact interface during normal circuit operation. A blade that is thinner than the contact spring gap will make insufficient contact spring force on the blade, producing a high-resistance connection that heats the contact interface and may arc intermittently under vibration. Neither condition is detectable from outside the fuse block without measuring contact resistance at the specific cavity.
Providing adequate voltage rating for the electrical system
The voltage rating of a fuse is the maximum system voltage at which the fuse can safely interrupt a fault current by extinguishing the arc that forms between the separated element ends after the element melts. When a fuse element melts, the gap between the separated ends is initially small enough that the system voltage can sustain an arc across the gap. The fuse body and element design must extinguish this arc before the arc erodes the element ends and sustains itself indefinitely. A fuse rated at 32 volts DC has a body geometry and element design that extinguishes an arc in a 32-volt system. A 32-volt-rated fuse in a 48-volt or higher system may not extinguish the arc because the higher voltage sustains the arc across a larger gap than the 32-volt design anticipated.
For standard 12-volt and 24-volt automotive applications, a 32-volt DC rated fuse provides adequate margin. For mild hybrid 48-volt systems, a 58-volt DC rated fuse is required at the high-voltage circuit positions. For full hybrid and battery electric vehicle high-voltage circuits above 60 volts, fuses rated at 500 volts DC or higher are required. The voltage rating must be stated in the listing for every fuse under PartTerminologyID 2676, and must be flagged for hybrid and electric vehicle applications where the voltage rating requirement differs from the standard 32-volt automotive fuse.
Interrupting capacity and high-fault-current protection
Interrupting capacity is the maximum fault current the fuse can safely interrupt without the fuse body cracking, the contact blades being blown out of the fuse body, or the arc between the element ends sustaining itself after the element melts. The interrupting capacity requirement is determined by the maximum fault current available at the fuse's location in the electrical system, which is determined by the source impedance of the battery and the wiring between the battery and the fuse.
In a standard 12-volt automotive system with a healthy battery, the maximum available fault current at a fuse location close to the battery can reach 1,000 to 2,000 amperes. A standard automotive blade fuse has an interrupting capacity of approximately 1,000 amperes, which is adequate for most standard fuse block positions. High-current fuses at the battery junction box or the main distribution center may need interrupting capacities of 2,000 to 5,000 amperes depending on the battery's cold-cranking ampere rating and the wiring resistance between the battery and the fuse. A fuse with insufficient interrupting capacity for the available fault current will fail destructively during a hard fault, damaging the fuse block contacts and potentially fracturing the fuse body with enough force to eject fragments into adjacent components.
The fuse color code system and its limitations as a sole identifier
The automotive blade fuse color code system assigns a standardized color to each ampere rating across all blade fuse types: tan for 5 amperes, brown for 7.5 amperes, red for 10 amperes, blue for 15 amperes, yellow for 20 amperes, clear or white for 25 amperes, green for 30 amperes, and so forth. The color code is consistent across ATO, ATC, mini blade, and maxi blade fuse types within the same ampere rating. A 15-ampere ATO fuse and a 15-ampere mini blade fuse are both blue, but they are not interchangeable because their physical dimensions differ.
This means the color code alone is an insufficient fitment specification. A buyer who orders a 15-ampere blue fuse without specifying the fuse type may receive a mini blade when the fuse block requires an ATO standard blade, and the color will match but the fuse will not fit. The listing must state both the ampere rating and the fuse type, and must not allow the color code to substitute for an explicit fuse type designation. The color code is useful as a secondary confirmation tool during installation but is not a substitute for the physical type specification in the listing.
Fast-blow versus slow-blow time-current characteristics
Standard automotive blade fuses are fast-blow designs: they respond rapidly to overcurrent events and are intended for circuits that do not experience large inrush currents during normal startup. Slow-blow fuses, also called time-delay fuses, use a different element design that tolerates a higher current for a longer duration before blowing, accommodating the inrush current spike of large motor loads, compressors, and transformer-loaded circuits without causing nuisance blowing while still providing protection against sustained overcurrents.
Installing a fast-blow fuse in a circuit that normally experiences high inrush startup currents will produce nuisance blowing on every cold start or every compressor cycle, because the startup inrush exceeds the fast-blow element's short-time tolerance. Installing a slow-blow fuse in a circuit that requires fast response to protect sensitive electronics will allow an overcurrent event to persist longer than the circuit's components can tolerate before the fuse blows. The time-current characteristic type must be stated in the listing, particularly for circuits served by motor-driving or compressor-loading applications where slow-blow characteristics are specified by the vehicle manufacturer.
Why This Part Generates Returns
Buyers return multi-purpose fuses because the fuse type does not match the fuse block cavity and a mini blade is received for a standard ATO application or a standard ATO is received for a mini blade application and the fuse does not fit the cavity, the ampere rating is higher than specified and the buyer installs it to stop nuisance blowing only to have the wiring overheat at the circuit fault, the ampere rating is lower than specified and the fuse blows during normal high-inrush startup events such as motor activation or headlight turn-on, the voltage rating is 32 volts and the vehicle is a 48-volt mild hybrid system requiring a higher voltage rating at the affected circuit position, the time-current characteristic is fast-blow and the circuit requires slow-blow accommodation for a compressor or blower motor inrush current, the interrupting capacity is inadequate for the available fault current and the fuse body fractures on the first hard fault rather than interrupting cleanly, the fuse body color matches the original but the physical type is different because two fuse types share the same color at that ampere rating, the blade dimensions are slightly different from the original supplier's design and the blades deform the fuse block contact springs on insertion, the quantity per package is one and the buyer needed a multipack for a complete fuse assortment replenishment, and the fuse is a ceramic tube type received for a blade fuse application because the listing title stated the ampere rating only without the fuse type designation.
Status in New Databases
PIES/PCdb: PartTerminologyID 2676, Multi-Purpose Fuse
PIES 8.0 / PCdb 2.0: No change in PartTerminologyID or terminology label. Internal systems keyed to 2676 do not require remapping at the PIES 8.0 transition.
Top Return Scenarios
Scenario 1: "Mini blade received for standard ATO application, fuse does not fit cavity"
The buyer's fuse block uses standard ATO blade cavities. The listing title states "15 amp fuse" without specifying the fuse type. The delivered fuse is a mini blade, which is physically smaller than the ATO standard. The mini blade's narrower blade spacing does not engage the ATO cavity's contact springs. The fuse falls out of the cavity rather than seating. The buyer returns the fuse as incorrect.
Prevention language: "Fuse type: [ATO standard blade / ATC standard blade / mini blade / low-profile mini blade / maxi blade / ceramic tube / glass tube]. This fuse is a [type] design with blade spacing of [X] mm. Verify the fuse type matches the fuse block cavity type before ordering. ATO standard blade, mini blade, and maxi blade fuses are not interchangeable regardless of matching ampere ratings."
Scenario 2: "Higher ampere rating installed to stop nuisance blowing, wiring overheats at fault location"
The buyer's 15-ampere fuse blows repeatedly when the blower motor is activated. The buyer orders and installs a 25-ampere fuse to stop the nuisance blowing. The 25-ampere fuse carries a sustained 18-ampere fault current in the blower motor circuit caused by a failing motor winding that has not yet failed completely. The 18-ampere fault current is below the 25-ampere fuse's blowing threshold. Over three weeks, the fault current heats the blower motor circuit wiring until the insulation softens and a secondary short develops at a wiring harness support clip. The secondary short produces a hard fault and a wiring fire at the clip location.
Prevention language: "Ampere rating: [X] amperes. Never install a fuse with a higher ampere rating than the original specification for the circuit position. A fuse that blows repeatedly indicates a fault in the protected circuit, not an undersized fuse. Installing a higher-rated fuse removes the circuit's overcurrent protection and allows fault current to flow continuously through the wiring, which will overheat the insulation and may cause a fire. Diagnose the circuit fault before replacing the fuse."
Scenario 3: "Fast-blow fuse in slow-blow application, nuisance blowing on every compressor startup"
The vehicle's air conditioning compressor circuit requires a slow-blow fuse to accommodate the compressor clutch engagement inrush current of approximately 35 amperes for 80 milliseconds on a 20-ampere circuit. The replacement fuse is a fast-blow standard ATO blade. The fast-blow element responds to the 35-ampere inrush at the 175 percent overcurrent level within approximately 400 milliseconds, which is longer than the 80-millisecond inrush duration but shorter than the slow-blow element's tolerance for this overcurrent multiple. The fuse blows on approximately 30 percent of compressor startup events, producing intermittent air conditioning loss that correlates with compressor activation but not consistently enough to be easily diagnosed.
Prevention language: "Time-current characteristic: [fast-blow / slow-blow / time-delay]. This fuse is a [fast-blow / slow-blow] design. For circuits that drive motors, compressors, or other loads with significant inrush startup currents, verify the time-current characteristic matches the original specification. A fast-blow fuse in a slow-blow application will produce nuisance blowing during high-inrush startup events. A slow-blow fuse in a fast-blow application will protect the circuit more slowly than the original, which may allow overcurrents to persist longer than sensitive electronics in the circuit can tolerate."
Scenario 4: "32-volt fuse in 48-volt mild hybrid circuit, arc sustains after interruption, fuse block contact damaged"
The vehicle is a 48-volt mild hybrid. The buyer replaces a blown fuse in the 48-volt auxiliary circuit with a standard 32-volt-rated ATO blade fuse of the correct ampere rating. On the next fault event in the circuit, the 32-volt-rated fuse element melts but the 48-volt system voltage sustains the arc across the separated element ends. The arc erodes the fuse blade contacts and scorches the fuse block cavity. The arc extinguishes after approximately two seconds when the element gap becomes large enough to exceed the arc's sustaining voltage. The fuse block cavity is visibly discolored and the contact springs are damaged. The buyer returns the fuse and requests reimbursement for the fuse block damage.
Prevention language: "Voltage rating: [32V DC / 58V DC / 500V DC]. This fuse is rated for [32 / 58 / 500]-volt DC systems. For 48-volt mild hybrid vehicle circuits, a minimum 58-volt DC rated fuse is required. For high-voltage hybrid and electric vehicle circuits above 60 volts, a minimum 500-volt DC rated fuse is required. Installing a 32-volt fuse in a higher-voltage circuit may result in arc sustaining after element interruption, damaging the fuse block and failing to protect the circuit."
Scenario 5: "Inadequate interrupting capacity, fuse body fractures on hard fault near battery junction"
The buyer replaces a blown fuse at the battery junction box with a standard ATO blade fuse rated for 1,000 amperes interrupting capacity. The fault that blew the original fuse is a hard short near the battery with a calculated available fault current of 1,800 amperes at the junction box location. On the next fault event, the replacement fuse element melts at the 1,800-ampere fault current but the interrupting capacity is exceeded. The arc energy expands faster than the fuse body can contain it and the fuse body fractures. Fuse body fragments are ejected into the junction box interior. The arc extinguishes when the fragments bridge the gap and then re-arc until the available voltage drops below the arc sustaining threshold. The junction box requires replacement.
Prevention language: "Interrupting capacity: [X] amperes. Verify the fuse's interrupting capacity meets or exceeds the maximum available fault current at the fuse's location in the vehicle's electrical system. For fuses located at or near the battery junction box, the available fault current may reach 1,500 to 2,500 amperes depending on the battery's CCA rating. A fuse with insufficient interrupting capacity will fail destructively under a hard fault, potentially damaging the fuse block and surrounding components."
Scenario 6: "Color matches, fuse type different, blade dimensions deform contact springs on insertion"
The buyer's original fuse is a blue 15-ampere ATO blade fuse. The buyer orders a blue 15-ampere fuse without specifying the fuse type. The delivered fuse is a blue 15-ampere ATC blade fuse. ATO and ATC fuses are nominally interchangeable in most fuse blocks, but this specific vehicle uses an aftermarket fuse block with tighter-tolerance contact springs. The ATC fuse's slightly different blade finish produces a higher insertion force that permanently widens the contact spring gap on two adjacent cavities during installation. Fuses subsequently installed in those cavities have reduced contact spring force and overheat at the contact interface during sustained high-current circuit operation.
Prevention language: "Fuse type: ATO or ATC. ATO and ATC fuses are nominally interchangeable in most factory fuse blocks. In aftermarket fuse blocks with tighter contact spring tolerances, blade dimension differences between ATO and ATC designs may produce higher insertion forces that deform contact springs. For aftermarket fuse block applications, specify the exact fuse type that matches the fuse block manufacturer's specification."
Scenario 7: "Low-profile mini blade received for standard mini blade application, fuse seats loosely"
The buyer's fuse block uses standard mini blade cavities. The delivered fuse is a low-profile mini blade, which has the same blade spacing as the standard mini blade but a shorter body height. The lower body height reduces the blade engagement depth in the cavity, and the low-profile blade's shorter contact length engages less of the contact spring's active face. The reduced contact area produces a higher contact resistance at the fuse interface, generating heat at the contact during sustained circuit operation near the rated current.
Prevention language: "Fuse subtype: [standard mini blade / low-profile mini blade]. Standard mini blade and low-profile mini blade fuses share the same blade spacing but differ in body height and blade length. They are not reliably interchangeable in all fuse block designs. Low-profile mini blades installed in standard mini blade cavities may produce reduced contact spring engagement and elevated contact resistance. Verify the mini blade subtype matches the fuse block cavity specification."
Scenario 8: "Single-piece package, buyer needed assortment, multiple circuits require replacement after electrical fault"
The buyer's vehicle experienced a wiring fault that blew fuses in eight different circuit positions across three ampere ratings. The buyer orders a single replacement fuse for the most critical circuit and plans to source the remaining fuses separately. The listing does not offer multipack quantities or assortment options. The buyer contacts support three times over the following week to order the remaining fuses individually, generating five separate order events for a single repair scenario that could have been resolved with one assortment pack order.
Prevention language: "Quantity: [1 / 5 / 10 / assortment]. For vehicles that require fuse replacement across multiple circuit positions after an electrical fault, assortment packs covering multiple ampere ratings in the correct fuse type are available. See also: [link to fuse assortment listing for this fuse type]."
What to Include in the Listing
Core essentials
PartTerminologyID: 2676
component: Multi-Purpose Fuse
fuse type: ATO, ATC, mini blade, low-profile mini blade, maxi blade, ceramic tube, or glass tube (mandatory, in title)
ampere rating (mandatory, in title)
voltage rating in volts DC (mandatory)
time-current characteristic: fast-blow or slow-blow (mandatory)
interrupting capacity in amperes (mandatory)
blade spacing in mm for blade fuse types (mandatory)
blade width in mm (mandatory)
blade thickness in mm (mandatory)
body height in mm (mandatory)
body width in mm (mandatory)
element material: zinc alloy, silver, or copper (mandatory)
body material: nylon, polycarbonate, or ceramic (mandatory)
color code per ampere rating standard (mandatory)
SAE or ISO standard compliance where applicable (mandatory)
quantity per package (mandatory)
OEM part number cross-reference where available (mandatory)
Fitment essentials
year/make/model/submodel where fuse type is specific to a vehicle application
circuit position name where the fuse is sold as a direct circuit-specific replacement
note for 48-volt mild hybrid and high-voltage EV applications requiring elevated voltage ratings
note for motor-driving and compressor circuits requiring slow-blow characteristics
note for high-fault-current locations near the battery junction box requiring elevated interrupting capacity
Image essentials
fuse shown from the front face with ampere rating and color code visible
fuse shown from the side with body height and blade dimensions labeled
fuse shown from the bottom with blade spacing measurement reference
fuse type designation and voltage rating shown on body or packaging label
time-current characteristic designation shown on packaging
interrupting capacity rating shown on packaging
quantity per package shown clearly on packaging label
Catalog Checklist for ACES/PIES Teams
PartTerminologyID = 2676
require fuse type as primary attribute: ATO, ATC, mini blade, low-profile mini blade, maxi blade, ceramic tube, glass tube (mandatory)
require ampere rating (mandatory)
require voltage rating in volts DC (mandatory)
require time-current characteristic: fast-blow or slow-blow (mandatory)
require interrupting capacity in amperes (mandatory)
require blade spacing and body dimensions for blade fuse types (mandatory)
require quantity per package (mandatory)
prevent fuse-type omission: a listing that states only the ampere rating will be ordered for mismatched fuse type applications; fuse type must be the first stated attribute and must appear in the title
prevent ampere-rating-only listings: color code is not a substitute for explicit ampere rating; both must be stated
prevent over-rating installation: all fuse listings must include explicit language prohibiting installation of a higher ampere rating than the original circuit specification; this is the highest-consequence listing omission for this PartTerminologyID
prevent voltage rating omission: 32-volt fuses installed in 48-volt mild hybrid circuits may sustain arcs after interruption; voltage rating must be required for all listings
prevent time-current characteristic omission: fast-blow fuses in slow-blow applications produce nuisance blowing that drives buyers to install higher ampere ratings; characteristic type must be required
flag interrupting capacity for battery-adjacent applications: fuses near the battery junction box face fault currents that may exceed standard blade fuse interrupting capacity; this must be flagged for any listing positioned as a battery junction fuse
flag 48-volt and high-voltage EV applications: voltage rating requirements differ from standard 12-volt applications; catalog teams building year ranges that include hybrid models must distinguish the voltage rating requirement by powertrain type
differentiate from fuse holder (PartTerminologyID 2688): the fuse holder is the receptacle that contains the fuse; the fuse is the replaceable element that provides the overcurrent protection
differentiate from fusible link (PartTerminologyID 2692): a fusible link is a length of wire with a lower-ampacity conductor that melts under fault conditions, used in the main battery circuit; a multi-purpose fuse is a discrete replaceable component in the fuse block
differentiate from fuse block (PartTerminologyID 2680) and fuse box (PartTerminologyID 2684): the fuse block and fuse box are the housings that contain multiple fuse positions; the multi-purpose fuse is the individual overcurrent protection element installed in one position of that housing
FAQ (Buyer Language)
What is a multi-purpose fuse?
A multi-purpose fuse is an overcurrent protection device installed in the vehicle's fuse block to protect individual electrical circuits from damage caused by excessive current. When circuit current exceeds the fuse's rated amperage for longer than its time-current characteristic allows, the fuse element melts and opens the circuit, stopping current flow and protecting the downstream wiring and components from heat damage or fire. The multi-purpose designation indicates the fuse is used across multiple circuit types in the fuse block rather than being dedicated to a single specialized circuit.
What is the difference between ATO, ATC, mini, and maxi blade fuse types?
ATO and ATC fuses are standard blade fuses of the same physical size, approximately 19mm tall, differing only in whether the element is open-body or enclosed. They are interchangeable in most fuse blocks. Mini blade fuses are physically smaller at approximately 13mm tall and are not interchangeable with standard ATO or ATC fuses. Maxi blade fuses are physically larger at approximately 29mm tall and are used for high-current circuits above 30 amperes. Each type fits only fuse block cavities designed for that physical size, regardless of matching ampere ratings.
Can I install a higher-ampere fuse if the original keeps blowing?
No. Installing a higher-ampere fuse removes the circuit's only overcurrent protection and allows the fault current to flow continuously through the wiring, which will overheat the insulation and may cause a fire. A fuse that blows repeatedly indicates a fault in the circuit the fuse protects, not an undersized fuse. The fault must be diagnosed and repaired, and the replacement must match the original ampere rating specified for that circuit position.
What does interrupting capacity mean for an automotive fuse?
Interrupting capacity is the maximum fault current the fuse can safely interrupt without the body cracking, the blades being expelled, or an arc sustaining itself after the element melts. A standard automotive blade fuse has an interrupting capacity of approximately 1,000 amperes. Fuses located near the battery junction box may face fault currents above 1,000 amperes, requiring a higher-rated fuse at those positions. A fuse with insufficient interrupting capacity for the available fault current will fail destructively under a hard fault rather than protecting the circuit.
Why does my fuse blow immediately after replacement?
A fuse that blows immediately after replacement indicates a hard fault, typically a short to ground, in the circuit the fuse protects. The replacement fuse is carrying the same fault current as the original and is doing its job correctly. Replacing the fuse again without diagnosing the fault will continue to blow fuses and risks damaging the fuse block contacts from the arc energy of repeated high-current interruptions. Diagnose the fault in the protected circuit before installing another replacement fuse.
What is the voltage rating of an automotive fuse and why does it matter?
The voltage rating is the maximum system voltage at which the fuse can safely interrupt a fault current by extinguishing the arc between the separated element ends. Standard automotive fuses are rated at 32 volts DC, adequate for 12-volt and 24-volt systems. For 48-volt mild hybrid circuits, a 58-volt DC rated fuse is required. For high-voltage hybrid and electric vehicle circuits above 60 volts, 500-volt DC or higher ratings are required. A 32-volt fuse in a higher-voltage circuit may sustain an arc after interruption that damages the fuse block and does not protect the circuit.
Can I substitute a ceramic tube fuse for a blade fuse of the same ampere rating?
No. Ceramic tube fuses and blade fuses are not interchangeable regardless of matching ampere ratings. They have completely different physical dimensions, contact configurations, and fuse holder geometries. A ceramic tube fuse cannot be inserted into a blade fuse cavity, and a blade fuse cannot be inserted into a tube fuse holder. The fuse type must match the fuse block cavity type in addition to matching the ampere rating and voltage rating.
Cross-Sell Logic
Fuse Block (PartTerminologyID 2680): the housing that contains the fuse cavities; a fuse block with damaged contact springs from a previous over-ampere or wrong-type fuse installation should be inspected and replaced before installing a new fuse at the damaged cavity position
Fuse Box (PartTerminologyID 2684): the complete fuse and relay center assembly; if multiple fuse cavities in the same fuse box are showing heat damage from a sustained fault event, the fuse box may require replacement in addition to the individual fuses
Fuse Holder (PartTerminologyID 2688): the inline or panel-mounted receptacle for a single fuse; used for added circuits and accessory installations where a fuse block cavity is not available
Fusible Link (PartTerminologyID 2692): the main battery circuit protection upstream of the fuse block; if the fuse block's main supply fuse or fusible link has also blown during the fault event that blew the circuit fuse, the fusible link must be replaced before the circuit fuse replacement will restore power to the fuse block
Fuse Puller Tool: required for removing blade fuses from tight fuse block cavities without deforming the fuse body or the contact springs; included in most fuse assortment kits and should be cross-sold with any fuse listing that covers hard-to-access fuse block positions
Frame as "the multi-purpose fuse protects the circuit the fuse block routes. The fuse block contains the cavities the fuse occupies. The fuse box houses the fuse block and relay assembly. The fusible link protects the main supply upstream of the fuse block. The fuse holder provides a single fuse position for added circuits. All are in the same overcurrent protection hierarchy from the battery to the load."
Final Take for PartTerminologyID 2676
Multi-Purpose Fuse (PartTerminologyID 2676) is the PartTerminologyID in the electrical protection series with the highest consequence of any listing error in the category, because the listing error that causes the most harm is not a fitment failure but a safety substitution: a buyer who installs a higher-ampere fuse than specified because the listing did not include adequate prevention language about the consequences of over-rating. A fuse that does not fit the cavity returns immediately and costs the seller a return processing fee. A fuse installed at a higher ampere rating than specified may not produce a symptom for weeks or months until a fault develops in the protected circuit, and the consequence of that delayed failure is not a return but a wiring fire. Every listing under PartTerminologyID 2676 must include explicit language directing buyers never to substitute a higher ampere rating and must explain why, not merely state it as an instruction without context.
State the fuse type in the title. State the ampere rating in the title. State the voltage rating. State the time-current characteristic. State the interrupting capacity. State the blade dimensions. State the body dimensions. State the quantity per package. State the over-ampere substitution warning with consequences. State the hybrid and EV voltage rating note for applicable year ranges. For PartTerminologyID 2676, fuse type, ampere rating, and the over-ampere substitution warning are the three elements that determine whether the listing produces a correct fitment sale, a harmless fitment return, or a deferred safety incident in a vehicle whose wiring now has no overcurrent protection at a fault location.
