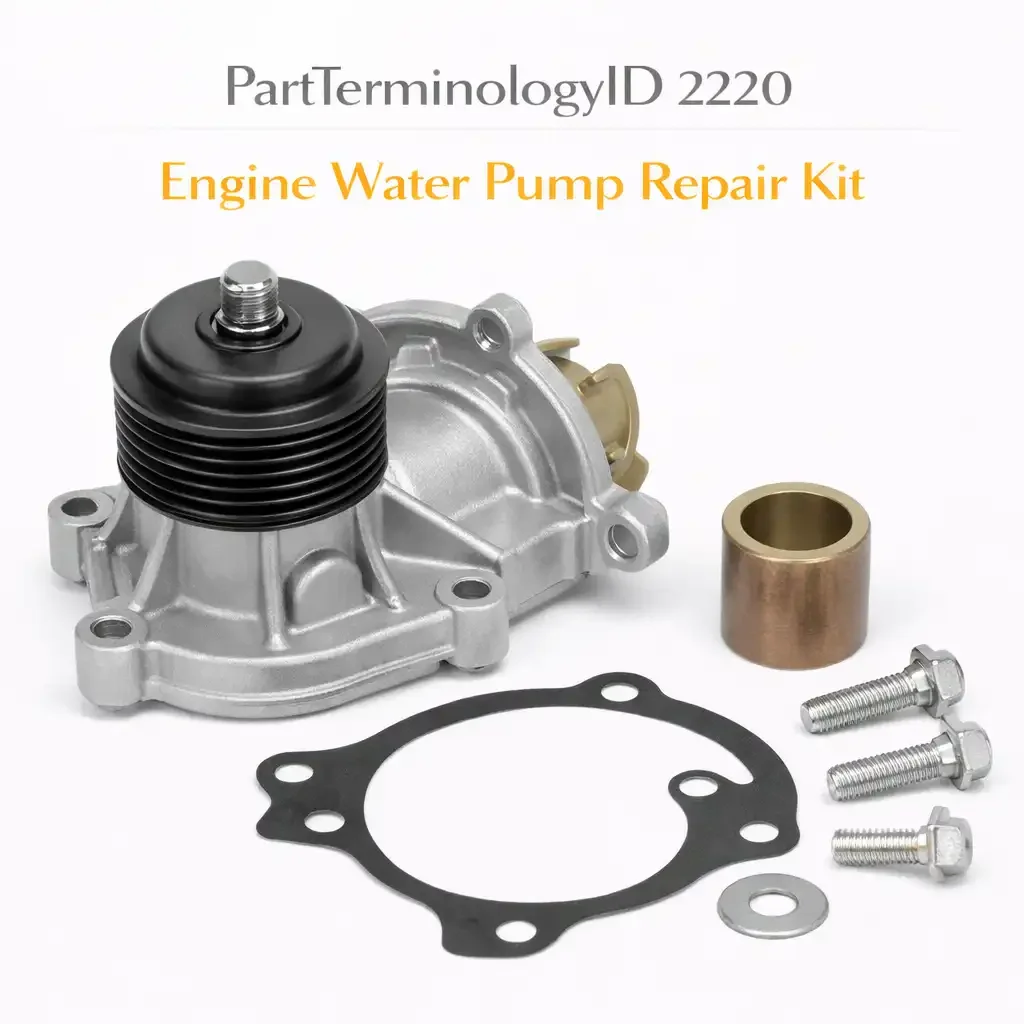

Engine Water Pump Repair Kit (PartTerminologyID 2220): The Kit Where Component Manifest Is the Only Specification That Makes the Listing Actionable
Written by Arthur Simitian | PartsAdvisory
PartTerminologyID 2220, Engine Water Pump Repair Kit, is a kit containing the components required to rebuild or repair a water pump rather than replace it as a complete assembly. That definition establishes the category. It does not specify which components are in the kit, whether the kit includes the shaft seal, the bushing, the impeller, the bearing, the gasket, the O-ring, or some combination of those, what the dimensions of each component are, which pump the kit is designed for, whether the kit covers a partial repair or a complete overhaul, or what the buyer is expected to supply in addition to the kit to complete the repair. A listing under PartTerminologyID 2220 without a complete component manifest is the same problem that afflicts every kit PartTerminologyID in this series: the kit name communicates the category and communicates nothing about the contents, and a buyer who cannot verify what is in the kit cannot verify whether the kit covers the repair they need to perform.
For sellers, the engine water pump repair kit occupies the same catalog territory as the engine coolant recovery kit (PartTerminologyID 2080) and shares the same fundamental listing failure mode: the word kit implies completeness, but completeness is undefined without a component manifest. A buyer who purchases a repair kit expecting it to contain everything needed to rebuild their pump and finds the kit contains only the seal and the O-ring, not the bushing and the bearing they also need, has a partial repair and a return. A buyer who purchases a repair kit expecting a seal and gasket set and finds the kit contains a complete shaft and impeller assembly has received more than they needed and paid for components they cannot use.
For sellers, the listing under this PartTerminologyID is only useful if it includes the complete component manifest with the quantity and specification of every included component, the pump application the kit is designed for, the repair type the kit covers, and what the buyer must supply in addition to complete the repair. Without those four groups of attributes, the kit listing cannot be evaluated before ordering.
What the Engine Water Pump Repair Kit Contains and Does Not Contain
The seal and gasket set
The most common repair kit under PartTerminologyID 2220 is a seal and gasket set: the shaft seal that prevents coolant from reaching the bearing or bushing, the mounting face gasket that seals the pump flange to the engine block, and in some cases the thermostat housing gasket that is disturbed during pump removal. This is a partial repair kit. It does not include the bearing or the bushing, the impeller, or the shaft. It is the correct kit for a pump that has developed a shaft seal leak but whose bearing and shaft are still within serviceable specification.
A listing that calls this a repair kit without specifying that it contains only the seal and gasket, and not the bearing or the bushing, sends a buyer expecting a complete rebuild kit to an installation where they discover the bearing and bushing are not covered and must be sourced separately.
The bearing and seal kit
A kit that includes the shaft bearing or bushing and the shaft seal. This is the correct kit for a pump where the bearing or bushing is worn to the point of causing shaft deflection that damaged the seal, and both must be replaced together. This kit does not include the impeller, the shaft, or the mounting face gasket.
The component manifest must specify the bearing type and specification, not just the presence of a bearing. A sealed ball bearing and a plain bushing are both bearings in the general sense and are not interchangeable. The kit must identify the specific component and its specification.
The complete overhaul kit
A kit that includes every rebuildable component in the pump: the shaft seal, the bearing or bushing, the impeller, the shaft assembly, the mounting face gasket, and all O-rings and snap rings required for reassembly. This is the correct kit for a pump housing that is being retained because it is a high-value casting or a period-correct restoration component, while all wear components are replaced.
Complete overhaul kits exist primarily for marine inboard engine pumps, heavy-duty diesel engine pumps, and vintage automotive restoration applications where individual components are available and the housing is worth preserving. On modern passenger vehicle applications, complete overhaul kits are generally not available because the pump housings are not designed for rebuild and the complete replacement pump assembly is less expensive than the labor to rebuild the original.
The impeller replacement kit
A kit that includes the replacement impeller and the fastener or retention system that secures the impeller to the shaft, without including the shaft, the bearing, or the seal. This kit is used when the impeller has eroded, cracked, or separated from the shaft, but the shaft, bearing, and seal are still serviceable. Impeller kits are uncommon on modern passenger vehicle applications but are standard service items on marine engine centrifugal pumps and some heavy-duty diesel applications.
The housing seal and O-ring kit
A kit that includes only the static seals: the mounting face gasket and all O-rings at the pump's coolant ports, without including the shaft seal or any rotating components. This kit is appropriate when the pump is being removed for access to another component and the static seals must be replaced on reinstallation, but the shaft seal and bearing are within specification and do not require replacement.
The Component Manifest Requirement
The component manifest is the only specification in a kit listing that tells the buyer what they will receive. Every other attribute in a kit listing, the pump application, the kit type name, the price, is secondary to the manifest. A manifest for a water pump repair kit must include for every component: the component identity, the quantity, the dimensional specification or part number, and the material where it is relevant to compatibility.
A manifest that states "seal, gasket, O-ring" without specifying the shaft seal inner diameter, the shaft seal outer diameter, the gasket outer profile, and the O-ring inner diameter and cross-sectional diameter cannot be verified against the buyer's pump before ordering. The buyer must either order on faith and verify on receipt, or not order at all.
The manifest must also state what is not included: "shaft, bearing, impeller, and housing not included." This sets expectations for the scope of the repair the kit covers and prevents the buyer from assuming the kit is more complete than it is.
Why This Part Generates Returns
Buyers order the wrong engine water pump repair kit because:
the component manifest is not provided and the buyer assumes the kit is more complete than it is, discovering missing components after starting the repair
the kit is described as a complete repair kit but contains only the seal and gasket, not the bearing and bushing that the buyer's pump also needs
the pump application is not specified and the shaft seal dimensions do not match the buyer's pump shaft diameter
the bearing specification is not stated and the kit contains a ball bearing for a pump that uses a plain bushing, or vice versa
the kit is listed for a pump that is not rebuildable on standard passenger vehicle applications, and the buyer receives components they cannot install in a non-rebuildable pump housing
the gasket in the kit is for the pump face only and does not include the thermostat housing gasket that must also be replaced when the pump is removed on the buyer's engine
Status in New Databases
PIES/PCdb: PartTerminologyID 2220, Engine Water Pump Repair Kit
PIES 8.0 / PCdb 2.0: No change
Top Return Scenarios
Scenario 1: "Kit does not include the bearing, pump cannot be completed"
The buyer's pump has a worn bearing and a failed shaft seal. The kit was described as a repair kit. The kit contains only the shaft seal and the mounting face gasket. No bearing is included. The buyer cannot complete the repair without the bearing and returns the kit as incomplete.
Prevention language: "Kit contents: [1x shaft seal, 1x mounting face gasket, 1x housing O-ring]. Bearing and bushing not included. This kit covers shaft seal and static seal replacement only. If your bearing or bushing is worn, order the bearing and seal kit separately. Verify which components require replacement before ordering this kit."
Scenario 2: "This pump is not rebuildable, components cannot be installed"
The buyer has a standard modern passenger vehicle water pump with a sealed ball bearing cartridge and a non-serviceable housing. The kit was listed under PartTerminologyID 2220 with vehicle fitment that matched the buyer's car. The buyer received a shaft seal and bushing that cannot be installed in a sealed-cartridge pump housing.
Prevention language: "Application: [rebuildable pump housing applications only]. This kit is designed for pumps with rebuildable plain bushing housings. Modern passenger vehicle water pumps with sealed ball bearing cartridge assemblies are not rebuildable with this kit. Verify your pump uses a rebuildable plain bushing housing before ordering. Marine, heavy-duty diesel, and vintage applications are the primary rebuildable pump applications."
Scenario 3: "Shaft seal inner diameter does not match pump shaft"
The kit was listed by vehicle fitment but the pump on the buyer's vehicle was replaced at a previous service with a different brand pump that has a slightly different shaft diameter. The kit's shaft seal inner diameter is calibrated for the OE shaft specification and does not seat correctly on the replacement pump's shaft.
Prevention language: "Shaft seal inner diameter: [X.XXX] inches / [X.XX]mm. Verify this matches your pump shaft outer diameter at the seal contact zone before installing. If your pump was previously replaced with an aftermarket unit, the shaft diameter may differ from the OE specification this kit was designed for."
Scenario 4: "Kit contains ball bearing, pump uses plain bushing"
The bearing specification was not stated in the kit listing. The buyer's pump housing is a plain bushing design from a marine engine. The kit contains a sealed ball bearing cartridge. The plain bushing bore in the housing cannot accept a ball bearing outer race and the kit is unusable.
Prevention language: "Bearing type included: [sealed ball bearing / plain bronze bushing / plain leaded bronze bushing]. Verify your pump housing uses [the same bearing type] before ordering. Sealed ball bearings and plain bushings are not interchangeable. The housing bore geometry differs between the two designs."
Scenario 5: "Thermostat housing gasket not included, second coolant drain required"
The buyer removed the pump and the thermostat housing at the same service event. The pump repair kit included the pump face gasket but not the thermostat housing gasket. The buyer installed the pump with the included gasket and reinstalled the thermostat housing with the original gasket, which leaked at the first fill. A second coolant drain was required to address the housing gasket.
Prevention language: "Kit contents: [1x pump face gasket, 1x shaft seal]. Thermostat housing gasket not included. If your pump removal requires disturbing the thermostat housing, order the thermostat housing gasket (PartTerminologyID 2136) separately before beginning the repair."
What to Include in the Listing
Core essentials
PartTerminologyID: 2220
component: Engine Water Pump Repair Kit
kit type: seal and gasket set, bearing and seal kit, complete overhaul kit, impeller replacement kit, or housing seal and O-ring kit (mandatory)
application type: marine, heavy-duty diesel, vintage automotive, or modern passenger vehicle rebuildable pump (mandatory)
pump application: manufacturer, model, and part number or engine code (mandatory)
complete component manifest with quantity and specification for every included component (mandatory)
explicit statement of what is not included (mandatory)
shaft seal inner diameter in inches and mm (mandatory)
shaft seal outer diameter in inches and mm (mandatory)
mounting face gasket profile and material (mandatory)
bearing type and specification for kits that include a bearing (mandatory)
bushing inner diameter, outer diameter, and length for kits that include a bushing (mandatory)
quantity: 1 kit
Fitment essentials
pump manufacturer and part number
engine code for OE automotive applications
application type: marine engine model, diesel engine model, or vintage engine code
production date range when the pump specification changed during the model run
Dimensional essentials
shaft seal inner diameter in inches and mm
shaft seal outer diameter in inches and mm
shaft seal height in mm
mounting face gasket outer profile dimensions in mm
bushing inner diameter in inches and mm for bushing-included kits
bushing outer diameter in inches and mm for bushing-included kits
bushing length in mm for bushing-included kits
O-ring inner diameter and cross-sectional diameter in mm for each included O-ring
Image essentials
all kit components laid out together against a white background with each component labeled
shaft seal close-up showing inner diameter, outer diameter, and lip configuration
gasket in isolation showing profile and material
bushing or bearing in isolation with dimensional callouts
for complete overhaul kits, the impeller and shaft assembly with dimensional callouts
installed context showing the reassembled pump with all kit components in place
Catalog Checklist for ACES/PIES Teams
PartTerminologyID = 2220
require kit type as first attribute: seal and gasket, bearing and seal, complete overhaul, impeller, or housing seal (mandatory)
require application type: marine, heavy-duty diesel, vintage, or modern rebuildable (mandatory)
require pump application: manufacturer, model, and part number (mandatory)
require complete component manifest with quantity and specification for every component (mandatory, non-negotiable)
require explicit not-included statement (mandatory)
require shaft seal inner and outer diameter
require bearing type and specification for bearing-included kits
require bushing dimensions for bushing-included kits
do not list this PartTerminologyID for modern passenger vehicle pumps with sealed ball bearing cartridges that are not rebuildable
differentiate from engine water pump (PartTerminologyID 2208): the complete pump assembly is the non-rebuildable replacement; the repair kit is for rebuildable pump housings only
differentiate from engine water pump bushing (PartTerminologyID 2216): the bushing is a standalone component; the repair kit is a bundled set of components for a specific rebuild scope; both may cover the bushing but the kit also includes the seal and gasket
differentiate from engine water pump gasket (PartTerminologyID 2148): the pump gasket seals the pump face to the engine; it may be included in the repair kit or sold separately; the listing must specify whether the gasket is in the kit
flag that the component manifest is the primary attribute for all kit PartTerminologyIDs: a kit listing without a complete manifest is not a usable listing regardless of how well the other attributes are specified
flag non-rebuildable pump applications: applying this PartTerminologyID to modern passenger vehicle applications where the pump is not rebuildable produces a return every time
FAQ (Buyer Language)
How do I know if my water pump is rebuildable?
Examine the pump housing. A rebuildable pump has a plain bushing bore that accepts a serviceable bushing and a shaft seal bore that accepts a replaceable lip seal. The shaft and impeller are accessible after removing a snap ring or a threaded retainer from the housing. A non-rebuildable pump has a sealed ball bearing cartridge pressed into the housing, with the impeller pressed onto the shaft and no provision for disassembly without destroying the housing. Most marine inboard engine pumps and heavy-duty diesel engine pumps are rebuildable. Most modern passenger vehicle water pumps are not rebuildable and are replaced as complete assemblies.
What repair scope does each kit type cover?
A seal and gasket set covers a pump with a good bearing and shaft but a failed shaft seal and leaking static seals. A bearing and seal kit covers a pump where the bearing or bushing is worn and caused the shaft seal to fail from shaft deflection. A complete overhaul kit covers a pump that is being fully rebuilt with all wear components replaced. An impeller replacement kit covers a pump where the impeller has failed from erosion or separation but the shaft, bearing, and seal are within specification. Identify which components are worn or failed before selecting the kit type, to avoid purchasing components that are not needed.
I purchased a repair kit and found the shaft seal inner diameter is slightly smaller than my shaft. Is that normal?
No. The shaft seal inner diameter is the as-installed bore. The seal's rubber lip provides a small amount of interference fit with the shaft to create the dynamic seal. If the seal inner diameter is more than a fraction of a millimeter smaller than the shaft outer diameter, the seal is the wrong specification for your pump. Measure the shaft outer diameter at the seal contact zone with a micrometer and compare it to the shaft seal inner diameter specified in the kit. If the dimensions do not match within the expected interference range for that seal type, contact the seller before installing the seal.
The kit I received has more components than I expected. What do I do with the extras?
Review the component manifest in the listing. If there are components in the kit that do not correspond to any installation location in your pump, verify you ordered the correct kit for your pump application. Some universal kits include components for multiple pump variants and not all components will be used on every application. If the kit includes a component that is not needed for your repair scope but that you will reach on the next service event, set it aside for that future use. Do not install components that do not correspond to a specific installation location in the pump.
My kit includes a bushing but the original pump used a ball bearing. Can I convert the pump to a bushing design?
No. A pump housing designed for a ball bearing has a bore geometry that accommodates the bearing's outer race, which is a different diameter and depth than a plain bushing bore. Installing a plain bushing in a ball bearing bore will not provide the interference fit required to retain the bushing, and the bushing will spin in the bore. Converting a pump from ball bearing to plain bushing design requires machining the housing bore to the correct bushing bore specification, which is not a standard service procedure.
Cross-Sell Logic
Engine Water Pump (PartTerminologyID 2208: if the housing is cracked, corroded, or worn beyond the capability of a repair kit to restore, the complete pump assembly must be replaced rather than rebuilt)
Engine Water Pump Bushing (PartTerminologyID 2216: for applications where the bushing must be ordered separately from the seal kit because no combined kit is available)
Engine Water Pump Gasket (PartTerminologyID 2148: the pump face gasket may or may not be included in the repair kit; if not included, the gasket must be ordered separately before the repair begins)
Engine Coolant Thermostat Housing Gasket (PartTerminologyID 2136: if the pump removal requires disturbing the thermostat housing, the housing gasket must also be replaced)
Engine Coolant (the cooling circuit must be drained for pump repair; fresh coolant of the correct formulation is required after reassembly; verify the formulation is compatible with any new bushing or seal material in the kit)
Engine Cooling System Pressure Tester Adapter (PartTerminologyID 2054: pressure test the system after pump reassembly to confirm all seals in the repair kit are seating correctly at full operating pressure)
Shaft Seal and Bushing Installation Tools (a seal driver and a bushing driver of the correct dimensions are required for correct installation of the shaft seal and the bushing; using a hammer and punch distorts both components)
Frame as "the repair kit restores the pump. The pump circulates the coolant. The gasket seals the pump to the block. The coolant refills the system the pump circulates. The pressure test confirms all repaired sealing surfaces before the engine runs. The installation tools determine whether the kit components seat correctly."
Final Take for PartTerminologyID 2220
Engine Water Pump Repair Kit (PartTerminologyID 2220) is a bundled set of components whose usefulness is determined entirely by the component manifest, the application context, and the repair scope the kit covers. A kit name without a manifest is not a product description. It is a category label that could cover anything from a single O-ring to a complete set of shaft, impeller, bushing, seal, and gasket components.
The manifest is the first and non-negotiable requirement. Every component in the kit must be identified by name, quantity, and dimensional specification. Every component that is not included must be explicitly stated to set accurate repair scope expectations. The application context is the second requirement, because the most consequential listing error for this PartTerminologyID is applying it to modern passenger vehicle pumps that are not rebuildable, producing a return from every buyer who receives components they cannot install.
State the kit type. State the application. State the complete manifest with specifications. State what is not included. State the shaft seal dimensions. State the bearing type if included. That is the same listing strategy as every other PartTerminologyID in this series: the generic PartTerminologyID requires specific attributes at every level to become a listing buyers can act on without guessing. For PartTerminologyID 2220, the kit name implies completeness that only the manifest can define.
