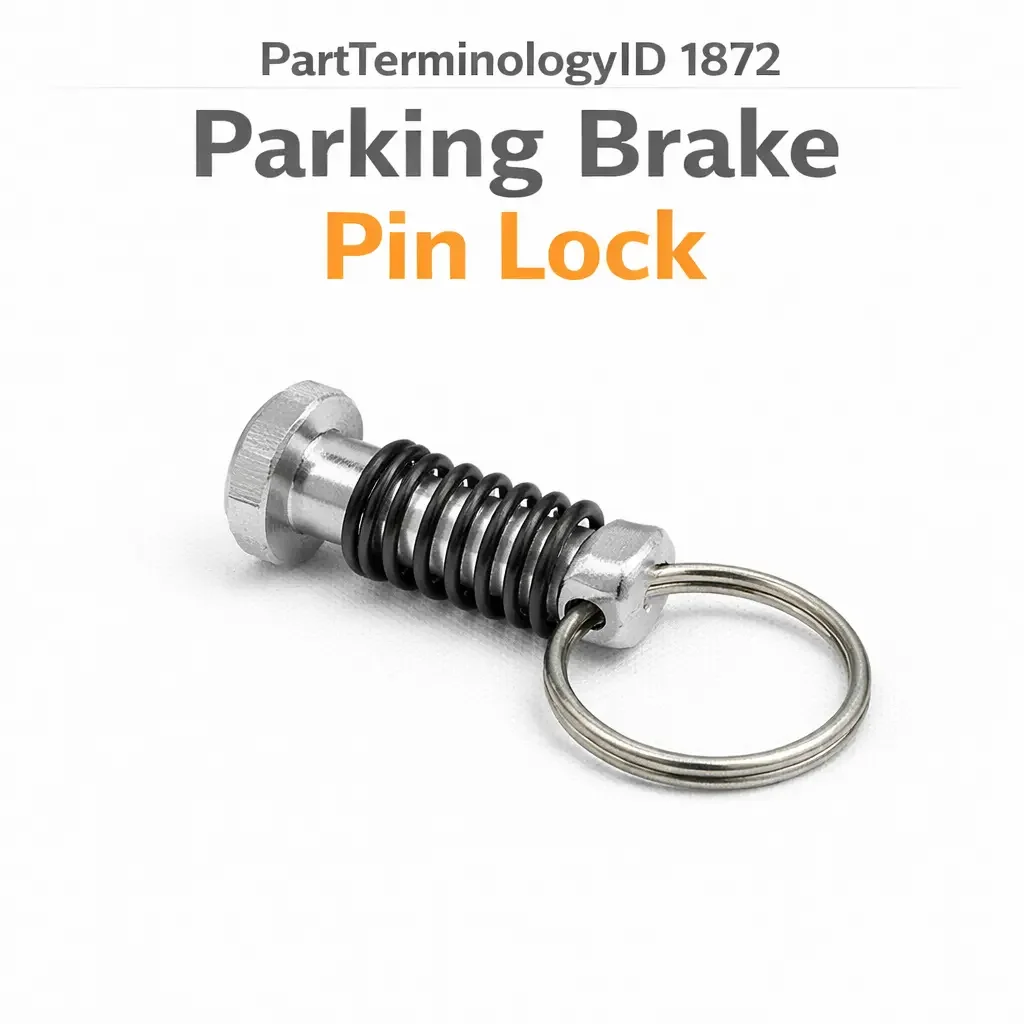

Parking Brake Pin Lock (PartTerminologyID 1872): The Smallest Part in the Parking Brake That Creates the Biggest Reassembly Problem

Written by Arthur Simitian | PartsAdvisory

PartTerminologyID 1872, Parking Brake Pin Lock, is a small retaining clip, cotter pin, or locking device that secures the pivot pin on the parking brake lever inside the rear brake assembly. It keeps the parking brake lever pin from walking out of its bore during brake operation. Without it, the pin migrates, the lever loses its pivot, the parking brake stops working, and loose hardware rattles around inside the drum where it can jam between the shoe and the drum surface and lock the wheel.

It is the kind of part that technicians lose during disassembly. It pings off into the wheel well, disappears under the vehicle, or deforms during removal and cannot be reused. The technician then needs a replacement, searches "parking brake pin lock," and enters a category where the listing almost never describes the part in enough detail to order correctly.

The problem is not complexity. The problem is that "pin lock" describes a retention concept, not a specific part geometry. The actual component could be a horseshoe clip, a cotter pin, a spring pin, a C-clip, an E-clip, a roll pin, or a proprietary locking tab depending on the vehicle manufacturer, the brake design, and the model year. Two vehicles parked next to each other in the same driveway can use completely different pin lock styles for their parking brake levers.

Why This Part Generates Returns

Buyers order the wrong pin lock because:

• they do not know what style of lock their vehicle uses (they removed it, it flew across the garage, and now they are ordering blind)

• they assume any small clip that fits the pin diameter will work, without verifying the lock style or the groove geometry on the pin

• they confuse the parking brake lever pin lock with the brake shoe hold down pin retainer, the adjuster pin clip, or the cable attachment clip (all small retention devices inside a drum brake, all different)

• they order a "parking brake hardware kit" and assume the pin lock is included, but the kit covers shoe hardware and omits the parking brake lever components

• they do not verify pin diameter, because the lock must match both the pin and the groove or hole in the pin

Sellers get caught because this part is rarely listed as a standalone item with dimensional specifications. It is either bundled into a hardware kit (where its presence or absence is not documented in the kit contents) or listed generically as "parking brake pin lock" with a vehicle fitment and no description of the clip style, dimensions, or material.

Status in New Databases

• PIES/PCdb: PartTerminologyID 1872, Parking Brake Pin Lock

• PIES 8.0 / PCdb 2.0: No change

What This Part Actually Is

The parking brake pin lock is a mechanical fastener that retains the parking brake lever pivot pin in position. The pivot pin passes through the parking brake lever and through a hole in the brake shoe web or a bracket on the backing plate. The pin lock prevents the pin from sliding out axially.

Common lock styles

Cotter pin: A bent wire pin that passes through a hole drilled through the end of the pivot pin. The legs are spread after installation to prevent the cotter pin from backing out. This is the most traditional retention method.

Horseshoe clip (speed clip): A U-shaped spring steel clip that snaps into a groove near the end of the pivot pin. It provides quick installation without tools but can pop off if the groove is worn or the clip loses spring tension.

E-clip (external retaining ring): A stamped spring steel ring that snaps into a groove on the pin. Requires a groove of specific width and diameter on the pin. More secure than a horseshoe clip but requires the correct groove match.

C-clip (internal or external): A circular retaining ring that seats in a groove. Similar function to the E-clip but different geometry.

Roll pin (spring pin): A hollow, slotted cylindrical pin that is pressed into a cross-hole through the pivot pin and lever. It provides a permanent-style retention that does not rely on a groove.

Proprietary locking tab: Some manufacturers use stamped sheet metal tabs that bend over the pin end, or integrated locking features on the lever itself. These are OE-specific and may not have a direct aftermarket equivalent.

Each of these styles requires a different pin geometry (grooved, cross-drilled, plain), and none of them interchange. A horseshoe clip will not fit a pin that has a cross-drilled hole for a cotter pin. An E-clip will not snap onto a pin without the correct groove diameter and width.

What it is NOT

• a brake shoe hold down spring retainer (PartTerminologyID 1780/1784 territory, the small stamped washer or cap that holds the shoe to the backing plate)

• a parking brake cable retaining clip (which holds the cable to the backing plate or caliper bracket)

• a brake adjuster spring clip

• a wheel cylinder retaining clip

The confusion is understandable. Inside a drum brake assembly, there are a dozen small clips, pins, springs, and retainers, all roughly the same size, all made of spring steel, and all looking similar to someone who does not service drum brakes regularly. The listing must name the specific retention style and specify where it installs.

Top Return Scenarios

Scenario 1: "This clip doesn't fit my pin"

Lock style does not match the pin geometry (buyer received a horseshoe clip, pin requires a cotter pin through a cross-hole).

Prevention language: "Lock type: [cotter pin / horseshoe clip / E-clip / C-clip / roll pin]. Pin diameter: [X mm]. Verify your parking brake lever pivot pin style before ordering."

Scenario 2: "I thought this was in the hardware kit"

Buyer purchased a drum brake hardware kit and assumed the parking brake pin lock was included. It was not.

Prevention language: "This is a standalone parking brake lever pin lock. It is [included / not included] in standard drum brake hardware kits. Order separately if your kit does not contain this item."

Scenario 3: "Wrong size"

Pin diameter or groove diameter mismatch.

Prevention language: "Fits pivot pin diameter: [X mm / X inches]. Groove width (if applicable): [X mm]. Verify pin dimensions before ordering."

Scenario 4: "I got the wrong clip, this is for the shoe hold down"

Buyer received a shoe hold down retainer instead of the parking brake lever pin lock, or the listing conflated the two.

Prevention language: "This lock retains the parking brake lever pivot pin. It is not a brake shoe hold down spring retainer. Verify the component you need."

What to Include in the Listing

Core essentials

• PartTerminologyID: 1872

• component: Parking Brake Pin Lock

• lock type: cotter pin, horseshoe clip, E-clip, C-clip, roll pin, or proprietary tab

• quantity: 1 (or per-axle quantity if sold in pairs)

Fitment essentials

• year/make/model/submodel

• rear brake type (drum, disc with caliper-integrated parking brake, drum-in-hat)

• position: left, right, or universal

Dimensional essentials

• pin diameter the lock fits

• groove width and groove diameter (for clips that seat in grooves)

• cross-hole diameter (for cotter pins and roll pins)

• lock overall dimensions (length, width, wire diameter)

• material (spring steel, stainless steel, zinc-plated)

Image essentials

• lock shown next to the pin it retains (for scale and context)

• lock style clearly identifiable

• installed position reference showing location on parking brake lever assembly

• dimensional callouts

Catalog Checklist for ACES/PIES Teams

• PartTerminologyID = 1872

• require lock type attribute (cotter pin, horseshoe clip, E-clip, C-clip, roll pin)

• require pin diameter attribute

• require groove or hole dimensions where applicable

• differentiate from shoe hold down retainers, cable clips, and adjuster clips

• flag whether this part is included in related drum brake hardware kits (PartTerminologyID 1772) to prevent double-ordering or missed ordering

• require rear brake type attribute

FAQ (Buyer Language)

I lost the pin lock during disassembly. How do I know what type I need?

Look at the pivot pin itself. If the pin has a small hole drilled through it near the end, you need a cotter pin or roll pin. If the pin has a circumferential groove near the end, you need an E-clip, C-clip, or horseshoe clip. If there is no hole and no groove, the pin may use a proprietary retention method. Check a service manual or parts diagram for your specific vehicle.

Is this included in a drum brake hardware kit?

Sometimes, but often not. Drum brake hardware kits (PartTerminologyID 1772) typically focus on the service brake springs, hold down pins, and retainers. The parking brake lever hardware may be excluded. Check the kit contents list before assuming this part is covered.

Can I substitute a generic cotter pin from the hardware store?

If your vehicle uses a cotter pin style lock, a generic cotter pin of the correct diameter and length will usually work. If your vehicle uses a specific clip style (E-clip, horseshoe, roll pin), a generic cotter pin is not a suitable substitute because the pin does not have a cross-hole for it.

Do I need to replace this every time I service the drum brakes?

If the lock is a cotter pin, yes. Cotter pins are designed for one-time use and should not be straightened and reinserted. If the lock is a spring clip (E-clip, horseshoe), it can be reused if it has not lost spring tension or been deformed. When in doubt, replace it. The part costs almost nothing.

Cross-Sell Logic

• Parking Brake Lever (PartTerminologyID 1868)

• Parking Brake Lever Return Spring (PartTerminologyID 1832)

• Parking Brake Lever Pivot Pin (if sold separately)

• Drum Brake Hardware Kit (PartTerminologyID 1772)

• Parking Brake Cable

Frame as "commonly lost or replaced during parking brake or drum brake service."

Final Take for PartTerminologyID 1872

Parking Brake Pin Lock (PartTerminologyID 1872) is a sub-dollar part that the technician needs right now, in the middle of a brake job, with the drum off and the lever disassembled. They are not browsing. They are not comparison shopping. They need the correct clip style for their pin, and they need it to show up in the search results clearly enough that they can order it without guessing.

State the lock type. State the pin diameter. State whether it is a cotter pin, a horseshoe clip, an E-clip, or a roll pin. That is the entire listing. Three attributes and a clear photo. The part is simple. The listing should be too.
