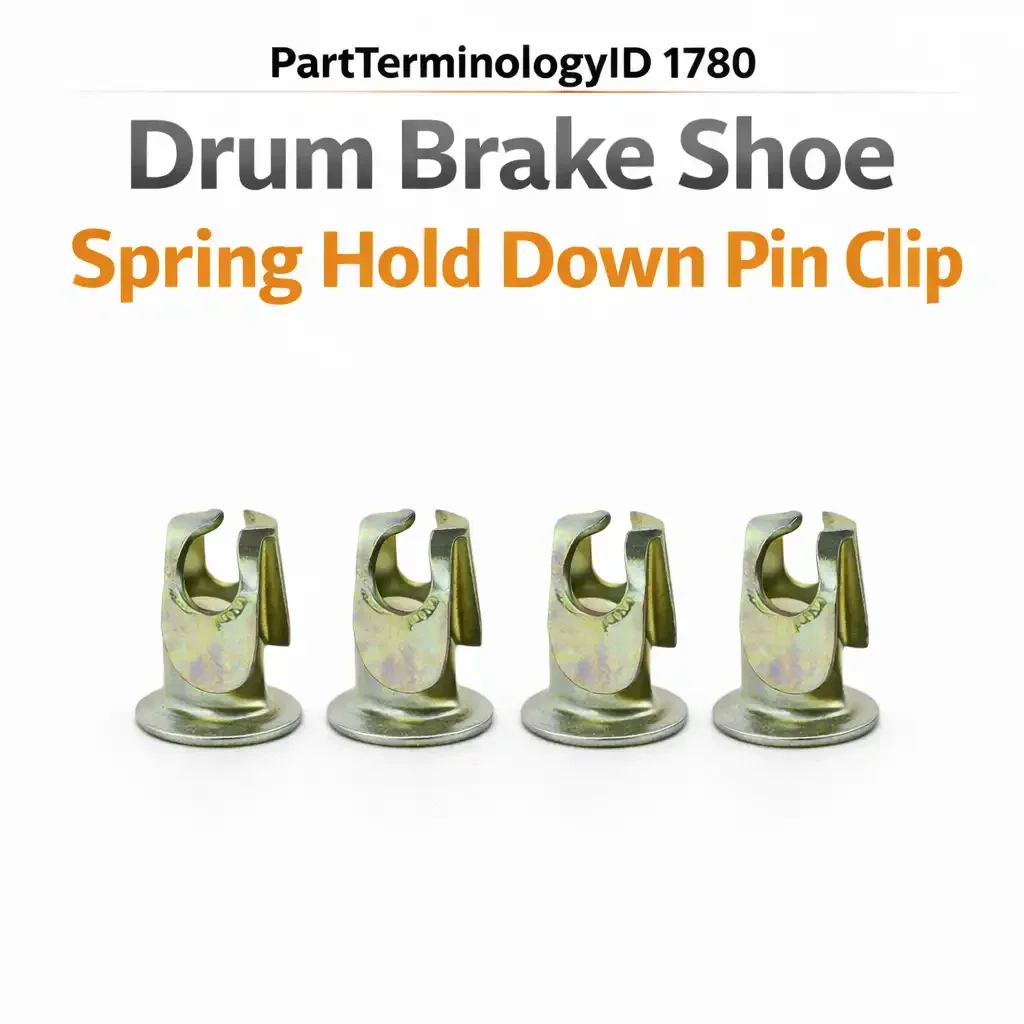

Drum Brake Shoe Spring Hold Down Pin Clip (PartTerminologyID 1780): The Coil That Keeps the Shoe Quiet - Until It Loses Tension and Nobody Knows Why the Brakes Are Noisy
Written by Arthur Simitian | PartsAdvisory
PartTerminologyID 1780
Drum Brake Shoe Spring Hold Down Spring , is the small coil spring that sits over the hold down pin and compresses between the brake shoe web and the retainer cup. It is the tension element in the hold down assembly - the part that actually pushes the shoe flat against the backing plate and keeps it there.
When it works, nobody notices it. When it fails, every other component in the drum brake gets blamed.
A weak or missing hold down spring allows the shoe to vibrate against the backing plate, rattle inside the drum, wear unevenly, and drag. Technicians who skip replacing these springs during a brake job often chase noise complaints for weeks before finding the source. The spring lost its temper from heat cycling, the shoe started moving, and everything downstream went wrong.
The part costs pennies. The comebacks cost real money.
Buyers order the wrong spring because:
they assume all hold down springs are identical across drum sizes and positions
they confuse this individual spring with the hold down kit (PARTTERMINOLOGYID 1772) or the full hardware kit (PARTTERMINOLOGYID 1752)
they do not verify spring height, wire gauge, or coil diameter
they order by vehicle only, missing drum size or brake package splits
they mix old springs with new pins and retainers, creating uneven tension across the axle
Sellers get caught because most listings for this spring include no dimensional data, no position qualifier, and no clarity on what the buyer is actually receiving.
Status in New Databases
PIES/PCdb: PartTerminologyID 1780 - Drum Brake Shoe Spring Hold Down Spring
PIES 8.0 / PCdb 2.0: No change
What This Part Does and Why It Fails
The hold down spring compresses over the hold down pin between the shoe web and the retainer cup. When the retainer is rotated and locked onto the pin head, the spring is held in compression, pushing the shoe firmly against the backing plate.
Why springs fail
Hold down springs operate inside the brake drum, which is a high-heat environment. Every brake application generates heat that conducts through the drum, the shoe, and into the hardware. Over thousands of cycles, the spring steel loses temper. The spring gets softer. It compresses further than designed. Shoe clamping force drops.
The failure is gradual and invisible. The spring does not snap. It just stops doing its job. That is why drum brake hardware - including hold down springs - should be replaced every time the shoes are replaced, not reused.
What happens when the spring is weak
the shoe vibrates against the backing plate, causing rattle and chirp
uneven shoe contact creates hot spots and accelerated lining wear
the shoe can cock sideways, leading to drag or grabbing
backing plate contact pads groove from shoe movement, compounding the problem
Every one of these symptoms gets attributed to the shoes, the drum, or the wheel cylinder before anyone checks the hold down spring.
What This Part Is NOT
a hold down kit (PARTTERMINOLOGYID 1772 - pins, springs, and retainers together)
a drum brake hardware kit (PARTTERMINOLOGYID 1752 - the full overhaul package)
a return spring (the larger springs that retract the shoes away from the drum)
a self-adjuster spring
a parking brake spring
The naming overlap in drum brake hardware is severe. "Drum brake spring" can refer to at least four different components. If the listing does not specify that this is the small coil hold down spring - not a return spring, not an adjuster spring - the buyer orders the wrong part.
Why Spring Dimensions Matter
Hold down springs are not universal. They vary by:
free height - determines compressed clamping force relative to the pin length and retainer position
wire gauge - determines spring rate and load capacity
coil O.D. - must fit over the hold down pin and within the shoe web opening
coil count - affects spring rate
A spring designed for a 10-inch drum with a thin backing plate is not interchangeable with a spring for a 12-inch heavy-duty drum with a thicker plate and longer pin. The compressed heights differ, the loads differ, and the clamping behavior differs.
If your listing does not include at least free height, wire gauge, and coil diameter, the buyer cannot validate the spring against their application.
Top Return Scenarios
Scenario 1: "This isn't the spring I need"
Buyer expected a return spring or a complete kit.
Prevention language: "Hold down spring only - the small coil spring that compresses over the hold down pin. This is not a return spring or a complete hold down kit."
Scenario 2: "Spring doesn't fit my pin"
Coil diameter too large or too small for the pin.
Prevention language: "Coil I.D.: [X inches]. Designed for use with [X-diameter] hold down pins on [X-inch] drum brake applications."
Scenario 3: "Brakes still rattle after replacing springs"
Buyer replaced springs but reused corroded pins or worn retainer cups.
Prevention language: "Replace pins, springs, and retainers as a complete set. Mixing new springs with worn pins or retainers can result in insufficient clamping force."
What to Include in the Listing
Core essentials
PARTTERMINOLOGYID: 1780
component: Drum Brake Shoe Spring Hold Down Spring
scope: spring only (no pin, no retainer)
quantity: sold individually, per pair, or per axle - state clearly
Fitment essentials
year/make/model/submodel
drum diameter qualifier
position: front / rear
brake package notes where applicable
Dimensional essentials
free height
compressed height (at working load)
wire gauge or diameter
coil outer diameter
coil inner diameter
material and finish
Image essentials
spring photographed with scale reference
shown next to pin and retainer for context
comparison image if multiple spring sizes exist for similar applications
Catalog Checklist for ACES/PIES Teams
PartTerminologyID = 1780
require free height and coil diameter attributes
require position (front / rear)
enforce drum size splits across YMM
clearly differentiate from PARTTERMINOLOGYID 1772 (Hold Down Kit), PARTTERMINOLOGYID 1752 (Hardware Kit), and return spring categories
validate quantity-per-package metadata
FAQ (Buyer Language)
Is this the big spring or the small spring?
This is the small coil spring that sits over the hold down pin and keeps the shoe pressed against the backing plate. The larger springs that pull the shoes away from the drum are return springs - a different part.
Should I replace these every time I do a brake job?
Yes. Heat cycling weakens the spring steel over time. A spring that looks fine can have lost enough tension to allow shoe movement and noise.
Can I buy just the spring without the pin and retainer?
Yes, that is what PARTTERMINOLOGYID 1780 covers. But best practice is to replace all three components together. See PARTTERMINOLOGYID 1772 for the complete hold down kit.
Cross-Sell Logic
Drum Brake Shoe Hold Down Pin (PARTTERMINOLOGYID 1776)
Drum Brake Shoe Hold Down Kit (PARTTERMINOLOGYID 1772)
Drum Brake Hardware Kit (PARTTERMINOLOGYID 1752)
Brake Shoe Set
Brake Drum (PARTTERMINOLOGYID 1744)
Frame as "replace together during drum brake service."
Final Take for PARTTERMINOLOGYID 1780
Drum Brake Shoe Spring Hold Down Spring (PartTerminologyID 1780) is the invisible failure point in drum brake noise complaints. It does not break - it fades. And when it fades, everything else gets blamed.
The listing fix is straightforward: name the spring precisely, publish its dimensions, state that it is the spring only, and recommend full hold down replacement as a set. That turns a pennies-per-unit part from a noise-complaint generator into a clean, no-questions sale.
