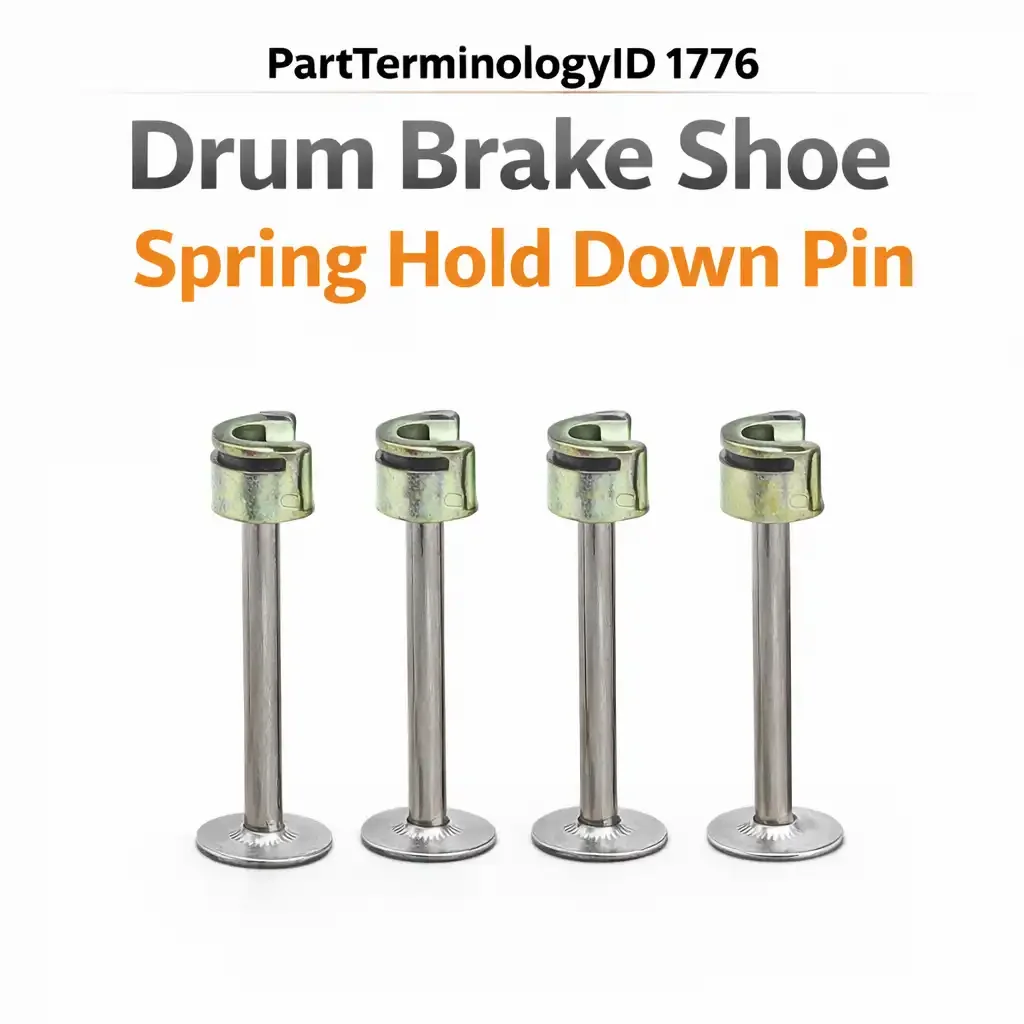

Drum Brake Shoe Spring Hold Down Pin (PartTerminologyID 1776): The Nail-Sized Part That Holds Your Brake Job Together - or Sends It Back

Written by Arthur Simitian | PartsAdvisory

PartTerminologyID 1776

Drum Brake Shoe Spring Hold Down Pin, is a single steel pin that passes through the backing plate and the brake shoe web to anchor the hold down spring assembly. It is the post that everything else sits on - the spring compresses over it, the retainer cup locks onto its head, and together they keep the shoe flat against the backing plate.

It costs less than a dollar in most applications. It generates returns that cost twenty times that to process.

Buyers order the wrong pin because:

• they assume all hold down pins are the same diameter and length

• they do not account for backing plate thickness, which determines required pin length

• they confuse this individual pin with a full hold down kit (PARTTERMINOLOGYID 1772) or a complete hardware kit (PARTTERMINOLOGYID 1752)

• they order by vehicle year/make/model without checking drum size or brake package

• they do not realize front and rear positions may use different pin lengths

Sellers get caught because listings for this part rarely include:

• pin length

• pin diameter

• head style (T-head, nail head, flanged)

• quantity per package

• drum size or position qualifier

• clear distinction from hold down kits and hardware kits

The result is a pin that is a quarter-inch too short, a buyer whose retainer will not lock, and a return on a part that costs less than the shipping label.

Status in New Databases

• PIES/PCdb: PartTerminologyID 1776 - Drum Brake Shoe Spring Hold Down Pin

• PIES 8.0 / PCdb 2.0: No change

What This Part Actually Does

The hold down pin passes through a hole in the backing plate from the rear. Its shaft extends through the brake shoe web on the front side. A small coil spring slides over the pin, and a retainer cup compresses onto the spring and rotates 90° to lock onto the pin head.

This assembly holds each brake shoe flat against the backing plate so the shoe does not rattle, shift, or cock sideways inside the drum. If the pin is missing, corroded, or the wrong length, the shoe moves. When the shoe moves, contact becomes uneven, noise starts, and the brake job comes back.

It is NOT:

• a hold down kit (PARTTERMINOLOGYID 1772 - which includes pins, springs, and retainers together)

• a drum brake hardware kit (PARTTERMINOLOGYID 1752 - the full overhaul kit)

• a return spring pin or anchor pin

• a parking brake pin or clip

This distinction matters because buyers searching for "drum brake pin" may land on any of these categories. If the listing does not clarify what the buyer is getting, the wrong part ships.

Why Pin Length Is the Entire Fitment Story

There is really only one dimension that causes misfits in PARTTERMINOLOGYID 1776: pin length.

The pin must be long enough to pass through the backing plate, through the shoe web, through the spring, and still have enough head exposed for the retainer to lock. If it is too short, the retainer cannot engage. If it is too long, the retainer sits too high and spring tension is insufficient.

Pin length is determined by:

• backing plate thickness - varies by drum size and vehicle platform

• shoe web thickness - varies by shoe design

• spring height - varies by spring type in the hold down assembly

A vehicle with a 10-inch drum may use a different pin length than the same platform with an 11-inch drum, because the backing plate casting differs.

Front vs. rear

On vehicles with four-wheel drums, front and rear backing plates are often different thicknesses. Kits that include mixed pin lengths account for this, but individual pin listings often do not specify which position each length serves. That ambiguity creates returns.

Top Return Scenarios

Scenario 1: "Pin is too short"

Retainer will not lock onto pin head after spring compression.

Root cause: Listing lacks pin length and drum size qualifier.

Prevention language: "Pin length: [X inches]. Designed for [X-inch] drum brake applications. Verify backing plate thickness before ordering."

Scenario 2: "I thought this was a complete kit"

Buyer expected springs and retainers included.

Root cause: Title does not distinguish individual pin from hold down kit.

Prevention language: "Sold individually - pin only. Spring and retainer sold separately. For the complete hold down kit, see PARTTERMINOLOGYID 1772."

Scenario 3: "Pin broke during installation"

Buyer reuses a corroded retainer that binds on the pin and snaps it during rotation.

Root cause: Not a product defect, but listing has no install guidance.

Prevention language: "Replace retainers and springs when replacing pins. Corroded retainers can bind and damage new pins during installation."

What to Include in the Listing

Core essentials

• PARTTERMINOLOGYID reference: PartTerminologyID 1776

• component: Drum Brake Shoe Spring Hold Down Pin

• scope: pin only (no spring, no retainer unless stated)

• quantity: sold individually, per pair, or per axle set - be explicit

Fitment essentials

• year/make/model/submodel

• drum diameter qualifier

• position: front / rear

• brake package notes where applicable

Dimensional essentials

• pin length (overall)

• pin shaft diameter

• head style (T-head / nail head / flanged)

• material and finish (steel, zinc-plated, stainless)

Image essentials

• pin photographed with ruler or scale reference

• head style clearly visible

• comparison image if multiple pin lengths exist for similar applications

Catalog Checklist for ACES/PIES Teams

• PartTerminologyID = 1776

• require pin length attribute - this field cannot be empty

• require position (front / rear)

• enforce drum size splits across YMM

• differentiate clearly from PARTTERMINOLOGYID 1772 (Hold Down Kit) and PARTTERMINOLOGYID 1752 (Hardware Kit) in category mapping

• flag vehicles where front and rear use different pin lengths

• validate quantity-per-package metadata

Install Notes for Listing Content

• insert pin from the back side of the backing plate

• ensure pin passes fully through backing plate hole and shoe web

• place spring over pin, set retainer cup on top, compress and rotate 90° to lock

• always replace pins, springs, and retainers as a set - mixing old and new hardware causes uneven tension

• inspect backing plate holes for corrosion or enlargement before installing new pins

FAQ (Buyer Language)

Is this the same as a hold down kit?

No. This is the pin only. A hold down kit (PARTTERMINOLOGYID 1772) includes pins, springs, and retainers together.

How do I know which pin length I need?

Check the drum diameter and backing plate on your vehicle. Measure the old pin if available. If your vehicle offers multiple drum sizes by trim or package, confirm which you have before ordering.

Should I replace just the pins or the whole hold down assembly?

Replace all hold down components together. Springs lose tension over time, and retainers corrode. A new pin with a worn spring still allows shoe movement.

How many pins do I need?

One per shoe. Most vehicles with rear drum brakes have two shoes per wheel, so four pins per axle. Verify your listing's quantity before ordering.

Cross-Sell Logic

• Drum Brake Shoe Hold Down Kit (PARTTERMINOLOGYID 1772)

• Drum Brake Hardware Kit (PARTTERMINOLOGYID 1752)

• Brake Shoe Set

• Brake Drum (PARTTERMINOLOGYID 1744)

• Wheel Cylinder

Frame as "replace together during drum brake service."

Final Take for PARTTERMINOLOGYID 1776

Drum Brake Shoe Spring Hold Down Pin (PartTerminologyID 1776) is a sub-dollar part with a return profile driven entirely by two problems: missing pin length data and scope confusion with hold down kits.

Publish the pin length. State the quantity. Make it clear this is the pin only. That is all it takes to keep this part from costing more to return than it costs to sell.
