Drum Brake Shoe Hold Down Kit (PartTerminologyID 1772): The Tiny Hardware That Decides Whether a Brake Job Holds or Rattles Apart in 500 Miles
Written by Arthur Simitian | PartsAdvisory
PartTerminologyID 1772, Drum Brake Shoe Hold Down Kit, is a category that nobody thinks about until the brake job comes back.
The hold down kit is the set of small springs, pins, retainers, and cups that secure the brake shoes flat against the backing plate inside a drum brake assembly. Without these parts, the shoes rattle, shift, wear unevenly, drag against the drum, and generate every noise and performance complaint that gets blamed on the shoes or the drum.
That is the function. Here is the commercial problem.
Buyers order the wrong kit because:
they assume all hold down kits are the same for a given vehicle
they confuse hold down kits with full drum brake hardware kits (return springs, adjusters, and all hardware combined)
they do not verify pin length, spring type, or retainer style
they order by year/make/model without accounting for drum size or brake package splits
they do not realize that front and rear drum positions may use different hold down hardware
Sellers get caught because many listings for Drum Brake Shoe Hold Down Kit still look like this:
vague title that could mean a full hardware kit or just the hold downs
no component breakdown (what is in the box)
no pin length or spring dimension
no drum size qualifier
no position callout (front vs. rear)
no image showing individual components laid out
The result is a buyer who receives four springs and four pins when they expected a complete hardware overhaul, or a kit with pins that are too short for their backing plate thickness, or a kit designed for 10-inch drums on a vehicle with 11-inch drums.
This is the PartsAdvisory field guide for PartTerminologyID 1772: Drum Brake Shoe Hold Down Kit, built for catalog teams, fitment teams, and sellers who want fewer returns on a category where confusion is the default.
Status in New Databases
PIES/PCdb: PartTerminologyID 1772 - Drum Brake Shoe Hold Down Kit
PIES 8.0 / PCdb 2.0: No change
Why This Category Creates Returns It Shouldn't
A hold down kit costs between $3 and $15. The margin is thin. The return handling cost exceeds the part cost almost every time.
But the real damage is not the return itself. It is the brake job that stalls because the buyer received the wrong kit, the brake noise comeback that traces back to a weak or wrong-length spring, or the "defective shoe" claim that was actually a hold down pin that did not reach through the backing plate.
The hidden challenge
Drum Brake Shoe Hold Down Kit sits at the intersection of:
Scope confusion (hold down kit vs. full hardware kit vs. spring kit - three different categories that buyers blur together)
Dimensional sensitivity (pin length must match backing plate thickness; spring tension must match shoe weight and position)
Brake package splits (drum diameter, shoe width, and backing plate design vary within the same YMM)
The part is a handful of springs and pins. The listing complexity is disproportionately high.
What Drum Brake Shoe Hold Down Kit Actually Is (and Isn't)
A Drum Brake Shoe Hold Down Kit contains the components that pin each brake shoe to the backing plate. The hold down assembly keeps the shoe stable, flat, and correctly positioned so that it contacts the drum evenly when the brakes are applied.
Typical kit contents

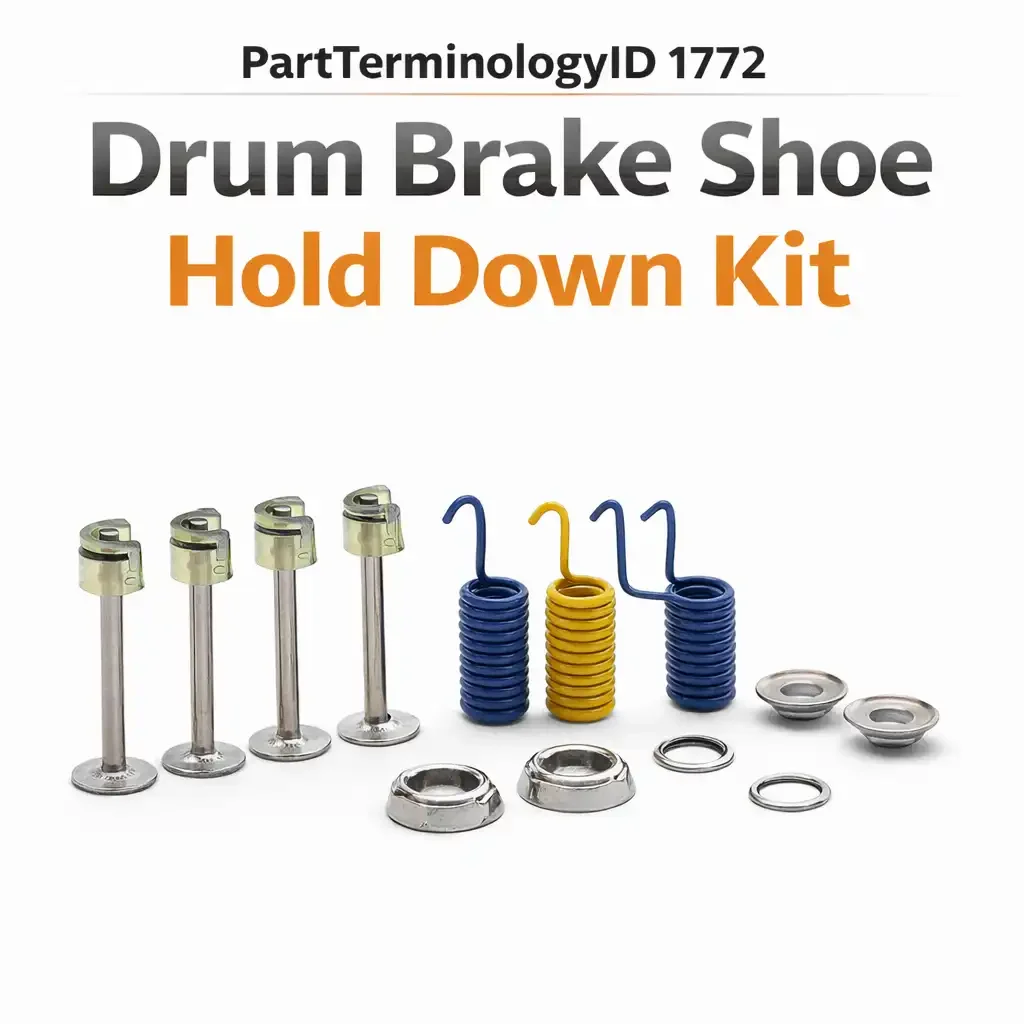

A standard hold down kit for one axle (two wheels) typically includes:
4 hold down pins (sometimes called nails) - pass through the backing plate and the shoe web
4 hold down springs (small coil springs) - sit over the pin, compressed between the shoe and the retainer
4 retainer cups or caps - lock onto the pin head to compress the spring and secure the shoe
Some kits also include washers or clips depending on the design.
What it is NOT:
a Drum Brake Hardware Kit (PartTerminologyID 1752) - which includes return springs, adjuster hardware, and all associated clips and levers in addition to hold downs
a Drum Brake Spring Kit - which typically covers the larger return springs that pull the shoes away from the drum
a self-adjuster kit
a parking brake hardware kit
brake shoes
This is the single most common source of buyer confusion in this category. The buyer searches "drum brake hardware," sees a hold down kit, assumes it includes everything, and returns it when the return springs are missing.
The Scope Problem That Generates the Most Returns
Hold Down Kit vs. Hardware Kit vs. Spring Kit
The aftermarket uses at least three overlapping category names for drum brake hardware:
Hold Down Kit (PartTerminologyID 1772): pins, springs, retainers only - secures shoes to backing plate
Hardware Kit (PartTerminologyID 1752): comprehensive kit - hold downs, return springs, adjuster components, clips, levers
Spring Kit: sometimes refers to return springs only, sometimes includes hold downs - varies by brand
If your listing title says "Drum Brake Shoe Hold Down Kit" but the buyer expected a full hardware kit, that is a return. If your listing says "Brake Hardware Kit" but only includes hold downs, that is a return and possibly a negative review.
Prevention language: "This kit includes hold down pins, springs, and retainers only. Return springs, adjuster hardware, and parking brake components are NOT included and are sold separately."
That single sentence prevents the majority of scope-related returns in PartTerminologyID 1772.
The Fitment Splits That Drive Misfits
Pin length varies by backing plate
Hold down pins pass through the backing plate from the back side and protrude through the shoe web on the front side. The retainer cup locks onto the pin tip to compress the spring.
If the pin is too short, it does not protrude far enough for the retainer to lock. If it is too long, the retainer sits too high and does not apply proper spring tension.
Pin length is determined by backing plate thickness, which varies by drum size, vehicle platform, and brake package.
Drum size = different kit
The same year/make/model may use 9-inch, 10-inch, or 11-inch drums depending on trim, payload, or engine option. Different drum sizes use different backing plates, and the hold down kit may differ accordingly.
Front vs. rear position
On vehicles with four-wheel drum brakes (older trucks, fleet vehicles, classic cars), the front and rear hold down kits may be different. Pin length and spring tension may vary by position.
Top Return Scenarios in PartTerminologyID 1772
Scenario 1: "This isn't a complete hardware kit"
Buyer expected return springs, adjuster parts, and everything else.
Root cause: Title or description does not distinguish hold down kit from full hardware kit.
Prevention language: "Hold down components only. For a complete drum brake hardware kit including return springs and adjuster, see [related PartTerminologyID / cross-reference]."
Scenario 2: "Pins are too short / too long"
Kit arrives with pins that do not match the buyer's backing plate.
Root cause: Listing does not specify pin length or drum size qualifier.
Prevention language: "Verify drum diameter and backing plate configuration. Pin length in this kit: [X inches]. Designed for [X-inch] drum brake applications."
Scenario 3: "Springs don't match what I took off"
Buyer's original hold downs were a different design (hook-style vs. coil-and-cup style).
Root cause: Multiple hold down designs exist across eras and platforms. Listing does not clarify spring/retainer style.
Prevention language: "Coil spring with cup retainer design [or hook-and-eyelet design]. Verify original hold down style before ordering."
Scenario 4: "Brakes rattle after installation"
Buyer installs the kit but gets noise within days.
Possible causes beyond kit defect: pin not fully seated through backing plate, retainer not locked onto pin, spring installed crooked, shoes not properly aligned on backing plate contact pads, backing plate contact points not lubricated.
Prevention language: "Ensure pins pass fully through backing plate. Lock retainer by compressing spring and rotating cup 90° onto pin head. Lubricate backing plate contact pads with brake-rated lubricant."
What to Include in the Listing
Core listing essentials
PartTerminologyID reference: PartTerminologyID 1772
component type: Drum Brake Shoe Hold Down Kit
position: front / rear / both
quantity: per axle (2 wheels) or per wheel - be explicit
scope: hold down components only (pins, springs, retainers/cups)
Fitment essentials
year/make/model/submodel
drum diameter qualifier (9" / 10" / 11" / 12")
shoe width qualifier (where applicable)
brake package notes (standard vs. heavy-duty)
Dimensional essentials
pin length
pin diameter
spring type (coil with cup, hook-style, other)
retainer style (cup/cap, clip, washer)
material (steel, stainless, plated)
Image essentials
all components laid out individually with labels
pin shown with scale reference
spring and retainer assembly shown together
packaging scope (what is in the box)
Catalog Checklist for ACES/PIES Teams
PartTerminologyID = 1772
enforce drum size splits across YMM
require position attribute (front / rear)
require pin length attribute
require kit contents metadata (pin count, spring count, retainer count)
validate against shoe and drum pairings
flag vehicles where front and rear use different hold down kits
clearly differentiate from PartTerminologyID 1752 (Hardware Kit) in category mapping
Install Notes for Listing Content
work one wheel at a time - use the other side as a reference
photograph the assembly before disassembly
lubricate backing plate shoe contact pads with high-temp brake lubricant
insert pin from the back side of the backing plate
place spring over pin, then compress retainer cup and rotate 90° to lock
verify each shoe sits flat against the backing plate before reinstalling drum
replace hold down kits any time shoes are replaced - springs lose tension over time and heat cycles
FAQ (Buyer Language)
Is a hold down kit the same as a hardware kit?
No. A hold down kit (PartTerminologyID 1772) contains only the pins, springs, and retainers that secure the shoes to the backing plate. A full drum brake hardware kit (PartTerminologyID 1752) includes return springs, adjusters, and additional clips beyond the hold downs.
Do I need to replace hold down hardware when I replace brake shoes?
Yes. Hold down springs lose tension from heat cycling and age. Reusing worn springs can cause shoe rattle, uneven contact, drag, and noise - all of which get blamed on the new shoes.
Why are the pins in my kit different lengths?
Some kits include two different pin lengths (one shorter, one longer) to accommodate the primary and secondary shoe positions or variations in backing plate geometry at each shoe location.
My brakes rattle after I installed the kit. Is it defective?
Most post-install rattle is caused by retainers not fully locked onto the pin, pins not fully seated through the backing plate, or unbacked contact points. Verify each hold down is fully compressed and locked before reassembling.
Cross-Sell Logic
Drum Brake Hardware Kit (PartTerminologyID 1752 - full kit with return springs and adjusters)
Brake Shoe Set (matching drum size and position)
Brake Drum (PartTerminologyID 1744)
Wheel Cylinder
Brake Shoe Adjuster Kit
High-temp brake lubricant
Frame as "commonly replaced together during drum brake service."
Final Take for PartTerminologyID 1772
Drum Brake Shoe Hold Down Kit (PartTerminologyID 1772) is a micro-cost category with an outsized return footprint driven almost entirely by scope confusion and missing dimensional detail.
The winners in this category do two things: they make it unmistakably clear what is in the box (and what is not), and they publish pin length and drum size qualifiers so the buyer can self-validate before checkout.
That is what turns a $5 bag of springs and pins from a support ticket into a clean sale that stays sold.
