Gauge Panel (PartTerminologyID 1476): The Mounting Surface That Holds Every Gauge in This Series, and the Part Nobody Thinks About Until They Have Nowhere to Put Their Gauges
Written by Arthur Simitian | PartsAdvisory
This is the final post in the gauge series that began with Ammeter (PartTerminologyID 1452) and continued through Fuel Level (1456), Fuel Pressure (1458), Hour Meter (1460), Gauge Light Kit (1464), Engine Oil Pressure (1468), and Engine Oil Temperature (1472). Every one of those gauges needs somewhere to mount. The Gauge Panel is that somewhere.
A Gauge Panel is a flat or contoured panel with pre-cut holes designed to hold gauges in a neat, organized arrangement. It may be a factory component (the sub-panel within the instrument cluster that holds the individual gauges) or an aftermarket product (a standalone panel, pod, or bracket designed to mount auxiliary gauges on the A-pillar, under the dashboard, in the center console, or in a custom location).
This is a part that the buyer only searches for after they have purchased their gauges and realized they have no clean way to install them. The gauge comes in a box. The box does not include a way to mount it in the vehicle. The buyer holds the gauge up to the dashboard, realizes there is no pre-cut hole, and searches "gauge panel" or "gauge pod" or "gauge bracket." This is the product that solves that problem.
This post is built for aftermarket catalog teams, marketplace sellers, and buyers who want fewer mistakes and fewer returns.
Status in New Databases
Status in New Databases
Current: PIES 7.2 + PCdb Future: PIES 8.0 + PCdb 2.0 Status: No change
What Gauge Panel Means in the Aftermarket

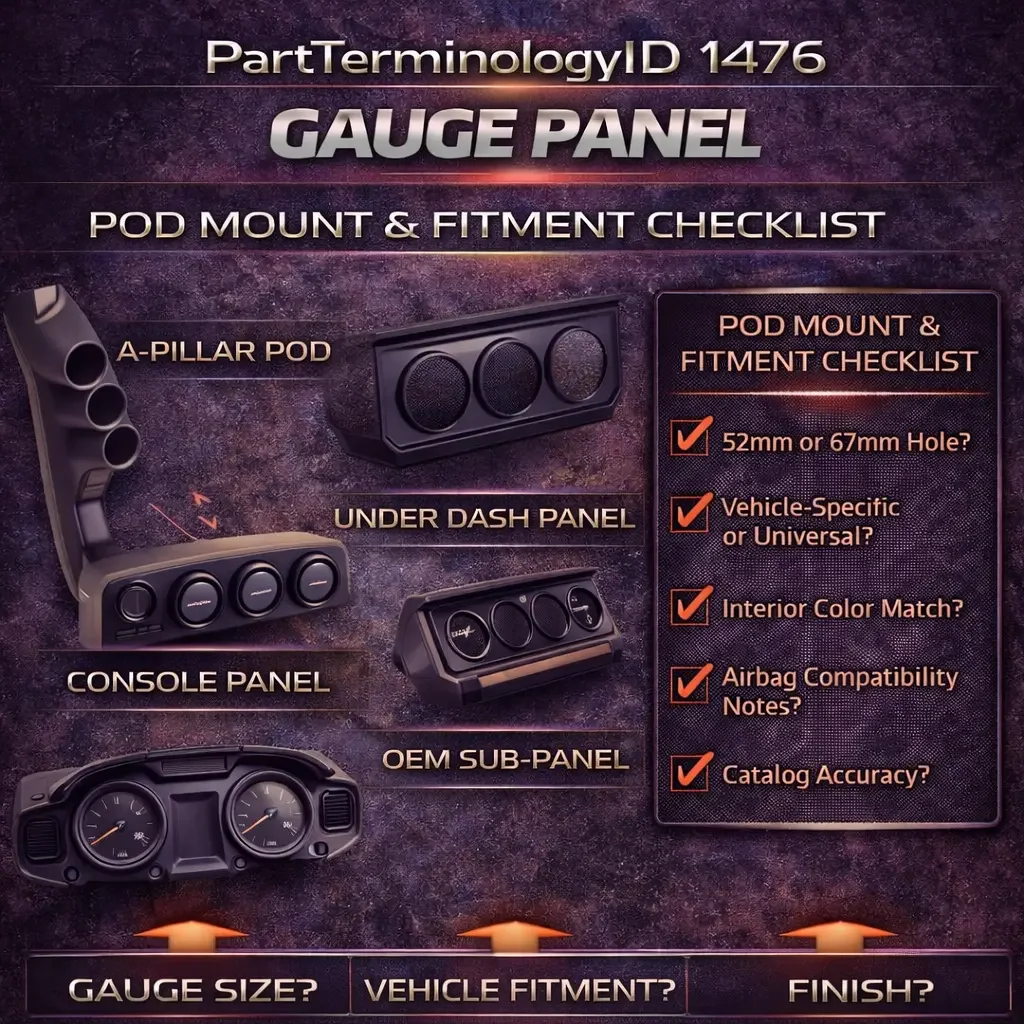

Gauge Panel (PartTerminologyID 1476) refers to a panel, pod, bracket, or mounting surface designed to hold one or more gauges.
In catalog reality, this covers a wide range of products:
OEM instrument cluster sub-panel. The factory panel within the instrument cluster housing that holds the individual gauges. On classic cars and older vehicles with separate gauge instruments, this is a metal or plastic panel with gauge-diameter cutouts, mounting studs, and sometimes printed circuit board backing. When this panel cracks, warps, or has damaged gauge openings, the individual gauges cannot mount properly. This is the restoration market application for PartTerminologyID 1476.
Aftermarket A-pillar gauge pod. A molded plastic pod that clips or screws to the A-pillar (the pillar between the windshield and the front side window) and holds 1 to 3 auxiliary gauges. A-pillar pods are the most popular aftermarket gauge mounting solution because they place the gauges in the driver's line of sight without modifying the dashboard. Available in vehicle-specific shapes (molded to match the A-pillar contour of a specific vehicle) and universal shapes.
Aftermarket under-dash gauge panel. A flat or angled panel that mounts under the dashboard, typically below the steering column. Holds 2 to 6 gauges in a row. Less visible than an A-pillar pod but allows more gauges without cluttering the pillar.
Console-mount gauge panel. A panel designed to mount in or on the center console, replacing a blank panel, a radio slot, or a storage pocket. Common on trucks and SUVs where console space is available.
Custom gauge panel / blank panel. A flat panel (aluminum, ABS plastic, or carbon fiber) with pre-cut gauge holes but no vehicle-specific mounting. The buyer fabricates their own mounting solution. Common in race cars, kit cars, and fully custom builds.
Gauge bezel or trim ring. A decorative ring that surrounds a single gauge opening. Not a panel per se, but often cataloged alongside gauge panels because it is part of the gauge mounting and appearance system.
Triple or dual gauge pod (universal). A small self-contained housing for 2 or 3 gauges that can be mounted anywhere with screws or adhesive. No vehicle-specific fit. The buyer chooses the location.
What this part does NOT cover
Instrument cluster housing. The complete dashboard housing that contains the factory instrument cluster. Different PartTerminologyID.
Individual gauges. The gauges themselves (covered in PartTerminologyIDs 1452 through 1472).
Dashboard panel / dash pad. The main dashboard surface. Different PartTerminologyID.
Why This Category Creates Fitment Problems
Gauge diameter must match the panel openings
Gauge panels have pre-cut holes in standard diameters: 2-1/16 inch (52mm) and 2-5/8 inch (67mm) are the two most common aftermarket sizes. A 2-5/8 inch gauge will not fit a panel with 2-1/16 inch openings. The buyer must confirm that their gauges and their panel use the same diameter.
Vehicle-specific A-pillar pods versus universal pods
Vehicle-specific A-pillar pods are molded to match the contour and curvature of a particular vehicle's A-pillar. They clip over the existing pillar trim and blend with the interior. A pod molded for a 2005 Subaru WRX will not fit a 2010 Mustang. The pillar angle, width, curvature, and trim clip locations are all different.
Universal pods are generic shapes that attach to any pillar with screws, adhesive, or Velcro. They do not blend with the interior and may look aftermarket, but they fit any vehicle.
Number of gauge openings
Panels and pods are available with 1, 2, 3, 4, 5, or 6 openings. The buyer must select a panel with enough openings for their gauges. A buyer who plans to add a boost gauge, oil pressure gauge, and oil temperature gauge needs a 3-gauge pod, not a single.
Interior color match
Vehicle-specific A-pillar pods are typically available in black or gray, and sometimes tan or beige. The pod color should match the vehicle's interior color. A black pod on a tan interior is visually jarring. Some pods are available in a paintable primer so the buyer can color-match to their interior.
Airbag interference on A-pillar pods
On vehicles with side curtain airbags that deploy from the headliner along the A-pillar, an A-pillar gauge pod may interfere with airbag deployment. The pod sits on top of the pillar trim, and if the airbag deploys, the pod can become a projectile or obstruct the airbag curtain. This is a safety consideration that many buyers overlook. Some vehicle-specific pods are designed to be compatible with side curtain airbags (mounting below the airbag deployment path), but many are not. The listing should note airbag compatibility or caution.
OEM sub-panel for classic car clusters
Classic car instrument cluster sub-panels must match the specific vehicle's cluster housing. The gauge hole spacing, the mounting stud pattern, the panel shape, and the printed circuit board layout (if applicable) are all vehicle-specific. A panel for a 1969 Camaro cluster does not fit a 1970 Chevelle cluster even though both are GM vehicles from adjacent years.
Top Return Causes
1) Wrong gauge diameter
Panel has 2-1/16 inch openings but buyer's gauges are 2-5/8 inch, or vice versa.
Prevention: Specify gauge opening diameter in the title: "Triple Gauge Pod, 2-1/16 Inch (52mm) Openings" or "Dual Gauge Panel, 2-5/8 Inch (67mm) Openings."
2) Vehicle-specific pod does not fit
Pod is designed for a different vehicle and does not match the buyer's A-pillar contour or clip locations.
Prevention: Full vehicle fitment in the title: "A-Pillar Gauge Pod for 2008-2014 Subaru WRX/STI." Do not list vehicle-specific pods with vague fitment.
3) Wrong number of openings
Buyer needs 3 gauge openings and orders a 2-gauge pod.
Prevention: Number of openings in the title: "Single Gauge Pod" or "Triple Gauge Pod."
4) Interior color mismatch
Black pod ordered for a tan/beige interior.
Prevention: Specify color: "Black" or "Gray" or "Paintable Primer." Include an interior reference photo if possible.
5) Airbag compatibility concern
Buyer installs an A-pillar pod and later realizes it may interfere with side curtain airbags.
Prevention: Include a safety note: "Verify compatibility with your vehicle's side curtain airbag system before installation. This pod mounts on the A-pillar trim and may affect airbag deployment on vehicles with pillar-mounted curtain airbags."
Compatibility Checklist for Buyers
1) Confirm your gauge diameter. 2-1/16 inch (52mm) or 2-5/8 inch (67mm). All gauges and the panel must match.
2) Determine how many gauges you are mounting. Select a panel with the correct number of openings.
3) Choose your mounting location. A-pillar, under-dash, console, or custom. Each location has different product types.
4) If choosing a vehicle-specific A-pillar pod, confirm exact vehicle fitment. Year, make, model, body style.
5) Confirm interior color. Match the pod color to your interior. Consider paintable if an exact color match is not available.
6) Check side curtain airbag compatibility. If your vehicle has side curtain airbags, verify that the A-pillar pod does not interfere with deployment.
Catalog Checklist for Attributes
Core taxonomy: Product form (A-pillar pod, under-dash panel, console panel, custom blank panel, OEM cluster sub-panel, gauge bezel/trim ring, universal pod). Separate from Instrument Cluster, Individual Gauges, Dashboard Panel, and A-Pillar Trim.
Fitment: For vehicle-specific: year, make, model, submodel, interior color. For universal: mounting type (screw, adhesive, clip). For OEM cluster sub-panels: year, make, model, cluster option.
Physical specs: Number of gauge openings. Gauge opening diameter (2-1/16 inch or 2-5/8 inch). Panel material (ABS plastic, aluminum, carbon fiber, fiberglass). Color (black, gray, tan, paintable). Mounting method.
Safety: Airbag compatibility noted (for A-pillar pods).
Images: Front showing gauge openings and finish, rear showing mounting clips or hardware, installed photo on the vehicle (for vehicle-specific pods), and a photo with gauges installed to show final appearance.
FAQ
Will a gauge pod interfere with my side curtain airbags?
Potentially. A-pillar gauge pods mount on top of the A-pillar trim, which is often in the deployment path of side curtain airbags. If the airbag deploys, the pod can obstruct the curtain or become a projectile. Check whether your pod is designed to be compatible with your vehicle's airbag system, or mount gauges in a location that does not interfere with airbag deployment (under-dash, console).
What is the most common gauge size for aftermarket pods?
2-1/16 inch (52mm). This is the standard aftermarket auxiliary gauge size used by most gauge manufacturers. 2-5/8 inch (67mm) is less common and is typically used for primary gauges like tachometers and speedometers.
Can I cut my own gauge holes in a blank panel?
Yes. Aftermarket blank panels in aluminum, ABS, or carbon fiber can be drilled with a standard hole saw in 2-1/16 inch or 2-5/8 inch diameter. Mark carefully, drill slowly, and deburr the edges for a clean fit.
Final Take for Aftermarket Teams
Gauge Panel (PartTerminologyID 1476) is the mounting solution that completes every gauge installation in this series. The catalog challenges are gauge opening diameter (must match the gauges), number of openings, vehicle-specific versus universal, interior color, and the airbag safety note for A-pillar pods. The teams that catalog this well specify the opening diameter and quantity in the title, separate vehicle-specific pods from universal by fitment data, note the interior color, and include the airbag compatibility caution. It is the last part the buyer thinks about and the first thing they need before any of their new gauges actually make it onto the dashboard.
