Headlight Motor (PartTerminologyID 1412): The Part That Disappeared From New Vehicles but Still Fails on Millions of Cars on the Road
Written by Arthur Simitian | PartsAdvisory
Headlight Motor refers to the electric motor that raises and lowers pop-up headlights (also called hidden headlights, retractable headlights, or flip-up headlights). When the driver turns on the headlights, the motor rotates the headlight assembly from a concealed position flush with the hood or fender line up to the operating position. When the headlights are turned off, the motor rotates the headlight back down.
No vehicle manufacturer has produced a new car with pop-up headlights since the early 2000s. The last vehicles to use them were the Lotus Esprit (2004), Chevrolet Corvette C5 (2004), and a handful of others. Pedestrian safety regulations, aerodynamic optimization, and advanced lighting technology made pop-up headlights obsolete. They are gone from new vehicle production permanently.
But millions of vehicles with pop-up headlights are still on the road, and they are increasingly in the hands of enthusiast owners, collectors, and restorers who are keeping them alive. The Mazda Miata (NA and NB generations), Toyota MR2, Nissan 300ZX, Mazda RX-7, Chevrolet Corvette (C3, C4, C5), Pontiac Firebird/Trans Am, Porsche 928, Acura NSX, Toyota Celica, and Honda Accord (late 1980s) are all actively maintained vehicles with pop-up headlight motors that are now 20 to 40+ years old.
Those motors are failing. The plastic gears inside the motor strip. The wiring degrades. The mounting brackets corrode. And when one motor fails, the owner has a car with one headlight up and one headlight down, which is both a safety issue and an aesthetic disaster on a car the owner cares deeply about.
This is a shrinking but passionate market where the buyer is almost always an enthusiast who knows exactly what they need and expects the part to be correct. Catalog accuracy matters here not because of volume but because of the buyer's emotional investment in their vehicle.
This post is built for aftermarket catalog teams, marketplace sellers, and buyers who want fewer mistakes and fewer returns.
Status in New Databases
Status in New Databases
Current: PIES 7.2 + PCdb Future: PIES 8.0 + PCdb 2.0 Status: No change
What Headlight Motor Means in the Aftermarket

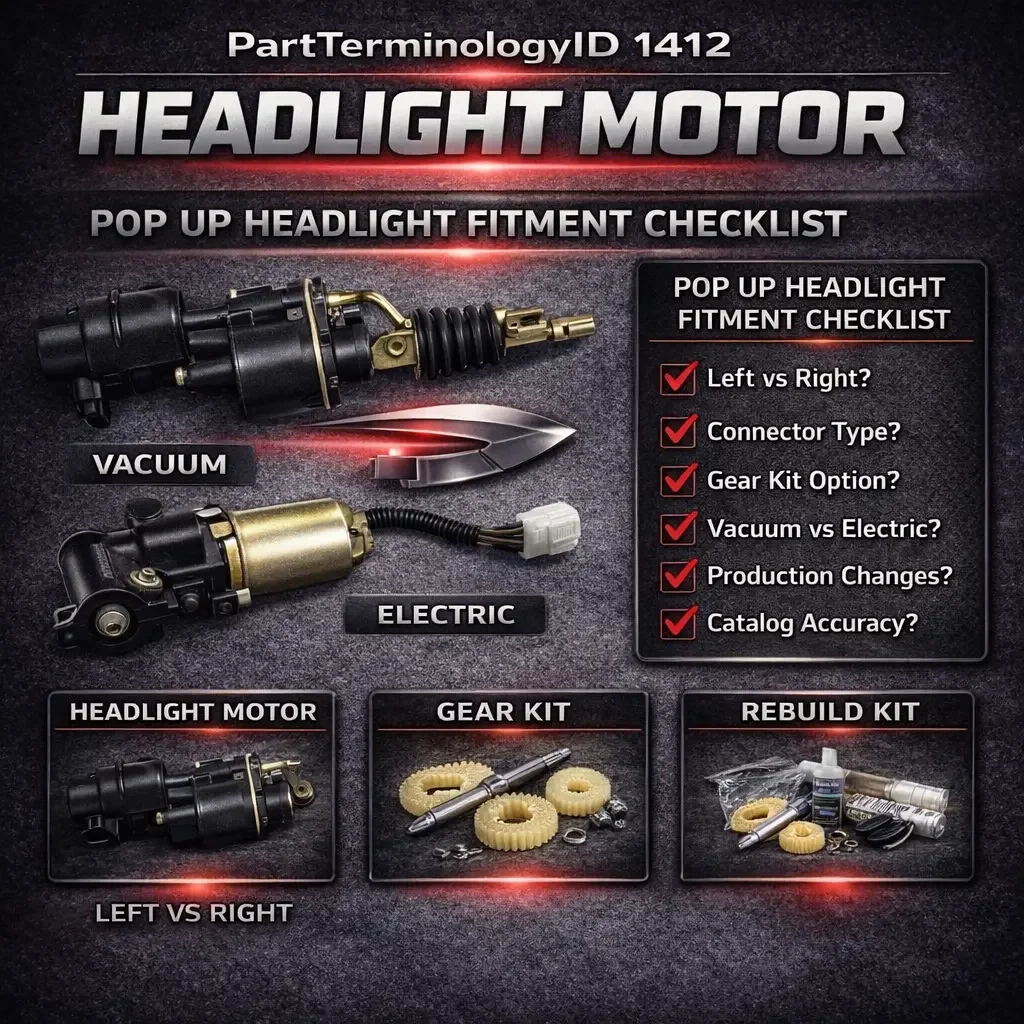

Headlight Motor (PartTerminologyID 1412) refers to the electric motor assembly that actuates a retractable (pop-up) headlight between the concealed (down) and operating (up) positions.
In catalog reality, this covers:
Complete motor assembly. The motor, gear train, output shaft, mounting bracket, and electrical connector as a single unit. This is the standard replacement product. The assembly bolts into the headlight bucket area and connects to the vehicle wiring harness via a multi-pin connector.
Motor only (without gear train or bracket). On some vehicles, the motor can be separated from the gear housing and replaced independently. This is a less common product form and requires the buyer to transfer the gear train and bracket from the original unit.
Gear kit / rebuild kit. The most common failure mode is stripped nylon gears inside the motor assembly. Aftermarket gear kits provide replacement nylon or upgraded metal gears that the buyer installs into the existing motor housing. This is a popular and significantly less expensive repair option. Gear kits are available for high-volume applications like the Mazda Miata, Corvette C4/C5, and Pontiac Firebird.
Headlight motor actuator rod or linkage. On some vehicles, the motor drives the headlight through a linkage rod or actuator arm. This rod can bend, break, or disconnect. It may be sold separately or included with the motor assembly.
What this part does NOT cover
Headlight leveling motor (the motor that adjusts the vertical aim of the headlight beam on non-retractable headlights). Different PartTerminologyID. Headlight leveling motors are current-production parts found on modern vehicles with HID and LED headlights. Headlight motors (PartTerminologyID 1412) are exclusively for pop-up headlight actuation.
Headlight assembly (the light unit itself that the motor raises and lowers).
Headlight door / cover (the panel that conceals the headlight when it is in the down position on some designs).
The critical distinction: Headlight Motor versus Headlight Leveling Motor
This confusion is the single most important catalog issue in this category. Headlight Motor (1412) actuates pop-up headlights on discontinued vehicles. Headlight Leveling Motor adjusts headlight beam aim on current-production vehicles. They are completely different parts for completely different functions on completely different vehicle populations. A buyer searching "headlight motor" for a 2022 vehicle needs a leveling motor, not a pop-up motor. A buyer searching "headlight motor" for a 1994 Miata needs a pop-up motor. The catalog must separate these at the taxonomy level.
Why This Category Creates Fitment Problems
Left versus right
Pop-up headlight motors are side-specific. The left and right motors are mirror images with different mounting geometry, different wiring harness lengths, and sometimes different rotation directions. They are not interchangeable.
Motor connector type
The electrical connector must match the vehicle's wiring harness. Different model years of the same vehicle may use different connector types if the wiring harness was updated. On vehicles that span a long production run (Corvette C4: 1984 to 1996), the connector may have changed one or more times during production.
Gear train differences within a model
The internal gear ratio or gear material may differ between early and late production of the same vehicle model. The Mazda Miata NA, for example, had minor revisions to the headlight motor gear train across its 1990 to 1997 production run. A gear kit that fits a 1990 may not fit a 1996.
Vacuum versus electric
A small number of vehicles (certain 1960s and 1970s models) used vacuum-operated headlight actuators instead of electric motors. These are completely different systems. The vacuum actuator is driven by engine vacuum through hoses and a vacuum canister. The electric motor is driven by the vehicle's electrical system. Listings must specify which type.
Aftermarket upgrade motors
Some aftermarket companies produce upgraded headlight motors for popular enthusiast vehicles. These may use stronger motors, metal gears instead of nylon, faster rotation speed, or more weather-resistant housings. They are marketed as performance upgrades over the OEM unit. The listing must specify whether the product is an OEM replacement or an upgraded aftermarket unit, and whether it is a direct bolt-in or requires modification.
Discontinuation and scarcity
OEM headlight motors for many pop-up headlight vehicles have been discontinued by the original manufacturer. Aftermarket reproduction motors and gear kits have filled some of the gap, but availability is inconsistent. Used/recycled motors are available but carry the same age-related failure risk as the buyer's original motor. This scarcity drives pricing: a headlight motor that was a $100 OEM part 15 years ago may now command $200 to $400 or more for an aftermarket reproduction.
Top Return Causes
1) Headlight motor ordered when headlight leveling motor was needed
Buyer has a modern vehicle with non-retractable headlights and needs a beam-aim leveling motor. They search "headlight motor" and order a pop-up headlight motor.
Prevention: Separate PartTerminologyIDs in the catalog. Title the listing: "Pop-Up Headlight Motor (Retractable Headlight Actuator)" to distinguish from headlight leveling motors. Include a note: "For vehicles with retractable (pop-up) headlights only."
2) Wrong side (left versus right)
Prevention: Side in the title: "Left (Driver Side) Headlight Motor" or "Right (Passenger Side) Headlight Motor."
3) Gear kit does not fit the model year
Buyer orders a gear kit for their vehicle but receives gears that do not match the internal gear train revision in their specific production year.
Prevention: Narrow the year range in the fitment data. Note production date splits where the gear train changed. Include photos of the gear profiles for comparison.
4) Wrong connector type
Motor connector does not match the vehicle's wiring harness.
Prevention: Specify connector type and pin count. Include a photo of the connector. Note production date splits where the connector changed.
5) Vacuum actuator vehicle receives an electric motor
Prevention: Specify actuation type: "Electric Motor" or "Vacuum Actuator." Do not combine electric and vacuum applications under a single listing.
Compatibility Checklist for Buyers
1) Confirm your vehicle has pop-up (retractable) headlights. If your headlights are fixed and do not raise/lower, you need a headlight leveling motor, not a headlight motor.
2) Confirm side. Left (Driver) or Right (Passenger).
3) Confirm electric versus vacuum actuation. Most pop-up headlight vehicles from the 1980s forward use electric motors. Some 1960s and 1970s vehicles use vacuum actuators. Verify which system your vehicle has.
4) Determine what failed. If the motor runs but the headlight does not move, the problem may be stripped gears (a gear kit may be sufficient). If the motor does not run at all, the problem may be the motor itself, the relay, or the wiring. Diagnose before ordering.
5) Confirm full vehicle details. Year, make, model, submodel. Note the production date if the vehicle spans a long production run with mid-run changes.
6) Check the connector. If possible, compare the connector on your existing motor to the listing photo before ordering.
Catalog Checklist for Attributes
Core taxonomy: Product form (complete motor assembly, motor only, gear kit/rebuild kit, actuator rod/linkage). Actuation type: electric motor or vacuum actuator. Separate from Headlight Leveling Motor, Headlight Assembly, and Headlight Door/Cover.
Fitment: Year, make, model, submodel. Side: Left/Right. Production date range (for models with mid-run revisions). OEM part number cross-reference.
Physical specs: Motor voltage (12V), connector type and pin count, gear material (nylon, metal), rotation direction (CW/CCW), output shaft type, mounting bolt pattern.
Package contents: Motor assembly, mounting hardware (if included), wiring pigtail (if included), gear kit contents (number and type of gears, springs, clips).
Images: Complete assembly showing mounting bracket and connector, connector close-up, gear train (for gear kits, show all gears with identification), mounting bolt pattern, installed reference photo showing position in the headlight bucket.
FAQ
What is the most common failure on a pop-up headlight motor?
Stripped internal gears. The motor itself usually still works, but the nylon gears that transfer the motor's rotation to the headlight pivot strip their teeth over time. A gear kit replacement is often all that is needed.
Can I drive with one pop-up headlight stuck?
A headlight stuck in the up position is a cosmetic issue during the day but otherwise harmless. A headlight stuck in the down position means you have one working headlight at night, which is a safety issue and a traffic violation in every state. Most pop-up headlight vehicles have a manual override (a knob or lever) that allows the headlight to be raised manually in an emergency.
Are metal gear kits better than nylon replacements?
Metal gears are more durable and will not strip. However, they are louder during operation (you will hear the motor and gears more clearly), and if the motor stalls or encounters resistance, metal gears transfer that load to the motor shaft rather than stripping as a fuse-like weak point. Most enthusiasts prefer metal gears for the durability.
My headlight motor is discontinued by the OEM. What are my options?
Aftermarket reproduction motors, aftermarket gear kits to rebuild your existing motor, used/recycled motors from salvage vehicles, or upgraded aftermarket motors from enthusiast-market suppliers. The enthusiast community for your specific vehicle (forums, Facebook groups, dedicated vendors) is often the best source for current availability information.
Final Take for Aftermarket Teams
Headlight Motor (PartTerminologyID 1412) is a niche category serving a vehicle population that is no longer in production but is passionately maintained by enthusiast owners. The catalog challenges are separating pop-up headlight motors from headlight leveling motors at the taxonomy level, specifying side and connector type, capturing gear train revisions across long production runs, and distinguishing between electric motors and vacuum actuators on the oldest applications. The buyer in this category knows their vehicle and knows what they need. The value the catalog provides is making the correct part findable and correctly identified so the buyer can keep their pop-up headlights doing the thing that made them fall in love with the car in the first place.
