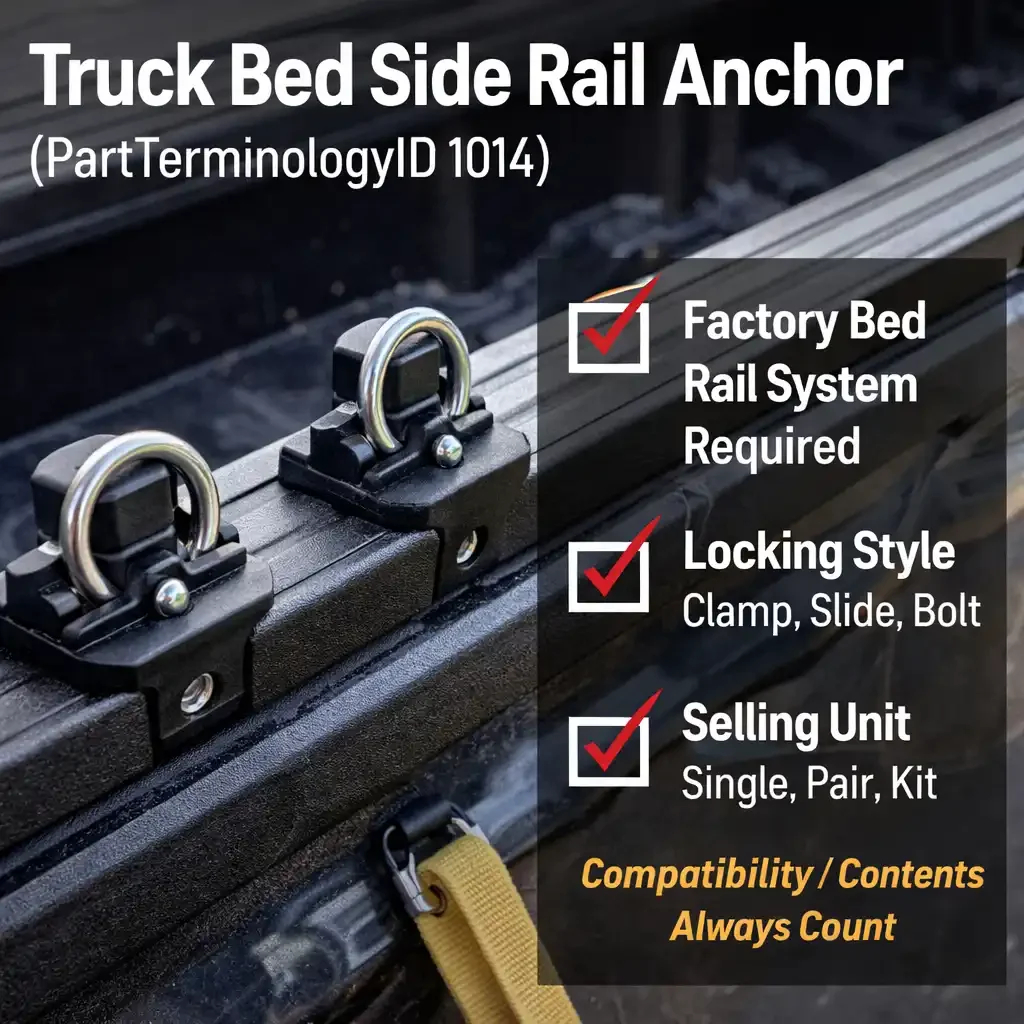

Truck Bed Side Rail Anchor (PartTerminologyID 1014): The Buyer Reality, the Catalog Checklist, and PIES Status

Written by Arthur Simitian | PartsAdvisory

PartTerminologyID 1014, Truck Bed Side Rail Anchor, is the attachment point that locks into the extruded channel running along the top of a truck bed's side wall, providing a movable or fixed tie-down location for cargo straps, hooks, nets, and bungee hardware by engaging the track's internal slot walls through a twist-lock, slide-lock, clamp, or bolt-in retention mechanism and presenting a ring, hook, or eyelet above the rail surface for cargo restraint attachment. That definition covers the function correctly and leaves unresolved every question that determines whether the anchor the buyer ordered will engage the track in their bed at all. It does not specify whether the truck's bed has a factory side rail track system, which is not standard equipment on all trim levels of any truck model, the track's internal slot profile dimensions, the mount style, whether the listing covers a single anchor or a set, what hardware is included, whether the anchor slides freely along the track or locks at a fixed position, the load rating, the material, or the finish. A listing under PartTerminologyID 1014 that provides vehicle year, make, and model without stating the rail system compatibility requirement is a listing that will convert buyers who do not have the required track, because those buyers cannot know from year, make, and model alone whether their bed has the system this anchor requires.

For sellers, PartTerminologyID 1014 has a return rate that is disproportionate to the unit price because the most common return has nothing to do with the anchor itself. The anchor is correct. The buyer's bed does not have the factory rail track. The listing said the part fits the truck. It does, if the truck has the track. The listing did not say the track was required. That omission is the entire return. The rail system compatibility note is not a secondary attribute to populate after all other fields are complete. It is the first attribute, and it belongs in the title.

What the Truck Bed Side Rail Anchor Does

Providing an adjustable tie-down point within the rail track

The side rail anchor slides into the track channel from the track end or drops in through the slot depending on the design, and the retention mechanism locks it in position at any point along the track's length. The buyer sets the anchor position to match the cargo's tie-down geometry, locks the anchor, and attaches the cargo restraint hardware to the ring or eyelet above the rail surface. The full range of adjustable positioning is what distinguishes a rail anchor from a fixed bed stake pocket insert or a bolt-in tie-down ring: the anchor can be repositioned for each load rather than constraining the tie-down geometry to fixed points.

That adjustability exists only within the specific track system the anchor was designed for. The track's internal slot dimensions, specifically the slot width, the slot depth, and the profile of the internal flanges the anchor body grips when locked, determine whether the anchor body engages the track with the clamping force required to hold rated load or passes through the slot without engagement. A twist-lock anchor inserts at 45 degrees and rotates 90 degrees until its flanges are perpendicular to the slot and pressing outward against the track walls. An anchor with flanges 2mm wider than the slot will not insert. An anchor with flanges 2mm narrower will insert and rotate but will not develop adequate clamping force under load. The mount style and the dimensional profile of the anchor body are the primary fitment attributes, not the vehicle year.

The rail system dependency and trim level argument

Factory bed rail track systems are optional or trim-level-specific on every domestic truck platform that offers them. A buyer with a base-trim truck bed without the factory track cannot install a rail anchor regardless of how correctly the anchor is specified. A buyer who has replaced a damaged OE bed with an aftermarket replacement bed may have lost the OE track profile and gained an aftermarket track with different internal dimensions that require a different anchor body profile. Neither situation is resolvable by year, make, and model fitment alone. The listing must state whether the anchor requires an OEM factory track, a specific aftermarket track system, or no track at all for direct-mount designs, and must direct buyers to confirm the presence and profile of the track before ordering.

Some manufacturers have revised the internal profile of their bed rail track between model year generations while keeping the same exterior bed rail appearance. An anchor designed for the earlier track profile will enter the later track but will not lock correctly because the flange geometry changed at the profile revision. The listing must state the compatible model year range for the specific track generation.

Status in New Databases

• PIES/PCdb: PartTerminologyID 1014, Truck Bed Side Rail Anchor

• PIES 8.0 / PCdb 2.0: No change

Top Return Scenarios

Scenario 1: "Truck does not have factory rail track, anchor cannot engage bed side wall, returned as wrong part"

The listing specified the anchor for the truck's year, make, and model without stating that a factory side rail track is required. The buyer's truck is a base-trim model without the factory rail track option. The bed's side wall has no slot or channel for the anchor body to engage. The anchor was returned as the wrong part.

Prevention language: "Requires factory OEM bed side rail track system. This anchor engages the extruded channel track on the bed side wall. Verify your truck has the factory bed rail track installed before ordering. The factory bed rail track is not standard on all trim levels. If your bed does not have the channel track, this anchor cannot be installed."

Scenario 2: "Twist-lock anchor, buyer inserted straight rather than at 45 degrees, anchor appeared defective, returned"

The listing did not describe the twist-lock installation procedure. The buyer inserted the anchor body straight into the slot, found it would not lock, and concluded the anchor was defective. The anchor required a 45-degree insertion angle followed by a 90-degree rotation to engage the track flanges.

Prevention language: "Mount style: twist-lock. Insert the anchor body at a 45-degree angle, then rotate 90 degrees until the flanges are perpendicular to the slot and the locking indicator aligns. Do not attempt straight insertion: the anchor will enter the slot but will not lock. The rotational step is required to develop clamping force against the track walls."

Scenario 3: "Listing stated single, buyer expected pair, purchased one anchor for a two-point tie-down"

The listing stated the selling unit as one anchor without emphasis. The buyer needed two anchors for a fore-and-aft cargo tie-down and assumed the listed price was for a pair. One anchor arrived.

Prevention language: "Selling unit: 1 anchor. For a standard two-point fore-and-aft cargo tie-down, two anchors are required. This listing covers one anchor. Order quantity 2 or search for the two-pack listing if a pair is needed."

Catalog Checklist for ACES/PIES Teams

• PartTerminologyID = 1014

• require rail system compatibility statement in title or first bullet: OEM factory track required, specific aftermarket track, or no track required (mandatory)

• require compatible track generation or model year range where profiles have changed (mandatory)

• require mount style: twist-lock, slide-lock, clamp, or bolt-in (mandatory)

• require selling unit: single, pair, or set with count (mandatory)

• require hardware inclusion: included or not included (mandatory)

• require load rating where available (mandatory)

• require adjustable versus fixed (mandatory)

• require material and finish (mandatory)

• differentiate from bed stake pocket insert: the stake pocket insert fits the square pockets along the bed top rail; the side rail anchor fits the channel track on the bed side wall; different mounting systems, different PartTerminologyIDs

• differentiate from cargo strap, hook, and net: those are the restraint hardware that attaches to the anchor ring; the anchor is the fixed point; separate products

• flag rail system compatibility as mandatory in title: the no-track return is the highest-volume return for this PartTerminologyID; the compatibility statement in the title is the only intervention that filters out buyers without the required track before the purchase

Final Take for PartTerminologyID 1014

Truck Bed Side Rail Anchor (PartTerminologyID 1014) is the truck bed accessory PartTerminologyID where the rail system compatibility statement in the title determines whether the listing converts the right buyers or generates returns from buyers whose trucks have no track for the anchor to engage. State the track requirement in the title. State the mount style. State the selling unit. State the hardware inclusion. State the load rating. Those five attributes are the complete specification for a buyer who has confirmed their truck has the rail system and needs only the anchor that fits it.
