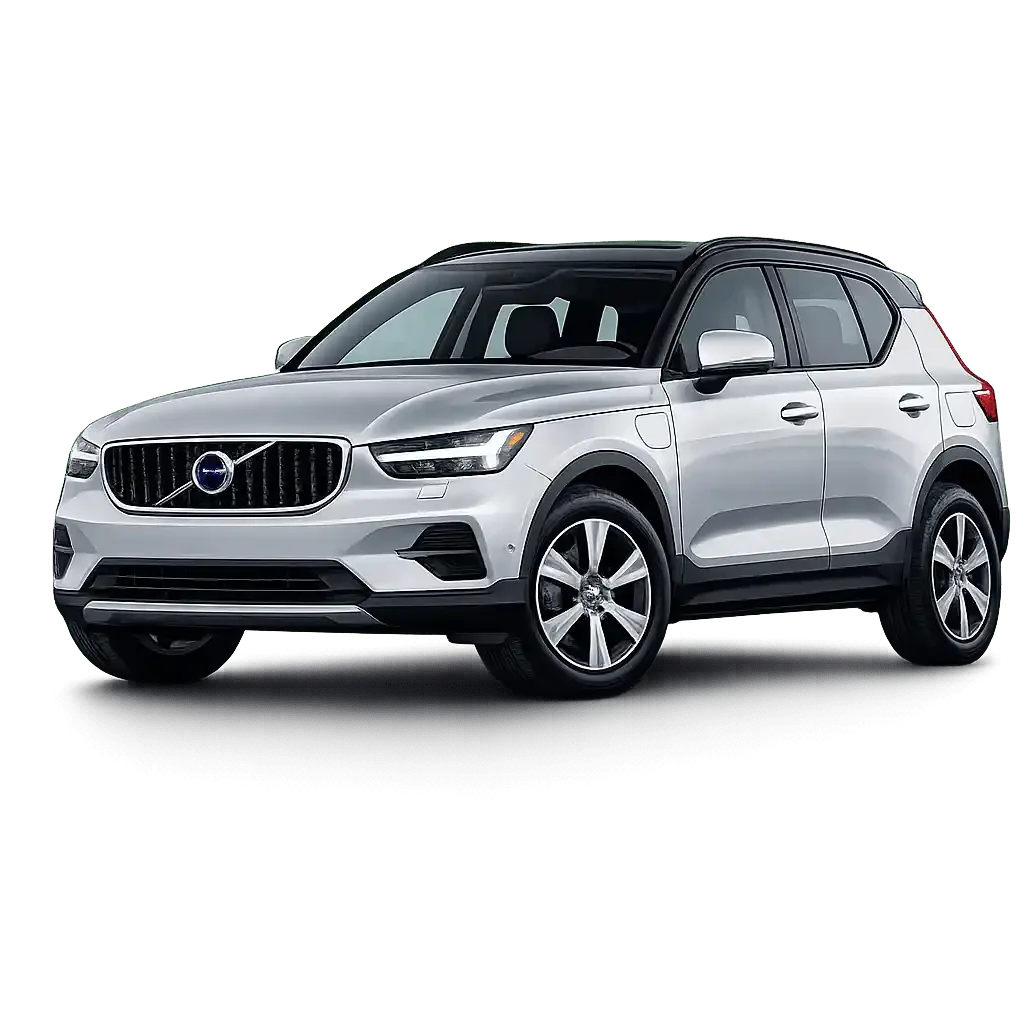

Volvo XC40 (CMA Platform) 2019-2026 ICE & Mild Hybrid
The Complete Fitment Guide for Parts Sellers
Returns destroy margins. In the aftermarket parts business, every misfitted part that ships back eats into your profit and damages your seller rating. The Volvo XC40 is one of the most return-prone compact SUVs in the European aftermarket catalog because it spans two distinct powertrain eras (T-series pure ICE and B-series 48V mild hybrid), has a significant mid-cycle facelift that changed body panels and sensor hardware, and shares a name with the fully electric XC40 Recharge - a completely different vehicle underneath. This guide exists to help parts sellers, catalog managers, and fitment teams eliminate preventable returns by mapping every critical fitment split on the ICE and mild hybrid Volvo XC40 (2019-2026 US market). If you sell Volvo parts and you are not using this data, you are leaving money on the table in returned shipments.
Why the XC40 Causes So Many Returns
The Volvo XC40 sits at the intersection of several fitment complications that make it uniquely prone to catalog errors and customer returns:
• Two powertrain naming eras: T4/T5 (2019-2022, pure ICE) transitioned to B4/B5 (2023-2026, 48V mild hybrid). The names changed but the engines look similar. The 48V system adds an ISG (Integrated Starter Generator), a 48V lithium-ion battery, and brake-by-wire hardware that does not exist on T-series models.
• A major facelift in 2023: Headlights, grille, bumpers, ADAS sensors, infotainment system, interior materials, and trim strategy all changed. Body panels do not interchange between pre-facelift (2019-2022) and post-facelift (2023-2026).
• Shared name with the XC40 Recharge (BEV): The fully electric XC40 Recharge is a completely different vehicle under the skin - no engine, no exhaust, no transmission, sealed grille, battery floor, frunk instead of engine bay. Listing an ICE XC40 part for a Recharge buyer (or vice versa) is a guaranteed return.
• FWD vs. AWD configurations: The T4/B4 is FWD only. The T5/B5 is AWD only (in the US). Different drivetrain components, different weight distribution, potentially different brake sizes.
• Infotainment system change: 2019-2022 used Volvo's Sensus system. 2023 onward uses Android-based infotainment with Google built-in. Different head units, different wiring.
If your catalog does not account for these splits, your return rate on XC40 parts will be significantly higher than average.
Platform and Production Background
The Volvo XC40 is built on the CMA (Compact Modular Architecture) platform, co-developed by Volvo Cars and Geely. It was Volvo's first entry into the subcompact luxury crossover segment and was unveiled in September 2017, going on sale as a 2019 model year in the US market. It won the European Car of the Year award in 2018 and has been one of Volvo's top-selling global models.
The CMA platform is shared with the Polestar 2, the Volvo C40 Recharge, the XC40 Recharge (BEV), and several Geely/Lynk & Co models. For ICE/mild hybrid parts sellers, the most relevant cross-reference is the Volvo S60 and V60 of the same era, which share many VEA engine components but are built on the larger SPA platform with different chassis parts.
Built at Volvo's Ghent plant in Belgium (and in China for the Chinese market), the XC40 uses exclusively 2.0-liter four-cylinder VEA (Volvo Engine Architecture) engines in the US market, paired with an Aisin 8-speed automatic transmission (TG-81SC). All US-market ICE/hybrid XC40s are gasoline powered - no diesel XC40 was ever sold in the US.
Complete Powertrain Reference (US Market)
T-Series Powertrain Era (2019-2022): Pure ICE, No Hybrid System
T4 - 2.0L Turbocharged FWD (2019-2022)
• Engine code: B4204T47
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Single turbocharger, direct injection
• Output: 187 hp at 4,700 rpm, 221 lb-ft at 1,400-4,000 rpm
• Compression ratio: 11.3:1
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: FWD only
• Fuel economy: EPA 23/33/26 MPG (city/hwy/combined)
• Hybrid system: None. Pure ICE. No 48V battery, no ISG, no brake-by-wire.
• Notes: Base engine for the US market. Available in Momentum, R-Design, and Inscription trims. Requires premium fuel (91 octane recommended). Towing capacity 3,500 lbs.
T5 - 2.0L Turbocharged AWD (2019-2022)
• Engine code: B4204T47 (same block, higher tune) or B4204T43 (varies by production date)
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Single turbocharger, direct injection
• Output: 248 hp at 5,500 rpm, 258 lb-ft at 1,800-4,800 rpm
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: AWD standard (Haldex-based system with BorgWarner coupling)
• Fuel economy: EPA 22/30/25 MPG (city/hwy/combined)
• Hybrid system: None. Pure ICE.
• Notes: Higher-output version of the same 2.0L VEA block. AWD is standard and cannot be deoptioned. Same Momentum, R-Design, and Inscription trims as T4. Towing capacity 3,500 lbs.
B-Series Powertrain Era (2023-2026): 48V Mild Hybrid
B4 - 2.0L Turbocharged 48V Mild Hybrid FWD (2023, 2026)
• Engine code: VEA 2.0L with 48V MHEV (ISG + 48V battery)
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Single turbocharger, direct injection
• Output: 194 hp + ISG assist, 221 lb-ft
• Hybrid system: 48V mild hybrid with Integrated Starter Generator (ISG) and 48V lithium-ion battery. Provides smoother start-stop, regenerative braking energy recovery, and low-speed torque assist.
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: FWD only
• Fuel economy: EPA 24/32/27 MPG (city/hwy/combined)
• Notes: Replaces the T4 for 2023. The B4 was available for 2023, then discontinued for 2024-2025 (B5 AWD was the only US option those years), then reintroduced for 2026. Adds brake-by-wire system for regenerative braking capability. Requires the 48V battery, ISG, and associated wiring harness that T4 models do not have.
B5 - 2.0L Turbocharged 48V Mild Hybrid AWD (2023-2026)
• Engine code: VEA 2.0L with 48V MHEV (ISG + 48V battery)
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Single turbocharger, direct injection
• Output: 247 hp + ISG assist, 258 lb-ft
• Hybrid system: 48V mild hybrid with ISG and 48V lithium-ion battery
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: AWD standard
• Fuel economy: EPA 23/30/26 MPG (city/hwy/combined)
• 0-60 mph: 6.1 seconds
• Notes: Replaces the T5 for 2023. For 2024-2025, the B5 AWD was the only powertrain available in the US (B4 was not offered). For 2026, both B4 FWD and B5 AWD returned. Adds brake-by-wire and 48V system. Towing capacity 3,500 lbs.
US Market Powertrain Availability by Year
• 2019: T4 FWD, T5 AWD
• 2020: T4 FWD, T5 AWD
• 2021: T4 FWD, T5 AWD
• 2022: T4 FWD, T5 AWD (final T-series year)
• 2023: B4 FWD, B5 AWD (first B-series year, facelift)
• 2024: B5 AWD only (B4 not offered in US)
• 2025: B5 AWD only (B4 not offered in US)
• 2026: B4 FWD, B5 AWD (B4 reintroduced)
The critical split for engine and drivetrain parts: T-series (2019-2022, pure ICE, no 48V) vs. B-series (2023-2026, 48V mild hybrid with ISG, 48V battery, and brake-by-wire). While both eras use the same 2.0L VEA block architecture and TG-81SC transmission, the B-series adds the ISG unit (replaces the conventional alternator and starter motor), a 48V lithium-ion battery, a DC-DC converter, updated engine management software, and a brake-by-wire system. These 48V mild hybrid components do not exist on T-series models and are not retrofittable.
Transmission
All US-market ICE and mild hybrid XC40s use the same Aisin TG-81SC 8-speed automatic transmission. This is the same transmission family used across many SPA and CMA Volvo models. While the transmission hardware is broadly consistent across T-series and B-series models, the calibration and control software differ between pure ICE and 48V mild hybrid configurations due to the ISG integration and regenerative braking capability of B-series models.
Drive Configuration
FWD (T4 / B4)
• Front-wheel drive only.
• No rear differential, no center driveshaft, no AWD coupling.
• Lighter curb weight than AWD models.
AWD (T5 / B5)
• All-wheel drive standard (cannot be deoptioned in US).
• BorgWarner/Haldex-type AWD coupling.
• Center driveshaft from front transaxle to rear differential.
• Rear differential with electronically controlled limited-slip function.
FWD and AWD models have different rear subframe assemblies, different rear suspension geometry (to accommodate the rear differential on AWD), and different exhaust routing. For driveline parts (axles, CV joints, driveshaft, coupling, rear differential), always specify FWD (T4/B4) or AWD (T5/B5).
Body Style Eras
Pre-Facelift (2019-2022)
• Original Thor's Hammer LED headlight design.
• Traditional upright grille with open airflow (iron mark and diagonal slash).
• Original front and rear bumper design.
• Volvo Sensus infotainment system with 9-inch portrait touchscreen.
• Physical climate buttons below touchscreen.
• Available leather interior.
• Trim levels: Momentum, R-Design, Inscription.
Post-Facelift (2023-2026)
• Reshaped Thor's Hammer LED headlights aligned with C40 Recharge design.
• Available Pixel LED headlights (84 individually controllable LEDs per unit, Ultimate trim).
• Redesigned front bumper with updated air intake.
• Updated grille design.
• Reshaped fog light surrounds (T-shaped, shared with C40 styling).
• Updated taillight LED graphics.
• New ADAS sensor platform (updated radar and camera hardware).
• Android-based infotainment system with Google built-in (replacing Sensus).
• No physical climate buttons (all touchscreen controlled).
• Leather-free interior options (wool/polyester blend, Microtech synthetic).
• New trim levels: Core, Plus, Ultimate (replacing Momentum, R-Design, Inscription).
• New exterior colors and wheel designs.
The body-era split is absolute for exterior panels: 2019-2022 (pre-facelift) vs. 2023-2026 (post-facelift).Headlights, grille, front bumper, fog light surrounds, and ADAS sensor modules do not interchange between these eras. The infotainment change also means the head unit, display panel, and associated wiring are different between eras.
Catalog Accuracy - The Fitment Splits That Matter
Every split below is a potential return if your catalog gets it wrong. Catalog accuracy is the single highest-ROI investment a parts seller can make - fixing one bad listing can prevent hundreds of returns over its lifetime.
Split 1: Powertrain Era (T-Series vs. B-Series)
• T4/T5 (2019-2022): Pure ICE. Conventional starter motor and alternator. No 48V battery. No ISG. No brake-by-wire. Conventional hydraulic brake booster.
• B4/B5 (2023-2026): 48V mild hybrid. ISG replaces alternator and starter motor. 48V lithium-ion battery. DC-DC converter. Brake-by-wire with regenerative braking. Updated engine management.
Components affected: starter motor, alternator/ISG, auxiliary battery (12V vs. 48V), brake booster (vacuum vs. brake-by-wire), brake master cylinder assembly, engine wiring harness, ECU/TCU calibration. None of these interchange between T-series and B-series.
Split 2: Drive Configuration (FWD vs. AWD)
• FWD (T4/B4): No rear driveline. Different rear subframe. Different exhaust routing.
• AWD (T5/B5): Center driveshaft, AWD coupling, rear differential, different rear suspension mounting points.
Components affected: rear subframe, rear suspension arms (mounting geometry differs), center driveshaft, rear axle shafts, rear differential, AWD coupling, exhaust system (different routing to clear driveshaft).
Split 3: Body Era (Pre-Facelift vs. Post-Facelift)
• 2019-2022: Original headlights, grille, bumpers, ADAS sensors. Sensus infotainment.
• 2023-2026: Reshaped headlights, updated grille/bumper, new ADAS sensors. Android/Google infotainment.
Components affected: headlight assemblies, grille panel, front bumper cover, fog light assemblies, fog light bezels, ADAS radar module, ADAS camera module, head unit, display panel, infotainment wiring harness. Taillights received minor changes - verify part number before cross-referencing.
Split 4: Headlight Technology (Standard LED vs. Pixel LED)
• Standard LED: All 2019-2022 models. Core and Plus trims 2023-2026.
• Pixel LED: Ultimate trim only, 2023-2026. 84 individually controllable LEDs per headlight unit.
Pixel LED and standard LED headlights are completely different assemblies with different wiring, different control modules, and different connectors. They do not interchange.
Split 5: Trim Level (Brake/Wheel Size Variation)
Brake rotor and pad sizes may vary by trim level and wheel size. Models with 18-inch wheels may use different brake hardware than models with 19-inch or 20-inch wheels. Always verify brake size by wheel diameter and trim level, not just model year and powertrain.
Split 6: ICE/Hybrid XC40 vs. XC40 Recharge (BEV)
The ICE/hybrid XC40 and the XC40 Recharge Pure Electric share the CMA platform and much of the exterior sheet metal, but are fundamentally different vehicles underneath. The BEV has no engine, no exhaust system, no transmission, no fuel tank, a sealed grille, a battery floor structure, a frunk (front trunk) instead of an engine bay, and completely different cooling and HVAC systems. No powertrain, drivetrain, cooling, exhaust, or fuel system components interchange. Even the grille panel differs (open on ICE, sealed on BEV). Some suspension and brake components may cross-reference, but always verify part number.
Biggest Return Traps and How to Prevent Them
These are the specific scenarios that generate the highest return volume on XC40 parts. Every one of these is preventable with proper catalog data.
Trap 1: T-Series Starter/Alternator Listed for B-Series (or Vice Versa)
What happens: The T4/T5 uses a conventional alternator and a conventional starter motor as separate components. The B4/B5 replaces both with a single Integrated Starter Generator (ISG) unit that is belt-driven and mounted differently. Shipping a conventional alternator to a 2023+ B-series owner results in an immediate return.
Prevention: Always specify: T4/T5 (2019-2022, conventional starter + alternator) or B4/B5 (2023-2026, ISG unit). Never list these as cross-compatible.
Trap 2: Pre-Facelift Body Parts for Post-Facelift (or Vice Versa)
What happens: A buyer with a 2023+ XC40 orders headlights or a front bumper that was listed as fitting 2019-2026. The part arrives and does not fit because the headlight shape, bumper contour, and mounting points changed with the 2023 facelift.
Prevention: Split all exterior body panel listings into 2019-2022 and 2023-2026. Never list a single fitment range that spans the facelift year.
Trap 3: ICE XC40 Parts Listed for XC40 Recharge BEV (or Vice Versa)
What happens: A buyer searching for XC40 parts gets an ICE-specific component (exhaust, fuel pump, alternator, engine mount) shipped for their fully electric XC40 Recharge. Or a BEV-specific component (charge port, motor controller, battery cooling line) is shipped to an ICE XC40 owner.
Prevention: Always distinguish: XC40 (ICE/mild hybrid) vs. XC40 Recharge Pure Electric (BEV). These should be listed as separate vehicles in your catalog, not variants of the same vehicle.
Trap 4: AWD Driveline Parts for FWD Model (or Vice Versa)
What happens: A center driveshaft, rear differential, or AWD coupling is shipped to a T4/B4 FWD owner who has none of these components. Or an FWD-specific rear subframe is shipped to a T5/B5 AWD owner whose rear subframe accommodates the rear differential.
Prevention: Always specify: FWD (T4/B4) or AWD (T5/B5) for any rear subframe, driveline, axle, or exhaust component.
Trap 5: Sensus Infotainment Parts for Android/Google System (or Vice Versa)
What happens: The head unit, display panel, and infotainment wiring harness changed completely in 2023 when Volvo switched from Sensus to Android-based infotainment with Google built-in. These systems are not interchangeable.
Prevention: Always specify: 2019-2022 (Sensus) or 2023-2026 (Android/Google) for any infotainment component.
Trap 6: Standard LED Headlights for Pixel LED Vehicle (or Vice Versa)
What happens: Pixel LED headlights (2023-2026 Ultimate trim) are a completely different unit from standard LED headlights. Different housing, different LED array, different control module.
Prevention: Always confirm: Standard LED or Pixel LED. Ask for trim level (Core/Plus = standard LED, Ultimate 2023+ = Pixel LED).
Trap 7: Brake Components Without Wheel Size Verification
What happens: XC40 models with 18-inch wheels may use different brake rotor and caliper sizes than models with 19-inch or 20-inch wheels. A buyer receives rotors that are the wrong diameter because the listing only specified model year, not wheel size.
Prevention: Always ask for wheel size or trim level when listing brake rotors, pads, and calipers. Include brake rotor diameter in the listing.
Data Quality Checklist for Catalog Managers
Use this checklist to audit your XC40 listings for accuracy. Every attribute below should be present and correct on every listing.
• Model year(s): Exact year range. Never span across the 2022/2023 facelift boundary without verifying the part fits both eras.
• Powertrain: T4 / T5 (2019-2022, pure ICE) or B4 / B5 (2023-2026, 48V mild hybrid)
• Drive: FWD (T4/B4) or AWD (T5/B5)
• Body era: Pre-facelift (2019-2022) or Post-facelift (2023-2026)
• Vehicle type: XC40 (ICE/mild hybrid) - explicitly NOT XC40 Recharge Pure Electric
• Infotainment: Sensus (2019-2022) or Android/Google (2023-2026) - for any interior/infotainment component
• Headlight type: Standard LED or Pixel LED (2023-2026 Ultimate only)
• Brake size: Verify by wheel diameter or trim level
If any of these attributes are missing or incorrect on a listing, that listing is a return waiting to happen.
Buyer Confirmation Prompts
Before shipping any part for an XC40 (ICE/mild hybrid), confirm:
• "What is your exact model year?"
• "Is your vehicle the gasoline/mild hybrid XC40 or the fully electric XC40 Recharge?"
• "Is your vehicle front-wheel drive (T4/B4) or all-wheel drive (T5/B5)?"
• "What is your trim level? (Momentum/R-Design/Inscription for 2019-2022, Core/Plus/Ultimate for 2023-2026)"
• "What size wheels does your vehicle have? (18, 19, or 20 inch)" - for brake parts
• "For headlight orders: Do you have standard LED or Pixel LED headlights?"
Quick Identification Guide
ICE/Hybrid XC40 vs. XC40 Recharge BEV
• ICE/Hybrid XC40: Open grille with visible air intake. Exhaust pipe(s) visible at rear. Fuel filler on right side. No Recharge badge. Engine visible under hood.
• XC40 Recharge BEV: Sealed/blanked grille (no airflow opening). No exhaust pipes. Charge port on left rear quarter panel. Recharge badge. Frunk (front storage) under hood.
T-Series (2019-2022) vs. B-Series (2023-2026)
• T4/T5 (2019-2022): Sensus infotainment with physical climate buttons below screen. Original headlight shape. Momentum/R-Design/Inscription trim badges.
• B4/B5 (2023-2026): Android/Google infotainment, no physical climate buttons. Reshaped headlights. Core/Plus/Ultimate trim badges. 48V system (ISG belt-driven unit visible on engine).
FWD vs. AWD
• FWD (T4/B4): No center driveshaft visible from underneath. No rear differential. Single exhaust exit.
• AWD (T5/B5): Center driveshaft visible from front to rear. Rear differential visible at rear axle. AWD badge may be present.
Pre-Facelift vs. Post-Facelift
• 2019-2022: Original headlight shape. Traditional upright grille. Angular fog light surrounds. Physical climate buttons inside.
• 2023-2026: Reshaped headlights (sleeker, C40-inspired). Updated grille design. T-shaped fog light surrounds. All-touchscreen climate controls.
Aftermarket Parts Cross-Reference Notes
CMA platform cross-references: The XC40 shares the CMA platform with the Polestar 2, C40 Recharge, and XC40 Recharge. Suspension components (struts, control arms, tie rods, sway bar links, wheel bearings) may cross-reference between CMA models of similar configuration, but always verify part number. The Polestar 2 has different ride height and calibration. The C40 Recharge shares the front end and front doors with the XC40 Recharge BEV but has a different roofline and rear.
VEA engine cross-references: The 2.0L VEA engine is used across many Volvo models including the XC60, XC90, S60, V60, S90, and V90. Engine internals (pistons, rods, bearings, timing components, turbocharger assemblies) cross-reference by engine code. The T4 (B4204T47) and T5 share the same block but differ in tune, turbo sizing, and calibration. The B4 and B5 add 48V-specific components (ISG, 48V battery) that are shared across Volvo's B-series lineup.
Transmission cross-references: The Aisin TG-81SC 8-speed automatic is used across many Volvo CMA and SPA models. Transmission internals and solenoid packs cross-reference broadly. Transmission mounts and axle flanges are model-specific.
Brake cross-references: Brake components may cross-reference between XC40, C40, and Polestar 2 models of similar weight and wheel size. Always verify rotor diameter and caliper type by trim/wheel combination.
Specialist sources: FCP Euro carries extensive XC40 inventory with lifetime replacement warranty. IPD stocks maintenance and performance parts. SwedeSpeed forums maintain technical databases and community expertise. Volvo Parts Webstore (parts.volvocars.com) provides OE part number lookup by VIN.
The Business Case: Why Fitment Data Pays for Itself
For aftermarket parts sellers, return prevention is not just about customer satisfaction - it is about protecting your bottom line. Every return carries direct costs (return shipping, restocking labor, potential damage to the part) and indirect costs (negative seller ratings, lost repeat customers, wasted warehouse handling time). On marketplace platforms like eBay and Amazon, return rates directly affect your visibility, Buy Box eligibility, and account health.
For the XC40 specifically, the combination of a mid-cycle facelift, a powertrain naming transition, and a same-name BEV variant creates a perfect storm for catalog errors. Based on industry data, the most common XC40 return scenarios are: wrong body era (pre-facelift part for post-facelift vehicle), wrong powertrain era (T-series part for B-series vehicle), and ICE part shipped for BEV vehicle. Each of these is 100% preventable with proper catalog data.
The investment in accurate fitment data - whether through manual catalog auditing, ACES/PIES data validation, or third-party fitment services - pays for itself many times over in prevented returns. If you are selling XC40 parts without the splits documented in this guide, you are absorbing avoidable costs on every shipment that goes out wrong.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
