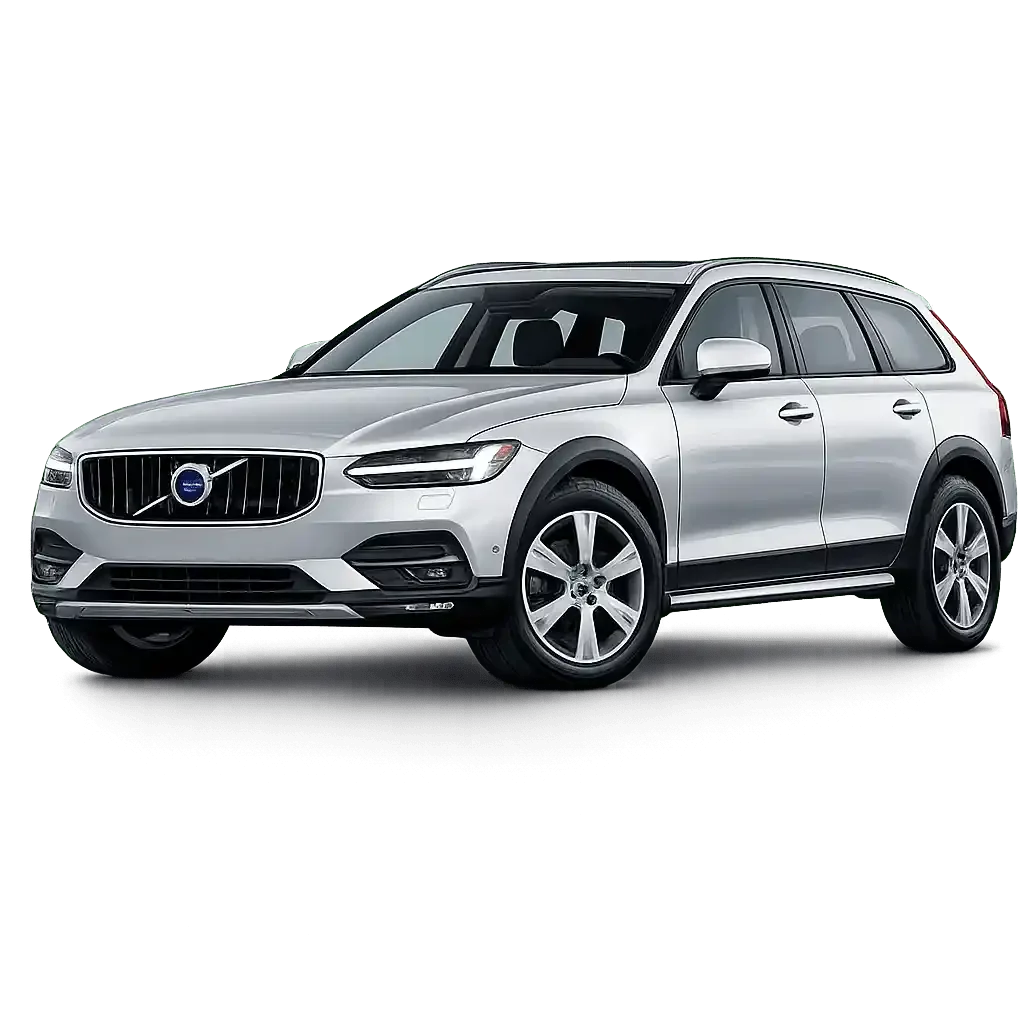

Volvo V90 Cross Country (SPA Platform) 2017-2026
The Complete Fitment Guide
Returns destroy margins. The Volvo V90 Cross Country is a low-volume, high-value wagon that shares the SPA platform with the XC90, XC60, S90, S60, and V60 - but parts sellers who assume broad SPA cross-compatibility without checking the details are shipping wrong parts and eating costly returns. The V90 Cross Country has one generation (2017-2026) but a critical mid-cycle powertrain transition in 2022: the T5/T6 pure ICE era became the B6 48V mild hybrid era with an electric supercharger replacing the mechanical supercharger. The 2022 refresh also brought a new Android-based infotainment system and subtle exterior changes. This guide maps every fitment split that matters for catalog accuracy and return prevention. 2026 is confirmed as the final model year.
Generation Overview (2017-2026)
The V90 Cross Country is a raised-height, body-cladded AWD wagon based on the standard V90 estate. It replaced the aging XC70 model and has been in continuous production since 2016 (marketed as a 2017 model year in the US). It is built exclusively on Volvo's SPA (Scalable Product Architecture) platform at the Torslanda plant in Gothenburg, Sweden.
In the US market, the standard V90 wagon was discontinued after 2021 and was always a special-order-only vehicle. Since 2022, the V90 has been sold in the US exclusively as the V90 Cross Country. All US-market V90 Cross Country models come standard with AWD and an 8-speed automatic transmission.
Key platform facts:
• Platform: SPA (Scalable Product Architecture), shared with XC90, XC60, S90, S60, V60
• Production: 2016 to 2026 (2026 confirmed as final model year)
• Assembly: Torslanda, Gothenburg, Sweden
• Engine family: VEA (Volvo Engine Architecture) 2.0L inline-4 exclusively
• Transmission: Aisin TG-81SC 8-speed automatic (all variants)
• Drive: AWD standard on all V90 Cross Country models (US market)
• Ground clearance: 8.3 inches (vs. 5.9 inches on standard V90)
Why the V90 Cross Country Causes Catalog Errors
• Mid-cycle powertrain swap: T6 (mechanical supercharger + turbo, pure ICE) became B6 (electric supercharger + turbo, 48V mild hybrid) for 2022. Same badge position, completely different supercharger hardware.
• T5 availability confusion: A T5 (turbo only, no supercharger, 250 hp) was offered for 2018-2021 as a lower-cost option. It was discontinued when B6 became the sole powertrain for 2022+.
• Infotainment system change: Sensus (2017-2021) was replaced by Android/Google (2022-2026). Different head units, different wiring.
• Subtle body refresh for 2022: Minor grille and taillight changes. Easy to miss in a catalog, but parts do not interchange.
• SPA platform over-generalization: Sellers assume V90 CC parts are identical to XC90 or XC60 parts. While many chassis components cross-reference, ride height, weight, and body-specific parts differ.
• Trim level name changes: Momentum/R-Design/Inscription (2017-2022) became Core/Plus/Ultimate (2023-2026). Different standard equipment, potentially different brake and wheel sizes.
Complete Powertrain Reference (US Market)
T6 - 2.0L Twin-Charged AWD (2017-2021)
• Engine code: B4204T27
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Turbocharged + mechanically belt-driven supercharger (Roots-type)
• Output: 316 hp at 5,700 rpm, 295 lb-ft at 2,200-5,400 rpm
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: AWD standard
• Fuel economy: EPA 20/30/24 MPG (city/hwy/combined)
• Hybrid system: None. Pure ICE.
• Notes: The T6 was the flagship powertrain at launch and the only option for 2017. It uses a mechanical belt-driven Roots-type supercharger for low-RPM response paired with a turbocharger for higher RPM. The supercharger clutch mechanism is a known service item at higher mileages. Towing capacity approximately 3,500 lbs.
T5 - 2.0L Turbocharged AWD (2018-2021)
• Engine code: B4204T23
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Turbocharged only (no supercharger)
• Output: 250 hp at 5,500 rpm, 258 lb-ft at 1,500-4,800 rpm
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: AWD standard
• Fuel economy: EPA 23/31/26 MPG (city/hwy/combined)
• Hybrid system: None. Pure ICE.
• Notes: Added for 2018 as a lower-cost alternative to the T6. Uses the same 2.0L VEA block but with turbocharger only - no supercharger, no supercharger belt, no supercharger clutch. Discontinued after 2021 when B6 became the sole powertrain.
B6 - 2.0L Twin-Charged 48V Mild Hybrid AWD (2022-2026)
• Engine code: B420T2 (48V MHEV with e-Charger)
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Turbocharged + electric supercharger (e-Charger), replacing the T6's mechanical supercharger
• Hybrid system: 48V mild hybrid with Integrated Starter Generator (ISG, approximately 13 hp, 30 lb-ft) and 48V lithium-ion battery
• Output: 295 hp + ISG assist, 310 lb-ft
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: AWD standard
• Fuel economy: EPA 22/29/25 MPG (city/hwy/combined)
• 0-60 mph: Approximately 6.4-6.5 seconds
• Notes: Replaces both T5 and T6 as the sole powertrain from 2022 onward. The critical hardware change: the T6's mechanical belt-driven supercharger has been replaced with an electrically driven supercharger (e-Charger) powered by the 48V system. The ISG replaces the conventional alternator and starter motor. Adds brake-by-wire for regenerative braking. Supercharger components from the T6 do NOT fit the B6 and vice versa. Less peak hp than T6 (295 vs. 316) but more torque (310 vs. 295 lb-ft).
US Market Powertrain Availability by Year
• 2017: T6 AWD only
• 2018-2021: T5 AWD and T6 AWD
• 2022-2026: B6 AWD only
Three distinct powertrain configurations exist. The T5 (turbo only), T6 (turbo + mechanical supercharger), and B6 (turbo + electric supercharger + 48V mild hybrid) share the same 2.0L VEA block but differ significantly in boost hardware, hybrid components, and engine management. No supercharger or hybrid-specific components interchange between these variants.
Body Style Eras
Pre-Refresh (2017-2021)
• Original V90 Cross Country front grille design (concave with vertical chrome bars).
• Original Thor's Hammer LED headlight design.
• Original front and rear bumper design with body cladding.
• Original taillight LED graphics.
• Volvo Sensus infotainment system with 9-inch portrait touchscreen.
• Physical climate control buttons below touchscreen.
• Trim levels: Momentum (later renamed to Momentum), R-Design, Inscription (later Cross Country, Ocean Race special edition).
Post-Refresh (2022-2026)
• Updated front grille (subtle changes to bar pattern and surround).
• Minor updates to headlight internals and LED graphics.
• Updated rear taillight LED graphics.
• Android-based infotainment system with Google built-in (replacing Sensus).
• Updated ADAS sensor hardware (radar and camera modules).
• Trim levels: Cross Country Plus, Cross Country Ultimate (from 2023). For 2026, only Ultra trim remains.
The exterior changes between 2017-2021 and 2022-2026 are more subtle than on the XC40 or XC60, but they exist. The grille surround, taillight graphics, and ADAS sensor locations changed. Headlight assemblies may have internal differences. The infotainment change is the most significant interior split: Sensus (2017-2021) vs. Android/Google (2022-2026) affects head unit, display, and wiring harness. Always specify era for exterior lighting, grille, and infotainment components.
Catalog Accuracy - The Fitment Splits That Matter
Split 1: Powertrain Configuration (T5 vs. T6 vs. B6)
• T5 (2018-2021): Turbo only. No supercharger hardware whatsoever. Conventional starter and alternator.
• T6 (2017-2021): Turbo + mechanical belt-driven supercharger. Supercharger belt, clutch, and intake plumbing unique to T6. Conventional starter and alternator.
• B6 (2022-2026): Turbo + electric supercharger (e-Charger). 48V ISG (replaces alternator/starter). 48V battery. DC-DC converter. Brake-by-wire.
No supercharger components interchange between T6 (mechanical) and B6 (electric). No hybrid components (ISG, 48V battery, brake-by-wire hardware) exist on T5 or T6 models. The T5 has no supercharger at all - do not ship supercharger parts to a T5 owner.
Split 2: Body/Infotainment Era
• 2017-2021: Pre-refresh body. Sensus infotainment. Original grille, taillights, ADAS sensors.
• 2022-2026: Post-refresh body. Android/Google infotainment. Updated grille, taillights, ADAS sensors.
Head units, display panels, infotainment wiring harnesses, ADAS radar modules, and ADAS camera modules do not interchange between eras. Grille and taillight assemblies should be verified by part number before cross-referencing across the 2021/2022 boundary.
Split 3: V90 Cross Country vs. Standard V90 Wagon
The V90 Cross Country has raised suspension (8.3-inch ground clearance vs. 5.9 inches), unique body cladding, unique bumper designs, unique wheel arch extensions, and different spring/damper rates compared to the standard V90 wagon. Suspension components (springs, dampers, control arm bushings) are NOT interchangeable between V90 and V90 Cross Country. Body cladding, bumper covers, and wheel arch trim are unique to Cross Country.
Split 4: SPA Platform Cross-Reference Caution
The V90 Cross Country shares the SPA platform with the XC90, XC60, S90, S60, and V60. While many chassis components (steering rack, some suspension hard parts, brake calipers, wheel bearings) cross-reference across SPA models, the V90 Cross Country has unique ride height, spring rates, and body-specific components. Never assume parts interchange without verifying part numbers. The V90 Cross Country is closest in specification to the V60 Cross Country, but even these differ in wheelbase and some suspension geometry.
Split 5: Trim-Level Equipment Variation
Brake rotor and pad sizes may vary by trim level and wheel size (18-inch, 19-inch, or 20-inch wheels have been offered across model years). Pixel LED headlights are available on upper trims (Ultimate/Ultra) for 2023+ and are a different unit from standard LED headlights. Always verify brake size and headlight type by trim level.
Biggest Return Traps and How to Prevent Them
Trap 1: T6 Mechanical Supercharger Parts for B6 Electric Supercharger (or Vice Versa)
What happens: The T6 (2017-2021) uses a mechanical belt-driven supercharger with a drive belt, clutch, and intake plumbing. The B6 (2022-2026) uses an electrically driven supercharger (e-Charger) powered by the 48V system with completely different mounting and controls. These are not interchangeable.
Prevention: Always specify: T6 (2017-2021, mechanical supercharger) or B6 (2022-2026, electric supercharger / e-Charger). This is the single highest-volume return trap on the V90 Cross Country.
Trap 2: Any Supercharger Part Shipped to a T5 Owner
What happens: The T5 (2018-2021) has no supercharger of any kind. It is turbo-only. A buyer searching for V90 Cross Country engine parts receives a supercharger component that simply does not exist on their vehicle.
Prevention: Always verify: T5 (turbo only, no supercharger), T6 (turbo + mechanical supercharger), or B6 (turbo + electric supercharger). Never list supercharger parts as fitting all V90 Cross Country models.
Trap 3: T-Series Starter/Alternator for B-Series (or Vice Versa)
What happens: The T5/T6 use a conventional alternator and a conventional starter motor as separate components. The B6 replaces both with a single ISG (Integrated Starter Generator) unit. They are not interchangeable.
Prevention: Always specify: T5/T6 (2017-2021, conventional starter + alternator) or B6 (2022-2026, ISG unit).
Trap 4: Sensus Infotainment Parts for Android/Google System (or Vice Versa)
What happens: The head unit, display panel, and infotainment wiring harness changed completely in 2022 when Volvo switched from Sensus to Android/Google. These systems are not interchangeable.
Prevention: Always specify: 2017-2021 (Sensus) or 2022-2026 (Android/Google) for any infotainment component.
Trap 5: V90 Wagon Parts for V90 Cross Country (or Vice Versa)
What happens: The standard V90 wagon has different suspension, bumpers, body cladding, and ride height from the V90 Cross Country. Suspension springs, dampers, bumper covers, and wheel arch trim are not interchangeable.
Prevention: Always specify: V90 (standard wagon) or V90 Cross Country. In the US, only the Cross Country has been sold since 2022.
Trap 6: Pre-Refresh Grille/Taillights for Post-Refresh (or Vice Versa)
What happens: The grille surround, taillight LED graphics, and ADAS sensor hardware received subtle updates for 2022. While the changes are minor compared to the XC40's facelift, the parts are not identical.
Prevention: Always specify: 2017-2021 or 2022-2026 for grille, taillights, and ADAS components. Verify by part number before cross-referencing.
Trap 7: Over-Generalizing SPA Platform Cross-References
What happens: A seller lists an XC90 suspension component as fitting the V90 Cross Country because both are SPA vehicles. The part arrives and the ride height, spring rate, or mounting point is different.
Prevention: Verify every SPA cross-reference by OE part number. The V90 Cross Country has unique ride height and weight characteristics. Use the Volvo Parts Webstore (parts.volvocars.com) VIN lookup to confirm part numbers before listing.
Data Quality Checklist for Catalog Managers
Required attributes for every V90 Cross Country parts listing:
• Model year(s)
• Powertrain: T5 (2018-2021) / T6 (2017-2021) / B6 (2022-2026)
• Body/infotainment era: Pre-refresh Sensus (2017-2021) / Post-refresh Android/Google (2022-2026)
• Model variant: V90 Cross Country (not standard V90 wagon)
• Headlight type: Standard LED / Pixel LED (2023+ upper trims)
• Brake size: Verify by wheel diameter and trim level
Buyer Confirmation Prompts
Before shipping any part for a V90 Cross Country, confirm:
• "What is your exact model year?"
• "Is your vehicle the T5, T6, or B6 powertrain?"
• "Is your vehicle the V90 Cross Country or the standard V90 wagon?"
• "What size wheels does your vehicle have?" - for brake parts
• "For headlight orders: Do you have standard LED or Pixel LED?"
Quick Identification Guide
Powertrain Identification
• T5 (2018-2021): Turbo only. No supercharger visible. 250 hp. Lower power tier.
• T6 (2017-2021): Mechanical supercharger + turbocharger. Belt-driven supercharger visible on intake side. 316 hp.
• B6 (2022-2026): Electric supercharger (e-Charger) + turbocharger. 48V mild hybrid badge. ISG belt-driven unit on engine. No mechanical supercharger belt. 295 hp.
Body Era Identification
• 2017-2021: Sensus touchscreen with physical climate buttons below. Original grille bars. Original taillight graphics.
• 2022-2026: Android/Google touchscreen, no physical climate buttons. Updated grille surround. Updated taillight graphics.
V90 Cross Country vs. Standard V90
• Cross Country: Raised ride height (8.3 inches). Protective body cladding on lower bumpers, rocker panels, and wheel arches. Unique wheel arch extensions.
• Standard V90: Lower ride height (5.9 inches). No body cladding. Smoother bumper and rocker panel design.
Aftermarket Parts Cross-Reference Notes
SPA platform cross-references: The V90 Cross Country shares the SPA platform with the XC90, XC60, S90, S60, and V60. Suspension hard parts (control arms, tie rod ends, sway bar links, wheel bearings), steering rack, and some brake components cross-reference across SPA models, but verify by part number. The V90 Cross Country's unique ride height means springs, dampers, and bump stops are NOT shared with standard-height SPA models.
VEA engine cross-references: The T6 engine (B4204T27) is shared with the XC90 T6, S90 T6, XC60 T6, and V60 T6 of the same era. The T5 engine (B4204T23) is shared with the XC60 T5, S60 T5, and V60 T5. The B6 engine cross-references with the XC90 B6, XC60 B6, and S90 B6. Engine internals, turbocharger assemblies, and engine management components cross-reference for the same engine code.
Transmission: The Aisin TG-81SC 8-speed automatic is used across all SPA non-PHEV models. Transmission internals and solenoid packs cross-reference broadly.
Body-specific components: The V90 Cross Country body cladding, bumper covers, wheel arch extensions, and roof rails are unique to the V90 Cross Country and do not interchange with any other SPA model. The V90 Cross Country shares some body panels (doors, hood, roof) with the standard V90 wagon, but bumpers, cladding, and suspension are different.
Specialist sources: FCP Euro carries extensive V90 Cross Country inventory with lifetime replacement warranty. IPD stocks maintenance and performance parts. SwedeSpeed forums maintain SPA technical databases. Volvo Parts Webstore (parts.volvocars.com) provides OE part number lookup by VIN.
The Business Case: Why Fitment Data Pays for Itself
The V90 Cross Country is a low-volume vehicle with high part values. Returns on V90 Cross Country parts are disproportionately expensive because the parts themselves (headlights, supercharger components, infotainment modules) carry premium price tags, and shipping costs for these large, heavy, or fragile components are substantial. A single wrong supercharger assembly return can cost more in shipping and restocking than the profit margin on ten correctly shipped orders.
For low-volume vehicles like the V90 Cross Country, the return rate percentage matters more than on high-volume models because every return is a larger share of total transactions. Getting the catalog right on these vehicles has an outsized impact on overall account health and profitability.
The three powertrain variants (T5, T6, B6), the infotainment transition (Sensus to Android/Google), and the V90 vs. V90 Cross Country distinction are the minimum fitment splits required. If your catalog does not capture these, you are leaving money on the table in preventable returns.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
