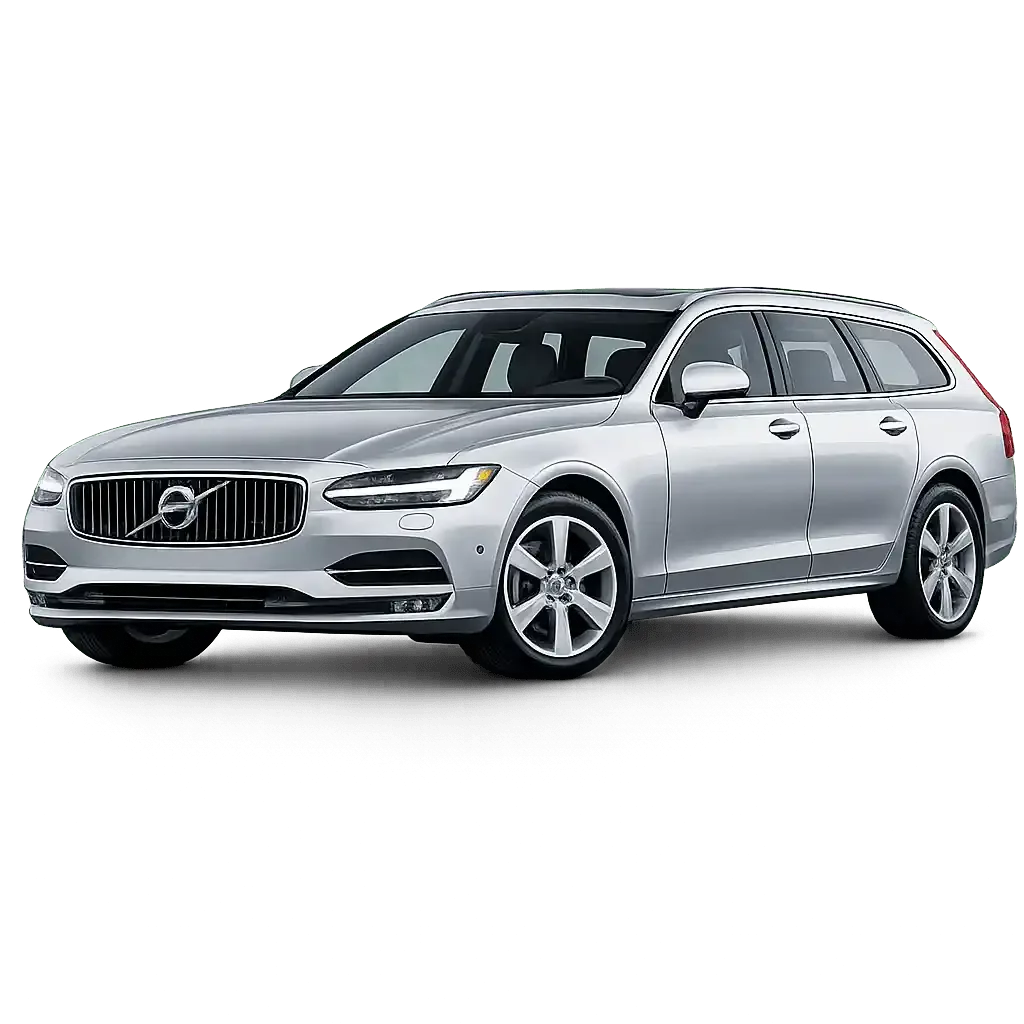

Volvo V90 Standard Wagon (SPA Platform) 2018-2021
The Complete Fitment Guide
Returns destroy margins. The 2018-2021 Volvo V90 standard wagon is the rarest modern Volvo sold in the US - approximately 1,453 total units across four model years, all special-order-only. It shares the SPA platform and nearly all mechanical components with the V90 Cross Country, yet differs in ride height, suspension tuning, body cladding, bumper design, and wheel arch trim. Because the standard V90 was never stocked at dealerships and sold in tiny numbers, many catalogs either omit it entirely (forcing owners to search under Cross Country or S90) or incorrectly merge its fitment with the Cross Country without flagging the differences. This guide maps every fitment split that matters and explains when the standard V90 and Cross Country do and do not share parts.
Generation Overview (2018-2021 US Market)
The 2018-2021 Volvo V90 is the standard-height wagon variant of Volvo's SPA-platform 90-series lineup. It is mechanically a long-roof version of the S90 sedan, sharing the same wheelbase, dashboard, drivetrain options, and Sensus infotainment system. In the US, the standard V90 was sold exclusively by special order through Volvo Overseas Delivery (OSD) or dealer Concierge order. It was never stocked at US dealerships. The Cross Country variant (raised ride height, body cladding, AWD-only) was the dealer-stocked model.
The standard V90 wagon was discontinued for the US market after the 2021 model year due to extremely low sales. Total US sales across 2017-2020 were approximately 1,453 units (2017: 183, 2018: 271, 2019: 500, 2020: 279, 2021: approximately 220). The V90 Cross Country continued in production and remains available through 2026.
Key platform facts:
• Platform: SPA (Scalable Product Architecture), shared with XC90, XC60, S90, S60, V60, V90 Cross Country
• Production: 2017 model year (first US deliveries summer 2017) through 2021 model year (final US model year)
• Assembly: Torslanda, Gothenburg, Sweden
• US sales method: Special order only (Overseas Delivery or Concierge) - never dealer-stocked
• Engine family: VEA (Volvo Engine Architecture) 2.0L inline-4 exclusively
• Transmission: Aisin TG-81SC 8-speed automatic (all variants)
• Drive: T5 = FWD; T6 = AWD
• Infotainment: Volvo Sensus with 9-inch portrait touchscreen (all 2018-2021 models)
• Trim levels: R-Design and Inscription (both available with T5 or T6)
• Ground clearance: Standard height (approximately 5.9 inches) - NOT raised like Cross Country (8.3 inches)
2017 model year note: The V90 launched in the US as a 2017 model. However, only the T6 AWD was available for 2017 in Inscription trim. The T5 FWD and R-Design trim were added for 2018. This guide covers 2018-2021 as the full-lineup years, but T6 AWD Inscription components from the 2017 V90 are generally identical to 2018-2021 T6 AWD parts.
Why the Standard V90 Causes Catalog Errors
• Cross Country confusion: The V90 and V90 Cross Country share the same SPA platform and the same T5/T6 powertrains. Many catalogs list them interchangeably. However, the standard V90 has lower ride height, different springs, different dampers, different bumper covers, no body cladding, no wheel arch extensions, and different wheel options. Suspension and body parts do not interchange.
• Omission from catalogs: Because only ~1,453 were sold in the US, many aftermarket catalogs do not list the standard V90 at all. Owners searching for parts find no results and either give up or order Cross Country parts that do not fit.
• FWD vs. AWD split: The T5 (FWD) and T6 (AWD) have different driveline components, different rear subframe configurations, and different exhaust routing. These differences are inherited from the S90 and apply identically to the V90.
• S90 cross-reference: The standard V90 shares almost all components with the S90 sedan from the B-pillar forward. Forward of the B-pillar, the V90 and S90 are mechanically identical for the same powertrain (T5 FWD or T6 AWD). Behind the B-pillar, they are completely different vehicles.
• Classic V90 nameplate collision: The 1997-1998 Volvo V90 (900 Series, inline-6, RWD) shares the V90 name. Catalogs that do not separate by generation will show results from both the classic and modern V90.
• Air suspension option: The optional rear air suspension (available on T6 models) uses different rear shock absorbers and springs from the standard steel spring suspension. These do not interchange.
Complete Powertrain Reference (US Market)
T5 - 2.0L Turbocharged FWD (2018-2021)
• Engine code: B4204T23
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Turbocharged only (no supercharger)
• Output: 250 hp at 5,500 rpm, 258 lb-ft at 1,500-4,800 rpm
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: Front-wheel drive (FWD) only
• Fuel economy: EPA approximately 24/34/28 MPG (city/hwy/combined)
• Hybrid system: None. Pure ICE.
• Notes: Entry-level powertrain. Turbo only - no supercharger belt, no supercharger clutch. Conventional alternator and starter. FWD means no rear driveshaft, no rear differential, no transfer case. The rear subframe and exhaust routing differ from T6 AWD models. Shared with S90 T5 FWD, V60 T5, S60 T5, XC60 T5 of the same era.
T6 - 2.0L Twin-Charged AWD (2017-2021)
• Engine code: B4204T27
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Turbocharged + mechanically belt-driven supercharger (Roots-type)
• Output: 316 hp at 5,700 rpm, 295 lb-ft at 2,200-5,400 rpm
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: All-wheel drive (AWD) standard
• Fuel economy: EPA approximately 22/30/25 MPG (city/hwy/combined)
• Hybrid system: None. Pure ICE.
• Notes: Flagship powertrain. Uses a mechanical belt-driven Roots-type supercharger for low-RPM response paired with a turbocharger for higher RPM. The supercharger clutch mechanism is a known service item. AWD system includes a rear driveshaft, rear differential, and Haldex-type coupling. Optional rear air suspension available on T6 only. Shared with S90 T6 AWD, XC90 T6, XC60 T6, V90 Cross Country T6 of the same era.
Powertrain Not Offered: T8 PHEV
The T8 Twin Engine plug-in hybrid was available on the S90 sedan (T8 eAWD) during this era, but the T8 powertrain was NOT offered on the US-market standard V90 wagon. The V90 Cross Country also did not receive the T8 in the US. Do not list T8 PHEV components as fitting the V90 wagon.
V90 Standard vs. V90 Cross Country - What Shares and What Does Not
Components That ARE Shared
• Engine and transmission: The T5 and T6 powertrains are identical between the standard V90 and Cross Country for the same variant (T5 or T6). Engine internals, turbocharger, supercharger (T6), exhaust manifold, intake system, engine management, and transmission all cross-reference.
• Steering rack and column: Same unit across both models.
• Brake system (most components): Brake calipers, rotors, and pads are generally shared for the same wheel size. Verify by wheel diameter and trim level.
• Interior forward of B-pillar: Dashboard, center console, Sensus infotainment head unit, steering wheel, front seats, front door panels, and climate system are shared.
• Windshield and front door glass: Same parts.
• Hood, front fenders, front bumper cover: The standard V90 and Cross Country share front body panels above the bumper line. However, the lower front bumper differs.
• Drivetrain components (for same drive type): AWD driveshaft, rear differential, and Haldex coupling cross-reference between V90 T6 AWD and Cross Country T6 AWD.
Components That DO NOT Interchange
• Suspension springs and dampers: The Cross Country has raised suspension with stiffer springs and different-length dampers to achieve 8.3 inches of ground clearance. The standard V90 has approximately 5.9 inches. Springs and dampers do NOT interchange.
• Front and rear bumper covers: The Cross Country has unique bumper designs with integrated body cladding. The standard V90 has smooth, body-colored bumper covers.
• Body cladding and wheel arch extensions: Unique to Cross Country. The standard V90 has no cladding.
• Rocker panel trim: Cross Country has protective cladding along the rocker panels. Standard V90 has smooth body-colored or chrome trim.
• Rear tailgate: While similar, the lower edge and trim may differ due to bumper and cladding integration.
• Wheel options: Different wheel designs and sizes were offered on the standard V90 vs. Cross Country. While the bolt pattern (5x108, 63.4mm hub bore) is the same, specific wheel part numbers differ.
• ADAS sensor mounting: Different bumper covers may mean different sensor bracket locations for parking sensors and surround-view cameras.
Summary: From the B-pillar forward and for all drivetrain components, the standard V90 and Cross Country interchange freely for the same powertrain variant. For suspension, bumpers, body cladding, rocker panels, and wheel-specific components, they do NOT interchange.
V90 Standard vs. S90 Sedan - Cross-Reference Guide
The standard V90 wagon is mechanically a long-roof version of the S90 sedan. Forward of the B-pillar, these vehicles are virtually identical for the same powertrain variant.
Components That ARE Shared (V90 and S90, Same Powertrain)
• Engine, transmission, driveline: Completely shared for the same variant (T5 FWD or T6 AWD).
• Front suspension: MacPherson struts, springs, control arms, stabilizer bar - all shared.
• Steering: Rack, column, electronic power steering motor - shared.
• Front brakes: Same calipers, rotors, and pads for the same wheel size.
• Dashboard and front interior: Sensus infotainment, instrument cluster, center console, front seats, steering wheel, climate system, wiring harness forward of B-pillar - all shared.
• Front body panels: Hood, front fenders, grille, headlights, front bumper cover - shared.
• Windshield: Same part.
Components That DO NOT Interchange (V90 vs. S90)
• Rear body panels: Everything behind the B-pillar is unique - rear quarter panels, roof, tailgate vs. trunk lid, rear window.
• Rear bumper: Different between wagon and sedan.
• Rear suspension tuning: The V90 wagon may have different spring rates to account for the heavier rear body and cargo loading. Rear dampers may differ in specification.
• Rear brakes: May differ in rotor and pad size depending on the weight differential and wheel options.
• Interior behind B-pillar: Rear cargo area, cargo cover, cargo floor, rear headliner, D-pillar trim, rear side panels - all unique to wagon.
• Rear door panels: May share with S90 but verify by part number as trim differences may exist.
• Exhaust system: Tailpipe routing differs between wagon and sedan body.
• Roof rails: Standard on V90 wagon. Not available on S90 sedan.
Catalog Accuracy - The Fitment Splits That Matter
Split 1: Standard V90 vs. V90 Cross Country
Suspension (springs, dampers), bumper covers, body cladding, wheel arch trim, and rocker panel trim do NOT interchange. Drivetrain components, interior (forward of B-pillar), steering, brakes, and front body panels (above bumper line) DO cross-reference for the same powertrain variant.
Split 2: T5 FWD vs. T6 AWD
The T5 (turbo only, 250 hp, FWD) and T6 (turbo + mechanical supercharger, 316 hp, AWD) differ in engine components (supercharger hardware on T6), driveline (FWD has no driveshaft, no rear differential, no transfer case), rear subframe (different between FWD and AWD), and exhaust routing. Supercharger components exist only on the T6. Alternator and starter are conventional on both (no MHEV in this era).
Split 3: Standard Suspension vs. Air Suspension (T6 Only)
The optional rear air suspension, available on T6 models, uses a different rear damper assembly and replaces the coil spring with an air spring. Parts for the air suspension system (air springs, compressor, ride height sensors, control module) are unique and do not interchange with the standard steel spring suspension. Always verify whether the vehicle has air suspension before ordering rear suspension components.
Split 4: 2018-2021 V90 vs. 2022+ V90 Cross Country
The 2022 model year brought the B6 48V mild hybrid powertrain (replacing T5/T6), an electric supercharger replacing the mechanical supercharger, the ISG replacing the conventional alternator/starter, and the Android/Google infotainment system replacing Sensus. No 2022+ components from the B6 era interchange with the 2018-2021 T-series era for engine-specific, hybrid-specific, or infotainment components.
Split 5: Modern V90 (2017-2021) vs. Classic V90 (1997-1998)
The 1997-1998 V90 (900 Series, inline-6, RWD) and the 2017-2021 V90 (SPA, inline-4, FWD/AWD) share zero parts. These are completely different vehicles on completely different platforms separated by nearly two decades.
Biggest Return Traps and How to Prevent Them
Trap 1: Cross Country Suspension Parts for Standard V90
What happens: The catalog does not distinguish between the standard V90 and V90 Cross Country. A buyer orders rear springs or shock absorbers. The Cross Country parts arrive with longer dampers and stiffer springs designed for 8.3 inches of ground clearance. They do not provide the correct ride height on the standard V90 (5.9 inches).
Prevention: Always list the standard V90 and V90 Cross Country as separate vehicles for suspension components. Specify: V90 (standard height) or V90 Cross Country (raised height).
Trap 2: Cross Country Body Cladding / Bumpers for Standard V90
What happens: A buyer orders a front or rear bumper cover. The Cross Country bumper arrives with integrated body cladding attachment points and a different lower profile. It does not fit the smooth, cladding-free standard V90.
Prevention: Always specify: V90 standard or V90 Cross Country for any bumper, rocker panel, or wheel arch component.
Trap 3: T6 AWD Driveline Parts for T5 FWD
What happens: A seller lists a rear differential or driveshaft as fitting all V90 models. The T5 FWD has no rear differential, no driveshaft, and no transfer case. The part is completely irrelevant.
Prevention: Always specify: T5 FWD or T6 AWD for any driveline component.
Trap 4: B6 (2022+) Engine/Hybrid Parts for T5/T6 (2018-2021)
What happens: The catalog lumps all V90 Cross Country years together. A buyer with a 2019 V90 T6 receives a B6-era ISG unit or electric supercharger component. These do not exist on the T-series powertrain.
Prevention: Always split at the 2021/2022 boundary. T5/T6 (2017-2021, pure ICE, conventional alternator/starter, mechanical supercharger on T6) vs. B6 (2022+, 48V MHEV, ISG, electric supercharger).
Trap 5: Standard V90 Not Listed in Catalog
What happens: The standard V90 does not appear in the catalog at all. The owner searches "V90" and only finds Cross Country results. They order a Cross Country bumper cover or suspension component, which does not fit.
Prevention: Ensure your catalog includes the standard V90 (2017-2021) as a separate vehicle from the V90 Cross Country. Even at ~1,453 US units, these vehicles exist and their owners need parts.
Trap 6: Air Suspension Parts for Standard Spring Suspension (or Vice Versa)
What happens: A T6 owner orders rear shocks. The catalog sends air suspension dampers for a vehicle equipped with standard steel springs, or vice versa. The parts are completely different assemblies.
Prevention: Always ask: "Does your vehicle have rear air suspension?" before shipping rear suspension components for any V90 T6.
Trap 7: Classic V90 (1997-1998) Parts for Modern V90
What happens: A search for "Volvo V90" returns results from the 1997-1998 900 Series RWD wagon. These are completely incompatible.
Prevention: Always require model year. Separate 1997-1998 V90 (900 Series) from 2017-2021 V90 (SPA Platform).
Data Quality Checklist for Catalog Managers
Required attributes for every 2018-2021 V90 standard wagon parts listing:
• Model year(s): 2017, 2018, 2019, 2020, 2021
• Model variant: V90 Standard Wagon (NOT V90 Cross Country)
• Powertrain: T5 FWD (2018-2021) or T6 AWD (2017-2021)
• Suspension type: Standard steel spring or optional rear air suspension (T6 only)
• Generation: SPA Platform (2017-2021) - MUST distinguish from 1997-1998 V90
• Brake size: Verify by wheel diameter and trim level
Buyer Confirmation Prompts
Before shipping any part for a 2018-2021 V90, confirm:
• "Is your vehicle the standard V90 wagon or the V90 Cross Country?"
• "What is your powertrain: T5 (FWD) or T6 (AWD)?"
• "Does your vehicle have rear air suspension?" - for any rear suspension order
• "What is your exact model year?" - critical to avoid 2022+ B6 or 1997-1998 classic confusion
• "What size wheels does your vehicle have?" - for brake components
Aftermarket Parts Cross-Reference Notes
Primary cross-reference vehicles (drivetrain): The V90 T5 FWD cross-references with the S90 T5 FWD, S60 T5, and V60 T5 for engine and transmission components. The V90 T6 AWD cross-references with the S90 T6 AWD, XC90 T6, XC60 T6, V60 T6, and V90 Cross Country T6 for engine, transmission, and AWD driveline components.
Primary cross-reference (body, forward of B-pillar): The V90 standard wagon cross-references with the S90 sedan for hood, fenders, grille, headlights, front bumper cover, dashboard, front seats, steering wheel, and all interior components forward of the B-pillar. It also cross-references with the V90 Cross Country for these same forward components.
Suspension cross-reference: Front suspension components (struts, springs, control arms, stabilizer bar) cross-reference with the S90 for the same drive configuration (FWD or AWD). The standard V90 does NOT cross-reference with the Cross Country for springs, dampers, or ride height-specific components. The standard V90 rear suspension is closest to the S90 sedan specification.
Body-specific (behind B-pillar): Rear body panels, tailgate, rear bumper, cargo area trim, and roof rails are unique to the V90 wagon body. They do not interchange with the S90 sedan or V90 Cross Country. These wagon-specific parts may cross-reference with European-market V90 wagons of the same era.
Parts sourcing: Due to very low US production numbers (~1,453 units), some standard V90 wagon-specific body panels and trim pieces may be difficult to source from US aftermarket suppliers. FCP Euro, IPD, and Volvo Parts Webstore (parts.volvocars.com) are the most reliable sources. The SwedeSpeed V90 forum and Volvo V90 owner groups maintain parts sourcing threads.
The Business Case: Why Fitment Data Pays for Itself
The 2018-2021 standard V90 is the rarest modern Volvo in the US aftermarket. With approximately 1,453 units total, every order matters and every return is disproportionately costly. These vehicles are now entering the 4-7 year age window where maintenance and repair spending increases significantly. The owners tend to be knowledgeable enthusiasts who specifically special-ordered a rare wagon and will immediately identify a wrong part.
The highest-value catalog action is simply ensuring the standard V90 exists as a separate listing from the V90 Cross Country. A catalog that does not distinguish these two vehicles will generate returns on every suspension, bumper, and body cladding order. The second-highest-value action is separating T5 FWD from T6 AWD for driveline and supercharger components.
The standard V90 vs. Cross Country split, the T5 FWD vs. T6 AWD split, the air suspension option, and the 2021/2022 powertrain boundary are the minimum fitment splits required. If your catalog does not capture these, you are losing money on preventable returns from a passionate owner community that keeps these rare wagons running for decades.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
