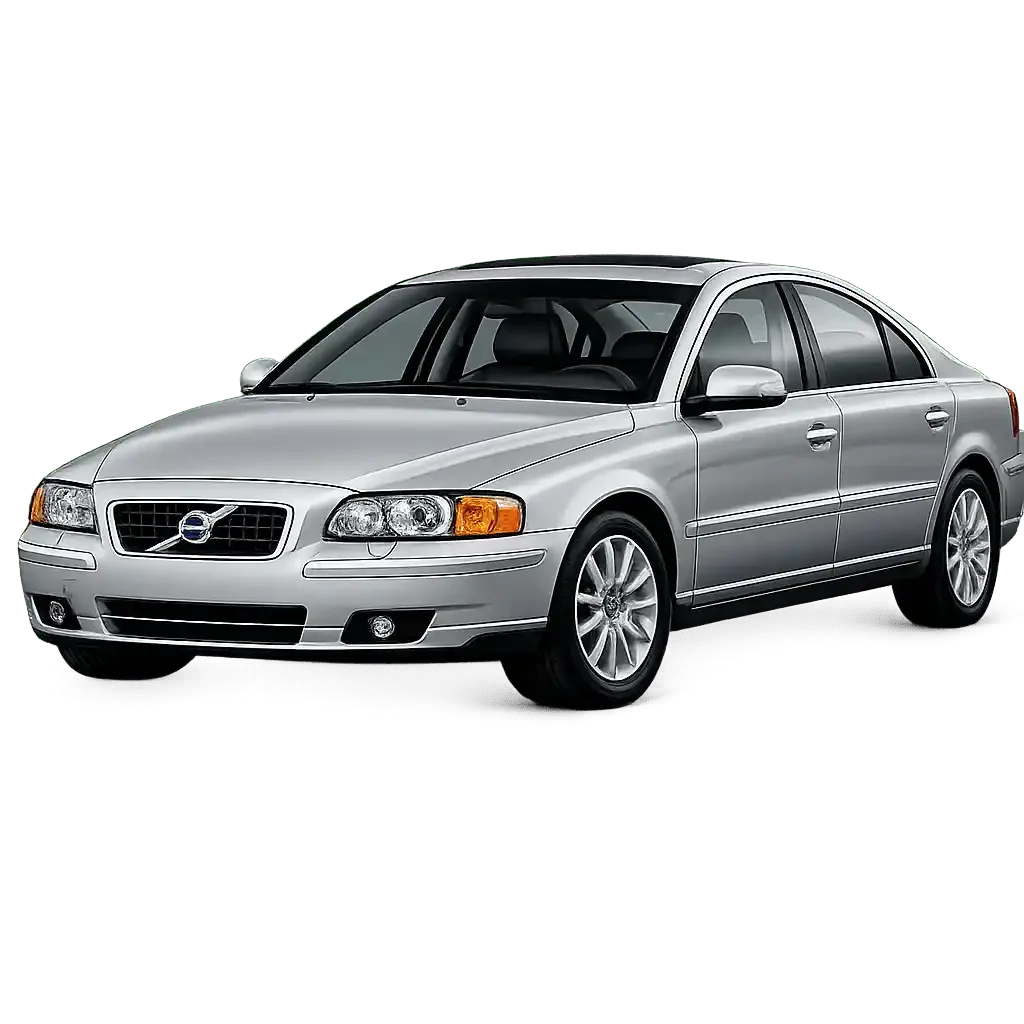

Volvo S80 (P2 Platform) 1999-2006 First Generation
The Complete Fitment Guide
Returns destroy margins. The first-generation Volvo S80 (1999-2006 in the US market) was Volvo's flagship executive sedan, the first vehicle built on the P2 platform, and the replacement for the rear-wheel-drive 960/S90. It introduced Volvo's transversely mounted inline-six engine architecture, which was an engineering achievement (the longest transverse inline-six installation in production at the time) but created a catalog management challenge that persists today: the S80 used two completely different transmission families from two different manufacturers depending on the engine installed, and the twin-turbo T6 engine itself changed displacement mid-production (2.8L to 2.9L) while keeping the same "T6" badge. Add a mid-cycle facelift around 2003-2004, the late addition of a 2.5T five-cylinder option with a third transmission type and optional Haldex AWD, and optional Four-C active chassis, and the P2 S80 becomes one of the most trap-laden first-generation Volvos in the aftermarket catalog. This guide maps every fitment split required to prevent returns.
Generation Overview (1999-2006 US Market)
The S80 debuted for the 1999 model year as Volvo's new flagship, replacing the 960/S90 that ended production in early 1998. It was a dramatic departure: front-wheel drive replaced rear-wheel drive, a new P2 platform replaced the P90 (900 Series) architecture, and CAN bus multiplexed wiring replaced traditional point-to-point wiring. The S80 was a sedan only with no wagon or estate variant.
Key timeline:
1999 (MY1999): US launch. Available as S80 2.9 (naturally aspirated inline-six, B6304S3, marketed as "3.0L" in some materials) and S80 T6 (twin-turbo inline-six, B6284T, 2.8L, 268 hp). Both FWD only. Both paired with GM-sourced 4T65E four-speed automatic transmission. Built at Torslanda, Sweden.
2000 (MY2000): S80 2.9 continues. S80 T6 continues with B6284T 2.8L. US market unchanged.
2001 (MY2001): T6 engine transitions from B6284T (2.8L) to B6294T (2.9L). The 2.9L T6 gains dual CVVT (continuously variable valve timing on both intake and exhaust cams, versus single CVVT on the 2.8L which had exhaust only), electronic throttle actuator replaces the Magneti Marelli electronic throttle module (ETM). Same 268 hp output. Same 4T65E-GT transmission. Base naturally aspirated inline-six also transitions: B6304S3 replaced by B6324S (or B6324S2 in later years). FWD only.
2003 (MY2003): Mid-cycle facelift. New front grille (horizontal grid pattern replaces vertical slats), revised front bumper (pedestrian protection), revised taillights (smaller reverse light section), revised interior dashboard with optional pop-up navigation screen, chromed instrument cluster rings, updated door panel controls.
2004 (MY2004): 2.5T variant added. B5254T2 five-cylinder turbo (208 hp), paired with Aisin-Warner AW55-51 five-speed automatic. Available FWD or with optional Haldex Gen-2 AWD. Optional Four-C active chassis (electronically adjustable dampers, Comfort/Sport modes). T6 and 2.9 NA continue as before with 4T65E transmissions, FWD only.
2005 (MY2005): Continuation. T6 with B6294T and 4T65E-GT. 2.5T with AW55-51 (FWD or AWD). 2.9 NA may have been discontinued or very limited availability in US for this year.
2006 (MY2006): Final year of first-generation S80. 2.5T AWD gains upgraded Haldex "Instant Traction" system with pre-charged hydraulic coupling (Gen-3 variant). T6 continues. Second-generation S80 (P3/EUCD platform) launches mid-year for MY2007.
Platform facts:
Platform: P2 (shared with S60, V70, XC70, XC90 first generation)
Assembly: Torslanda plant, Gothenburg, Sweden
Body style: Four-door sedan only. No wagon, no estate.
Engine family: Volvo Modular Engine (Whiteblock), revised "RN" specification. Inline-six (transverse) and inline-five (transverse).
Transmissions: GM 4T65E/4T65EV/4T65EV-GT four-speed automatic (inline-six engines only). Aisin-Warner AW55-51 five-speed automatic (2.5T five-cylinder only).
Drive: FWD standard on all variants. AWD available on 2.5T only (2004-2006) via Haldex coupling.
Sedan only: The S80 was never offered as an estate/wagon. The V70 (also P2 platform) served that role.
Why the P2 S80 Causes Catalog Errors
1. Three Completely Different Engine Families Under the Same S80 Badge
The P2 S80 used three distinct engine configurations in the US market:
2.9L/3.0L naturally aspirated inline-six (B6304S3 in 1999, B6324S/B6324S2 from 2001). Paired with GM 4T65E (non-GT variant). FWD only.
2.8L/2.9L twin-turbo inline-six (B6284T 1999-2000, B6294T 2001-2006). Paired with GM 4T65EV-GT (higher-torque-rated variant). FWD only.
2.5L turbocharged inline-five (B5254T2, 2004-2006). Paired with Aisin-Warner AW55-51. FWD or Haldex AWD.
These are different cylinder counts, different displacements, different aspiration types, and critically, different transmissions from different manufacturers with completely different architectures. A GM 4T65E transmission component does not fit an Aisin AW55-51 and vice versa. A five-cylinder engine component does not fit a six-cylinder engine. The "S80" badge alone is insufficient for any parts order.
2. T6 Engine Displacement Change: B6284T (2.8L) vs. B6294T (2.9L)
The "T6" badge was used across the entire production run, but covers two different engines:
B6284T (1999-2000/2001): 2.8L (2,783cc). Bore 81mm, stroke 90mm. Single CVVT (exhaust cam only). Magneti Marelli electronic throttle module (ETM). Compression ratio 8.5:1 (some sources say 8.7:1).
B6294T (2001-2006): 2.9L (2,922cc). Bore 83mm, stroke 90mm. Dual CVVT (both intake and exhaust cams). Electronic throttle actuator (different design from the ETM). Compression ratio 8.5:1.
The B6294T is not just a re-bored B6284T. The bore increase changes pistons, cylinder liners, and potentially head gaskets. The addition of intake cam CVVT changes the cylinder head, camshafts, CVVT actuators, oil supply circuits, and engine management calibration. The different throttle control system (ETM vs. electronic throttle actuator) changes the throttle body, wiring harness connections, and ECU software. The turbo assemblies and exhaust manifolds differ between early and late T6 models. Cooling system plumbing differs.
Parts listed generically for "S80 T6" without specifying B6284T or B6294T will generate returns whenever the part touches anything related to bore size, head/CVVT configuration, throttle control, turbo housing, or cooling plumbing.
3. Two Completely Different Transmission Families
GM 4T65E family (inline-six engines): A four-speed automatic derived from GM's front-wheel-drive transmission family. Used in numerous GM vehicles (Chevrolet Impala, Buick LeSabre, Pontiac Grand Prix, etc.). The Volvo variant (4T65EV-GT for T6, 4T65EV for NA six) has Volvo-specific modifications to the valve body, solenoids, and in some cases internal friction elements, but the core architecture and most rebuild parts are GM-sourced. Uses Dexron III/VI ATF. Notorious for premature failure behind the T6 engine due to the torque output being at the transmission's design limit.
Aisin-Warner AW55-51 (2.5T five-cylinder): A five-speed automatic shared with many P2 Volvos (S60, V70, XC70) and some Ford/GM vehicles. Completely different architecture, different fluid specification, different filter, different rebuild kits, different solenoids, different torque converter. Uses specific Volvo-approved fluid.
A 4T65E filter, solenoid, or rebuild kit shipped to a 2.5T owner (or vice versa) is a guaranteed return.
4. FWD vs. AWD on 2.5T (2004-2006)
The 2.5T was available as FWD or with Haldex AWD. AWD models have a Haldex coupling at the rear, a propeller shaft, a rear differential, rear axle shafts, a different rear subframe, and different suspension calibration. FWD 2.5T models have none of these components. The T6 and 2.9 NA were FWD only throughout the S80's production; AWD was never offered with a six-cylinder engine in the P2 S80.
5. P2 S80 (1999-2006) vs. P3 S80 (2007-2016) Generation Split
The second-generation S80 launched for MY2007 on the Ford EUCD (P3) platform with completely different engines (3.2L inline-six, 4.4L Yamaha V8, later 2.5T/T6 turbo five/six, and finally 2.0L Drive-E four-cylinder), different transmissions (Aisin TF-80SC six-speed, later eight-speed), and different body/chassis architecture. Zero components interchange between the P2 S80 (1999-2006) and P3 S80 (2007-2016).
6. Pre-Facelift (1999-2002) vs. Post-Facelift (2003-2006) Body Differences
The 2003 facelift changed the front grille (vertical slats to horizontal grid), front bumper cover, taillights, dashboard, and instrument cluster trim. Front bumper, grille, taillight assemblies, and dashboard components do not interchange across the 2002/2003 boundary.
7. Four-C Active Chassis vs. Standard Suspension
From 2004, the optional Four-C (Continuously Controlled Chassis Concept) active chassis system used electronically adjustable dampers with selectable Comfort and Sport modes. Standard S80 models used passive dampers. Four-C dampers, control modules, wiring, and ride height sensors are unique and do not interchange with standard passive suspension components.
Complete Powertrain Reference (US Market)
T6 -- Twin-Turbo Inline-Six (1999-2006)
B6284T (1999-2000/2001): 2.8L Twin-Turbo
Displacement: 2.8L (2,783cc) inline-six, transversely mounted
Bore x stroke: 81mm x 90mm
Compression ratio: 8.5:1
Aspiration: Twin parallel turbochargers (two small turbos, one per three cylinders), intercooled
Valvetrain: DOHC, 24-valve. Single CVVT (exhaust cam only)
Output: 268 hp at 5,400 rpm, 280 lb-ft at 2,000-5,000 rpm
Throttle: Magneti Marelli electronic throttle module (ETM). The ETM was a known failure point and was subject to Volvo recalls and replacement programs.
Engine management: Bosch ME7 Motronic
Timing: Belt-driven (interference engine)
Transmission: GM 4T65EV-GT four-speed automatic
Drive: FWD only
B6294T (2001-2006): 2.9L Twin-Turbo
Displacement: 2.9L (2,922cc) inline-six, transversely mounted
Bore x stroke: 83mm x 90mm
Compression ratio: 8.5:1
Aspiration: Twin parallel turbochargers, intercooled
Valvetrain: DOHC, 24-valve. Dual CVVT (both intake and exhaust cams)
Output: 268 hp at 5,400 rpm, 280 lb-ft at 2,000-5,000 rpm (same rated output as B6284T)
Throttle: Electronic throttle actuator (different design from the Magneti Marelli ETM)
Engine management: Bosch ME7 Motronic (updated calibration)
Timing: Belt-driven (interference engine)
Transmission: GM 4T65EV-GT four-speed automatic
Drive: FWD only
Notes: Also used in the XC90 T6 (2003-2006). The B6294T is essentially a bored-out B6284T with added intake CVVT and revised throttle control. Cylinder head and camshafts differ from the B6284T due to dual CVVT. Turbo assemblies, exhaust manifolds, and cooling plumbing differ between 2.8L and 2.9L variants.
2.9/3.0 -- Naturally Aspirated Inline-Six (1999-2004/2005)
B6304S3 (1999): 2.9L/3.0L NA
Displacement: 2.9L (2,922cc) inline-six, transversely mounted
Aspiration: Naturally aspirated
Output: Approximately 196-201 hp
Transmission: GM 4T65EV four-speed automatic (non-GT variant, lower torque rating than T6 version)
Drive: FWD only
Notes: Marketed as "3.0L" in 1999 US materials despite 2.9L actual displacement.
B6324S / B6324S2 (2001-2004/2005): 2.9L NA
Displacement: 2.9L inline-six, transversely mounted
Aspiration: Naturally aspirated
Output: Approximately 194-197 hp
Transmission: GM 4T65EV four-speed automatic
Drive: FWD only
Notes: Updated variant with CVVT. The NA inline-six was the base engine and was progressively de-emphasized as the 2.5T became available from 2004.
2.5T -- Turbocharged Inline-Five (2004-2006)
B5254T2: 2.5L Turbo
Displacement: 2.5L (2,521cc) inline-five, transversely mounted
Bore x stroke: 83mm x 93.2mm
Compression ratio: 9.0:1
Aspiration: Single turbocharger (Mitsubishi TD04L-14T), intercooled. Low-pressure turbo (light boost).
Valvetrain: DOHC, 20-valve
Output: 208 hp at 5,000 rpm, 236 lb-ft at 1,500-4,500 rpm
Engine management: Bosch ME7 Motronic
Timing: Belt-driven (interference engine)
Transmission: Aisin-Warner AW55-51 five-speed automatic
Drive: FWD or Haldex AWD
Notes: Same B5254T2 engine used across the P2 lineup (S60, V70, XC70, XC90 2.5T). The 2.5T was positioned as a more refined, more reliable, and better-balanced alternative to the T6, trading peak power for a smoother powertrain combination and the availability of AWD.
Transmission Reference
GM 4T65E Family (Inline-Six Engines)
4T65EV: Used with naturally aspirated inline-six (2.9/3.0 models). Standard torque rating.
4T65EV-GT: Used with twin-turbo T6. Higher torque rating (GT = "Grand Touring"). Includes upgraded internals to handle T6 torque output, though reliability remained a concern.
Architecture: Four-speed automatic, torque converter, transverse-mounted. GM-derived. Modified valve body and solenoids for Volvo application.
Fluid: Dexron III (can be upgraded to Dexron VI synthetic).
Known issues: The 4T65E behind the T6 engine is the most return-generating component on the P2 S80. Clutch pack and band failures, valve body solenoid failures, overheating, and torque converter failure are common. The T6 engine's 280 lb-ft of torque is at the 4T65E's design limit. Regular fluid changes and transmission cooler upgrades are the most common maintenance recommendations. Rebuild kits typically include updated clutch packs, steels, and a Transgo shift kit. The Volvo variant differs from standard GM 4T65E in specific internal parts (valve body modifications, solenoids), but the core rebuild process and most parts are shared with GM applications.
Aisin-Warner AW55-51 (2.5T Five-Cylinder)
Architecture: Five-speed automatic, torque converter, transverse-mounted. Shared with many P2 Volvos and some Ford/GM vehicles.
Fluid: Volvo-approved ATF (specific specification, not generic Dexron).
Known issues: More reliable than the 4T65E overall, but known for valve body issues, torque converter shudder, and solenoid failures at higher mileages. Available rebuild kits are more standardized than the Volvo-specific 4T65E variant.
Key Transmission Catalog Trap
The 4T65E (inline-six) and AW55-51 (2.5T) are completely different transmissions from different manufacturers. Nothing interchanges between them: filters, fluid, solenoids, torque converters, rebuild kits, valve bodies, and external sensors are all unique to each transmission. A catalog entry for "S80 transmission filter" or "S80 transmission solenoid" without specifying which transmission will generate returns on every order where the wrong one ships.
Critical Fitment Splits
Split 1: P2 S80 (1999-2006) vs. P3 S80 (2007-2016)
Different platforms, different engines, different transmissions, different bodies. Zero parts interchange. The P2 S80 is often referenced as "first generation" and the P3 as "second generation." Enforce generation/platform filtering on all S80 catalog entries.
Split 2: B6284T (2.8L T6, 1999-2000/2001) vs. B6294T (2.9L T6, 2001-2006)
Different bore size (81mm vs. 83mm). Different CVVT configuration (single vs. dual). Different throttle control system (ETM vs. electronic throttle actuator). Different turbo assemblies and cooling plumbing. Pistons, cylinder liners, head gaskets, cylinder heads, camshafts, CVVT actuators, throttle bodies, and engine management calibrations do not interchange. Always specify engine code, not just "T6."
Split 3: Inline-Six (4T65E) vs. Inline-Five 2.5T (AW55-51)
Completely different transmissions. All transmission-related components (filters, fluid, solenoids, rebuild kits, torque converters, mounts) are unique to each.
Split 4: 4T65EV (NA Six) vs. 4T65EV-GT (T6)
Within the GM 4T65E family, the NA (non-GT) and T6 (GT) variants differ in internal friction element specifications, valve body calibration, and torque converter. Rebuild kits may differ. Always specify whether the transmission is the EV (NA six) or EV-GT (T6) variant.
Split 5: FWD vs. AWD (2.5T Only, 2004-2006)
AWD models have Haldex coupling, propeller shaft, rear differential, rear axle shafts, different rear subframe, and different suspension calibration. FWD 2.5T has none of these. AWD was never available on T6 or NA six-cylinder P2 S80 models.
Split 6: Pre-Facelift (1999-2002) vs. Post-Facelift (2003-2006)
Front grille, front bumper, taillights, dashboard, instrument cluster, and interior door panel controls differ. Body panels and interior components from these zones do not interchange across the 2002/2003 boundary.
Split 7: Four-C Active Chassis vs. Standard Suspension
Four-C was optional from 2004. Electronically adjustable dampers, control module, wiring, and ride height sensors are unique to Four-C equipped vehicles. Standard passive dampers do not interchange with Four-C dampers.
Split 8: Haldex Gen-2 (2004-2005) vs. Haldex "Instant Traction" Gen-3 (2006) AWD
The 2006 AWD upgrade to "Instant Traction" added pre-charged hydraulic pressure to the Haldex coupling for faster AWD engagement. The coupling itself and its control electronics differ between early (2004-2005) and late (2006) AWD S80 models.
Biggest Return Traps and How to Prevent Them
Trap 1: P3 S80 (2007-2016) Parts for P2 S80 (1999-2006)
What happens: A 2008 S80 3.2L air filter or V8 brake rotor ships to a 2004 S80 T6 owner. Completely different vehicles.
Prevention: Hard generation boundary. P2 S80 = 1999-2006. P3 S80 = 2007-2016.
Trap 2: AW55-51 Transmission Parts for 4T65E Vehicle (or Vice Versa)
What happens: An AW55-51 transmission filter ships to a T6 owner (who needs a 4T65E filter), or a 4T65E valve body solenoid ships to a 2.5T owner.
Prevention: Always confirm engine (six-cylinder or five-cylinder) or transmission type before shipping any transmission component.
Trap 3: B6284T (2.8L) Parts for B6294T (2.9L) T6 (or Vice Versa)
What happens: A 2000 B6284T throttle body (Magneti Marelli ETM) ships to a 2003 B6294T owner (who has a different electronic throttle actuator). Or B6284T pistons/liners ship to a B6294T engine (different bore).
Prevention: Always specify T6 engine code: B6284T (1999-2000/2001, 2.8L) or B6294T (2001-2006, 2.9L). The "T6" badge alone is insufficient.
Trap 4: Pre-Facelift Body Parts for Post-Facelift Vehicle
What happens: A 2001 S80 vertical-slat grille ships to a 2004 S80 owner (who needs the horizontal-grid facelift grille). Or pre-facelift taillights ship for a post-facelift vehicle.
Prevention: Distinguish pre-facelift (1999-2002) from post-facelift (2003-2006) for grille, front bumper, taillights, dashboard, and instrument cluster components.
Trap 5: Four-C Dampers for Standard Suspension Vehicle (or Vice Versa)
What happens: Four-C electronically adjustable dampers ship to a standard-suspension S80 owner. They will not function without the Four-C control module and wiring.
Prevention: Always confirm Four-C or standard suspension before shipping dampers/shocks.
Trap 6: FWD 2.5T Parts for AWD 2.5T (or Vice Versa)
What happens: FWD rear subframe or axle components ship to an AWD-equipped 2.5T.
Prevention: Confirm FWD or AWD on all 2004-2006 S80 2.5T models. VIN decode required.
Trap 7: Wrong 4T65E Rebuild Kit (Standard vs. Volvo-Specific)
What happens: A standard GM 4T65E rebuild kit ships to a Volvo S80 T6 owner. While the core transmission is GM-derived, the Volvo variant has specific modifications to the valve body and some internal components. A standard GM kit may not include the Volvo-specific parts.
Prevention: Specify "Volvo 4T65EV-GT" when sourcing transmission rebuild components. Triple Edge Performance and similar specialty suppliers maintain Volvo-specific kits.
P2 Platform Cross-Reference Notes
The P2 S80 shares its platform with the S60 (2001-2009), V70 (2001-2007), XC70 (2001-2007), and XC90 (2003-2014 first generation). Cross-reference potential:
Engine: The B5254T2 (2.5T) is shared across P2 S60, V70, XC70, and XC90. Many engine components cross-reference. The B6294T T6 is shared with the XC90 T6. The B6284T was S80-exclusive.
Transmission: The AW55-51 (2.5T) is shared across P2 S60, V70, XC70 (and some XC90 2.5T). The 4T65E is shared between the S80 T6/2.9 NA and XC90 T6 only within the Volvo lineup. The XC90 T6 4T65E may have different internal specifications than the S80 T6 4T65E due to the XC90's significantly higher vehicle weight, which accelerated transmission failure.
Suspension: Front MacPherson strut and rear multilink architecture is shared across P2, but spring rates, damper valving, and anti-roll bar specifications differ by model and weight class. The S80 is the longest-wheelbase P2 sedan and has its own suspension calibration.
Body: Not shared between P2 models. S80 body panels do not fit S60, V70, etc.
Brakes: Some brake rotor and caliper specifications are shared across P2 models with the same wheel size and weight class. Always verify by specific application.
Data Quality Checklist for Catalog Managers
Required attributes for every S80 (1999-2006) parts listing:
Model year(s)
Platform generation: P2 (1999-2006) vs. P3 (2007-2016). Hard boundary, no cross-reference.
Engine: T6 (inline-six twin-turbo), 2.9/3.0 NA (inline-six naturally aspirated), or 2.5T (inline-five turbo). This determines transmission type.
Engine code (for T6): B6284T (2.8L, 1999-2000/2001) or B6294T (2.9L, 2001-2006). Required for any engine-related component.
Transmission: GM 4T65EV (NA six), GM 4T65EV-GT (T6), or Aisin-Warner AW55-51 (2.5T). Required for all transmission components.
Drivetrain: FWD or AWD (AWD available on 2.5T only, 2004-2006).
Facelift status: Pre-facelift (1999-2002) or post-facelift (2003-2006). Required for grille, front bumper, taillights, dashboard, and instrument cluster.
Suspension type: Standard (passive) or Four-C (electronically adjustable, optional from 2004).
Haldex generation (AWD only): Gen-2 (2004-2005) or Gen-3 "Instant Traction" (2006).
Buyer Confirmation Prompts
Before shipping any part for an S80 (1999-2006), confirm:
"Is your S80 from 1999-2006, or is it the 2007-2016 model?" These are different platforms with no parts interchange.
"What engine does your S80 have: T6 (twin-turbo six-cylinder), 2.9/3.0 (naturally aspirated six-cylinder), or 2.5T (five-cylinder turbo)?" This determines transmission type and all engine/transmission component fitment.
"If T6: what model year?" The 1999-2000/2001 T6 (2.8L B6284T) and 2001-2006 T6 (2.9L B6294T) have different internal engine components, throttle systems, and turbo assemblies.
"Is your vehicle from 1999-2002 (pre-facelift) or 2003-2006 (post-facelift)?" Determines body panel, grille, taillight, and interior component fitment.
"If 2.5T: is your vehicle FWD or AWD?" AWD models have Haldex coupling, propeller shaft, and rear differential.
"Does your S80 have the Four-C active chassis, or standard suspension?" Determines damper/shock absorber fitment.
The Business Case: Why Fitment Data Pays for Itself
The P2 S80 is now 19-27 years old and deep into the enthusiast and budget-luxury ownership cycle. The T6 models attract owners who value the twin-turbo inline-six character, but the GM 4T65E transmission is the car's Achilles heel and drives the highest-volume parts orders: transmission rebuild kits, solenoids, valve bodies, fluid, and torque converters. Getting the transmission specification wrong (4T65E vs. AW55-51, or standard GM kit vs. Volvo-specific) is the most expensive return category because these are heavy, expensive, core-exchange components.
The T6 engine code split (B6284T vs. B6294T) is the second most common return cause, particularly for throttle control components (ETM vs. electronic throttle actuator), CVVT actuators, and turbo assemblies. The pre-facelift/post-facelift body split catches orders for grilles, bumpers, and taillights. The Four-C versus standard suspension split catches damper/shock orders. The FWD/AWD split on 2.5T models catches drivetrain and rear subframe components.
The P2 S80's combination of three engine families, two transmission manufacturers, a mid-production engine displacement change under the same badge, a body facelift, optional AWD on one engine only, and optional active chassis makes it one of the most attribute-dense P2 Volvos for catalog management. The minimum required attributes are platform generation, engine code, transmission type, facelift status, drivetrain, and suspension type. Omit any one and you are shipping wrong parts to a community that knows exactly what they need and will return every misfitment.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
