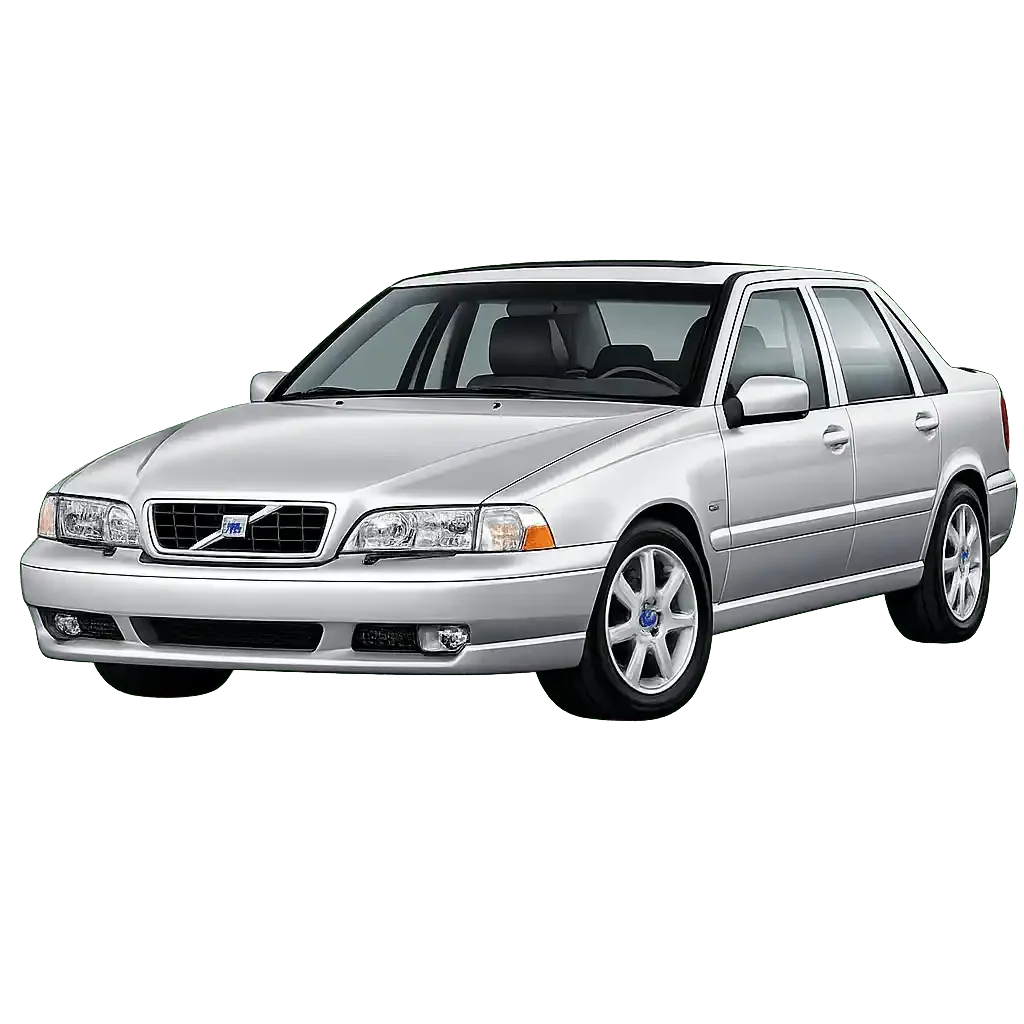

Volvo S70 (P80 Platform) 1998-2000
The Complete Fitment Guide
Returns destroy margins. The Volvo S70 (1998-2000 in the US market) was a facelifted 850 sedan with approximately 1,800 changes over its predecessor, but its three-year production run straddles the most significant engine management transition in Volvo's Whiteblock five-cylinder history. The 1998 model year carried over the Motronic 4.3/4.4 engine management from the 850 with distributor ignition and throttle cable. The 1999 model year introduced Bosch ME7 engine management with coil-on-plug ignition, drive-by-wire electronic throttle, and CVVT (continuously variable valve timing) on the exhaust cam -- a fundamentally different cylinder head, ignition system, throttle system, and engine control architecture. This single boundary (1998 vs. 1999-2000) is the most return-generating split on the P80 platform and affects ignition components, throttle bodies, cylinder heads, camshafts, timing belt covers, and engine management modules. Add three different engine tiers (naturally aspirated, light-pressure turbo, high-pressure turbo), manual and automatic transmissions, FWD and AWD options, and the need to distinguish the S70 sedan from the mechanically identical V70 wagon, and the P80 S70 becomes a precision-required catalog entry despite its apparent simplicity.
Generation Overview (1998-2000 US Market)
The S70 debuted as a 1998 model year vehicle, replacing the 850 sedan. It was not a new platform but a comprehensive facelift: new front end with revised headlights, fully color-coded bumpers and side trim, clear rear indicator lenses, redesigned interior with new seats, door panels, and dashboard. Mechanically, the 1998 S70 was essentially an 850 continuation. The 1999 model year brought the major under-the-skin changes. The S70 was discontinued after the 2000 model year, replaced by the P2-platform S60.
Key timeline:
1998 (MY1998): US launch. Engines: 2.4L NA (B5252S base, B5254S in higher trims), 2.4L GLT light-pressure turbo (B5254T, approximately 190 hp), 2.3L T5 high-pressure turbo (B5234T3, approximately 236 hp). Engine management: Bosch Motronic 4.3 (850 carryover T5) or Motronic 4.4 (GLT and NA). Ignition: Distributor with spark plug wires. Throttle: Cable-driven mechanical throttle. No CVVT. Transmissions: M56 five-speed manual or AW50-42 (NA/GLT) / AW50-43 (T5) four-speed automatic. FWD standard. AWD available on certain models (automatic only in US).
1999 (MY1999): Engine management transition to Bosch ME7 across all engines. Ignition changes to coil-on-plug (individual coils on each spark plug, no distributor, no spark plug wires). Throttle changes to drive-by-wire electronic throttle module (ETM). CVVT added on exhaust cam (requires different cylinder head machining, different camshaft front, different timing belt cover with clearance bump for CVVT actuator). Minor exterior cosmetic changes (slightly different Volvo badge on grille, US models receive front fender side markers). Transmissions unchanged. AWD unchanged.
2000 (MY2000): Final year. Continuation of ME7 engine management, coil-on-plug, drive-by-wire, CVVT. AW55-50/51SN five-speed automatic introduced as option on naturally aspirated models only (replacing AW50-42 four-speed on those specific applications). S70 R performance model available (B5234T4, approximately 247 hp, Motronic 4.4 in 1998 / ME7 in 1999-2000, AWD with manual or automatic). S70 replaced by P2 S60 for MY2001.
Platform facts:
Platform: P80 (shared with 850, V70 Mk1, C70 Mk1, V70 XC/Cross Country Mk1)
Assembly: Torslanda plant, Gothenburg, Sweden. Also Ghent, Belgium.
Body style: Four-door sedan only. The wagon version is the V70 (mechanically identical forward of the B-pillar).
Engine family: Volvo Modular Engine (Whiteblock), all inline-five cylinder.
Transmissions: M56 five-speed manual. AW50-42 (NA/GLT) or AW50-43 (T5/R) four-speed automatic. AW55-50/51SN five-speed automatic (2000 NA models only).
Drive: FWD standard. Viscous coupling center-differential AWD available (automatic only in US market for standard models; R model available with manual and AWD outside US).
Why the P80 S70 Causes Catalog Errors
1. The 1998 vs. 1999 Engine Management Hard Boundary
This is the single most important fitment split on the S70 and the most common return cause. The 1998 model year uses one engine management architecture. The 1999-2000 model years use a completely different one. The changes are not incremental -- they affect the cylinder head, ignition system, throttle control, timing belt cover, and engine wiring harness.
1998 (Motronic 4.3/4.4):
Ignition: Distributor with high-tension spark plug wires (one distributor, five wires)
Throttle: Cable-driven mechanical throttle body
CVVT: None. Fixed exhaust cam timing. Timing belt cover is flat.
Cylinder head: No CVVT provisions. Front of exhaust cam has standard cam gear.
ECM: Bosch Motronic 4.3 (earlier T5 applications) or Motronic 4.4
1999-2000 (ME7):
Ignition: Coil-on-plug (five individual coils, one per cylinder, mounted directly on spark plugs). No distributor. No spark plug wires.
Throttle: Drive-by-wire electronic throttle module (ETM). No throttle cable. The ETM was a known failure point and subject to recalls.
CVVT: Exhaust cam continuously variable valve timing. CVVT actuator on front of exhaust cam requires different cylinder head machining (larger opening for CVVT unit and oil supply channels).
Cylinder head: Different from 1998 due to CVVT provisions. Not interchangeable without matching engine management.
Timing belt cover: Has a pronounced outward bump to clear the CVVT actuator. 1998 cover is flat.
ECM: Bosch ME7
Components that do NOT interchange across the 1998/1999 boundary:
Ignition coils (coil-on-plug vs. distributor/wires -- completely different systems)
Spark plug wires (1998 has them, 1999+ does not)
Distributor (1998 has one, 1999+ does not)
Throttle body/module (cable vs. electronic)
Cylinder head (different CVVT machining)
Exhaust camshaft (CVVT vs. fixed gear)
Timing belt cover (flat vs. CVVT bump)
Engine control module (Motronic 4.x vs. ME7)
Engine wiring harness (different connectors and circuits for coil-on-plug, ETM, CVVT solenoid)
Some accessory fittings (power steering hoses, A/C hoses, temp sensor connectors reportedly differ)
Components that generally DO interchange across 1998/1999:
Engine block (same Whiteblock architecture)
Pistons, connecting rods, crankshaft (within the same displacement)
Timing belt (verify -- some sources note a change in late 1999 for a slightly different belt)
Transmission (same units carried over)
Suspension, brakes, body panels, interior
2. Three Engine Tiers with Different Displacements and Aspiration
US market S70 engines fell into three tiers:
Naturally aspirated (base): 2.4L (2,435cc) inline-five. B5252S (10-valve, base/Canadian market) or B5254S (20-valve, standard US). Approximately 168-170 hp. The "2.4L" and "2.5L" designations were used interchangeably in marketing -- both refer to the same 2,435cc displacement.
Light-pressure turbo (GLT): 2.4L (2,435cc) inline-five turbo. B5254T. Approximately 190 hp. Low boost (approximately 6 psi). Motronic 4.4 (1998) or ME7 (1999-2000).
High-pressure turbo (T5): 2.3L (2,319cc) inline-five turbo. B5234T3 (FWD auto), B5234T4 (AWD manual/R), B5234T6 (AWD auto). Approximately 236-247 hp. High boost. Motronic 4.3/4.4 (1998) or ME7 (1999-2000). Note the T5 uses a smaller displacement (2.3L vs. 2.4L for GLT/NA) with a smaller bore (81mm vs. 83mm). Pistons, cylinder liners, and head gaskets differ between the 2.3L T5 and 2.4L NA/GLT engines.
The B5234T suffix numbers (T3, T4, T6) denote drivetrain and transmission configuration, not power output:
B5234T3: FWD, automatic
B5234T4: AWD, manual (R model)
B5234T6: AWD, automatic
All three are the same 2.3L engine with the same power output. The suffix determines ECU calibration (transmission and AWD-specific parameters), not physical engine differences.
3. 850 vs. S70 Cross-Reference Complexity
The S70 is a facelifted 850. The 1998 S70 is mechanically very close to the 1997 850 (both Motronic 4.3/4.4 era). Many engine and drivetrain components cross-reference between the S70 and late 850 models. However, the 1999-2000 S70 (ME7, coil-on-plug, CVVT) does NOT share ignition, throttle, cylinder head, or engine management components with any 850 model. The 850 was never sold with ME7 engine management.
Body panels differ between the 850 sedan and S70: front end (headlights, grille, hood, fenders, front bumper), rear bumper, taillights, and interior trim are S70-specific. Doors, roof, and some structural elements are shared or very similar.
4. S70 Sedan vs. V70 Wagon
The S70 (sedan) and V70 (wagon) are mechanically identical from the A-pillar forward. Engine, transmission, front suspension, brakes, steering, and all front-end components interchange between S70 and V70 of the same model year and engine specification. Behind the B-pillar, everything differs: rear body panels, rear bumper, taillights, trunk/tailgate, rear suspension calibration (wagon springs are stiffer for cargo loads), and some rear brake specifications may vary.
5. Three Different Automatic Transmissions
AW50-42: Four-speed automatic. Used with NA and GLT engines. FWD and AWD versions.
AW50-43: Four-speed automatic. Used with T5/R high-pressure turbo. Higher torque rating than AW50-42. FWD and AWD versions.
AW55-50/51SN: Five-speed automatic. Introduced for 2000 model year NA models only. Completely different architecture from AW50 family.
The AW50-42 and AW50-43 share the same basic architecture but differ in internal friction element specifications and torque capacity. The AW55-50/51SN is a completely different transmission with different fluid, different filter, different solenoids, and different physical dimensions. A catalog entry for "S70 automatic transmission filter" without specifying which transmission is a guaranteed return.
6. FWD vs. AWD
AWD S70 models use a viscous coupling center differential, propeller shaft, rear differential, rear axle shafts, and AWD-specific rear subframe. In the US market, AWD was paired only with the automatic transmission on standard models (the R model may have had manual AWD in some markets but not typically US). FWD models lack all of these components.
7. P80 S70 (1998-2000) vs. P2 S60 (2001-2009)
The S60 replaced the S70 on the new P2 platform with completely different engines (RN-series Whiteblock), different transmissions (AW55-51 five-speed), different body, and different chassis. Zero components interchange between the S70 and S60. The S70 is sometimes confused with the S60 in catalog searches because both are Volvo mid-size sedans.
Complete Powertrain Reference (US Market)
Naturally Aspirated -- 2.4L/2.5L Inline-Five
B5252S: 2.4L 10-Valve NA (Base/Canadian)
Displacement: 2.4L (2,435cc) inline-five
Bore x stroke: 83mm x 90mm
Compression ratio: 10.0:1
Valvetrain: SOHC, 10-valve (2 valves per cylinder)
Output: Approximately 144 hp
Engine management: Siemens Fenix 5.2
Notes: Primarily Canadian market and base US models. Different cylinder head (10-valve vs. 20-valve), different engine management (Siemens vs. Bosch). Timing belt, water pump, and most block components shared with B5254S, but spark plugs, valve cover gasket, and oxygen sensors differ.
B5254S: 2.4L/2.5L 20-Valve NA
Displacement: 2.4L (2,435cc) inline-five
Bore x stroke: 83mm x 90mm
Compression ratio: 10.5:1
Valvetrain: DOHC, 20-valve (4 valves per cylinder)
Output: Approximately 168-170 hp
Engine management: Bosch Motronic 4.4 (1998) or Bosch ME7 (1999-2000). Some 1999 models may show Denso management.
Notes: Standard US naturally aspirated engine. Marketed as both "2.4" and "2.5" at different times despite identical 2,435cc displacement. The 1998 has distributor ignition; 1999-2000 have coil-on-plug.
Light-Pressure Turbo -- 2.4L GLT
B5254T: 2.4L Light-Pressure Turbo
Displacement: 2.4L (2,435cc) inline-five
Bore x stroke: 83mm x 90mm
Compression ratio: 9.0:1
Aspiration: Single turbocharger, intercooled. Low boost (approximately 6 psi).
Valvetrain: DOHC, 20-valve
Output: Approximately 190 hp at 5,100 rpm, 199 lb-ft at 1,800-5,000 rpm
Engine management: Bosch Motronic 4.4 (1998) or Bosch ME7 (1999-2000)
Notes: Same bore/stroke as the NA B5254S. Lower compression ratio for turbo application. Forged pistons, sodium-filled exhaust valves. The turbo and intercooler components are specific to the GLT and do not interchange with the T5.
High-Pressure Turbo -- 2.3L T5 / R
B5234T3 / B5234T4 / B5234T6: 2.3L High-Pressure Turbo
Displacement: 2.3L (2,319cc) inline-five
Bore x stroke: 81mm x 90mm
Compression ratio: 8.5:1
Aspiration: Single turbocharger (Mitsubishi TD04HL-16T on T3/T6, TD04HL-18T on T4/R), intercooled. High boost.
Valvetrain: DOHC, 20-valve
Output: Approximately 236 hp (T3/T6), 247 hp (T4/R)
Engine management: Bosch Motronic 4.3 or 4.4 (1998) or Bosch ME7 (1999-2000)
Notes: Smaller bore (81mm vs. 83mm) than the 2.4L engines. Different pistons, cylinder liners, and head gaskets. The T5 engine codes (T3, T4, T6) denote drivetrain/transmission configuration, not engine internals. T4 (R model) gets a slightly larger TD04HL-18T turbo vs. the 16T on T3/T6. All T5 variants share the same block and head within a given model year.
Transmission Reference
M56 Five-Speed Manual
Architecture: Five-speed manual, cable-operated shift. Used across all engine tiers in FWD configuration.
Notes: Robust transmission. Shared with the 850. AWD manual was available on the R model in some markets but not standard US.
AW50-42 Four-Speed Automatic (NA/GLT)
Architecture: Four-speed automatic with torque converter. Aisin-Warner.
Variants: FWD and AWD versions. AWD version has different output shaft and transfer case provisions.
Notes: Lower torque rating than AW50-43. Used with NA and GLT engines only.
AW50-43 Four-Speed Automatic (T5/R)
Architecture: Four-speed automatic with torque converter. Aisin-Warner.
Variants: FWD and AWD versions.
Notes: Higher torque rating than AW50-42. Used with high-pressure turbo T5 and R engines. Internal friction elements differ from AW50-42.
AW55-50/51SN Five-Speed Automatic (2000 NA Only)
Architecture: Five-speed automatic with torque converter. Aisin-Warner.
Notes: Introduced for 2000 model year naturally aspirated models only. Completely different design from AW50 family. Different fluid specification, different filter, different solenoids, different torque converter. Not available on turbo models. This is the same transmission family later used extensively in P2 Volvos.
Critical Fitment Splits
Split 1: 1998 (Motronic 4.3/4.4) vs. 1999-2000 (ME7)
The most important split on the S70. Affects ignition system (distributor vs. coil-on-plug), throttle control (cable vs. ETM), cylinder head (fixed cam gear vs. CVVT), timing belt cover, ECM, and engine wiring harness. Enforce hard year boundary for all ignition, throttle, cylinder head, and engine management components.
Split 2: Engine Displacement -- 2.3L T5 (81mm Bore) vs. 2.4L NA/GLT (83mm Bore)
Different bore size means different pistons, cylinder liners, and head gaskets. Different turbo systems (T5 high-pressure turbo vs. GLT low-pressure turbo). Different engine management calibrations. Always specify engine tier (NA, GLT, T5) or engine code.
Split 3: Turbo Type -- GLT (Low-Pressure) vs. T5 (High-Pressure)
The GLT and T5 use completely different turbocharger units, different intercooler configurations, different boost control systems, and different engine management calibrations. A T5 turbo does not belong on a GLT and vice versa.
Split 4: Three Automatic Transmission Families
AW50-42 (NA/GLT), AW50-43 (T5), and AW55-50/51SN (2000 NA only) are three different transmissions. Within the AW50 family, the 42 and 43 differ in torque capacity and internal specifications. The AW55 is a completely different design. Always specify engine and model year when ordering any automatic transmission component.
Split 5: FWD vs. AWD
AWD models have viscous coupling, propeller shaft, rear differential, rear axle shafts, and AWD-specific rear subframe. FWD models have none of these.
Split 6: S70 (Sedan) vs. V70 (Wagon)
Mechanically identical forward of B-pillar. All rear body panels, tailgate/trunk, rear suspension calibration, and some rear brake specifications differ.
Split 7: 850 vs. S70 Cross-Reference
1998 S70 shares engine management architecture with 1996-1997 850 (Motronic 4.3/4.4 era). Many engine components cross-reference. 1999-2000 S70 (ME7) does NOT share ignition, throttle, cylinder head, or ECM components with any 850. Body panels differ between 850 and S70 (front end, bumpers, taillights, interior).
Split 8: P80 S70 (1998-2000) vs. P2 S60 (2001-2009)
Completely different platforms. Zero interchange. The S60 is not a facelifted S70.
Split 9: B5252S 10-Valve vs. B5254S 20-Valve NA
The 10-valve (SOHC) and 20-valve (DOHC) naturally aspirated engines have completely different cylinder heads, valve covers, cam configurations, and engine management systems (Siemens Fenix vs. Bosch Motronic/ME7). The 10-valve also uses a different oxygen sensor type (NTK titanium vs. Bosch/Denso on 20-valve).
Biggest Return Traps and How to Prevent Them
Trap 1: 1998 Ignition Parts for 1999-2000 (or Vice Versa)
What happens: Distributor cap, rotor, or spark plug wire set ships to a 1999 S70 owner (who has coil-on-plug and needs individual coils). Or coil-on-plug packs ship to a 1998 owner (who has a distributor).
Prevention: Hard year boundary. 1998 = distributor/wires. 1999-2000 = coil-on-plug. Always confirm model year before shipping ignition components.
Trap 2: 1999-2000 Cylinder Head for 1998 (or Vice Versa)
What happens: A 1999 cylinder head with CVVT machining ships to a 1998 owner. The CVVT unit cannot function without ME7 engine management. Or a 1998 head ships to a 1999 owner who needs the CVVT provisions.
Prevention: Always specify model year for cylinder head orders. The heads are not interchangeable without converting the entire engine management system.
Trap 3: Wrong Automatic Transmission Components
What happens: AW55-50/51SN filter or solenoid ships to a 1998 S70 owner (who has an AW50-42 or AW50-43). Or AW50-43 (T5) rebuild components ship to a GLT owner (who has AW50-42).
Prevention: Always confirm engine type and model year. AW50-42 = NA/GLT, AW50-43 = T5/R, AW55-50/51SN = 2000 NA only.
Trap 4: 850 Ignition/Throttle/Head Parts for 1999-2000 S70
What happens: An 850 distributor or throttle cable ships to a 1999 S70 owner. The 850 never had ME7, coil-on-plug, or drive-by-wire.
Prevention: 850 engine management components fit 1998 S70 only. 1999-2000 S70 requires ME7-era parts with no 850 cross-reference for ignition, throttle, cylinder head, or ECM.
Trap 5: T5 (2.3L) Engine Parts for GLT/NA (2.4L) or Vice Versa
What happens: 2.3L T5 pistons (81mm bore) ship to a 2.4L GLT owner (83mm bore). Or a low-pressure GLT turbo ships to a T5 owner.
Prevention: Always specify engine code or engine tier. The displacement difference (2.3L vs. 2.4L) changes bore-dependent components.
Trap 6: P2 S60 Parts for P80 S70
What happens: A 2002 S60 component ships to a 2000 S70 owner. Completely different platforms.
Prevention: S70 = P80, 1998-2000. S60 = P2, 2001-2009. Hard boundary.
Trap 7: ETM (Electronic Throttle Module) Year Sensitivity
What happens: An early ETM ships for a late 1999/2000 S70. The ETM was a known failure point and went through multiple revisions. Some revisions are not backward-compatible.
Prevention: ETM part numbers vary by production date and revision. Always verify by VIN or production date, not just model year.
P80 Platform Cross-Reference Notes
The P80 S70 shares its platform with the 850 sedan (1993-1997), V70 Mk1 wagon (1998-2000), C70 Mk1 coupe/convertible (1998-2004), and V70 XC/Cross Country (1998-2000).
Engine: Within the same model year and engine management system, engine components cross-reference between S70, V70, C70, and late 850. The C70 continued on P80 through 2004, using ME7 engines through its production run.
Transmission: Same units used across P80 models with the same engine tier.
Front suspension: MacPherson strut, shared across P80 with same spring rates and damper valving for same engine/drivetrain configuration.
Rear suspension: Multilink. S70 (sedan) and 850 sedan share rear suspension calibration. V70 (wagon) has different spring rates for cargo capacity.
Body: S70 sedan body panels are unique to the S70 and do not fit the 850, V70, or C70. Mechanical components forward of the A-pillar cross-reference with the V70 of the same year and engine.
Brakes: Shared across P80 models with the same weight class and wheel size. Some front caliper and rotor specifications differ between NA/GLT and T5/R models due to different performance requirements.
Data Quality Checklist for Catalog Managers
Required attributes for every S70 (1998-2000) parts listing:
Model year: 1998, 1999, or 2000. This is the most critical attribute due to the engine management split at 1998/1999.
Engine management era: Motronic 4.3/4.4 (1998 only) or ME7 (1999-2000). Required for all ignition, throttle, cylinder head, engine wiring, and ECM components.
Engine tier and code: NA (B5252S 10-valve or B5254S 20-valve), GLT (B5254T), or T5/R (B5234T3/T4/T6). Required for all engine components, turbo components, and transmission identification.
Transmission: M56 manual, AW50-42 (NA/GLT auto), AW50-43 (T5 auto), or AW55-50/51SN (2000 NA auto). Required for all transmission components.
Drivetrain: FWD or AWD. AWD adds viscous coupling, propeller shaft, rear differential.
Body: S70 (sedan) or V70 (wagon). Body panels differ behind the B-pillar.
10-valve vs. 20-valve (NA only): Different cylinder heads, valve covers, engine management systems, and oxygen sensors.
Buyer Confirmation Prompts
Before shipping any part for an S70 (1998-2000), confirm:
"What model year is your S70: 1998, 1999, or 2000?" The 1998 and 1999-2000 have completely different ignition systems (distributor vs. coil-on-plug), throttle systems (cable vs. electronic), and cylinder head configurations (no CVVT vs. CVVT).
"What engine does your S70 have: base/naturally aspirated, GLT (light turbo), or T5 (high-pressure turbo)?" This determines displacement (2.3L vs. 2.4L), turbo type, and transmission specification.
"Manual or automatic transmission?" If automatic: "Four-speed or five-speed?" The five-speed automatic (AW55) was only available in 2000 on NA models.
"FWD or AWD?"
The Business Case: Why Fitment Data Pays for Itself
The P80 S70 is now 25-27 years old and deep in the enthusiast/budget ownership cycle. These cars are maintained by their owners, many of whom are highly knowledgeable about the P80 platform. The 1998 vs. 1999 engine management split is the number one topic on every P80 Volvo forum, and the community knows the difference between a distributor car and a coil-on-plug car intimately. Shipping a 1999 coil-on-plug ignition coil to a 1998 distributor car owner will result in an immediate return and a likely negative review.
Ignition components (coil packs, distributors, plug wires), throttle modules (ETM), timing belt kits, and cylinder heads are the highest-volume return categories on the S70. The fix is straightforward: enforce the 1998 vs. 1999-2000 boundary on every listing that touches the ignition system, throttle, cylinder head, or timing belt cover. Secondary splits for engine displacement (2.3L vs. 2.4L), transmission type, and drivetrain (FWD/AWD) cover the remaining return categories.
The S70's short three-year production run and its straddling of the 850-to-modern Volvo transition make it one of the most split-dependent P80 models in the aftermarket catalog. The minimum required attributes are model year (with hard 1998/1999 boundary), engine code, transmission type, and drivetrain. Without model year enforcement, you are guaranteed to ship the wrong ignition system.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
