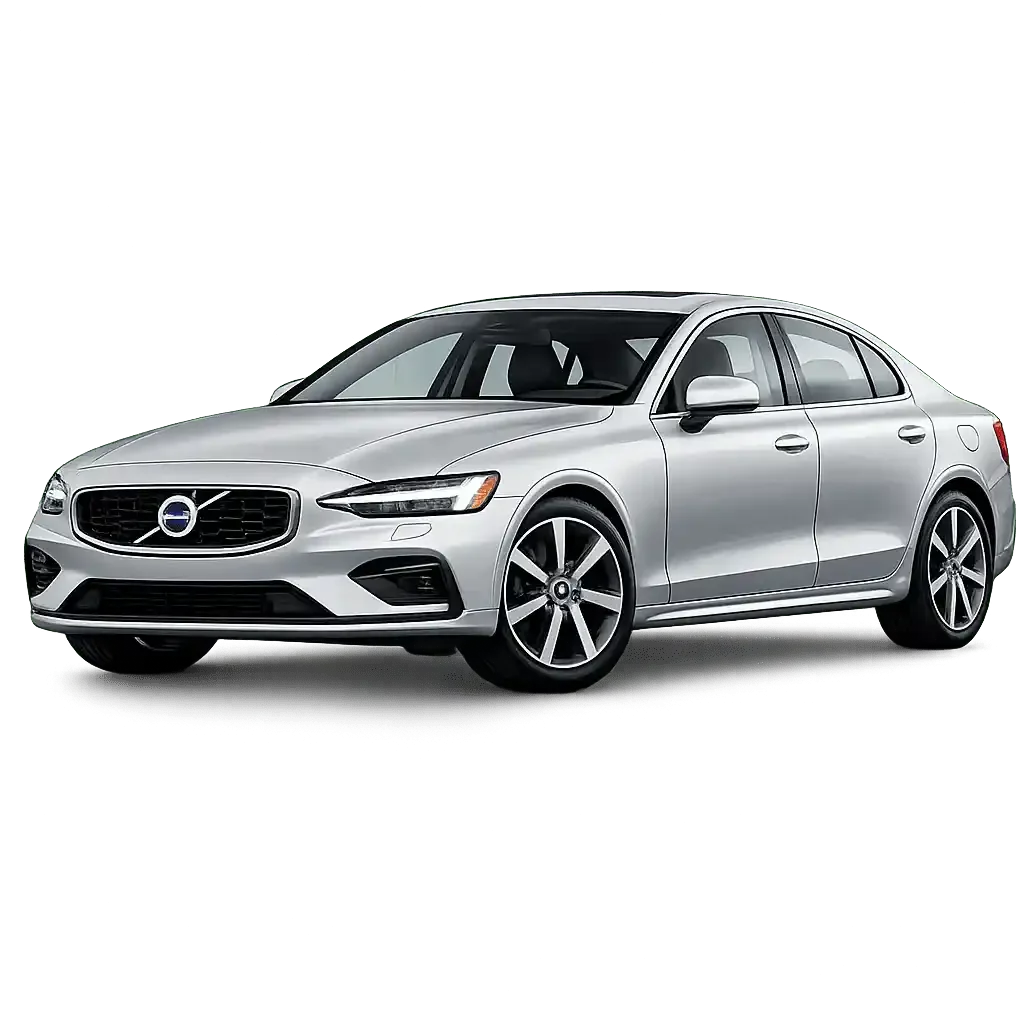

Volvo S60 (SPA Platform) 2019-2026 Third Generation
The Complete Fitment Guide
Returns destroy margins. The third-generation Volvo S60 (2019-2025 in the US market) rides on the SPA (Scalable Product Architecture) platform and is notable for being the first Volvo ever built in the United States, at Volvo's Ridgeville, South Carolina plant. Despite sharing a single platform and a single engine family (VEA 2.0L inline-four) across every model year, the SPA S60 still generates catalog returns from three critical sources: the T5/T6 to B5 naming transition at MY2022 (which involved adding a 48-volt mild hybrid system with an integrated starter-generator, changing the entire starting/charging architecture); the T8 plug-in hybrid's mid-cycle removal of its supercharger at MY2022 (changing the engine from twincharged to turbo-only, with a more powerful electric motor and larger battery compensating); and the two fundamentally different AWD systems that coexist on the platform (Haldex mechanical on B5 AWD vs. electric rear axle drive on T8, with no propeller shaft or rear differential on the T8). These splits look minor on the surface because every S60 has the same 2.0L four-cylinder engine block, but the electrical architecture, boost system, starting/charging system, and drivetrain hardware differ substantially across trim designations and model years.
Generation Overview (2019-2025 US Market)
The SPA S60 debuted as a 2019 model, replacing the P3 S60. It is Volvo's first vehicle built in America. The 2025 model year is confirmed as the final year of S60 production.
Key timeline:
2019 (MY2019): US launch. Three powertrain tiers: T5 (2.0L turbo, 250 hp, FWD, TG-81SC eight-speed auto), T6 (2.0L turbo+supercharged/twincharged, 316 hp, AWD, TG-81SC), T8 Twin Engine (2.0L twincharged + rear electric motor, 400 hp combined, eAWD, TG-81SC). All VEA four-cylinder. 12-volt electrical architecture on T5 and T6. Sensus infotainment with 9-inch touchscreen. No manual transmission available on any SPA Volvo.
2020 (MY2020): Continuation. T8 battery capacity increases from 10.4 kWh to 11.6 kWh. Polestar Engineered variant debuts as a T8 trim with Ohlins suspension, Brembo brakes, and Polestar chassis/software calibration (not a separate engine tune -- same 400/415 hp T8 drivetrain). T6 R-Design continues.
2021 (MY2021): T8 rebranded as "T8 Recharge" (marketing change). Keyless entry, BLIS, LED headlights, and rear parking sensors become standard across lineup. T5 and T6 continue with 12-volt architecture.
2022 (MY2022): Major powertrain transition. T5 and T6 both replaced by new B5 designation. B5 adds 48-volt mild hybrid system with integrated starter-generator (ISG), replacing conventional starter and alternator. B5 output: 247 hp (vs. T5's 250 hp) plus mild hybrid electric assist. B5 available FWD or AWD. T6 (twincharged, non-hybrid) discontinued. Mid-year: T8 Recharge revised -- supercharger removed from engine, more powerful rear electric motor fitted, larger lithium-ion battery. Updated T8 output: 455 hp combined (up from 400 hp). This mid-year T8 variant is sometimes called "Extended Range." Polestar Engineered continues on T8 platform. Sensus infotainment continues on most 2022 models.
2023 (MY2023): Infotainment transition. Google-based Android Automotive OS (AAOS) replaces Sensus on all models. New center display software, new digital gauge cluster integration. T8 continues with supercharger-free Extended Range configuration (455 hp). S60 Polestar Engineered discontinued after this year. B5 continues.
2024 (MY2024): Continuation. B5 (FWD or AWD) and T8 Recharge (eAWD) remain. Trim simplification begins.
2025 (MY2025): Final model year. B5 (247 hp, FWD or AWD) and T8 (455 hp, eAWD). "Recharge" branding dropped from T8. Trim levels: Core, Plus, Ultra. Black Edition appearance package on Ultra. S60 production ends after MY2025. No 2026 model year S60. No SPA2 replacement announced for S60.
Platform facts:
Platform: SPA (Scalable Product Architecture). Shared with S90, V60, V90, XC60, XC90.
Assembly: Ridgeville, South Carolina, USA. First Volvo built in America.
Body style: Four-door sedan only. Wagon = V60. No S60 Cross Country on SPA (the P3 Cross Country was the last).
Engine family: VEA (Volvo Engine Architecture), all 2.0L inline-four. No other engine family offered on SPA S60.
Transmission: Aisin-Warner TG-81SC eight-speed automatic on all models. No manual available.
Timing: Belt-driven on all VEA engines (requires scheduled replacement -- this is a common misconception, as many owners assume the modern 2.0L has a chain).
Power steering: Electric (EPAS) on all models, all years.
Why the SPA S60 Causes Catalog Errors
1. T5/T6 to B5 Naming Transition (MY2022)
The "T5" (2019-2021) and "B5" (2022-2025) badges represent the base powertrain, but they are not identical:
T5 (2019-2021):
2.0L turbo four-cylinder, 250 hp, 258 lb-ft
12-volt conventional electrical architecture
Conventional starter motor and alternator (separate components)
No mild hybrid system
B5 (2022-2025):
2.0L turbo four-cylinder, 247 hp, 258 lb-ft, plus electric assist from ISG
48-volt mild hybrid electrical architecture
Integrated starter-generator (ISG) replaces both starter and alternator
48-volt lithium-ion battery (in addition to 12-volt battery)
DC-DC converter (steps 48V down to 12V for legacy systems)
What differs between T5 and B5:
Starter motor: T5 has conventional 12V starter. B5 has no conventional starter -- the ISG handles engine starting.
Alternator: T5 has conventional belt-driven alternator. B5 has no alternator -- the ISG handles charging.
ISG (Integrated Starter-Generator): B5 only. Belt-driven unit between engine and transmission that functions as both starter and generator, plus provides mild electric torque assist.
Battery system: T5 has single 12V battery. B5 has 48V lithium-ion battery plus 12V battery plus DC-DC converter.
Accessory belt routing: Different between T5 (drives alternator) and B5 (drives ISG, different routing).
Engine wiring harness: Different between 12V architecture and 48V architecture.
Engine management calibration: Different.
What is the same between T5 and B5:
Engine block, cylinder head, pistons, crankshaft, connecting rods, timing belt, turbocharger
TG-81SC eight-speed transmission (same unit)
Electric power steering (EPAS)
Most suspension components
Body panels
The T6 (2019-2021, twincharged, 316 hp) was also discontinued at MY2022, replaced by B5 as the sole non-hybrid powertrain. There is no "B6" on the SPA S60 (though there is on the XC60 and XC90). The T6's Eaton supercharger, charge air routing, and supercharger drive belt do not exist on the B5.
2. T8 Plug-In Hybrid -- Supercharger Removal at MY2022
The T8 underwent a significant mid-cycle revision during the 2022 model year:
Early T8 (2019-early 2022):
Engine: 2.0L twincharged (turbo + Eaton supercharger), approximately 313 hp from ICE alone
Rear electric motor: 87 hp
Combined output: 400 hp (415 hp with Polestar Optimization)
Battery: 10.4 kWh (2019) or 11.6 kWh (2020-early 2022)
Electric range: approximately 22 miles
Late T8 / Extended Range (mid-2022-2025):
Engine: 2.0L turbo only (supercharger removed), approximately 312 hp from ICE alone
Rear electric motor: More powerful motor
Combined output: 455 hp
Battery: Larger capacity
Electric range: approximately 41 miles
What differs:
Supercharger: Present on early T8, absent on late T8. The supercharger, its drive belt, intercooler routing, and intake plumbing are present on early T8 and do NOT exist on late T8.
Rear electric motor: Different unit (more powerful on late T8).
Battery pack: Different capacity, potentially different physical dimensions and mounting.
Engine management calibration: Different.
Front engine accessories: Different belt routing (no supercharger drive on late T8).
The mid-2022 transition means some 2022 T8 models have superchargers and some do not. Build date or VIN decode is required to determine which configuration a 2022 T8 has.
3. Two Completely Different AWD Systems
The SPA S60 uses two fundamentally different AWD architectures depending on the powertrain:
B5 AWD / T5 AWD / T6 AWD (Haldex Mechanical):
Conventional Haldex electronically controlled coupling
Propeller shaft running from front transaxle to rear differential
Rear differential with rear axle shafts
Mechanical connection between front and rear axles
The engine drives the front wheels through the transmission, and the Haldex system distributes torque to the rear wheels as needed
T8 eAWD (Electric Rear Axle Drive):
NO propeller shaft. NO rear differential. NO mechanical connection to rear axle.
Front wheels driven by gasoline engine through transmission
Rear wheels driven by independent electric motor mounted on rear axle
"Through the road" hybrid AWD -- the front and rear axles have completely separate power sources
High-voltage battery pack, motor controller, high-voltage wiring, and charging system
Plug-in charging port and associated charging hardware
These two AWD systems share zero components. A B5 AWD rear subframe has provisions for a Haldex differential and propeller shaft. A T8 rear subframe has provisions for an electric motor and high-voltage connections. They are not interchangeable. The rear suspension components may also differ in calibration and mounting due to the different weight distribution (the T8's battery pack and electric motor add significant mass at the rear).
4. Infotainment Transition -- Sensus to AAOS (MY2023)
Pre-2023 (Sensus):
Volvo Sensus infotainment system
9-inch portrait touchscreen
Apple CarPlay and Android Auto
Sensus-specific center display module
2023-2025 (Android Automotive OS / AAOS):
Google-based Android Automotive OS
9-inch portrait touchscreen (similar hardware, different software)
Google Maps built-in, Google Assistant voice control
AAOS-specific center display module and software stack
Different digital instrument cluster integration
The center display module hardware and software differ between Sensus and AAOS. For infotainment module replacements, always confirm model year and whether the vehicle has Sensus or AAOS.
5. Polestar Engineered (2020-2023 T8 Only)
The Polestar Engineered trim was available on the S60 T8 from 2020-2023 (discontinued on S60 after 2023). It adds:
Ohlins adjustable dampers (unique to Polestar Engineered)
Brembo brakes (larger front rotors and different calipers than standard S60)
Gold/yellow seatbelts, brake calipers, and interior accents
Polestar chassis calibration
Unique wheel design
Polestar Engineered suspension and brake components do NOT interchange with standard S60. The Polestar Engineered is always a T8 (eAWD, plug-in hybrid).
Note: "Polestar Optimization" is a separate software-only upgrade available on many Volvo models (including non-Polestar Engineered S60s). It does not change hardware.
Complete Powertrain Reference (US Market)
T5 (2019-2021) -- 2.0L Turbo, 12-Volt
Designation: T5
Engine: VEA B4204T23 variant (turbocharged only), 2.0L (1,969cc) inline-four
Bore x stroke: 82mm x 93.2mm
Output: 250 hp, 258 lb-ft
Aspiration: Single turbocharger, intercooled
Electrical: 12-volt conventional (starter + alternator)
Timing: Belt-driven (service interval applies)
Transmission: TG-81SC eight-speed auto
Drive: FWD standard, AWD optional (Haldex)
Power steering: EPAS
T6 (2019-2021) -- 2.0L Twincharged, 12-Volt
Designation: T6
Engine: VEA B4204T23 variant (turbo + Eaton supercharger), 2.0L inline-four
Output: 316 hp, 295 lb-ft
Aspiration: Turbocharger + Eaton supercharger (twincharged), intercooled
Electrical: 12-volt conventional
Timing: Belt-driven
Transmission: TG-81SC eight-speed auto
Drive: AWD standard (Haldex)
Notes: Supercharger drive belt, supercharger unit, and twincharged intercooler routing are unique to T6. Discontinued after MY2021.
B5 (2022-2025) -- 2.0L Turbo, 48-Volt Mild Hybrid
Designation: B5
Engine: VEA third-generation variant, 2.0L (1,969cc) inline-four
Output: 247 hp + mild hybrid electric assist, 258 lb-ft
Aspiration: Single turbocharger, intercooled (no supercharger)
Electrical: 48-volt mild hybrid with ISG (integrated starter-generator), 48V lithium-ion battery, DC-DC converter, plus 12V battery
Timing: Belt-driven
Transmission: TG-81SC eight-speed auto
Drive: FWD standard, AWD optional (Haldex)
Power steering: EPAS
Notes: Third-generation VEA has revised cylinder head, revised turbo mounting position, revised PCV/oil separator, and the ISG replacing starter and alternator. The B5 engine is not identical to the T5 engine despite sharing the same basic block architecture.
T8 / T8 Recharge (2019-2025) -- 2.0L Twincharged or Turbo + Electric Motor, Plug-In Hybrid
Early T8 (2019-early 2022): Twincharged + Electric
Engine: VEA 2.0L turbo + Eaton supercharger (twincharged), approximately 313 hp ICE
Rear electric motor: 87 hp, 177 lb-ft
Combined output: 400 hp, 472 lb-ft (415 hp with Polestar Optimization)
Battery: 10.4 kWh (2019), 11.6 kWh (2020-early 2022)
Electric range: approximately 22 miles
Drive: eAWD (electric rear axle, no propeller shaft, no rear differential)
Transmission: TG-81SC (some sources list TG-81SD for PHEV variant)
Late T8 / Extended Range (mid-2022-2025): Turbo Only + Electric
Engine: VEA 2.0L turbo only (supercharger removed), approximately 312 hp ICE
Rear electric motor: More powerful unit
Combined output: 455 hp, 523 lb-ft
Battery: Larger capacity (approximately 18.8 kWh usable on latest models)
Electric range: approximately 41 miles
Drive: eAWD
Notes: Build date or VIN decode required for 2022 models to determine early vs. late T8.
Transmission Reference
TG-81SC Eight-Speed Automatic (All Models, All Years)
Single transmission family across entire SPA S60 production
Variants: Standard (B5/T5/T6) and PHEV (T8, sometimes designated TG-81SD)
Notes: The T8 PHEV variant integrates with the high-voltage hybrid system and may have different software calibration and torque converter specifications from the non-hybrid variant. Always specify hybrid vs. non-hybrid when ordering transmission components.
Critical Fitment Splits
Split 1: T5/T6 12-Volt (2019-2021) vs. B5 48-Volt Mild Hybrid (2022-2025)
Different electrical architecture. ISG replaces starter and alternator. Different 48V battery, DC-DC converter, wiring harness, accessory belt routing. Hard boundary at MY2021/2022 for starting/charging components.
Split 2: Early T8 Twincharged (2019-mid 2022) vs. Late T8 Turbo-Only Extended Range (mid 2022-2025)
Supercharger present vs. absent. Different rear electric motor. Different battery capacity. Different front engine accessory routing. Mid-2022 build date split -- VIN decode required for 2022 T8 models.
Split 3: B5/T5/T6 Haldex AWD vs. T8 eAWD
Two completely different AWD systems. Haldex has propeller shaft and rear differential. T8 has electric rear axle motor, no propeller shaft, no rear differential. Different rear subframes, different rear suspension calibration. Zero interchange.
Split 4: T6/Early T8 Twincharged vs. T5/B5/Late T8 Turbo-Only
T6 and early T8 have Eaton supercharger, supercharger drive belt, and twincharged charge air routing. T5, B5, and late T8 have turbo only -- no supercharger. Supercharger-related components do not exist on turbo-only models.
Split 5: Sensus Infotainment (2019-2022) vs. AAOS (2023-2025)
Different infotainment software and center display module. Confirm model year for any infotainment component.
Split 6: Standard S60 vs. Polestar Engineered (2020-2023 T8)
Ohlins dampers, Brembo brakes, and Polestar-specific calibration do not interchange with standard S60 suspension and brakes.
Split 7: SPA S60 (2019-2025) vs. P3 S60 (2011-2018) vs. P2 S60 (2001-2009)
Three completely different platforms. Zero interchange. No 2010 S60 in US. P3 ended at 2018, SPA started at 2019.
Split 8: FWD vs. Haldex AWD vs. T8 eAWD
Three drivetrain configurations: FWD (no rear drive components), Haldex AWD (mechanical -- propeller shaft, Haldex coupling, rear differential), T8 eAWD (electric -- rear motor, high-voltage system, no mechanical rear drive). Always specify exact drivetrain.
Biggest Return Traps and How to Prevent Them
Trap 1: T5 Starter or Alternator for B5 (or Vice Versa)
What happens: A conventional 12V starter or alternator ships to a 2023 B5 owner. The B5 has no conventional starter or alternator -- it uses an integrated starter-generator (ISG). Conversely, an ISG ships to a 2020 T5 owner who needs a conventional starter.
Prevention: Hard boundary at MY2021/2022. Always confirm model year and powertrain designation (T5 vs. B5).
Trap 2: Supercharger Components for Late T8 (or Vice Versa)
What happens: An Eaton supercharger, supercharger drive belt, or twincharged intercooler routing ships to a 2024 T8 owner whose engine has no supercharger. Or turbo-only intake parts ship to a 2020 T8 with the twincharged setup.
Prevention: For 2019-2021 T8: always twincharged. For 2023-2025 T8: always turbo-only. For 2022 T8: VIN decode or build date required -- mid-year split.
Trap 3: Haldex AWD Parts for T8 eAWD (or Vice Versa)
What happens: A propeller shaft, Haldex coupling, or rear differential ships to a T8 owner. The T8 has no propeller shaft, no Haldex coupling, and no rear differential -- it uses an electric motor on the rear axle. Or high-voltage rear motor components ship to a B5 AWD owner with Haldex mechanical drive.
Prevention: Always confirm exact powertrain designation. B5 AWD / T5 AWD / T6 AWD = Haldex (mechanical). T8 = eAWD (electric). These two AWD systems share zero components.
Trap 4: T6 Twincharged Parts for B5 Turbo-Only
What happens: A supercharger belt or twincharged intercooler assembly ships to a 2023 B5 owner. The B5 has no supercharger.
Prevention: T6 was discontinued after MY2021. B5 replaced both T5 and T6 from MY2022. B5 is turbo-only, never twincharged. Confirm designation.
Trap 5: Standard Suspension for Polestar Engineered
What happens: Standard struts or brake rotors ship to a Polestar Engineered owner with Ohlins dampers and Brembo brakes.
Prevention: Always distinguish "S60" from "S60 Polestar Engineered." Polestar Engineered has unique suspension and brakes. Available 2020-2023 on T8 only.
Trap 6: AAOS Infotainment Module for Sensus Car (or Vice Versa)
What happens: A Google-based AAOS center display module ships to a 2021 owner with Sensus. Or a Sensus module ships to a 2024 owner with AAOS.
Prevention: Hard boundary at MY2022/2023. 2019-2022 = Sensus. 2023-2025 = AAOS.
Trap 7: P3 S60 (2011-2018) Parts for SPA S60 (2019-2025)
What happens: A P3 headlight, bumper, or suspension component ships to an SPA S60 owner. Different platform entirely.
Prevention: P3 S60 = 2011-2018. SPA S60 = 2019-2025. Hard generation boundary.
Trap 8: Non-PHEV Transmission Parts for T8 PHEV (or Vice Versa)
What happens: A standard TG-81SC torque converter ships to a T8 owner whose PHEV variant (TG-81SD) has different specifications.
Prevention: Always specify hybrid vs. non-hybrid for transmission components.
SPA Platform Cross-Reference Notes
The SPA S60 shares its platform with the V60, S90, V90, XC60, and XC90. Engine and transmission components cross-reference with other SPA models carrying the same powertrain designation and model year.
Body: S60 body panels are unique to the S60 and do not interchange with V60, S90, XC60, or XC90.
Suspension: SPA S60 and V60 share the same wheelbase and much of the same suspension architecture. Springs and damper calibration may differ between S60, V60, and V60 Cross Country. The XC60 and XC90 have different suspension geometry entirely.
Brakes: Front brake specifications may differ between B5 (smaller brakes) and T8 (larger brakes due to higher performance). Polestar Engineered has the largest front brakes (Brembo).
Infotainment: SPA models sharing the same infotainment system (Sensus or AAOS) and the same model year may share center display modules, but verify part number by specific model due to vehicle-specific software.
Data Quality Checklist for Catalog Managers
Required attributes for every SPA S60 (2019-2025) parts listing:
Model year: 2019 through 2025. Critical boundaries at 2021/2022 (T5/T6 to B5, T8 supercharger removal mid-year, 48V introduction) and 2022/2023 (Sensus to AAOS infotainment).
Powertrain designation: T5 (2019-2021), T6 (2019-2021), B5 (2022-2025), or T8/T8 Recharge (2019-2025). This determines electrical architecture (12V vs. 48V), supercharger presence, AWD type, and hybrid components.
For 2022 T8: Build date or VIN decode to determine early (twincharged, 400 hp) vs. late (turbo-only Extended Range, 455 hp).
Drivetrain: FWD, Haldex AWD, or T8 eAWD. These three configurations are physically different.
Model variant: Standard S60 or Polestar Engineered (2020-2023 T8 only). Polestar Engineered has unique suspension and brakes.
Infotainment: Sensus (2019-2022) or AAOS (2023-2025). Required for any infotainment hardware.
Buyer Confirmation Prompts
Before shipping any part for an SPA S60 (2019-2025), confirm:
"What model year is your S60?" This determines electrical architecture (12V vs. 48V), available powertrains, and infotainment system.
"What powertrain does your S60 have: T5, T6, B5, or T8 (plug-in hybrid)?" This determines supercharger presence, electrical architecture, and AWD type. If T8 and MY2022: "Was your car built before or after mid-2022? Does it have visible exhaust tips? Does it have a supercharger?" (Early 2022 T8 has supercharger and dual exhaust tips; late 2022 T8 does not.)
"FWD, AWD, or plug-in hybrid?" This distinguishes between no rear drive hardware, Haldex mechanical AWD, and T8 electric rear axle drive.
"Is your S60 the standard model or Polestar Engineered?" Polestar Engineered has unique Ohlins suspension and Brembo brakes.
The Business Case: Why Fitment Data Pays for Itself
The SPA S60 looks deceptively simple: one platform, one engine family, one transmission family, seven model years. But the T5-to-B5 transition changes the entire starting and charging system (conventional starter/alternator to ISG, 12V to 48V). The T8's mid-year supercharger removal creates a build-date-dependent split that catalogs cannot resolve with model year alone. And the two AWD systems -- Haldex mechanical on B5/T5/T6 and electric rear axle on T8 -- share zero rear drivetrain components despite both being called "AWD" on the same vehicle nameplate.
The minimum required attributes are: model year, powertrain designation (T5/T6/B5/T8), drivetrain (FWD/Haldex AWD/eAWD), and variant (standard vs. Polestar Engineered). For 2022 T8 models, build date is also required. Without powertrain designation, you will ship starters to ISG cars, supercharger belts to turbo-only cars, and propeller shafts to electric-axle cars.
The 2025 model year is the final S60. As the S60 exits production and enters the aftermarket-only phase of its lifecycle, accurate fitment data becomes even more critical -- these vehicles will be serviced for another decade, and every parts lookup will require disambiguation between the multiple powertrain and electrical architectures that coexisted on what appears to be a single, simple platform.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
