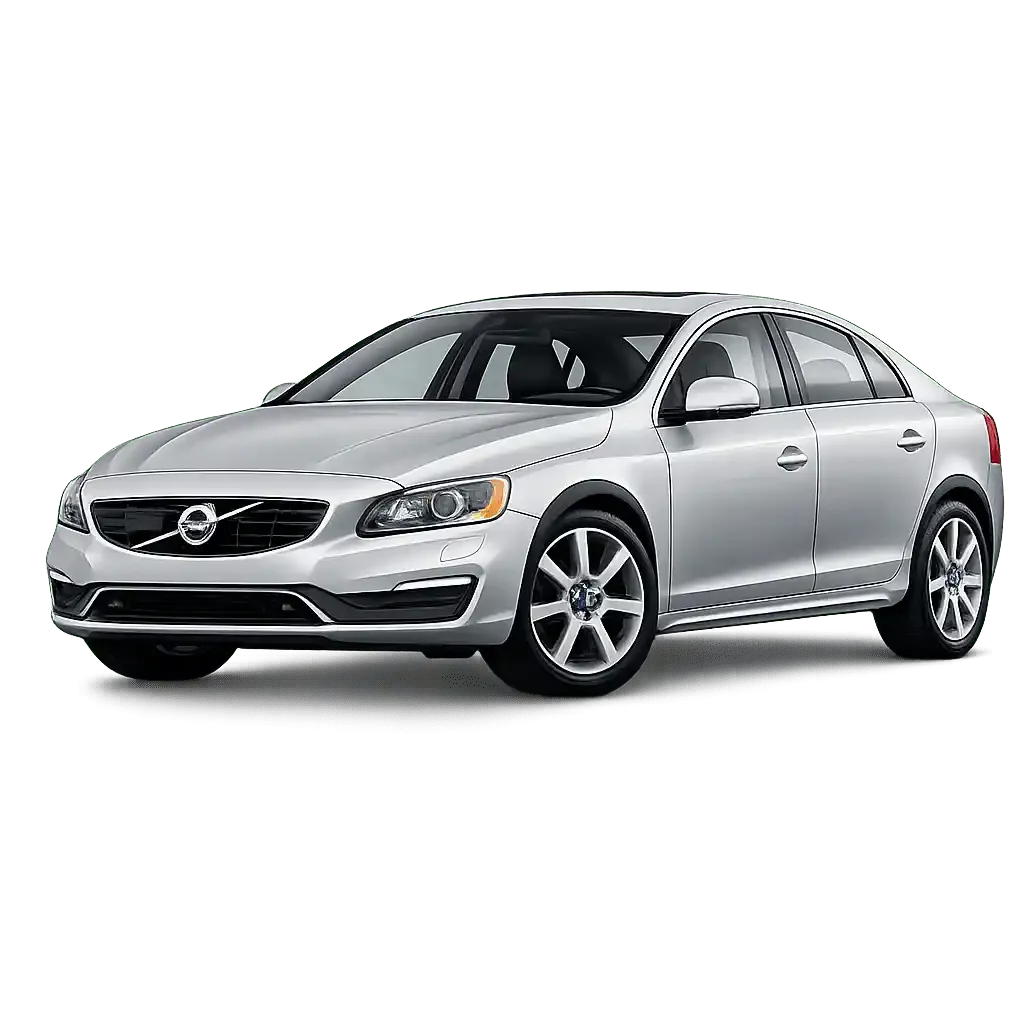

Volvo S60 (P3 Platform) 2011-2018 Second Generation
The Complete Fitment Guide
Returns destroy margins. The second-generation Volvo S60 (2011-2018 in the US market) sat on the P3 platform for eight model years and managed to pack in three completely different engine families, two completely different transmissions, two different power steering systems, a major facelift, the addition of a long-wheelbase Inscription variant, a Cross Country raised-sedan variant, and the Polestar performance model. The P3 S60 is a catalog nightmare because the "T5" and "T6" badges each hide two completely different engines and transmissions depending on model year. A 2012 S60 T5 has a 2.5-liter turbocharged five-cylinder with a six-speed automatic and hydraulic power steering. A 2017 S60 T5 has a 2.0-liter turbocharged four-cylinder with an eight-speed automatic and electric power steering. Both say "T5" on the trunk lid. Both are "P3 S60" in every catalog database. And they share zero engine, transmission, or power steering components with each other. The same split applies to "T6" -- which can mean either a 3.0-liter turbocharged inline-six or a 2.0-liter turbo-plus-supercharged four-cylinder depending on the year. Without engine-family-level filtering, every powertrain search on the P3 S60 has approximately a coin-flip chance of shipping the wrong parts.
Generation Overview (2011-2018 US Market)
The P3 S60 debuted as a 2011 model year vehicle (no 2010 S60 existed), replacing the P2 S60. It was built on the P3 platform (Ford EUCD derivative, shared with S80, V70, XC60, XC70, and V60). Production for the US market ran through the 2018 model year, replaced by the SPA-platform third-generation S60 for 2019.
Key timeline:
2011-2013 (MY2011-2013): Launch and early years. Two engine tiers for US: T5 (2.5L turbo five-cylinder, B5254T12, 250 hp, FWD or AWD) and T6 (3.0L turbo inline-six SI6, B6304T4, 300 hp, AWD standard). Single transmission: Aisin-Warner TF-80SC six-speed automatic on both. T6 AWD only. T5 available FWD or AWD. Power steering: Hydraulic on T5 AWD, electric on some FWD models (verify by year). R-Design appearance package available on T6 (325 hp software tune on B6304T4 from 2013, same engine code).
2014 (MY2014): Major facelift. New front end from A-pillar forward: new hood, front fenders, front fascia, wider grille with larger Ironmark, new headlights with LED DRLs. New rear integrated exhaust tips. Optional adaptive digital TFT instrument cluster. Drive-E four-cylinder begins appearing: T5 Drive-E FWD (B4204T11, 2.0L turbo four, 240 hp, TG-81SC eight-speed auto, electric PS). However, T5 AWD retains the five-cylinder (B5254T12, TF-80SC six-speed, hydraulic PS). T6 retains SI6 inline-six (B6304T4, TF-80SC). S60 Polestar introduced (B6304T5, 350 hp SI6, Ohlins suspension, Brembo brakes, TF-80SC with Polestar calibration, AWD).
2015-2016 (MY2015-2016): Drive-E expansion. T5 FWD = four-cylinder B4204T11, TG-81SC eight-speed, electric PS. T5 AWD = five-cylinder B5254T12, TF-80SC six-speed, hydraulic PS. T6 Drive-E FWD = four-cylinder B4204T23 (2.0L turbo+supercharged, 302 hp), TG-81SC eight-speed, electric PS. T6 AWD (SI6) = inline-six B6304T4 (300-325 hp), TF-80SC six-speed, hydraulic PS. S60 Cross Country debuts as 2016 model (five-cylinder T5 AWD only). S60 Inscription (long wheelbase, +80mm) available. Polestar continues with SI6.
2017-2018 (MY2017-2018): Five-cylinder and inline-six fully phased out. All models now use VEA four-cylinder engines with TG-81SC eight-speed auto and electric PS. T5 (B4204T11, 240 hp, FWD or AWD). T6 (B4204T23, 302 hp turbo+supercharged, AWD). T6 R-Design uses same four-cylinder. Polestar switches from SI6 to VEA four-cylinder (B4204T23 variant, approximately 362 hp, turbo+supercharged, TG-81SC). S60 Cross Country switches to four-cylinder for 2017-2018. S60 discontinued after 2018.
Platform facts:
Platform: P3 (Ford EUCD derivative)
Assembly: Ghent, Belgium (standard S60). Chengdu, China (S60 Inscription/S60L).
Body style: Four-door sedan. Also available as S60 Inscription (long wheelbase, China-built), S60 Cross Country (raised sedan), and V60 (wagon, separate model).
Engine families: Whiteblock five-cylinder turbo (2011-2016), SI6 inline-six turbo (2011-2016), VEA four-cylinder turbo/twincharged (2014-2018).
Transmissions: TF-80SC six-speed auto (five-cylinder and SI6), TG-81SC eight-speed auto (VEA four-cylinder).
Drive: FWD or AWD depending on model. AWD uses Haldex electronically controlled coupling.
Why the P3 S60 Causes Catalog Errors
1. Three Engine Families Under Two Badges
This is the single most return-generating trap on the P3 S60. The "T5" badge covers two completely different engines, and the "T6" badge covers two completely different engines, across the same generation. The engine family determines the transmission, power steering type, and entire front-end packaging.
T5 -- Two Different Engines:
Five-cylinder T5 (2011-2016): B5254T12, 2.5L (2,497cc) turbo inline-five, 250 hp. TF-80SC six-speed auto. Hydraulic PS. Timing belt. Denso engine management. AWD available.
Four-cylinder T5 Drive-E (2014-2018): B4204T11, 2.0L (1,969cc) turbo inline-four, 240 hp. TG-81SC eight-speed auto. Electric PS (EPAS). Timing chain. Bosch engine management. FWD only until MY2017 when AWD became available on the four-cylinder.
T6 -- Two Different Engines:
SI6 T6 (2011-2016): B6304T4, 3.0L (3,192cc) turbo inline-six, 300-325 hp. TF-80SC six-speed auto. Hydraulic PS. Timing chain. Denso engine management. AWD standard.
Four-cylinder T6 Drive-E (2015-2018): B4204T23, 2.0L (1,969cc) turbo+supercharged (twincharged) inline-four, 302 hp. TG-81SC eight-speed auto. Electric PS (EPAS). Timing chain. Bosch engine management. FWD (2015-2016) or AWD (2016-2018 R-Design).
During 2014-2016, BOTH engine families were sold simultaneously under the same badge. A 2015 S60 "T5" could be either the five-cylinder or the four-cylinder. A 2015 S60 "T6" could be either the inline-six or the four-cylinder. The differentiator in marketing was "Drive-E" (four-cylinder) vs. "T5 AWD" (five-cylinder), but catalogs and search filters do not reliably capture this.
2. Two Completely Different Transmissions
TF-80SC Six-Speed Automatic:
Paired with: Five-cylinder (B5254T12) and SI6 inline-six (B6304T4)
Fluid: Volvo-specified ATF (different from TG-81SC fluid)
Notes: No traditional user-serviceable filter (Volvo "lifetime fill" specification). Case shape varies between five-cylinder and SI6 applications (different bellhousing).
TG-81SC Eight-Speed Automatic:
Paired with: VEA four-cylinder (B4204T11, B4204T23) exclusively
Fluid: Different specification from TF-80SC
Notes: Completely different architecture. Different filter, solenoids, torque converter, valve body.
Zero components interchange between these two transmissions.
3. Two Different Power Steering Systems
Hydraulic Power Steering:
Used on: Five-cylinder T5 AWD (all years), SI6 T6 (all years), early Polestar (SI6)
Components: Belt-driven hydraulic pump, fluid reservoir, high-pressure and return lines, hydraulic rack
Fluid: Power steering fluid required
Electric Power Assist Steering (EPAS):
Used on: All VEA four-cylinder models (T5 Drive-E, T6 Drive-E, late Polestar)
Components: Electric motor on or in steering rack, EPAS control module
No fluid, no pump, no hydraulic lines
The steering racks are physically different between hydraulic and EPAS systems. The power steering type follows the engine family, not the badge: if the car has a four-cylinder, it has EPAS. If it has a five-cylinder or six-cylinder, it has hydraulic.
4. The 2014 Facelift
The 2014 model year brought a comprehensive visual refresh:
Pre-facelift (2011-2013):
Original front end with smaller grille, original headlight shape
Original rear bumper without integrated exhaust tips
Original instrument cluster (analog)
Post-facelift (2014-2018):
All-new front panels from A-pillar forward: new hood, front fenders, front fascia
Wider grille with larger Ironmark badge
New headlights with LED daytime running lights
Integrated exhaust tips at rear
Optional adaptive digital TFT instrument cluster
Front body panels (hood, fenders, bumper cover, headlights, grille) do NOT interchange across the 2013/2014 boundary. Interior dash and trim pieces may also differ.
5. S60 Model Variants
Standard S60: Normal wheelbase sedan. The default.
S60 Inscription (S60L): Long wheelbase variant, +80mm in wheelbase for increased rear legroom. Built in Chengdu, China. Available from 2015 in US. Different rear doors, different B-pillar-to-C-pillar body structure, different rear seat, different rear floor pan. NOT the same body as the standard S60 behind the A-pillar.
S60 Cross Country: Raised suspension (+65mm), unique body cladding, standard AWD. Separate model. 2016 = five-cylinder. 2017-2018 = four-cylinder. (Covered in detail in the separate S60 Cross Country guide.)
6. The Polestar -- Two Different Eras
S60 Polestar (2014-2016, SI6 Engine):
B6304T5: 3.0L turbo inline-six, 350 hp, 369 lb-ft
TF-80SC six-speed auto with Polestar shift calibration and launch control
Haldex AWD with Polestar torque distribution calibration
Ohlins adjustable shock absorbers, Brembo brakes (371mm front rotors)
Unique Polestar Blue paint, unique aero kit, unique interior
S60 Polestar (2017-2018, VEA Engine):
B4204T23 variant: 2.0L turbo+supercharged four-cylinder, approximately 362 hp
TG-81SC eight-speed auto with Polestar calibration
Haldex AWD
Ohlins suspension, Brembo brakes
Unique exterior and interior
The SI6 Polestar and VEA Polestar share zero engine, transmission, or power steering components. The Ohlins dampers and Brembo brakes may differ in specification between the two eras as well. Always specify model year when ordering any Polestar-specific component.
7. SI6 Inline-Six vs. VEA Four-Cylinder -- Different Everything
The SI6 and VEA are not just different displacements. They are completely different engine families:
SI6 (B6304T4/T5):
Cylinder count: Six
Displacement: 3.0L (3,192cc)
Bore x stroke: 82mm x 100.3mm (T2, early) or 82mm x 100.3mm
Architecture: Volvo-designed, Ford-of-Britain built
Timing: Chain-driven (but chain tensioner and guides are a known failure point)
Engine management: Denso
Mounted: Transverse inline-six (very tight packaging, known for turbo and accessory access difficulty)
VEA (B4204T11/T23):
Cylinder count: Four
Displacement: 2.0L (1,969cc)
Bore x stroke: 82mm x 93.2mm
Architecture: Volvo Engine Architecture, all-new modular design
Timing: Chain-driven
Engine management: Bosch
T23 variant: Twincharged (turbo + Eaton supercharger on same engine)
Different cylinder count, different displacement, different engine management manufacturer, different accessories, different belt routing, different oil filter, different air filter, different exhaust system, different engine mounts. The T23 twincharged variant adds a supercharger that the T11 turbo-only variant lacks -- the T23 intake manifold, supercharger, and boost plumbing do NOT interchange with the T11.
8. P3 S60 (2011-2018) vs. P2 S60 (2001-2009) vs. SPA S60 (2019+)
Three completely different platforms. Zero interchange. The P3 S60 debuted as a 2011 model (no 2010 S60 in US). The SPA S60 debuted as a 2019 model.
Complete Powertrain Reference (US Market)
Five-Cylinder -- T5 (2011-2016)
B5254T12 / B5254T14: 2.5L Whiteblock Turbo Five-Cylinder
Displacement: 2.5L (2,497cc) inline-five
Bore x stroke: 83mm x 92.3mm
Compression ratio: 9.5:1
Aspiration: Single turbocharger, intercooled
Valvetrain: DOHC, 20-valve, dual CVVT
Output: 250 hp at 5,400 rpm, 266 lb-ft at 1,800-4,200 rpm
Engine management: Denso
Timing: Belt-driven
Transmission: TF-80SC six-speed automatic
Power steering: Hydraulic (speed-sensitive on AWD)
Drive: FWD or AWD (Haldex)
Availability: 2011-2016 (T5 AWD retained five-cylinder through 2016 even after Drive-E T5 FWD appeared in 2014)
Notes: B5254T14 is the final revision for MY2016 with slightly different calibration (249 hp). Same bore/stroke.
SI6 Inline-Six -- T6 (2011-2016) and Polestar (2014-2016)
B6304T4: 3.0L SI6 Turbo Inline-Six (T6, 2011-2016)
Displacement: 3.0L (3,192cc) inline-six
Bore x stroke: 82mm x 100.3mm
Compression ratio: 9.3:1
Aspiration: Single turbocharger, intercooled
Valvetrain: DOHC, 24-valve, dual CVVT
Output: 300 hp (standard T6) or 325 hp (T6 R-Design, 2013+, software tune)
Engine management: Denso
Timing: Chain-driven
Transmission: TF-80SC six-speed automatic
Power steering: Hydraulic
Drive: AWD standard (Haldex)
Notes: "Short Inline 6" (SI6) -- transverse-mounted, very compact packaging. Known issues with timing chain tensioner wear, oil trap/PCV system failures, and turbo wastegate actuator.
B6304T5: 3.0L SI6 Turbo Inline-Six (Polestar, 2014-2016)
Displacement: 3.0L (3,192cc) inline-six
Output: 350 hp at 5,250 rpm, 369 lb-ft
Differences from T4: Larger twin-scroll turbocharger, upgraded intercooler, stainless steel exhaust, Polestar engine management calibration with launch control
Transmission: TF-80SC with Polestar shift calibration
Suspension: Ohlins adjustable dampers (unique to Polestar)
Brakes: Brembo calipers with 371mm front rotors (unique to Polestar)
VEA Four-Cylinder -- T5 Drive-E (2014-2018) and T6 Drive-E (2015-2018)
B4204T11: 2.0L VEA Turbo Four-Cylinder (T5 Drive-E)
Displacement: 2.0L (1,969cc) inline-four
Bore x stroke: 82mm x 93.2mm
Compression ratio: 10.8:1
Aspiration: Single turbocharger, intercooled
Output: 240 hp at 5,500 rpm, 258 lb-ft at 1,500-4,800 rpm
Engine management: Bosch
Timing: Chain-driven
Transmission: TG-81SC eight-speed automatic
Power steering: Electric (EPAS)
Drive: FWD (2014-2016), FWD or AWD (2017-2018)
Notes: PZEV variant (B4204T12, 237 hp) for California.
B4204T23: 2.0L VEA Twincharged Four-Cylinder (T6 Drive-E)
Displacement: 2.0L (1,969cc) inline-four
Bore x stroke: 82mm x 93.2mm
Compression ratio: 10.3:1
Aspiration: Turbocharger + Eaton supercharger (twincharged), intercooled
Output: 302 hp at 5,700 rpm, 295 lb-ft at 2,100-4,500 rpm
Engine management: Bosch
Timing: Chain-driven
Transmission: TG-81SC eight-speed automatic
Power steering: Electric (EPAS)
Drive: FWD (early), AWD available (2016+ R-Design, 2017+)
Notes: The twincharged setup adds an Eaton supercharger for low-end response and a turbocharger for high-end power. The supercharger, its drive belt, intercooler routing, and intake plumbing are unique to the T23 and do not exist on the T11.
Transmission Reference
TF-80SC Six-Speed Automatic (Five-Cylinder and SI6, 2011-2016)
Paired with: B5254T12/T14 (five-cylinder) and B6304T4/T5 (SI6)
Notes: Bellhousing/torque converter differs between five-cylinder and SI6 applications. Volvo "lifetime fill" fluid specification. No traditional user-serviceable filter. FWD and AWD variants (AWD integrates with Haldex).
TG-81SC Eight-Speed Automatic (VEA Four-Cylinder, 2014-2018)
Paired with: B4204T11 and B4204T23 exclusively
Notes: Completely different from TF-80SC. Different fluid specification, different architecture.
Critical Fitment Splits
Split 1: Engine Family -- Five-Cylinder vs. SI6 Six-Cylinder vs. VEA Four-Cylinder
The most important split. Three completely different engine families with different cylinder counts, displacements, timing systems, engine management manufacturers, and associated transmissions/steering systems. The engine family must be identified before any powertrain component can be ordered.
Split 2: Transmission -- TF-80SC Six-Speed vs. TG-81SC Eight-Speed
Follows engine family. Five-cylinder and SI6 = TF-80SC. VEA four-cylinder = TG-81SC. Zero interchange.
Split 3: Power Steering -- Hydraulic vs. EPAS
Follows engine family. Five-cylinder T5 AWD and SI6 T6 = hydraulic. VEA four-cylinder (all variants) = electric EPAS. Different steering racks.
Split 4: Pre-Facelift (2011-2013) vs. Post-Facelift (2014-2018)
All-new front panels from 2014. Hood, fenders, bumper cover, grille, headlights do not interchange. Interior trim changes.
Split 5: T5 AWD (Five-Cylinder, Through 2016) vs. T5 Drive-E FWD (Four-Cylinder, 2014+)
Both carry "T5" badge simultaneously in 2014-2016. Different engine, transmission, and power steering. The AWD/FWD distinction was the primary differentiator in those overlap years: T5 AWD = five-cylinder, T5 FWD/Drive-E = four-cylinder.
Split 6: T6 AWD SI6 (Through 2016) vs. T6 Drive-E (Four-Cylinder, 2015+)
Both carry "T6" badge simultaneously in 2015-2016. Different engine (six-cylinder vs. twincharged four-cylinder), different transmission, different power steering.
Split 7: Standard S60 vs. S60 Inscription (Long Wheelbase)
Inscription has +80mm wheelbase. Different rear doors, B-to-C pillar structure, rear floor pan, rear seat. China-built vs. Belgium-built. Powertrain components interchange but body panels behind the A-pillar do not.
Split 8: Standard S60 vs. S60 Cross Country
Cross Country has +65mm ride height, unique suspension, unique body cladding. Covered in separate guide. Suspension and exterior body cladding do not interchange.
Split 9: Standard S60 vs. Polestar
Polestar has unique engine calibration (SI6 Polestar: B6304T5; VEA Polestar: B4204T23 variant), Ohlins dampers, Brembo brakes, unique body kit. Suspension and brake components do not interchange with standard S60.
Split 10: SI6 Polestar (2014-2016) vs. VEA Polestar (2017-2018)
Two completely different engines, transmissions, and power steering systems within the Polestar sub-model.
Split 11: TF-80SC Five-Cylinder vs. TF-80SC SI6
Same transmission family but different bellhousing/torque converter between the five-cylinder and SI6 applications. Torque converter and flexplate do not interchange.
Split 12: R-Design -- SI6 Era vs. VEA Era
2013-2016 R-Design could have SI6 inline-six (325 hp B6304T4). 2016-2018 R-Design has VEA four-cylinder (302 hp B4204T23). Different engine, different transmission, different everything. The "R-Design" badge alone does not identify the powertrain.
Split 13: P2 S60 (2001-2009) vs. P3 S60 (2011-2018) vs. SPA S60 (2019+)
Three platforms. Zero interchange. No 2010 S60 in US.
Biggest Return Traps and How to Prevent Them
Trap 1: VEA Four-Cylinder Parts for Five-Cylinder or SI6 (or Vice Versa)
What happens: A four-cylinder timing chain kit, four-pack of ignition coils, or TG-81SC transmission filter ships to a 2014 T5 AWD owner who has the five-cylinder with timing belt, five ignition coils, and TF-80SC six-speed.
Prevention: Always confirm engine family, not just badge. "T5 AWD" through 2016 = five-cylinder. "T5 Drive-E" or "T5 FWD" from 2014 = four-cylinder. Ask: "Is your engine a five-cylinder, six-cylinder, or four-cylinder?"
Trap 2: SI6 Parts for Five-Cylinder or Vice Versa
What happens: A B6304T4 inline-six turbocharger ships to a T5 owner with a B5254T12 five-cylinder. Completely different engines.
Prevention: T5 = five-cylinder (or four-cylinder Drive-E). T6 = six-cylinder (or four-cylinder Drive-E). Always confirm cylinder count.
Trap 3: TG-81SC Eight-Speed Parts for TF-80SC Six-Speed or Vice Versa
What happens: Eight-speed fluid or filter ships to a six-speed car.
Prevention: Confirm engine family. Four-cylinder = eight-speed. Five-cylinder or six-cylinder = six-speed.
Trap 4: Pre-Facelift (2011-2013) Front Body Parts for Post-Facelift (2014-2018)
What happens: 2012 headlights ship to a 2015 owner. Different shape, different mounting, different LED DRL provisions.
Prevention: Hard boundary at 2013/2014 for all front body panels.
Trap 5: Hydraulic Steering Components for EPAS Car or Vice Versa
What happens: Hydraulic PS pump ships to a four-cylinder Drive-E owner with no hydraulic system. Or EPAS module ships to a five-cylinder/SI6 owner with hydraulic.
Prevention: Follows engine family. Four-cylinder = EPAS. Five-cylinder/six-cylinder = hydraulic.
Trap 6: Standard S60 Suspension for Polestar
What happens: Standard struts or shocks ship to a Polestar owner with Ohlins adjustable dampers. Or standard brake rotors ship when the Polestar has 371mm Brembo fronts.
Prevention: Always distinguish "S60" from "S60 Polestar." Polestar suspension and brakes are unique.
Trap 7: Standard S60 Body Parts for S60 Inscription (Long Wheelbase)
What happens: Standard S60 rear door ships to an Inscription owner. Different door length due to +80mm wheelbase.
Prevention: Always distinguish standard S60 from S60 Inscription.
Trap 8: T6 Drive-E Supercharger Components for T5 Drive-E
What happens: Supercharger belt, intercooler routing, or intake plumbing for the twincharged B4204T23 ships to a T5 Drive-E owner with the turbo-only B4204T11. The T11 has no supercharger.
Prevention: Always specify T5 vs. T6 for VEA four-cylinder components. The T6 twincharged system has additional components that do not exist on the T5 turbo-only.
Trap 9: SPA S60 (2019+) Parts for P3 S60 (2011-2018)
What happens: Third-generation SPA component ships to second-generation P3 owner.
Prevention: P3 S60 = 2011-2018. SPA S60 = 2019+. Hard boundary.
Data Quality Checklist for Catalog Managers
Required attributes for every P3 S60 (2011-2018) parts listing:
Model year: 2011 through 2018. Critical boundaries at 2013/2014 (facelift, Drive-E introduction), and 2016/2017 (five-cylinder/SI6 phaseout, all models go four-cylinder).
Engine family and code: Five-cylinder Whiteblock (B5254T12/T14), SI6 inline-six (B6304T4/T5), or VEA four-cylinder (B4204T11 turbo / B4204T23 twincharged). This determines transmission, power steering, timing system, and engine management.
Transmission: TF-80SC six-speed (five-cylinder and SI6) or TG-81SC eight-speed (VEA four-cylinder).
Power steering: Hydraulic (five-cylinder T5 AWD, SI6 T6) or EPAS (all VEA four-cylinder).
Drivetrain: FWD or AWD.
Model variant: Standard S60, S60 Inscription (long wheelbase), S60 Cross Country (raised), or S60 Polestar. Each has unique components.
Facelift status: Pre-facelift (2011-2013) or post-facelift (2014-2018). Required for front body panels.
Polestar era (if applicable): SI6 Polestar (2014-2016) or VEA Polestar (2017-2018).
Buyer Confirmation Prompts
Before shipping any part for a P3 S60 (2011-2018), confirm:
"What model year is your S60?" This determines facelift status and narrows the available engine families.
"How many cylinders does your engine have: four, five, or six?" This is the most important single question. It determines engine family, transmission type, and power steering type. For 2014-2016 models, badge alone (T5 or T6) does NOT identify the engine -- both badges could be either the old or new engine.
"Is your S60 the standard model, Inscription (long wheelbase), Cross Country (raised), or Polestar?" Each has unique body and/or suspension components.
"FWD or AWD?"
The Business Case: Why Fitment Data Pays for Itself
The P3 S60 is one of the most split-dense vehicles in the Volvo lineup. Three engine families, two transmissions, two steering systems, a facelift, four body variants, and a Polestar model that itself changed engines mid-run. The overlap years of 2014-2016, when both old (five-cylinder/SI6) and new (VEA four-cylinder) powertrains were sold simultaneously under the same T5 and T6 badges, are the worst for catalog accuracy. A customer searching for "2015 S60 T5 air filter" could have either a five-cylinder air filter housing or a four-cylinder one, with completely different shapes.
The minimum required attribute is cylinder count. With just that single data point, you can determine engine family, transmission, and power steering type. Without it, every powertrain search in the 2014-2016 overlap years has a roughly 50% chance of shipping the wrong part. IPD, FCP Euro, and other Volvo specialists have already standardized on asking customers to check their engine bay cover to identify four-cylinder vs. five-cylinder vs. six-cylinder. Aftermarket catalogs that do not enforce this check will see elevated return rates on every P3 S60 powertrain listing.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
