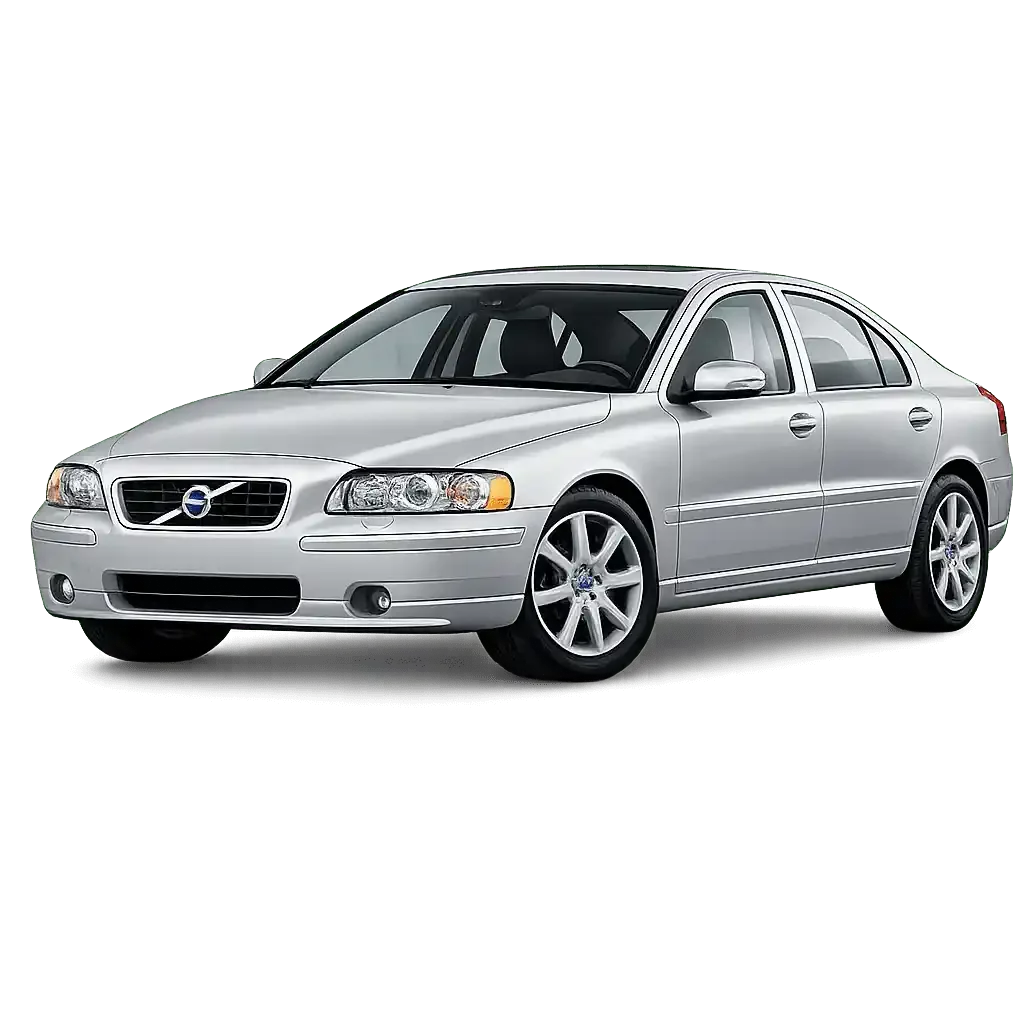

Volvo S60 (P2 Platform) 2001-2009 First Generation
The Complete Fitment Guide
Returns destroy margins. The first-generation Volvo S60 (2001-2009 in the US market) was Volvo's compact sports sedan on the P2 platform, running for nine model years with four distinct engine tiers, four different transmissions, a major T5 engine displacement change at 2004/2005, the addition and eventual deletion of the high-performance S60 R model, a mid-cycle facelift, and the introduction of AWD partway through the run. The P2 S60 shares its platform with the P2 V70 wagon, XC70 Cross Country, S80 sedan, and XC90 SUV, but the S60 has its own unique body panels, suspension calibration (shorter wheelbase than V70/S80), and some brake specifications. For aftermarket catalogs, the P2 S60 generates returns from three primary sources: the T5 engine displacement change from 2.3L to 2.4L at the 2004/2005 boundary (different bore, different turbo, different exhaust manifold design); the S60 R's unique Four-C active suspension, 300 hp engine, and R-specific body panels that do not interchange with standard S60 models; and the three different automatic transmissions used across the production run (AW55-50/51 five-speed, M66 six-speed manual on R, and TF-80SC six-speed automatic on late R models). Every single "S60 T5" search spans two completely different engines across the production run, and every "S60 R" search spans two completely different automatic transmissions.
Generation Overview (2001-2009 US Market)
The P2 S60 launched as a 2001 model year vehicle, replacing the P80 S70 sedan. It was built on the P2 platform (shared with the S80, V70, XC70, and later XC90) and was Volvo's sportiest sedan at launch. Production ran through the 2009 model year, making it one of the longest-running single-generation Volvos.
Key timeline:
2001 (MY2001): US launch. Three engine tiers: 2.4L NA (B5244S, 168 hp, FWD only), 2.4T low-pressure turbo (B5244T3, 197 hp, FWD), 2.3L T5 high-pressure turbo (B5234T3, 247 hp, FWD). Transmissions: M56 five-speed manual (base and T5), AW55-50/51 five-speed automatic (all models). All FWD.
2002 (MY2002): Continuation. AWD introduced as option on 2.4T automatic models (Haldex coupling, AW55-51 AWD variant).
2003 (MY2003): 2.4T badge renamed to 2.5T. Engine changes to B5254T2 (2.5L, 208 hp, dual CVVT, new integrated exhaust manifold/turbo design). AWD available with 2.5T. 2.3L T5 continues.
2004 (MY2004): S60 R introduced. R engine: B5254T4 (2.5L, 300 hp, dual CVVT, BorgWarner K24 turbo, 8.5:1 compression). R transmission: M66 six-speed manual (AWD) or AW55-51 five-speed automatic (AWD, torque-limited to 258 lb-ft in 1st/2nd gear). R suspension: Four-C electronically adjustable active chassis. R body: Unique front bumper, rear bumper, side skirts, interior trim. Standard S60 models continue with NA, 2.5T, and 2.3L T5 engines. S60 2.4 NA dropped after this year.
2005 (MY2005): Major T5 engine change. T5 engine changes from B5234T3 (2.3L, 81mm bore, Mitsubishi TD04HL-16T turbo) to B5244T5 (2.4L, 81mm bore, 93.2mm stroke, BorgWarner K24 turbo, dual CVVT, 257 hp). The new T5 shares the smaller bore (81mm) with the old 2.3L but gains the longer stroke from the 2.5L family. M66 six-speed manual now available on T5 (previously M56 five-speed only). Facelift: Body-colored bumper trim and door/rocker panel moldings replace black plastic. Clear-lens headlights replace amber-corner units. New taillights with transparent lenses. S60 R continues with AW55-51 auto or M66 manual, both AWD.
2006-2007 (MY2006-2007): S60 R automatic transmission changes from AW55-51 five-speed to TF-80SC six-speed. The TF-80SC is no longer torque-limited in lower gears, allowing the R engine's full torque in all gears. S60 R available through MY2007 only. Standard S60 continues with 2.5T and T5.
2008-2009 (MY2008-2009): S60 R discontinued. Standard S60 continues with 2.5T and T5 only. Minor cosmetic updates for 2008 (revised grille, turn signals integrated into mirrors). S60 discontinued after MY2009, replaced by P3 S60 as a 2011 model.
Platform facts:
Platform: P2 (shared with S80, V70, XC70, XC90 first generation)
Assembly: Ghent, Belgium
Body style: Four-door sedan only. The wagon version is the V70.
Engine family: Volvo Modular Engine (Whiteblock), all inline-five cylinder.
Transmissions: M56 five-speed manual, M66 six-speed manual (2004+ T5 and R), AW55-50/51 five-speed automatic, TF-80SC six-speed automatic (2006-2007 R only).
Drive: FWD standard on all non-R models. AWD optional on 2.4T/2.5T (2002+), standard on R (2004-2007). FWD available on T5.
Why the P2 S60 Causes Catalog Errors
1. The T5 Engine Displacement Change at 2004/2005
The "T5" badge spans two completely different high-pressure turbo engines:
2001-2004 T5: B5234T3
Displacement: 2.3L (2,319cc). Bore 81mm, stroke 90mm.
Compression: 8.5:1
Turbo: Mitsubishi TD04HL-16T
VVT: None (2001-2002) or exhaust-only CVVT (2003-2004, verify by engine code suffix)
Output: 247 hp at 5,500 rpm, 243 lb-ft
Exhaust manifold: Traditional separate cast iron manifold, external turbo
Manual: M56 five-speed
2005-2009 T5: B5244T5
Displacement: 2.4L (2,401cc). Bore 81mm, stroke 93.2mm.
Compression: 8.5:1
Turbo: BorgWarner K24-7400
VVT: Dual CVVT (intake and exhaust)
Output: 257 hp at 5,500 rpm, 258 lb-ft
Exhaust manifold: Integrated turbo/exhaust manifold design (turbo bolts directly to head)
Manual: M66 six-speed (replacing M56)
What does NOT interchange between early T5 and late T5:
Crankshaft (different stroke: 90mm vs. 93.2mm)
Connecting rods (different length for different stroke)
Pistons (same bore but different pin height due to stroke change)
Turbocharger (Mitsubishi TD04HL vs. BorgWarner K24 -- different mounting, different flanges)
Exhaust manifold (separate casting vs. integrated with turbo housing)
Camshafts and VVT actuators (no VVT / exhaust-only vs. dual CVVT)
Cylinder head (different VVT provisions)
Manual transmission (M56 five-speed vs. M66 six-speed)
Engine management calibration
What DOES generally interchange between early T5 and late T5:
Timing belt (both are belt-driven, though verify part number by engine code)
Many external sensors
Some accessory components
Clutch slave/master cylinder (mechanical clutch actuation shared)
2. Four Engine Tiers with Three Different Bore Sizes
The P2 S60 US market engines used three different bore sizes across four tiers:
83mm bore, 90mm stroke (2,435cc) -- "2.4L": NA (B5244S/S2/S4, 168 hp) and early LPT (B5244T3, 197 hp)
83mm bore, 93.2mm stroke (2,522cc) -- "2.5L": LPT (B5254T2, 208 hp) and R (B5254T4, 300 hp)
81mm bore, 90mm stroke (2,319cc) -- "2.3L": Early T5 (B5234T3, 247 hp)
81mm bore, 93.2mm stroke (2,401cc) -- "2.4L": Late T5 (B5244T5, 257 hp)
The NA and early LPT share the 83mm bore with the 2.5T/R. The early T5 and late T5 share the 81mm bore with each other but not with the NA/LPT/R. Head gaskets, pistons, and cylinder liners are bore-dependent. The 83mm bore engines and 81mm bore engines do NOT share these components.
3. The 2.4T to 2.5T Transition (2002/2003)
The "2.4T" badge (2001-2002) and "2.5T" badge (2003-2009) represent two different low-pressure turbo engines:
2001-2002 2.4T: B5244T3
2.4L (2,435cc), 83mm bore, 90mm stroke
197 hp, single CVVT (exhaust), Mitsubishi TD04L turbo
Separate exhaust manifold and turbo
2003-2009 2.5T: B5254T2
2.5L (2,522cc), 83mm bore, 93.2mm stroke
208 hp, dual CVVT (intake and exhaust), integrated exhaust manifold/turbo
Bosch ME9.0 engine management (replacing ME7 on the earlier engine)
The crankshaft, connecting rods, pistons, turbocharger, exhaust manifold, camshafts, VVT actuators, and engine management all differ between the 2.4T and 2.5T. The bore is the same (83mm), so head gaskets and cylinder liners may cross-reference, but internal rotating assembly parts do not.
4. The S60 R -- Unique Everything
The S60 R (2004-2007) is not a trim level of the standard S60. It has:
Unique engine: B5254T4 (2.5L, 300 hp, 8.5:1 compression vs. 9.0:1 on the 2.5T). Different pistons (lower compression), different turbo (BorgWarner K24, larger than 2.5T's TD04L-14T), different intercooler, different exhaust manifold, different engine management calibration.
Unique transmissions: M66 AWD six-speed manual (close-ratio M66C) or AW55-51 AWD five-speed automatic (2004-2005, torque-limited to 258 lb-ft in 1st/2nd) or TF-80SC AWD six-speed automatic (2006-2007, full torque in all gears).
Unique suspension: Four-C (Four Corner) electronically adjustable active chassis with three modes (Comfort, Sport, Advanced). Individual electronically controlled dampers at each corner. Unique control module, wiring, and damper assemblies. Four-C dampers do NOT interchange with standard S60 passive dampers.
Unique brakes: Larger front rotors and calipers than standard S60 models.
Unique body: Front bumper, rear bumper/valance, side skirts, unique alloy wheels. Interior has unique seats, gauges (with boost gauge), shift knob, steering wheel.
AWD standard: All R models are AWD. No FWD R exists.
The R's B5254T4 engine is notorious for cracked cylinder liners under high boost conditions. The block is shared with the 2.5T (B5254T2) in bore and stroke but has different pistons and compression ratio. Some owners of failed R engines source 2.5T blocks as replacements, but the compression ratio difference (8.5:1 vs. 9.0:1) means the R pistons are required for R power levels.
5. Three Automatic Transmissions
AW55-50/51 Five-Speed Automatic (2001-2007):
Standard automatic on NA, 2.4T, 2.5T, T5. Optional on R (2004-2005).
FWD and AWD variants (AWD version includes different output shaft and Haldex coupling provisions).
On R models (2004-2005), torque is electronically limited to 258 lb-ft in 1st and 2nd gears to protect the transmission from the R engine's 295 lb-ft peak.
Uses specific Volvo-specified ATF (not Dexron).
TF-80SC Six-Speed Automatic (2006-2007 R Only):
Replaced AW55-51 on R model only for 2006-2007.
No torque limitation in any gear -- the TF-80SC can handle the R engine's full torque output.
AWD only (all R models are AWD).
Different fluid, different filter, different solenoids, different torque converter from AW55-51.
M56 Five-Speed Manual (2001-2004):
Standard manual on NA and early T5 (2001-2004).
FWD only in US S60 applications.
M66 Six-Speed Manual (2004-2009):
Replaced M56 on T5 from 2005 onward. Standard on R from 2004.
AWD variant (M66C close-ratio on R) and FWD variant (M66W on T5).
Different gear ratios and internal components between the R close-ratio M66C and the standard M66W.
Ford/Getrag sourced (unlike the Aisin automatics).
6. Mid-Cycle Facelift (2005)
The 2005 model year brought visible exterior changes:
Pre-facelift (2001-2004):
Black plastic bumper trim, door moldings, and rocker panel trim
Amber-corner headlight lenses
Original taillight design
Post-facelift (2005-2009):
Body-colored bumper trim, door moldings, and rocker panel trim
Clear-lens headlights (no amber corners)
Revised taillights with transparent lenses
Revised grille
Front bumper covers, headlights, taillights, door moldings, and rocker trim do NOT interchange across the 2004/2005 facelift boundary. Headlight and taillight connectors may also differ.
Additional minor refresh for 2008: Redesigned grille, turn signals integrated into side mirrors (previously on front fenders).
7. FWD vs. AWD
NA (B5244S): FWD only, all years.
2.4T (B5244T3): FWD only 2001; FWD or AWD from 2002.
2.5T (B5254T2): FWD or AWD, 2003-2009.
T5: FWD only, all years (in standard S60; not available as AWD except in some non-US markets).
R (B5254T4): AWD only, 2004-2007.
AWD models have Haldex electronically controlled coupling, propeller shaft, rear differential, rear axle shafts, and AWD-specific rear subframe. FWD models lack all of these.
8. P2 S60 (2001-2009) vs. P3 S60 (2011-2018) vs. SPA S60 (2019+)
Three completely different platforms. Zero components interchange between them. Note the gap year: there was no 2010 model year S60 in the US. The P3 S60 debuted as a 2011 model.
Complete Powertrain Reference (US Market)
Naturally Aspirated -- 2.4L
B5244S / B5244S2 / B5244S4: 2.4L NA
Displacement: 2.4L (2,435cc) inline-five
Bore x stroke: 83mm x 90mm
Compression ratio: 10.3:1
Aspiration: Naturally aspirated
Valvetrain: DOHC, 20-valve, intake cam VVT
Output: 168 hp at 5,700-6,000 rpm, 170 lb-ft
Engine management: Bosch ME7
Availability: 2001-2004 (dropped after MY2004)
Drive: FWD only
Transmissions: M56 five-speed manual or AW55-50/51 five-speed automatic
Notes: Base model engine. The S2 and S4 suffixes denote different emissions calibrations (SULEV, PZEV). 168 hp version is the most common US specification.
Low-Pressure Turbo -- 2.4T / 2.5T
B5244T3: 2.4L Low-Pressure Turbo (2.4T Badge, 2001-2002)
Displacement: 2.4L (2,435cc) inline-five
Bore x stroke: 83mm x 90mm
Compression ratio: 9.0:1
Aspiration: Single turbocharger (Mitsubishi TD04L), intercooled. Low boost.
Valvetrain: DOHC, 20-valve, exhaust cam CVVT
Output: 197 hp, approximately 210 lb-ft
Engine management: Bosch ME7
Availability: 2001-2002
Drive: FWD (2001), FWD or AWD (2002)
Transmissions: AW55-50/51 five-speed automatic only (no manual offered on 2.4T)
B5254T2: 2.5L Low-Pressure Turbo (2.5T Badge, 2003-2009)
Displacement: 2.5L (2,522cc) inline-five
Bore x stroke: 83mm x 93.2mm
Compression ratio: 9.0:1
Aspiration: Single turbocharger (Mitsubishi TD04L-14T, integrated with exhaust manifold), intercooled. Low boost.
Valvetrain: DOHC, 20-valve, dual CVVT (intake and exhaust)
Output: 208 hp at 5,000 rpm, 236 lb-ft at 1,500-4,500 rpm
Engine management: Bosch ME9.0
Availability: 2003-2009
Drive: FWD or AWD
Transmissions: AW55-51 five-speed automatic (FWD or AWD). No manual offered on 2.5T in US.
Notes: Longer stroke than B5244T3 (93.2mm vs. 90mm) means different crankshaft, connecting rods, pistons. The integrated turbo/exhaust manifold design is unique to the B5254T2 and later RNC-series Whiteblock engines. The 2.5T was ULEV-certified.
High-Pressure Turbo -- T5
B5234T3: 2.3L High-Pressure Turbo (2001-2004 T5)
Displacement: 2.3L (2,319cc) inline-five
Bore x stroke: 81mm x 90mm
Compression ratio: 8.5:1
Aspiration: Single turbocharger (Mitsubishi TD04HL-16T), intercooled. High boost.
Valvetrain: DOHC, 20-valve
Output: 247 hp at 5,500 rpm, 243 lb-ft
Engine management: Bosch ME7
Availability: 2001-2004
Drive: FWD only (US)
Transmissions: M56 five-speed manual or AW55-50/51 five-speed automatic
Notes: Same basic 2.3L T5 engine carried over from P80 S70/V70 T5. 81mm bore means pistons, liners, and head gaskets differ from the 83mm bore 2.4/2.5T engines.
B5244T5: 2.4L High-Pressure Turbo (2005-2009 T5)
Displacement: 2.4L (2,401cc) inline-five
Bore x stroke: 81mm x 93.2mm
Compression ratio: 8.5:1
Aspiration: Single turbocharger (BorgWarner K24-7400), intercooled. High boost.
Valvetrain: DOHC, 20-valve, dual CVVT (intake and exhaust)
Output: 257 hp at 5,500 rpm, 258 lb-ft
Engine management: Bosch ME7
Availability: 2005-2009
Drive: FWD (US)
Transmissions: M66 six-speed manual (W variant, FWD) or AW55-51 five-speed automatic
Notes: Combines the 81mm bore of the old 2.3L T5 with the 93.2mm stroke of the 2.5L family. This is NOT a bored-out 2.3L or a de-bored 2.5L -- it is its own displacement (2,401cc). The B5244T5 shares components with the R engine (B5254T4) in turbo type (K24) and dual VVT but has different bore (81mm vs. 83mm), different pistons, and different compression (8.5:1 same as R). Known for being a "plug and play substitute" for failed R engine blocks in the enthusiast community, though bore size difference means head gaskets differ.
S60 R -- 2.5L High-Pressure Turbo
B5254T4: 2.5L High-Pressure Turbo (2004-2007 R)
Displacement: 2.5L (2,522cc) inline-five
Bore x stroke: 83mm x 93.2mm
Compression ratio: 8.5:1
Aspiration: Single turbocharger (BorgWarner K24), intercooled. High boost.
Valvetrain: DOHC, 20-valve, dual CVVT (intake and exhaust)
Output: 300 hp at 6,000 rpm. With M66 manual: 295 lb-ft at 1,950-5,250 rpm. With AW55-51 auto: torque limited to 258 lb-ft in 1st/2nd (2004-2005). With TF-80SC auto: full torque, all gears (2006-2007).
Engine management: Bosch ME7
Availability: 2004-2007
Drive: AWD only
Transmissions: M66C six-speed manual (AWD, close-ratio) or AW55-51 five-speed automatic AWD (2004-2005, torque-limited) or TF-80SC six-speed automatic AWD (2006-2007, full torque)
Notes: Shares 83mm bore with 2.5T (B5254T2) but lower compression (8.5:1 vs. 9.0:1) with different pistons. Larger K24 turbo vs. 2.5T's TD04L-14T. Known for cracked cylinder liners under aggressive tuning. The block is architecturally similar to the 2.5T block.
Transmission Reference
M56 Five-Speed Manual (2001-2004, NA and Early T5)
Architecture: Five-speed manual, cable-shifted.
Applications: Base 2.4 NA and early T5 (B5234T3), FWD only.
Notes: Replaced by M66 on T5 from 2005. The M56 was not offered on 2.4T/2.5T in the US.
M66 Six-Speed Manual (2004-2009, R and Late T5)
Architecture: Six-speed manual, cable-shifted. Ford/Getrag sourced.
Variants: M66C (close-ratio, AWD, R model), M66W (standard ratio, FWD, T5 2005-2009).
Notes: The M66C and M66W have different gear ratios, different final drive, and different output provisions (AWD vs. FWD). They do not interchange.
AW55-50/51 Five-Speed Automatic (2001-2007)
Architecture: Five-speed automatic, torque converter, Geartronic manual shift mode.
Variants: FWD (AW55-50) and AWD (AW55-51). The AWD variant integrates with Haldex coupling.
Torque limitation on R (2004-2005): Electronically limited to 258 lb-ft in 1st and 2nd gears.
Notes: Used on all P2 60-series automatic models through 2007 (except 2006-2007 R which got TF-80SC). This is the same transmission family used in P2 S80 2.5T and XC90 2.5T.
TF-80SC Six-Speed Automatic (2006-2007 R Only)
Architecture: Six-speed automatic, torque converter, Geartronic.
Notes: Replaced AW55-51 on S60 R only for the final two R model years. No torque limitation. Different fluid, different filter, different internal architecture from AW55-51. AWD only (R is always AWD).
Critical Fitment Splits
Split 1: Early T5 (2001-2004, 2.3L B5234T3) vs. Late T5 (2005-2009, 2.4L B5244T5)
Different displacement, different stroke, different turbocharger, different exhaust manifold design, different VVT system, different manual transmission. Hard boundary at 2004/2005 for all T5 engine and transmission components.
Split 2: 2.4T (2001-2002, B5244T3) vs. 2.5T (2003-2009, B5254T2)
Different displacement (2.4L vs. 2.5L), different stroke, different crankshaft, different turbocharger, different exhaust manifold design, different engine management. Hard boundary at 2002/2003.
Split 3: Standard S60 vs. S60 R (2004-2007)
R has unique engine (B5254T4, 300 hp), unique Four-C active suspension, unique body panels, unique brakes, unique interior. Four-C dampers and control modules do NOT interchange with standard passive suspension. R body panels do not fit standard S60.
Split 4: S60 R Automatic -- AW55-51 (2004-2005) vs. TF-80SC (2006-2007)
Two completely different automatic transmissions on the R model. Hard boundary at 2005/2006 for R automatic transmission components.
Split 5: Pre-Facelift (2001-2004) vs. Post-Facelift (2005-2009)
Different headlights, taillights, bumper trim, door/rocker moldings. Body-panel-adjacent components do not interchange across the 2004/2005 boundary.
Split 6: 2008+ Minor Refresh vs. 2005-2007
Revised grille, mirror-mounted turn signals (2008+) vs. fender-mounted (2005-2007). Grille and mirror assemblies do not interchange across this boundary.
Split 7: 81mm Bore Engines (T5, All Years) vs. 83mm Bore Engines (NA, 2.4T, 2.5T, R)
Head gaskets, pistons, and cylinder liners are bore-dependent. 81mm T5 parts and 83mm NA/LPT/R parts do not interchange.
Split 8: FWD vs. AWD
AWD adds Haldex coupling, propeller shaft, rear differential, rear axle shafts, and AWD rear subframe. AW55-51 FWD and AWD versions are different transmissions. M66W (FWD) and M66C (AWD) are different transmissions.
Split 9: M56 Five-Speed (2001-2004) vs. M66 Six-Speed (2005-2009)
Different transmissions entirely. Different clutch, different flywheel, different shift linkage. Hard boundary for T5 manual transmission components at 2004/2005.
Split 10: P2 S60 (2001-2009) vs. P3 S60 (2011-2018) vs. SPA S60 (2019+)
Three completely different platforms. Zero interchange. No 2010 model year S60 in US.
Biggest Return Traps and How to Prevent Them
Trap 1: Late T5 (2.4L) Turbo for Early T5 (2.3L) or Vice Versa
What happens: A BorgWarner K24 turbocharger (2005-2009 T5) ships to a 2003 T5 owner with a Mitsubishi TD04HL-16T. Different flanges, different mounting, different exhaust manifold configuration.
Prevention: Hard year boundary. 2001-2004 T5 = Mitsubishi turbo. 2005-2009 T5 = BorgWarner K24. Always specify model year for T5 turbo components.
Trap 2: 2.5T Engine Parts for 2.4T or Vice Versa
What happens: A B5254T2 (2.5L, 93.2mm stroke) crankshaft or piston set ships to a 2002 2.4T owner with a B5244T3 (2.4L, 90mm stroke). Different stroke, different rotating assembly.
Prevention: Always specify engine code or badge (2.4T vs. 2.5T). Hard boundary at 2002/2003.
Trap 3: Standard S60 Suspension Parts for S60 R
What happens: Standard passive struts or shock absorbers ship to an S60 R owner with Four-C active suspension. The standard parts lack the electronic solenoid valves and wiring connections that the Four-C system requires.
Prevention: Always distinguish "S60" from "S60 R." Four-C suspension is R-only and has unique damper assemblies, control modules, and wiring.
Trap 4: AW55-51 (2004-2005 R) Parts for TF-80SC (2006-2007 R) or Vice Versa
What happens: A five-speed automatic filter or solenoid set ships to a 2006 R owner with a six-speed TF-80SC. Completely different transmissions.
Prevention: For R automatic models, always specify model year. 2004-2005 R auto = AW55-51 five-speed. 2006-2007 R auto = TF-80SC six-speed.
Trap 5: Pre-Facelift (2001-2004) Body Parts for Post-Facelift (2005-2009)
What happens: Black plastic bumper trim (pre-facelift) ships to a 2006 owner with body-colored trim. Or amber-corner headlights ship to a 2005+ owner with clear-lens headlights.
Prevention: Hard boundary at 2004/2005 for all exterior body panels, trim, headlights, and taillights.
Trap 6: R Body Panels for Standard S60
What happens: An R-specific front bumper cover ships to a standard S60 owner. Different mounting points, different profile, different fog light provisions.
Prevention: Always distinguish "S60" from "S60 R." R body panels are unique.
Trap 7: 81mm Bore (T5) Head Gasket for 83mm Bore (NA/2.5T/R)
What happens: A T5 head gasket (81mm bore) ships to a 2.5T owner (83mm bore). Wrong bore diameter -- will not seal properly.
Prevention: Always specify engine tier or engine code. T5 engines (all years) use 81mm bore. NA, 2.4T, 2.5T, and R engines use 83mm bore.
Trap 8: M66W (FWD T5) for M66C (AWD R) or Vice Versa
What happens: An FWD M66W clutch or internal component ships to an AWD R owner with the close-ratio M66C. Different ratios, different output shaft configuration.
Prevention: Always specify model (standard T5 vs. R) and drivetrain (FWD vs. AWD) for M66 components.
Trap 9: P3 S60 (2011+) Parts for P2 S60 (2001-2009)
What happens: A second-generation P3 S60 component ships to a first-generation P2 S60 owner. Different platform, different architecture.
Prevention: P2 S60 = 2001-2009. P3 S60 = 2011-2018. No 2010 S60 in US. Hard generation boundary.
P2 Platform Cross-Reference Notes
The P2 S60 shares its platform with the P2 V70, XC70, S80, and XC90. Engine and transmission components cross-reference with other P2 models carrying the same engine code and transmission type. The S60 has a shorter wheelbase than the V70/S80 but shares the same basic front and rear suspension architecture.
Front suspension: MacPherson strut. Springs, struts, and sway bar specifications may differ between S60, V70, and S80 due to different weight distributions and calibration targets. S60 R has unique Four-C dampers.
Rear suspension: Multilink. S60 sedan and V70 wagon have different rear spring rates (wagon is stiffer for cargo). S60 R has unique Four-C dampers.
Brakes: Front brake specifications may differ between NA/2.5T (smaller rotors) and T5/R (larger rotors). R has the largest front brake package. Always specify engine tier.
Body: S60 body panels are unique to the S60 -- they do not fit the V70, XC70, S80, or XC90.
Data Quality Checklist for Catalog Managers
Required attributes for every P2 S60 (2001-2009) parts listing:
Model year: 2001 through 2009. Critical boundaries at 2002/2003 (2.4T to 2.5T), 2004/2005 (T5 engine change, facelift, M56 to M66), 2005/2006 (R auto transmission change), and 2007/2008 (R discontinued, minor cosmetic refresh).
Engine tier and code: NA (B5244S), 2.4T (B5244T3), 2.5T (B5254T2), early T5 (B5234T3), late T5 (B5244T5), or R (B5254T4). Required for all engine, turbo, exhaust, and head gasket components.
Transmission type: M56 manual, M66 manual (specify W or C variant), AW55-50/51 auto (specify FWD or AWD), or TF-80SC auto (R only, AWD only). Required for all transmission components.
Drivetrain: FWD or AWD. AWD adds Haldex coupling, propeller shaft, rear differential.
Model variant: Standard S60 or S60 R. R has unique suspension (Four-C), body panels, brakes, engine, and potentially different transmission.
Facelift status: Pre-facelift (2001-2004) or post-facelift (2005-2009). Required for all exterior body panels, headlights, taillights, and trim pieces.
Buyer Confirmation Prompts
Before shipping any part for a P2 S60 (2001-2009), confirm:
"What model year is your S60?" This determines facelift status, available engines, and transmission options.
"What engine does your S60 have: base/naturally aspirated (2.4), 2.4T, 2.5T, T5, or R?" If T5: "Is it the 2.3-liter (2001-2004) or 2.4-liter (2005-2009)?" This determines bore size, turbo type, exhaust manifold design, and VVT system.
"Manual or automatic?" If manual: "Five-speed (M56) or six-speed (M66)?" If automatic and R model: "Five-speed (2004-2005) or six-speed (2006-2007)?"
"FWD or AWD?"
"Is your car the standard S60 or the S60 R?" The R has unique engine, suspension, body, and brakes.
The Business Case: Why Fitment Data Pays for Itself
The P2 S60 ran for nine model years with more engine changes, transmission swaps, and mid-cycle splits than almost any other Volvo of its era. The T5 badge alone spans two completely different engines across the 2004/2005 boundary, and the R model adds a third high-pressure turbo engine variant with its own unique transmission timeline. A customer searching for "S60 T5 turbo" will find parts spanning both the Mitsubishi TD04HL (2001-2004) and BorgWarner K24 (2005-2009) -- a guaranteed return if the wrong one ships.
The S60 R generates disproportionate returns because its Four-C suspension, unique body panels, and R-specific engine are frequently confused with standard S60 parts. The R's automatic transmission change from AW55-51 five-speed to TF-80SC six-speed at 2005/2006 adds another trap within the already niche R model population.
The minimum required attributes for a P2 S60 listing are: model year, engine code (not just badge), transmission type, drivetrain (FWD/AWD), model variant (standard vs. R), and facelift status. Without engine code enforcement, you will ship the wrong turbo to approximately half of T5 customers. Without R vs. standard distinction, you will ship passive dampers to Four-C cars.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
