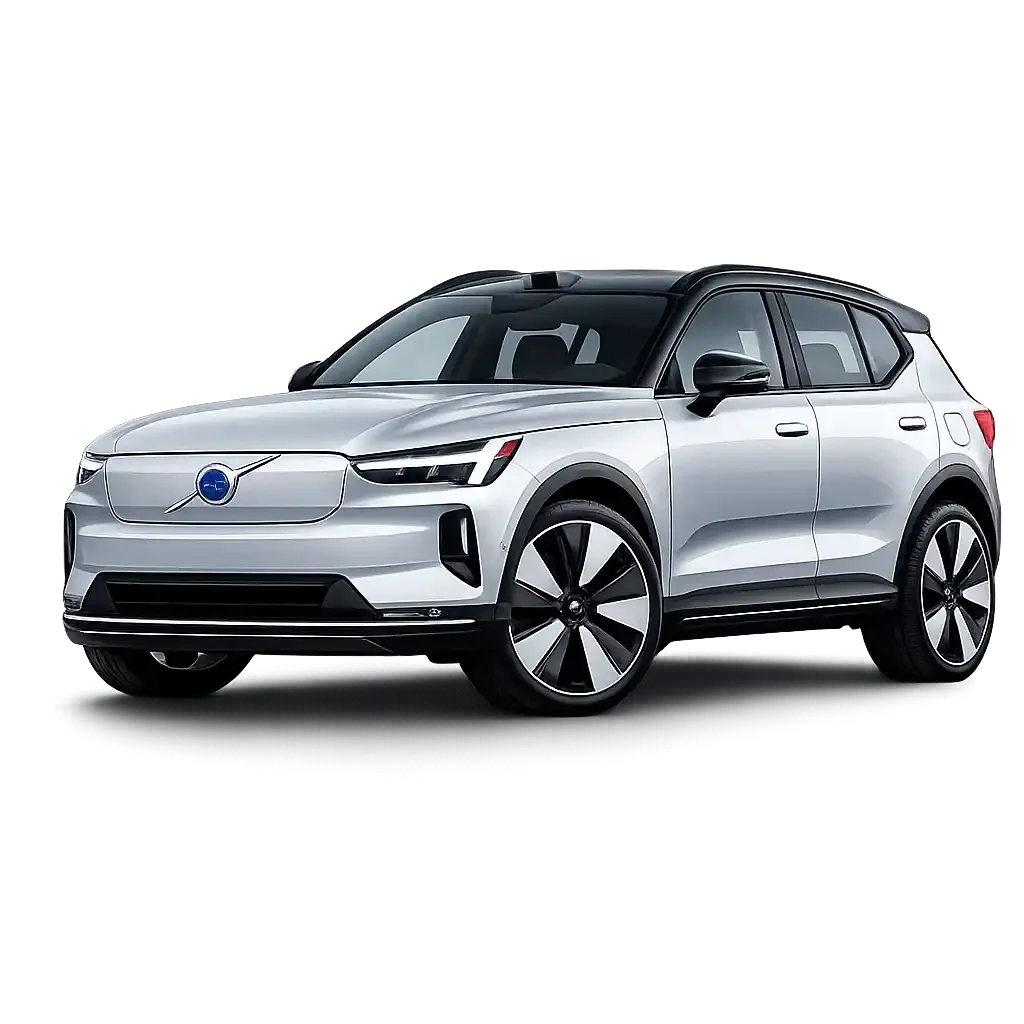

Volvo EX40 (CMA Platform) 2025-2026 US Market Fitment Guide
The Complete Fitment Guide
Returns destroy margins. The Volvo EX40 is Volvo's compact fully electric SUV, built on the CMA (Compact Modular Architecture) platform shared with the gas-powered XC40, the Polestar 2, and various Geely and Lynk & Co models. The EX40 name is new for the 2025 model year, replacing the "XC40 Recharge" badge that was used from 2021 through 2024. The vehicle itself is largely carried over from the XC40 Recharge, with the same body, the same platform, and the same basic powertrain architecture. For 2025, two powertrains are offered: a Single Motor Extended Range (248 hp, RWD) and a Twin Motor (402 hp, AWD), both drawing from an 82 kWh battery. The EX40 is assembled at Volvo's Ghent, Belgium plant. The EX40 carries three overlapping catalog hazards: the nameplate change from XC40 Recharge to EX40, the continued existence of the gas/mild-hybrid XC40 on the same CMA platform, and the closely related EC40 coupe variant (formerly C40 Recharge). This guide maps every fitment split required to prevent returns on Volvo's most confusingly named compact electric SUV.
Generation Overview (2025-2026 US Market)
The EX40 traces its lineage to the Volvo XC40 Recharge, which debuted in 2020 as Volvo's first mass-produced fully electric vehicle. The XC40 Recharge was itself an electric adaptation of the conventional XC40, which launched in 2018 as a compact SUV with gasoline and plug-in hybrid powertrains. Both share the CMA (Compact Modular Architecture) platform, developed by CEVT (China Euro Vehicle Technology, later renamed Zeekr Technology Europe), a subsidiary of Geely. The CMA is a "mixed-energy" platform designed from the start to support combustion, hybrid, and fully electric powertrains.
For the 2025 model year, Volvo renamed the XC40 Recharge to EX40 in the US market, aligning it with the EX-based naming convention used for the EX30 and EX90. The "XC40" name was retained exclusively for mild-hybrid gasoline models. Simultaneously, the C40 Recharge (the coupe-roofline variant) was renamed EC40 but took a one-year hiatus from the US market, returning as a 2026 model. The 2025 EX40 received a larger 82 kWh battery pack for the Twin Motor variant (up from 78 kWh in the 2024 XC40 Recharge), a slight increase in DC fast charging speed from 200 kW to 205 kW, and new interior upholstery options. The basic vehicle architecture, body, and powertrain remained unchanged.
For 2026, the EX40 carries over largely unchanged. The key update is a new Black Edition package for the Ultra trim. The trim lineup is simplified from three levels (Core, Plus, Ultra) in 2025 to two levels (Plus and Ultra Black Edition) for 2026. Powertrain options remain the same: Single Motor RWD and Twin Motor AWD.
Key Platform Facts
• Platform: CMA (Compact Modular Architecture), developed by CEVT/Zeekr Technology Europe (Geely subsidiary)
• US model years as EX40: 2025 to present (previously sold as XC40 Recharge 2021-2024)
• Assembly: Ghent, Belgium
• Battery: 82 kWh (both Single Motor and Twin Motor for 2025+; prior Twin Motor models used 78 kWh)
• Powertrain: Single Motor Extended Range RWD (248 hp) or Twin Motor AWD (402 hp)
• DC fast charging: 205 kW max, 10% to 80% in approximately 28 minutes
• Charging port: NACS (North American Charging Standard), with CCS compatibility via included adapter
• EPA range: 296 miles (Single Motor) or 260 miles (Twin Motor)
• Body style: 5-door compact SUV, 5 seats
• Towing: 2,000 lb maximum
• CMA siblings: XC40 (gas/mild hybrid), EC40 (electric coupe variant), Polestar 2 (electric sedan/liftback)
Why the EX40 Causes Catalog Errors
• XC40 Recharge to EX40 nameplate change: The EX40 IS the XC40 Recharge with a new name. Any catalog that has the XC40 Recharge listed for 2021-2024 and the EX40 listed for 2025-2026 must cross-reference them correctly, or buyers searching under one name will not find parts listed under the other. The vehicle itself is mechanically continuous across the name change.
• EX40 (BEV) vs. XC40 (ICE/mild hybrid) on the same platform: The EX40 and the gas-powered XC40 share the CMA platform and much of the same body. However, the EX40 has no engine, no transmission, no exhaust system, no fuel tank, and a completely different floor structure (battery pack occupies the underfloor). Engine bay components, powertrain mounts, exhaust, driveshaft, and fuel system are unique to the XC40. Electric motors, battery pack, high-voltage wiring, and charge port are unique to the EX40. Some body panels, doors, glass, interior trim, and suspension components may cross-reference, but powertrain and underfloor components do NOT.
• EX40 vs. EC40 (coupe variant): The EC40 (formerly C40 Recharge) shares the CMA platform, the same electric powertrain, the same front end (hood, fenders, front doors), and much of the same interior with the EX40. The key difference is the roofline: the EC40 has a coupe-style sloping rear roof. This means the EC40 has different rear quarter panels, a different tailgate/hatchback, different rear glass, different rear headliner, and different C-pillar trim. Front body panels and mechanical components generally cross-reference; everything behind the B-pillar does not.
• Single Motor RWD vs. Twin Motor AWD: The Single Motor EX40 has one motor driving the rear wheels. The Twin Motor has two motors (front and rear) providing AWD. The Twin Motor adds a front electric motor, front drive unit, front half-shafts, additional cooling lines, and different front subframe hardware. Drivetrain components from a Twin Motor will not fit a Single Motor, and vice versa.
• Battery size change at the name change: The 2024 XC40 Recharge Twin Motor used a 78 kWh battery. The 2025 EX40 Twin Motor uses an 82 kWh battery. The Single Motor used 82 kWh in both years. Battery modules and pack dimensions may differ between the 78 kWh and 82 kWh Twin Motor configurations. Always verify model year when ordering battery components for Twin Motor vehicles.
• Polestar 2 cross-reference risk: The Polestar 2 shares the CMA platform with the EX40. Some structural and suspension components may cross-reference. However, the Polestar 2 has a completely different body (sedan/liftback), different interior, different motor specifications, and different software calibration. Body, lighting, and interior components do NOT interchange.
• Trim level name changes: The 2024 XC40 Recharge top trim was called "Ultimate." The 2025 EX40 top trim is called "Ultra." For 2026, the lineup simplifies to Plus and Ultra Black Edition (the Core trim is dropped). These name changes create catalog confusion when searching by trim.
• Drivetrain layout change during production: The original 2021 XC40 Recharge launched as a front-motor FWD vehicle, then became a dual-motor AWD vehicle for 2022+. For 2024+, the Single Motor variant switched to rear-motor RWD. This means a "single motor XC40 Recharge" could be FWD (2021) or RWD (2024+), and the motor is in a completely different location. Always verify model year and motor location for drivetrain components.
Complete Powertrain Reference (US Market)
Single Motor Extended Range RWD (2025-2026)
• Configuration: Single permanent-magnet synchronous motor, rear-mounted, rear-wheel drive
• Output: 248 hp, 310 lb-ft of torque
• 0 to 60 mph: 6.9 seconds
• Drive: RWD
• Battery: 82 kWh
• EPA range: 296 miles
• DC fast charging: 205 kW max, 10% to 80% in approximately 28 minutes
• Towing: 2,000 lb
• Notes: Standard powertrain across all trim levels. No front motor, no front drive unit, no front half-shafts. The motor is located on the rear axle. This is different from the original 2021 XC40 Recharge Single Motor, which was FWD with the motor on the front axle.
Twin Motor AWD (2025-2026)
• Configuration: Dual permanent-magnet synchronous motors, one per axle, AWD
• Output: 402 hp, 494 lb-ft of torque
• 0 to 60 mph: 4.6 seconds
• Drive: AWD
• Battery: 82 kWh (upgraded from 78 kWh on the 2024 XC40 Recharge Twin Motor)
• EPA range: 260 miles
• DC fast charging: 205 kW max, 10% to 80% in approximately 28 minutes
• Towing: 2,000 lb
• Price premium: $1,750 over Single Motor on the same trim
• Notes: Adds a front electric motor, front drive unit, and front half-shafts to the Single Motor configuration. The 82 kWh battery is the same pack as the Single Motor for 2025+. Prior to 2025, the Twin Motor used a smaller 78 kWh pack.
Powertrain History (XC40 Recharge through EX40)
• 2021 XC40 Recharge (P8 AWD): Dual motor AWD, 408 hp, 78 kWh battery, 223 miles EPA range. Original configuration with front-biased motor layout.
• 2022-2023 XC40 Recharge: Revised to 402 hp Twin Motor AWD. Single Motor added as FWD then transitioned to RWD. Battery remained 78 kWh for Twin Motor; Single Motor received 82 kWh from 2024.
• 2024 XC40 Recharge: Single Motor now RWD (rear motor), 82 kWh. Twin Motor AWD, 78 kWh. DC fast charging 200 kW.
• 2025 EX40: Name change. Twin Motor now 82 kWh (matching Single Motor). DC fast charging 205 kW. Three trims: Core, Plus, Ultra.
• 2026 EX40: Carryover. Black Edition package added. Two trims: Plus, Ultra Black Edition.
Body Style and Trim Levels
The EX40 is offered in a single body style: a 5-door, 5-seat compact SUV. Maximum cargo capacity is 57.5 cubic feet with rear seats folded. The EX40 includes a small frunk (front trunk) for additional storage. The body is shared with the gas-powered XC40 from the A-pillar forward and at the roof structure, but the underfloor is unique to the electric variant due to the battery pack.
2025 Trim Levels
Core: The entry-level trim. Standard features include 19-inch wheels, 12.3-inch digital instrument cluster, 9-inch center touchscreen with Google built-in, heated front seats, wireless phone charger, Blind-Spot Monitor, Lane-Keeping Aid, rearview camera, and Fusion Microtech synthetic leather upholstery.
Plus: Adds panoramic moonroof, Connect Suede upholstery, 360-degree camera, front/side/rear parking sensors, and air purifier.
Ultra: Adds 20-inch wheels, Pixel Technology Headlights, heat pump, heated steering wheel, heated rear seats, Harman Kardon premium sound system, Adaptive Cruise Control, and Pilot Assist.
2026 Trim Levels
Plus: Carries over as the entry point, absorbing some features previously exclusive to Core.
Ultra Black Edition: Adds the Black Edition package with unique styling elements. MSRP approximately $60,850.
Catalog Accuracy: The Fitment Splits That Matter
Split 1: EX40 (BEV) vs. XC40 (ICE/Mild Hybrid)
The EX40 and XC40 share the CMA platform and much of the upper body structure. However, the EX40 has no combustion engine, no gearbox, no exhaust, no fuel tank, and a completely different underfloor (battery pack). The XC40 has no electric motors, no battery pack, no high-voltage wiring, and no charge port. Body panels (hood, fenders, doors, roof), glass, mirrors, and some interior components may cross-reference. Powertrain, underfloor, and high-voltage components do NOT cross-reference. Any catalog entry that lists "XC40/EX40" without specifying BEV or ICE for powertrain components will generate returns.
Split 2: EX40 (SUV) vs. EC40 (Coupe)
The EC40 (formerly C40 Recharge) shares the CMA platform, electric powertrain, front body, and most of the interior with the EX40. The EC40 has a coupe-style sloping rear roof that changes everything behind the B-pillar: rear quarter panels, tailgate/hatchback, rear glass, rear headliner, C-pillar trim, and roof rails. Front body panels, front doors, hood, fenders, and all mechanical/electrical components cross-reference. Rear body panels, glass, and related trim do NOT.
Split 3: Single Motor RWD vs. Twin Motor AWD
The Single Motor EX40 has one rear-mounted motor driving the rear wheels. The Twin Motor adds a front motor and front drive unit for AWD. All front drivetrain components (front motor, front drive unit, front half-shafts, front motor cooling) are exclusive to the Twin Motor. Suspension calibration may also differ due to the weight of the front motor. Note: the 2021 XC40 Recharge Single Motor was FWD (front motor), not RWD. The motor location switched to the rear for 2024+.
Split 4: 82 kWh vs. 78 kWh Battery (Twin Motor History)
The 2025+ EX40 Twin Motor uses an 82 kWh battery. The 2021-2024 XC40 Recharge Twin Motor used a 78 kWh battery. The Single Motor has used 82 kWh since 2024. Battery modules, pack dimensions, and potentially the battery management system differ between the 78 kWh and 82 kWh packs. Always specify model year for battery components. This split only applies to Twin Motor vehicles.
Split 5: XC40 Recharge (2021-2024) vs. EX40 (2025+) Nameplate
The EX40 is mechanically continuous with the XC40 Recharge. Most components cross-reference across the name change, with the exception of the Twin Motor battery upgrade (78 kWh to 82 kWh) and the minor DC fast charging speed increase (200 kW to 205 kW). Catalogs must cross-reference the two names so buyers can find parts regardless of which name they search. A "2024 XC40 Recharge Single Motor" and a "2025 EX40 Single Motor" are the same vehicle mechanically.
Split 6: EX40 vs. Polestar 2 (CMA Sibling)
The Polestar 2 shares the CMA platform with the EX40. Structural components, suspension geometry, and some brake hardware may cross-reference. However, the Polestar 2 is a sedan/liftback with a completely different body, different motor specifications, different interior, and different software. Body, lighting, interior, and vehicle-specific electronics do NOT interchange.
Split 7: 2025 Trim (Core/Plus/Ultra) vs. 2026 Trim (Plus/Ultra Black Edition)
The Core trim is dropped for 2026. The Ultra becomes Ultra Black Edition with unique styling elements. Some trim-specific components (Pixel Technology Headlights on Ultra only, heat pump on Ultra only, standard vs. 20-inch wheels) are tied to trim level. Always verify trim and model year for trim-specific exterior and interior components.
Biggest Return Traps and How to Prevent Them
Trap 1: XC40 Gas Engine Parts Shipped to EX40 Owner
What happens: Engine, transmission, exhaust manifold, catalytic converter, fuel pump, or fuel injectors listed for "XC40" ship to an EX40 owner. The EX40 has no combustion engine. Nothing fits.
Prevention: Always specify powertrain type: EX40 (fully electric) or XC40 (gas/mild hybrid). Never list parts under a generic "XC40" without specifying fuel type.
Trap 2: EC40 Rear Body Parts for EX40
What happens: An EC40 (coupe) tailgate, rear quarter panel, or rear glass ships to an EX40 (SUV) owner. The sloping coupe roofline creates completely different rear body geometry.
Prevention: Always specify model: EX40 (SUV roofline) or EC40 (coupe roofline). Front body and mechanical parts cross-reference; rear body does not.
Trap 3: Twin Motor Front Drive Components for Single Motor Owner
What happens: A front electric motor, front drive unit, or front half-shaft from a Twin Motor AWD ships to a Single Motor RWD owner. The Single Motor has no front motor or front drivetrain.
Prevention: Always specify powertrain: Single Motor Extended Range (RWD) or Twin Motor (AWD).
Trap 4: Wrong Battery Pack Size for Twin Motor
What happens: A 78 kWh battery module from a 2024 XC40 Recharge Twin Motor ships to a 2025 EX40 Twin Motor owner who has the 82 kWh pack, or vice versa.
Prevention: Always specify model year AND powertrain for battery components. 2025+ Twin Motor = 82 kWh. 2021-2024 Twin Motor = 78 kWh. Single Motor = 82 kWh (2024+).
Trap 5: Parts Listed Under Wrong Name (XC40 Recharge vs. EX40)
What happens: A buyer searching for "EX40" parts cannot find listings because the catalog only has them under "XC40 Recharge," or vice versa. The buyer orders the wrong part from a different listing, or abandons the search entirely.
Prevention: Cross-reference both names in the catalog. The 2025+ EX40 is the same vehicle as the 2021-2024 XC40 Recharge Pure Electric. Both names should appear in search results.
Trap 6: FWD Motor for RWD Vehicle (Early vs. Late Single Motor)
What happens: A front-mounted motor from a 2021 XC40 Recharge Single Motor (FWD) ships to a 2025 EX40 Single Motor (RWD) owner. The motor is in a completely different location.
Prevention: Always specify model year for Single Motor drivetrain components. 2021 = front motor FWD. 2024+ = rear motor RWD. Motor location, mounting brackets, and half-shafts differ completely.
Trap 7: Polestar 2 Body Parts Cross-Referenced to EX40
What happens: A bumper, headlight, or interior panel from a Polestar 2 ships to an EX40 owner because both share the CMA platform. The bodies are completely different.
Prevention: Always specify model: EX40, EC40, Polestar 2, or XC40. CMA platform sharing does not mean body interchangeability.
CMA Platform Family: What Interchanges and What Does Not
Components That May Cross-Reference Across CMA Electric Models (EX40, EC40)
• Electric powertrain: Motors, drive units, inverters, and battery pack cross-reference between EX40 and EC40 for the same model year and powertrain configuration.
• Front body: Hood, front fenders, front bumper, headlights, front doors, and front glass cross-reference between EX40 and EC40.
• Suspension: Front and rear suspension components (struts, control arms, wheel bearings, stabilizer bars) generally cross-reference across CMA electric models.
• Brakes: Brake calipers, rotors, and pads cross-reference for the same wheel size.
• Interior (forward of B-pillar): Dashboard, steering wheel, front seats, front door panels, and center console cross-reference between EX40 and EC40.
Components That May Cross-Reference Between EX40 and XC40 (ICE)
• Upper body: Some body panels (hood, fenders, doors, roof structure), glass, mirrors, exterior trim, and door handles may cross-reference.
• Suspension: Some suspension arms, bushings, and wheel bearings may cross-reference, though spring rates and damper calibrations differ due to the EX40's heavier battery weight.
• Interior: Dashboard layout, some seat frames, and door panels may cross-reference.
Components That Do NOT Interchange
• Powertrain: Electric motors, battery pack, high-voltage wiring, charge port, onboard charger, DC-DC converter, and power electronics are exclusive to the EX40/EC40. Engine, gearbox, exhaust, fuel system, and starter are exclusive to the XC40 ICE.
• Underfloor: The EX40 has a battery pack integrated into the floor structure. The XC40 has a traditional floor pan with a fuel tank. Floor panels, cross-members, and structural reinforcements differ.
• Rear body (EX40 vs. EC40): Everything behind the B-pillar differs between the EX40 (upright SUV roof) and EC40 (sloping coupe roof): tailgate, rear quarters, rear glass, roof spoiler, rear headliner.
• Polestar 2 body: All body panels, lighting, and interior are unique to the Polestar 2. Do not cross-reference to EX40 or XC40.
Aftermarket Parts Cross-Reference Notes
Known service items: As a BEV, the EX40 has no engine oil, engine filters, spark plugs, transmission fluid, or exhaust system. Primary service items include cabin air filter, brake fluid, brake pads and rotors (reduced wear from regenerative braking), tire rotation and replacement, windshield washer fluid, coolant (for battery thermal management and motor cooling), 12V auxiliary battery, and wiper blades.
Assembly and tariff note: The EX40 is assembled in Ghent, Belgium. Its battery pack uses cells from CATL and LG Chem under long-term supply agreements. Unlike the US-assembled EX90, the EX40 is imported and may not qualify for the full $7,500 federal EV tax credit when purchased outright, though leasing arrangements may still provide the incentive.
Specialist sources: The XC40 Recharge / EX40 has been on the market since 2021, and the aftermarket has had time to develop parts coverage. FCP Euro, IPD, and various European parts specialists carry EX40-compatible components. Volvo Parts Webstore (parts.volvocars.com) provides OE part number lookup by VIN. Due to the shared CMA platform, some suspension and brake components are cross-referenced from Polestar 2 and XC40 applications.
Future platform change warning: A next-generation EX40 on the new SPA3 platform has been confirmed by Volvo for future model years. When this arrives, it will be a completely different vehicle with a new platform, new battery architecture, and new body. The current CMA-based EX40 and the future SPA3-based EX40 will share a nameplate and nothing else. This will create the same cross-reference firewall that exists between the NedCar S40 and P1 S40, or the XC90 SPA1 and EX90 SPA2.
Data Quality Checklist for Catalog Managers
Required attributes for every EX40 parts listing:
• Model: EX40 (2025+) or XC40 Recharge (2021-2024). Cross-reference both names.
• Fuel type: Fully electric (BEV). Distinguish from XC40 gas/mild hybrid and XC40 T8 plug-in hybrid.
• Model year: Critical for battery size (78 kWh vs. 82 kWh Twin Motor), motor location (FWD vs. RWD Single Motor), and trim availability.
• Powertrain: Single Motor Extended Range (RWD, 248 hp) or Twin Motor (AWD, 402 hp)
• Body type: EX40 (SUV roofline) or EC40 (coupe roofline) for rear body components
• Trim: Core, Plus, or Ultra (2025) / Plus or Ultra Black Edition (2026)
• Wheel size: 19-inch (Core/Plus) or 20-inch (Ultra) for brake and tire compatibility
Buyer Confirmation Prompts
Before shipping any part for an EX40, confirm:
• "Is your vehicle the EX40 (fully electric) or the XC40 (gas/hybrid)?"
• "What is the exact model year?" (Critical for battery size, motor location, and name.)
• "Is your vehicle the Single Motor (rear-wheel drive) or Twin Motor (all-wheel drive)?"
• "Is your vehicle the EX40 (standard SUV roof) or the EC40 (sloping coupe roof)?"
• "What trim level: Core, Plus, or Ultra?" (Determines wheel size, headlight type, and equipment.)
The Business Case: Why Fitment Data Pays for Itself
The EX40 occupies a uniquely confusing position in Volvo's lineup. It shares a platform with the gas XC40, shares a powertrain architecture with the EC40 coupe, shares a platform with the Polestar 2, carries a brand-new name for a five-year-old vehicle, and has undergone a motor location change (FWD to RWD) and a battery size change (78 to 82 kWh) during its production run. The nameplate change alone is generating catalog confusion: buyers searching for "EX40" parts may find nothing if listings are still under "XC40 Recharge."
The highest-volume service items are tires, brake pads, cabin air filters, coolant, wiper blades, and 12V batteries. The Single Motor vs. Twin Motor split is the most important powertrain attribute: any front drivetrain component listed without specifying AWD/RWD is a return waiting to happen. The EX40/XC40 ICE split is critical for powertrain, underfloor, and fuel/electrical system components.
The EX40's BEV/ICE platform split (EX40 vs. XC40), the EX40/EC40 body split (SUV vs. coupe), the Single Motor RWD vs. Twin Motor AWD drivetrain split, the battery size history (78 kWh vs. 82 kWh), the nameplate continuity with XC40 Recharge, the motor location change (FWD to RWD for Single Motor), the Polestar 2 cross-reference boundary, and the trim level changes across model years are the minimum fitment attributes required. If your catalog does not capture model name (EX40 vs. XC40 Recharge vs. XC40), fuel type (BEV vs. ICE), body type (SUV vs. coupe), powertrain (Single Motor vs. Twin Motor), model year, and trim, you are shipping wrong parts to a growing EV ownership community that will return them.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
