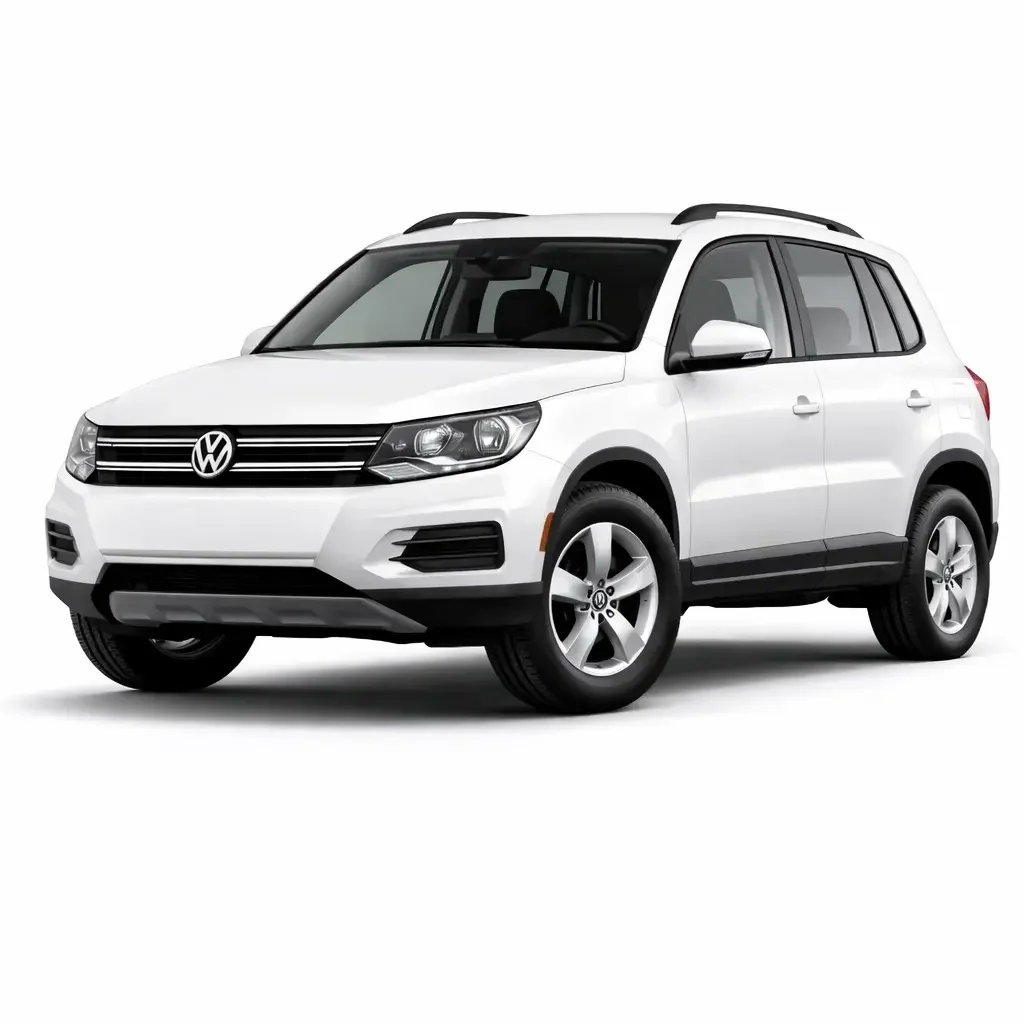

VW Tiguan Limited (2017 to 2018): 5N Platform Fitment Guide
Written by Arthur Simitian | PartsAdvisory
The Volkswagen Tiguan Limited is among the more unusual fitment situations in the Volkswagen Group aftermarket catalog. It is not a new generation of vehicle. It is the first-generation Tiguan, internal platform designation 5N, sold under the Tiguan Limited name in the United States market for two model years, 2017 and 2018, alongside the newly launched second-generation Tiguan (MQB platform) that replaced it. Volkswagen of America introduced the rebrand in April 2017 to clear remaining 5N inventory at a lower price point, and the Limited was discontinued after the 2018 model year once that inventory was exhausted.
This context is commercially critical for aftermarket sellers. A customer searching for 2017 or 2018 Tiguan parts may own either the Tiguan Limited (5N, PQ46 platform, 6-speed automatic) or the second-generation Tiguan (MQB platform, 8-speed automatic), and the two vehicles share no meaningful parts in common. The Tiguan Limited's 5N platform is the same architecture as the 2009 to 2017 Tiguan. Every mechanical component, engine, transmission, drivetrain, and suspension application that applies to the 2009 to 2017 Tiguan also applies to the Tiguan Limited, and sellers must use body style or chassis code as the primary routing qualifier before serving any 2018 model year Tiguan order.
This guide covers the engine codes, transmission codes, drivetrain configurations, brake configurations, suspension, and catalog accuracy requirements specific to the Tiguan Limited.
Platform Overview
The 5N platform is Volkswagen Group's PQ46 architecture, a transverse front-engine layout with fully independent suspension at all four corners. It is the same platform used for the Volkswagen Tiguan from the 2009 model year through the 2017 model year in the United States. The wheelbase is 2604 mm, which is shorter than the second-generation Tiguan Allspace (2791 mm) sold in the United States as the standard 2018 and later Tiguan. This wheelbase difference alone confirms that no body, floor, or suspension component crosses between the 5N Tiguan Limited and the MQB second-generation Tiguan.
The 5N platform is shared across a number of Volkswagen Group vehicles of the era, most notably the Audi Q3 (8U), which uses the same engine family, the same 09M transmission, and a broadly similar front suspension geometry. Cross-references between the 5N Tiguan Limited and the Audi Q3 8U are commercially meaningful for underbody running gear and are well established in the aftermarket. Platform cross-references to the Audi Q3 must be validated against production period and drivetrain configuration; the Q3 was offered with multiple engine codes in global markets, but the US market Q3 used the same 2.0 TSI engine family as the Tiguan Limited and the cross-reference pool is therefore directly applicable for the North American aftermarket.
Production Context and the 2018 Model Year Split
The 2018 model year is the most consequential fitment variable in the Tiguan Limited catalog. In the 2018 model year, Volkswagen sold two completely different vehicles both carrying the Tiguan name in the United States: the Tiguan Limited, which is the 5N PQ46 carryover with a 6-speed automatic transmission, and the new Tiguan, which is the MQB platform vehicle with an 8-speed automatic transmission.
These vehicles are mechanically unrelated. They use different engines (though both are 2.0-litre TSI units, the engine codes and calibrations differ), different transmissions, different suspension geometry, different brake hardware, and different electrical architectures. A catalog listing that reads simply 2018 Volkswagen Tiguan without specifying body style or chassis generation will serve incorrect parts to one of the two vehicle populations on every order where the two populations differ in specification.
Correct catalog practice for any 2018 Tiguan application requires one of the following qualifying fields: chassis code (5N for the Limited versus AX1 or BW2 for the MQB generation), transmission type (6-speed for the Limited versus 8-speed for the new generation), or explicit model name (Tiguan Limited versus Tiguan). The model year alone is not a usable qualifier for any mechanical component on this application.
Engine Variant and Codes
The Tiguan Limited was offered with a single engine in the United States market: a 2.0-litre turbocharged inline-four TSI producing 200 horsepower at 5100 rpm and 207 lb-ft of torque at 1700 rpm. This engine belongs to the EA888 Generation 1 family. Two engine codes apply to this application, and the distinction between them is a mandatory fitment qualifier for multiple component categories.
CCTA: The 49-state emissions calibration of the 2.0 TSI EA888 Gen 1. This is the standard engine code for Tiguan Limited vehicles sold outside California and the states that follow California emissions standards. The CCTA has three oxygen sensors, all mounted on the downpipe. It does not include a secondary air injection system.
CBFA: The California emissions calibration of the 2.0 TSI EA888 Gen 1. This code applies to vehicles sold in California and the states that have adopted California Air Resources Board (CARB) emissions standards, which include Connecticut, Maine, Maryland, Massachusetts, New Jersey, New Mexico, New York, Oregon, Pennsylvania, Rhode Island, Vermont, and Washington, among others. The CBFA includes a secondary air injection (SAI) system, which adds a secondary air pump, associated valves, and associated wiring to the engine. One of the CBFA's three oxygen sensors is mounted directly on the turbocharger turbine outlet before the downpipe, where the CCTA does not have a sensor in this location.
The CCTA and CBFA are not interchangeable for turbocharger applications. The turbocharger mounting configuration and oxygen sensor positioning differ between the two codes, and a turbocharger listed without specifying CCTA versus CBFA will generate incorrect parts on a meaningful proportion of orders. Similarly, the secondary air injection system components including the air pump, check valve, air hose routing, and associated control valve apply only to CBFA vehicles and must be listed as CBFA-specific. Emissions system components including the secondary air pump, valve, and wiring harness must never be listed across both codes.
Engine code confirmation is mandatory for turbocharger applications, secondary air injection components, oxygen sensor placements, emissions system hardware, and any component whose specification or routing differs between CCTA and CBFA. For all other engine service components including oil filter, air filter, spark plugs, ignition coils, timing chain components, thermostat, water pump, valve cover gasket, and intake manifold hardware, the CCTA and CBFA share the same specifications and cross-reference fully within the EA888 Gen 1 family.
EA888 Generation 1 Cross-Reference Pool
The EA888 Gen 1 engine in CCTA and CBFA calibration was used across a broad range of Volkswagen Group vehicles in the North American market during this era. Confirmed cross-references for engine service components include the Audi Q3 (8U, CCTA calibration for North America), Volkswagen Golf GTI (Mk5 and Mk6 for North America), Volkswagen Jetta (Mk5 and Mk6), Volkswagen Passat (B6), and Volkswagen CC. This cross-reference pool significantly expands aftermarket availability for EA888 Gen 1 service parts and is one of the commercial advantages of covering the Tiguan Limited application. Cross-references must be confirmed against engine code (CCTA versus CBFA) for emissions-system-specific components; for base service parts, the pool is broad and well-validated.
Transmission Code
The Tiguan Limited uses a single transmission type across all drivetrain configurations: the Aisin Warner 09M six-speed torque converter automatic, also identified in Volkswagen Group documentation and some VCDS diagnostic readouts as the 09G family designation. The physical transmission unit is the Aisin AW TF-60SN, which Volkswagen Group designates 09M in parts and service documentation. Some early service documentation and forum references use 09G and 09M interchangeably for this vehicle; the parts numbering convention that correctly identifies the filter kit, gasket, and service hardware for the Tiguan begins with 09M.
The correct ATF specification for the 09M in the Tiguan Limited is VW G 055 025 A2 (red-tinted synthetic ATF). This specification is mandatory; do not substitute with generic Dexron or Mercon fluids, which will damage the transmission. The 09M uses approximately 6 liters of ATF for a drain-and-fill service, though full fluid replacement requires multiple drain cycles since the torque converter retains fluid. A pan-drop service that includes filter and gasket replacement is the complete service procedure.
The 09M transmission cross-references to the Audi Q3 8U (same unit, same ATF specification) and shares filter kits and pan gaskets with that application. The cross-reference to the broader 09G application in other VW Group vehicles must be treated carefully: while some internal components cross, the filter kit part numbers and pan gasket part numbers for the 09M (Tiguan application) differ from the 09G as used in lighter-duty Golf and Jetta applications. Confirm part numbers against the 09M designation specifically.
The Tiguan Limited did not receive a DSG (Direct Shift Gearbox) in the North American market. Any listing that references a DSG or dual-clutch transmission for this vehicle is incorrect for the US market Tiguan Limited.
Drivetrain Configurations: FWD and 4Motion
The Tiguan Limited was offered in two drivetrain configurations, and drivetrain is a mandatory qualifier for a meaningful number of component categories.
Front-Wheel Drive (FWD): The base configuration, available on both the 2017 and 2018 Tiguan Limited. FWD vehicles use a front axle with CV axle shafts, no rear differential, no transfer case, and no rear axle assembly beyond the beam. Brake rotor specifications, axle shaft specifications, and wheel bearing specifications for FWD vehicles differ from 4Motion vehicles at the rear axle.
4Motion (AWD): The all-wheel-drive configuration uses a Haldex Generation 4 rear coupling system. The Haldex coupling is an electronically controlled, hydraulically actuated multi-plate wet clutch that transfers torque to the rear axle on demand. It is connected to the front-wheel-drive transmission via a propshaft and drives a rear final drive unit. The Haldex coupling requires its own fluid service using Haldex-specific oil (VW G 052 175 fluid specification); this is separate from and not interchangeable with the 09M transmission ATF. The rear final drive (rear differential) also requires its own gear oil service using VW G 052 145 specification.
Drivetrain configuration affects the following component categories: rear axle shafts, rear wheel bearings and hubs, rear brake rotor specifications on some applications, rear subframe hardware on some applications, the entire Haldex system (coupling, propshaft, rear final drive, Haldex fluid), and rear differential. For front axle components including front CV axles, front wheel bearings, front brake hardware, and front suspension, FWD and 4Motion vehicles share the same specifications.
Haldex fluid service is a known high-velocity aftermarket item for the 4Motion Tiguan Limited. The Haldex fluid is commonly neglected and failure of the Haldex pump due to degraded fluid is a well-documented failure mode on this platform. Sellers covering the 4Motion application should carry Haldex fluid and associated service kits as a dedicated listing separate from transmission ATF.
Suspension and Brake Configurations
The Tiguan Limited uses a MacPherson strut front suspension and a multi-link independent rear suspension. There is no factory air suspension option on this vehicle; all Tiguan Limited variants use conventional coil spring and shock absorber suspension. This is a meaningful contrast to the Touareg applications on this platform family, where air suspension is a prevalent and catalog-critical variable. For the Tiguan Limited, coil spring suspension is universal and suspension type is not a catalog qualifier.
Front shock absorbers and springs are shared between FWD and 4Motion variants. Rear shock absorbers and springs are also shared. Spring rate and ride height do not differ between drivetrain configurations on this application.
Brake Rotor Variants
Brake rotor specification is a genuine catalog qualifier on the Tiguan Limited and must be handled carefully. The front rotor diameter is 312 mm on standard FWD configurations and 345 mm on some higher-specification variants. Rear rotor diameter is 286 mm on most configurations. However, there are documented production variations where vehicles built for different markets or equipped with specific option packages used different rotor diameters, and VIN confirmation or physical measurement is the only reliable method to confirm rotor size on a specific vehicle.
The rear brake caliper on the Tiguan Limited uses an integrated electric parking brake (EPB) actuator on some trim levels. EPB-equipped rear calipers require the piston to be retracted electronically using a scan tool before pad replacement; the piston does not retract mechanically by compressing as on a conventional rear caliper. This is not a fitment qualifier for rotor applications, but it is commercially relevant for sellers bundling brake service kits, since EPB vehicles require a different service approach than non-EPB vehicles. Listings for rear brake hardware should note EPB requirement where applicable.
Brake pad cross-references are broad within the EA888-era Volkswagen Group application pool. Front brake pads cross to the Audi Q3 8U and several Golf-platform vehicles using the same front caliper specification. Confirm front caliper type (sliding versus fixed) and rotor diameter before applying cross-reference pad listings.
Common ACES/PIES Mistakes for the Tiguan Limited (2017 to 2018)
1. Listing any 2018 Tiguan component without specifying Tiguan Limited (5N chassis) versus new Tiguan (MQB chassis). This is the most consequential catalog error on this application and will generate incorrect parts on a high proportion of 2018 model year orders. The two vehicles share no mechanical components.
2. Applying transmission components from the second-generation Tiguan (8-speed ZF automatic) to the Tiguan Limited (6-speed 09M Aisin). ATF specifications, filter kits, and all internal hardware are incompatible between these two transmission families.
3. Not specifying engine code (CCTA versus CBFA) for turbocharger applications. The two codes use different turbocharger configurations and the turbochargers are not interchangeable.
4. Listing secondary air injection system components without specifying CBFA engine code. The SAI system exists only on CBFA-equipped vehicles; CCTA vehicles do not have an SAI pump, valve, or associated wiring.
5. Not specifying drivetrain configuration (FWD versus 4Motion) for rear axle components, Haldex system components, and rear differential hardware.
6. Conflating Haldex fluid with 09M transmission ATF. These are different fluids with different specifications (G 052 175 for Haldex versus G 055 025 A2 for the transmission). Listing either under the generic label transmission fluid will result in the wrong fluid being ordered for one of the two applications.
7. Applying 09G filter kits from Golf or Jetta applications to the 09M Tiguan Limited application. While the transmissions are related, the filter and pan gasket part numbers differ between the 09G and 09M designations.
8. Listing the Tiguan Limited in the same catalog row as the standard 2017 or earlier Tiguan without noting that the Tiguan Limited is a separately named model year continuation. While mechanically identical to the 2009 to 2017 Tiguan, the Tiguan Limited carries a distinct model name that will cause customer confusion if merged into a generic Tiguan 2017 listing.
9. Not confirming brake rotor diameter before listing rotor applications. Multiple front rotor diameters were used across production and option configurations; diameter must be a mandatory qualifier for front rotor listings.
10. Applying cross-references from the MQB-platform Audi Q3 (2019 and later, F3 chassis) to the 5N Tiguan Limited. The PQ46-platform Audi Q3 8U is the correct cross-reference vehicle; the newer MQB-based Q3 does not share the EA888 Gen 1 engine, 09M transmission, or 5N suspension geometry.
Catalog Checklist for Tiguan Limited (2017 to 2018)
• Require chassis designation or model name (Tiguan Limited versus Tiguan) for all 2018 model year fitment; never use model year alone as a qualifier for this vehicle
• Require engine code (CCTA versus CBFA) for turbocharger and all secondary air injection system components
• Require drivetrain configuration (FWD versus 4Motion) for all rear axle, rear wheel bearing, Haldex system, and rear differential component listings
• Maintain separate listings for Haldex fluid (G 052 175) and 09M ATF (G 055 025 A2); do not combine under a generic transmission fluid designation
• Use 09M designation (not 09G) for transmission filter kit and pan gasket part number confirmation
• Confirm front brake rotor diameter before listing rotor applications; do not assume a single diameter applies across all Tiguan Limited trims
• Flag rear brake listings where EPB (electric parking brake) retraction is required; note scan tool requirement for pad service
• Frame Audi Q3 8U cross-references as applicable for EA888 Gen 1 engine service parts and 09M transmission service parts; explicitly exclude the newer Q3 F3 chassis from all cross-references
• List the Tiguan Limited as a distinct model separate from the Tiguan for all 2017 and 2018 model year fitment to prevent customer confusion with the second-generation vehicle
• Note that no air suspension application exists on this vehicle; coil spring suspension is universal across all Tiguan Limited configurations
Final Take
The Volkswagen Tiguan Limited is a deceptively simple parts application that carries one unusually high-stakes catalog risk: the 2018 model year overlap with the second-generation Tiguan. Every other fitment complexity on the Tiguan Limited, including CCTA versus CBFA engine codes, FWD versus 4Motion drivetrain, and brake rotor diameter variants, is manageable with standard qualifier discipline. The model year split is the outlier. A seller whose 2018 model year listings do not explicitly distinguish the Tiguan Limited from the new Tiguan will generate incorrect parts orders on a consistent basis, and the consequence in customer experience is severe because the two vehicles are completely unrelated mechanically.
Beyond the 2018 split, the Tiguan Limited rewards sellers who understand its place within the EA888 Gen 1 and 09M cross-reference ecosystem. The engine parts pool spans Golf GTI, Jetta, Passat, CC, and Audi Q3 applications. The transmission parts pool spans the Q3 and broader PQ46 application. Sellers who articulate these cross-references accurately in their catalog will serve a significantly larger buyer pool than those who list the Tiguan Limited in isolation.
Disclaimer: This guide is based on publicly available specifications, manufacturer documentation, and independent research. Part interchangeability should always be confirmed via VIN and OEM part number lookup. Specifications may change without notice. This document does not constitute official Volkswagen parts catalog data.
