VW Tiguan First Generation (2009 to 2017): 5N Platform Fitment Guide
Written by Arthur Simitian | PartsAdvisory
The first-generation Volkswagen Tiguan, internal platform designation 5N, ran from the 2009 model year through the 2017 model year in the United States and Canada, with production beginning in 2007 for global markets. It was the first compact SUV Volkswagen brought to the North American market under the VW brand and was built on the PQ46 platform, the same transverse front-engine architecture shared with the contemporary Volkswagen Golf Mk6, Audi A3 (8P), and Audi Q3 (8U). The platform relationship with the Audi Q3 8U is the most commercially significant cross-reference fact for the 5N: a large portion of the suspension geometry, brake hardware, engine components, and drivetrain hardware crosses directly between the Tiguan 5N and the Q3 8U, expanding the aftermarket pool for both vehicles.
The 5N ran for nearly a full decade in the United States market, longer than its original production cycle was designed for. A significant mid-cycle facelift was introduced for the 2012 model year, revealed at the 2011 Geneva Motor Show, that changed exterior components across the front and rear. The 5N's production run also extends into the Tiguan Limited nameplate for 2017 and 2018, where the same platform was sold alongside the second-generation Tiguan under the Limited name. Sellers must account for both the facelift boundary and the Limited overlap when building catalog entries for this application.
This guide maps the engine codes, transmission codes, drivetrain configurations, facelift boundaries, suspension, and brake specifications that govern correct parts application for the Tiguan 5N across its full production run.
Platform Overview
The PQ46 platform is a transverse front-engine, fully independent suspension architecture. All Tiguan 5N variants use MacPherson strut front suspension and a multi-link independent rear suspension. There is no air suspension option at any point in the 5N production run; coil spring suspension is universal across all variants and trim levels. This makes suspension type a non-variable for this application, in contrast to the Touareg applications of the same era.
The 5N wheelbase is 2604 mm. The platform is shared with the Audi Q3 8U (introduced for the 2012 model year in North America), and this cross-reference is commercially meaningful for underbody running gear. Front lower control arms, front wheel bearings, front brake hardware, and front subframe components carry validated cross-application potential between the 5N Tiguan and the Q3 8U. All cross-references must be confirmed against production year, engine application, and drivetrain configuration before listing.
The 5N is not related to the second-generation Tiguan (MQB, AX1 platform, introduced for the 2018 model year in North America). No mechanical component crosses between the 5N and the MQB Tiguan. Sellers who maintain a combined 2009 to 2018 Tiguan catalog entry without separating the two platforms will generate incorrect parts orders for every 2018 model year customer who owns the new-generation vehicle.
Production Periods and the 2012 Facelift
The Tiguan 5N has two distinct production phases divided by a facelift introduced for the 2012 model year, revealed publicly at the 2011 Geneva Motor Show and entering production in mid-2011.

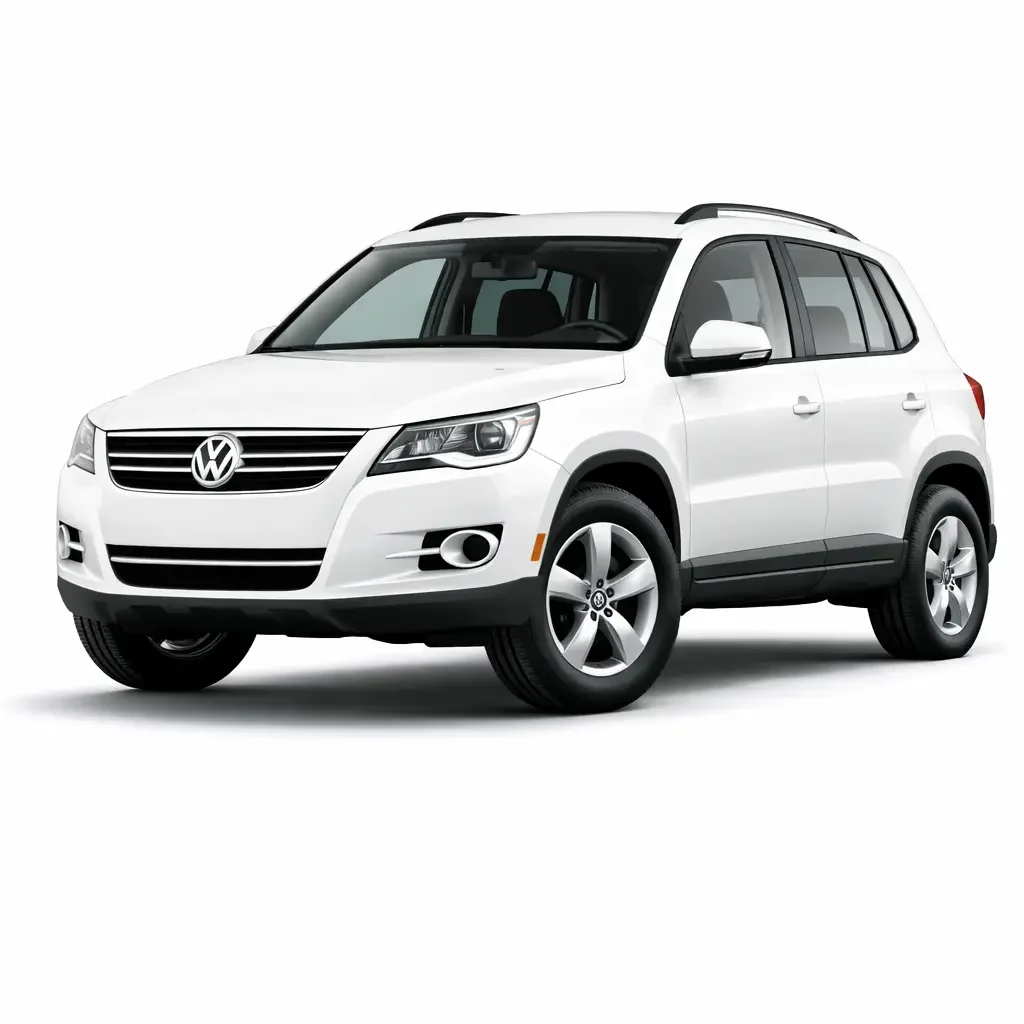

Pre-facelift (2009 to 2011 model years): The original 5N design features a rounded front fascia, rounded headlight housings with a distinct chrome brow element, a narrower front grille that does not span the full width between headlights, and round fog lamp housings integrated into the lower bumper. The front bumper cover, headlight assemblies, front grille, fog lamp housings, and front lower trim are pre-facelift specific. At the rear, the original taillights use a design with horizontal lamp graphics and do not have the angular two-part cluster introduced at the facelift. Pre-facelift rear lamp assemblies, rear bumper cover, and rear trim components do not interchange with post-facelift items.
Post-facelift (2012 to 2017 model years, including Tiguan Limited 2017 to 2018): The revised front end features bolder and more angular headlights consistent with the Golf and Passat design language of the period, a wider grille spanning the full width between headlights with prominent horizontal bars, revised lower intake openings, and updated fog lamp integration. At the rear, revised two-part taillights with angular graphics replaced the original units. The revised bumper cover fits the post-facelift body but does not fit the pre-facelift body without also replacing the headlights, as the headlight mounting and bumper interface changed at the facelift. Interior revisions at the facelift included an updated three-spoke steering wheel and revised gear selector, which are model-year specific items.
The facelift boundary is a mandatory qualifier for all exterior body components, headlight assemblies, tail light assemblies, front and rear bumper covers, front grille assemblies, and any trim-specific interior components introduced or revised at the 2012 update. No exterior lighting or body component should be listed across both production phases without specific confirmation that the part number is a universal supersession.
Engine Variant and Codes
The Tiguan 5N was offered with a single engine family in the North American market throughout its production run: a 2.0-litre turbocharged inline-four TSI producing 200 horsepower at 5100 rpm and 207 lb-ft of torque. This engine belongs to the EA888 Generation 1 family. Two engine codes are in use for the North American market, and they are a mandatory catalog qualifier for several component categories.
CCTA: 49-State Emissions Calibration
The CCTA is the standard engine code for vehicles sold in the 48 contiguous states and Alaska outside of California and the states that follow California emissions standards. The CCTA has three oxygen sensors, all of which are located on the downpipe assembly downstream of the turbocharger. It does not include a secondary air injection system. The CCTA meets federal ULEV 2 emission standards.
CBFA: California Emissions Calibration
The CBFA applies to vehicles sold in California and the states that have adopted California Air Resources Board standards. In addition to the equipment on the CCTA, the CBFA includes a secondary air injection system consisting of a secondary air pump, secondary air valve, associated air hoses, and control wiring. One of the CBFA's three oxygen sensors is positioned on the turbocharger turbine outlet before the downpipe, at a location where the CCTA has no sensor. The CBFA meets California SULEV emission standards.
The CCTA and CBFA share the same core engine hardware including the cylinder block, cylinder head, pistons, connecting rods, crankshaft, timing chain system, oil pump, water pump, thermostat, valve cover, intake manifold, fuel injectors, ignition coils, spark plugs, air filter, and oil filter. For all of these base service components, the two codes are interchangeable within the EA888 Gen 1 family and the full cross-reference pool applies.
The codes are not interchangeable for turbocharger applications. The CBFA oxygen sensor at the turbocharger turbine outlet means that the turbocharger assembly and associated downpipe hardware are configured differently between the two codes, and a turbocharger listed without specifying CCTA versus CBFA will be incorrect for a meaningful share of orders. Secondary air injection components including the air pump, check valve, hose assembly, and control valve are CBFA-only and must never be listed as applying to CCTA vehicles.
EA888 Generation 1 Cross-Reference Pool
The EA888 Gen 1 in CCTA and CBFA calibration was used across a wide range of Volkswagen Group vehicles in North America. Confirmed platforms for engine service component cross-references include the Audi Q3 8U (CCTA for North America), Volkswagen Golf GTI Mk5 and Mk6 (North America), Volkswagen Jetta Mk5 and Mk6, Volkswagen Passat B6, Volkswagen CC, and Volkswagen Eos. This broad cross-reference pool is a commercial advantage for sellers covering the Tiguan 5N: parts volume across all of these applications makes EA888 Gen 1 service parts widely available from multiple aftermarket suppliers at competitive price points. Cross-reference accuracy for emissions-specific components requires confirming CCTA versus CBFA; for base engine service parts the pool is fully validated.
The EA888 engine in the Tiguan 5N uses a timing chain, not a timing belt. Chain-driven camshafts are a consistent characteristic of the EA888 Gen 1 family. This is a frequently misrepresented specification in catalog data, and listings that reference a timing belt for this engine are incorrect. Timing chain tensioner failure and chain stretch are documented failure modes on higher-mileage EA888 Gen 1 engines, making timing chain service kits a commercially meaningful aftermarket category for this application.
Transmission Code
The Tiguan 5N in North America was offered exclusively with a six-speed torque converter automatic transmission throughout its production run. No manual gearbox was offered in the United States or Canadian market on this vehicle, in contrast to European market 5N variants which received manual transmission options with some engine configurations.
The transmission is the Aisin Warner TF-60SN, designated 09M in Volkswagen Group parts and service documentation. Some diagnostic tools and service forum references use 09G and 09M interchangeably for this unit; parts numbering for filter kits, pan gaskets, and internal service components uses the 09M designation and that is the correct reference for catalog entries on this vehicle.
The correct ATF specification is VW G 055 025 A2, a red-tinted fully synthetic automatic transmission fluid. This specification is mandatory. Generic Dexron or Mercon fluids are not acceptable substitutes and will cause transmission damage. A full drain-and-fill service uses approximately 6 liters of ATF, though the torque converter retains fluid and multiple service cycles are needed to fully exchange the fluid in the system. The complete service procedure involves dropping the transmission pan, replacing the filter and pan gasket, and refilling to the correct level at operating temperature.
The 09M cross-references directly to the Audi Q3 8U transmission application. Filter kits, pan gaskets, and ATF specifications are shared between the two vehicles. This cross-reference is well validated in the aftermarket and expands parts availability for sellers covering both platforms. As noted in the Tiguan Limited guide, the 09M used in the 5N Tiguan is not the same unit as the 8-speed ZF automatic used in the second-generation MQB Tiguan; the two transmissions use different ATF, different filter hardware, and entirely different internal architecture.
Drivetrain Configurations: FWD and 4Motion
The Tiguan 5N was offered in two drivetrain configurations in North America, and drivetrain is a mandatory qualifier for rear axle, Haldex system, and rear differential component listings.
Front-Wheel Drive (FWD): The base configuration available throughout the production run. FWD vehicles use a conventional front axle with CV axle shafts and no rear differential, rear propshaft, or Haldex coupling. All rear axle components on FWD vehicles are passive beam-axle and trailing arm hardware without driven elements.
4Motion All-Wheel Drive: The AWD configuration uses a Haldex Generation 4 electronically controlled rear coupling. The system operates as a primarily front-wheel-drive setup under normal conditions, with the Haldex coupling engaging the rear axle on demand by detecting front axle slip or via predictive control inputs. The system includes a front-to-rear propshaft, the Haldex coupling unit, and a rear final drive. The Haldex coupling contains its own dedicated hydraulic fluid circuit separate from the transmission ATF; the correct specification is VW G 052 175 Haldex fluid. The rear final drive requires its own gear oil service using VW G 052 145 specification. These three fluids, 09M ATF, Haldex fluid, and rear differential gear oil, are separate specifications and must be listed and sold as distinct products.
Drivetrain configuration affects the following component categories: all Haldex system components including the coupling unit, propshaft, and Haldex fluid; rear final drive and associated gear oil; rear CV axle shafts; and rear wheel bearings and hubs. Front axle components, front wheel bearings, front brake hardware, and front suspension components are shared between FWD and 4Motion variants.
Haldex fluid neglect is the primary cause of Haldex coupling failure on the 5N. The fluid service interval is commonly missed because it is not included in Volkswagen's standard scheduled maintenance documentation for many model years, and owners are often unaware the separate fluid exists. Failed Haldex pumps and worn clutch packs resulting from degraded fluid are a well-documented and commercially significant failure pattern. Haldex fluid change kits, including fluid and the internal strainer, are a high-velocity aftermarket item for the 4Motion application and should be maintained as a clearly labeled, separate catalog entry distinct from transmission ATF.
Suspension
The Tiguan 5N uses MacPherson strut front suspension and multi-link independent rear suspension throughout the entire production run on all variants. There is no optional or standard air suspension at any point in the 5N's production history. Coil spring suspension is universal, and suspension type is not a catalog qualifier on this application.
Front struts, springs, front lower control arms, front upper strut mounts, and front sway bar hardware are shared between FWD and 4Motion variants. Rear shock absorbers and springs are also shared between the two drivetrain configurations, as the rear suspension geometry is the same regardless of whether the rear axle is driven.
Front lower control arm bushings and ball joints are known wear items on higher-mileage 5N Tiguans and represent consistent aftermarket demand. Cross-references to the Audi Q3 8U front control arm hardware are validated and expand the available parts pool for this category. Confirm production year when applying Q3 8U cross-references, as the Q3 was introduced for North America in 2012 and pre-2012 Q3 production does not apply to North American catalog entries.
Brake Configurations
Front brake rotor diameter on the Tiguan 5N is 312 mm as the standard specification across most of the production run. Some higher-specification trim levels and option packages used a 345 mm front rotor with a correspondingly larger front caliper. These two front brake specifications are not interchangeable; rotor diameter is a mandatory qualifier for front brake rotor and front brake pad listings on this application.
Rear brake rotor diameter is 286 mm on most configurations. The rear brake caliper uses an integrated electric parking brake actuator on some trim levels and production years. EPB-equipped rear calipers require electronic retraction of the piston using a scan tool capable of accessing the VW brake system module before pad replacement can proceed. Sellers bundling rear brake service kits should note EPB fitment in the listing, as EPB vehicles require a different service approach and the lack of this note is a common source of customer confusion and returns.
Front brake pads cross-reference broadly to the Audi Q3 8U and multiple Golf-platform vehicles using the same front caliper specification. Confirm front rotor diameter and caliper type before applying cross-reference pad listings. Rear brake cross-references to the Q3 8U are also validated for most configurations.
Common ACES/PIES Mistakes for the Tiguan 5N (2009 to 2017)
1. Not distinguishing pre-facelift (2009 to 2011 model year) from post-facelift (2012 to 2017 model year) for exterior body components. Front bumper covers, headlight assemblies, front grille, fog lamp bezels, and rear tail light assemblies are facelift-specific and do not interchange across the production boundary. This is the most common exterior catalog error on the 5N.
2. Listing any 2017 Tiguan component without confirming whether the vehicle is the standard 5N Tiguan or the Tiguan Limited. Both names applied to the same platform in 2017, but the distinction matters for customer-facing clarity in search results and model selector tools.
3. Failing to separate the 5N from the MQB second-generation Tiguan for 2018 model year customers. A generic 2009 to 2018 Tiguan catalog entry will serve the wrong parts to all MQB owners, as the two platforms share no mechanical components.
4. Specifying CCTA and CBFA as interchangeable for turbocharger applications. The turbocharger and downpipe configuration differ between the two codes due to the CBFA oxygen sensor at the turbine outlet. Engine code must be a required field for all turbocharger listings.
5. Listing secondary air injection components without restricting them to CBFA fitment. The secondary air pump, check valve, hose assembly, and control valve exist only on CBFA-equipped vehicles.
6. Not specifying drivetrain configuration (FWD versus 4Motion) for rear axle shafts, rear wheel bearings, Haldex coupling components, rear differential components, and associated fluids.
7. Conflating Haldex fluid, 09M ATF, and rear differential gear oil under a single transmission fluid listing. These are three distinct fluids with three distinct specifications. Merging them into one listing will cause the wrong product to be ordered for two of the three applications on every order.
8. Using 09G filter kit part numbers for the Tiguan 5N. The correct designation is 09M, and filter and pan gasket part numbers differ from the 09G as used in lighter-duty Golf and Jetta applications.
9. Applying front brake rotor listings without specifying 312 mm versus 345 mm diameter. Multiple front rotor sizes were used across trim levels, and a single rotor listing without diameter qualification will generate incorrect parts on a significant share of front brake orders.
10. Applying Audi Q3 F3 (MQB platform, 2019 and later) cross-references to the Tiguan 5N. The correct cross-reference vehicle is the Audi Q3 8U (PQ46 platform, 2012 to 2018 for North America). The newer Q3 shares neither the EA888 Gen 1 engine, the 09M transmission, nor the PQ46 suspension geometry with the Tiguan 5N.
Catalog Checklist for Tiguan 5N (2009 to 2017)
• Require model year or production date for facelift distinction (pre versus post 2012 model year) for all exterior and lighting components
• Require engine code (CCTA versus CBFA) for turbocharger applications and all secondary air injection system components
• Require drivetrain configuration (FWD versus 4Motion) for all rear axle, rear wheel bearing, Haldex system, and rear differential component listings
• Maintain three separate fluid listings for this application: 09M ATF (G 055 025 A2), Haldex fluid (G 052 175), and rear differential gear oil (G 052 145). Do not combine under any generic transmission fluid designation
• Use 09M designation for transmission filter kit and pan gasket confirmation; do not substitute 09G part numbers
• Require front brake rotor diameter (312 mm versus 345 mm) as a mandatory qualifier for all front brake rotor and front brake pad listings
• Flag rear brake listings where EPB retraction is required; note scan tool requirement for pad service on EPB-equipped vehicles
• Separate 2017 Tiguan (standard 5N) from 2017 Tiguan Limited in customer-facing catalog entries to prevent confusion; both are the same platform but carry distinct model names
• Explicitly exclude the 2018 MQB Tiguan from all 5N catalog entries; use chassis code or model name as a hard filter for 2018 model year applications
• Frame Audi Q3 8U cross-references as applicable for EA888 Gen 1 engine service parts, 09M transmission service parts, and front suspension and brake hardware. Explicitly specify Q3 8U (2012 to 2018 for North America) and exclude Q3 F3 (2019 and later)
• Note that the EA888 Gen 1 engine uses a timing chain, not a timing belt; correct any catalog entries that reference a timing belt for this application
Final Take
The Tiguan 5N is a high-volume North American application with a straightforward mechanical specification relative to the Touareg applications of the same era. There is one engine family, one transmission, no air suspension, and a manageable set of drivetrain configurations. The catalog complexity comes from three specific areas: the CCTA versus CBFA engine code split for turbocharger and emissions system components, the 2012 facelift boundary for exterior and lighting components, and the 2018 model year overlap with the second-generation MQB Tiguan.
Of these three, the 2018 model year platform split carries the highest commercial risk. A seller whose catalog merges the 5N and MQB Tiguan under a shared model year range will generate incorrect parts orders on every 2018 order where the two vehicles differ, which is effectively every mechanical order. The facelift boundary is the second-highest-value discipline for exterior and lighting sellers; pre-facelift and post-facelift bumpers, headlights, grilles, and taillights are not interchangeable and the production boundary at the 2012 model year is well established.
For mechanical parts, the EA888 Gen 1 and 09M cross-reference ecosystem is the primary commercial opportunity. The shared parts pool with the Audi Q3 8U, Golf GTI, Jetta, Passat, and CC means that engine service parts and transmission service parts for the Tiguan 5N are available from a wide supplier base, and sellers who articulate these cross-references accurately will reach a significantly broader audience than those who catalog the Tiguan 5N in isolation.
Disclaimer: This guide is based on publicly available specifications, manufacturer documentation, and independent research. Part interchangeability should always be confirmed via VIN and OEM part number lookup. Specifications may change without notice. This document does not constitute official Volkswagen parts catalog data.
