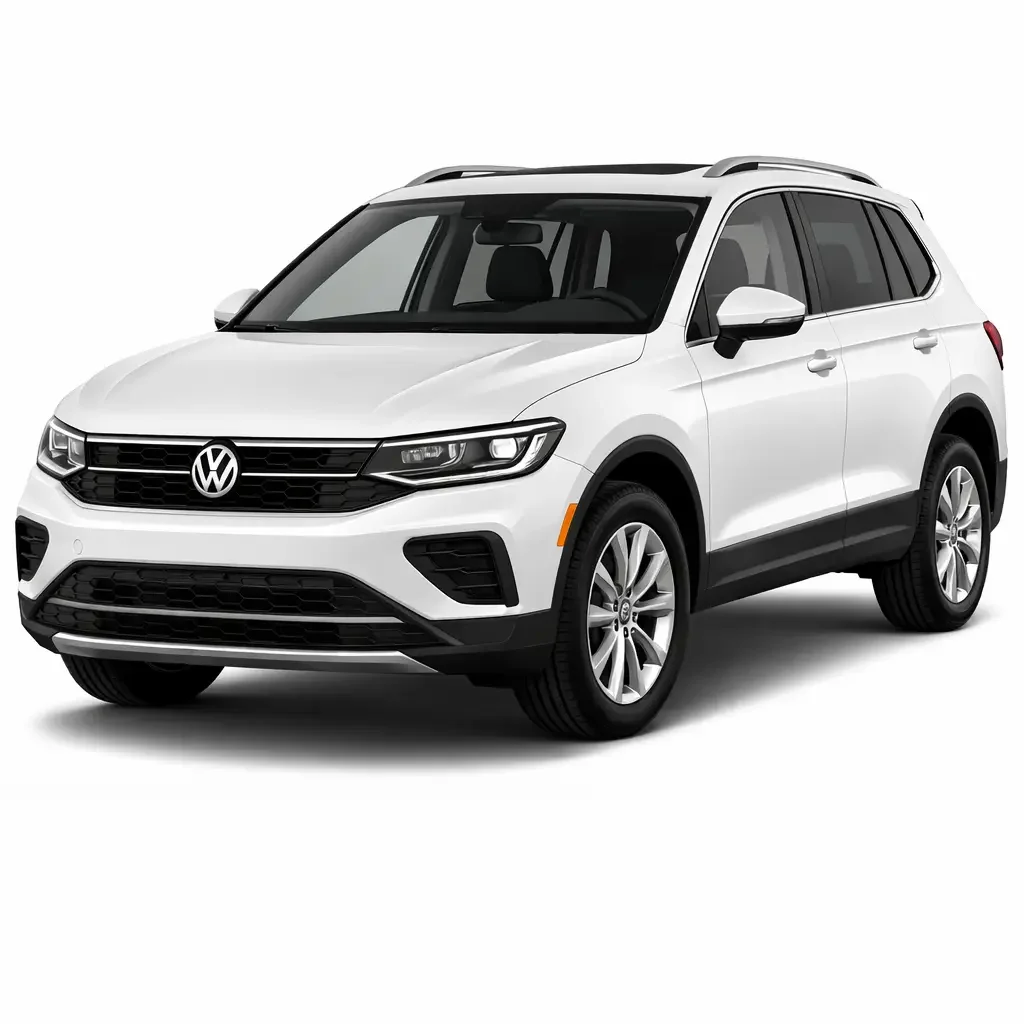

VW Tiguan Second Generation (2018 to 2024): MQB Platform Fitment Guide
Written by Arthur Simitian | PartsAdvisory
The second-generation Volkswagen Tiguan, platform designation MQB AX1, launched in the United States for the 2018 model year and remained in production through the 2024 model year, when it was replaced by the third-generation Tiguan built on the MQB Evo platform. It was unveiled at the Frankfurt Motor Show in September 2015 for global markets and reached North America in mid-2017 as a 2018 model. Unlike the first-generation 5N Tiguan, which used the PQ46 transverse platform, the MQB Tiguan represents a complete architectural transition to Volkswagen Group's Modular Transverse Matrix architecture, the same platform family used across the Golf Mk7, Audi A3 (8V), and a wide range of Volkswagen Group compact and mid-size vehicles.
The second-generation Tiguan sold in North America is exclusively the long-wheelbase variant, known in other markets as the Tiguan Allspace. Its wheelbase of 2791 mm is 187 mm longer than the first-generation 5N, making it one of the longest vehicles in the compact SUV segment and enabling an available third row of seats. The availability of a third row, combined with a mid-cycle facelift for the 2022 model year, creates two meaningful catalog variables beyond engine and drivetrain: seating configuration and facelift production boundary. Both affect component fitment in ways that sellers must account for.
This guide maps the engine codes, transmission codes, drivetrain configurations, seating configurations, facelift boundaries, and platform relationships that govern correct parts application for the Tiguan MQB across the 2018 to 2024 production run.
Platform Overview
The MQB platform is Volkswagen Group's modular transverse matrix architecture, a front-engine transverse layout with fully independent suspension front and rear. The North American Tiguan uses the long-wheelbase MQB AX1 body, also designated BW2 in some chassis documentation. All mechanical architecture, including suspension geometry, brake hardware, engine mounting, and drivetrain routing, is MQB-family hardware and has no carry-over from the first-generation 5N PQ46 platform. This is a hard boundary: no mechanical component crosses between the 5N Tiguan and the MQB Tiguan.
The MQB platform cross-reference pool for the North American Tiguan is meaningful but more specific than the broad EA888 Gen 1 pool of the first generation. The primary validated cross-reference vehicle is the Volkswagen Atlas (BJ1 platform, a larger MQB derivative), which shares some brake and suspension hardware with the Tiguan AX1, though wheelbase and body dimensions differ. The Audi Q3 second generation (F3, MQB platform, introduced for North America for 2019) shares MQB architecture and some suspension geometry but uses a different engine calibration and different transmission designation. Cross-references between the Tiguan AX1 and the Q3 F3 must be validated component by component and confirmed against production year; they are not as broadly applicable as the Gen 1 Tiguan to Gen 1 Q3 relationship was.
The third-generation Tiguan introduced for the 2025 model year uses the MQB Evo platform, which is an evolution of MQB but carries its own part numbers and revised specifications for many components. The 2025 and later Tiguan must be treated as a separate catalog entry from the 2018 to 2024 MQB Tiguan. No parts from the MQB Evo third generation should be assumed to cross to the MQB AX1 second generation without individual confirmation.
Production Periods and the 2022 Facelift
The Tiguan MQB AX1 has two distinct production phases in the North American market, divided by a facelift introduced for the 2022 model year. Production of post-facelift vehicles reached US dealers in the third quarter of 2021.
Pre-facelift (2018 to 2021 model years): The original MQB Tiguan design features a front fascia with halogen or HID headlight options depending on trim, a front grille with a horizontal chrome bar spanning between headlight assemblies, a conventional VW badge on the grille, and a front bumper with rounded lower intake openings. Interior features include an analog instrument cluster on base and mid trims, a physical gear selector, and earlier-generation MIB2 infotainment on lower trims. The third row of seats was available on both FWD and 4Motion AWD configurations during this phase.
Post-facelift (2022 to 2024 model years): The revised front end introduces standard LED headlights across all trim levels, a new grille design incorporating an illuminated light bar that flanks the VW badge horizontally, a revised front bumper with more defined lower intake geometry, and updated wheel designs across all trims. At the rear, centered Tiguan lettering on the tailgate below the VW badge replaced the prior badging arrangement. Interior updates include a standard 8-inch Digital Cockpit instrument cluster on all trims, MIB3 infotainment standard from the second trim level with wireless Apple CarPlay and Android Auto, and haptic touch controls for climate and steering wheel functions replacing physical hard keys. A critically relevant change for the catalog: from the 2022 model year onward, the third-row seat option is no longer available on 4Motion AWD models. Third-row seating is available only on FWD models from 2022 forward.
The facelift boundary is a mandatory qualifier for all exterior body components, headlight assemblies, tail light assemblies, front and rear bumper covers, grille assemblies, and the illuminated light bar module. Interior electronics components including the instrument cluster, infotainment head unit, climate control interface, and steering wheel switches are model-year specific across the facelift boundary and must be listed accordingly.
Engine Variant and Code
The North American market Tiguan MQB was offered with a single engine throughout the entire 2018 to 2024 production run: a 2.0-litre turbocharged inline-four TSI from the EA888 Generation 3 B-Cycle (Budack Cycle) family. This engine produces 184 horsepower and 221 lb-ft of torque, with peak torque available from 1600 rpm. The engine is designated EA888 Gen 3 BZ in technical documentation.
DGUA: Primary Engine Code for North American Market
The dominant engine code for the North American MQB Tiguan is DGUA, covering the EA888 Gen 3 B-Cycle application in this vehicle. The DGUA is confirmed across 2018 to 2024 North American production and is the code sellers will encounter on the vast majority of vehicles in this market. Unlike the first-generation 5N Tiguan with its CCTA versus CBFA emissions split, the MQB Tiguan in North America uses a single engine code across the full production run. There is no secondary air injection system on this engine; emissions compliance is achieved through the integrated exhaust manifold design and the engine management system of the Gen 3 architecture.
EA888 Gen 3 Architecture Notes
The EA888 Gen 3 differs meaningfully from the EA888 Gen 1 used in the first-generation Tiguan, and the two generations do not share engine service components. The Gen 3 B-Cycle uses a higher compression ratio enabled by the Budack combustion cycle, which employs a late intake valve closing strategy to reduce the effective compression ratio during the intake stroke while maintaining a high geometric ratio. This design affects intake camshaft specifications, which are Gen 3 specific. The Gen 3 also uses an integrated exhaust manifold cast into the cylinder head, eliminating the external exhaust manifold of the Gen 1. Turbocharger mounting and exhaust routing are therefore architecturally different between Gen 1 and Gen 3.
The EA888 Gen 3 uses a timing chain, consistent with the Gen 1. Listings that reference a timing belt for this engine are incorrect. The Gen 3 engine also incorporates a water-cooled turbocharger and an electric wastegate actuator on some calibrations; wastegate actuator and turbocharger specifications are specific to the DGUA code and must not be crossed to Gen 1 turbocharger applications.
Engine cross-references within the MQB platform for the DGUA include the Volkswagen Atlas 2.0T (DGUA or closely related code, confirm by model year), and various MQB-platform Golf and Jetta applications using EA888 Gen 3. However, the Gen 3 cross-reference pool is narrower than the Gen 1 pool because the Gen 3 spans multiple sub-variants within the generation (Gen 3, Gen 3 B-Cycle, Gen 3B revised), and component specifications differ across these sub-variants. Confirm engine code and sub-variant designation before applying any Gen 3 cross-reference, particularly for turbocharger, camshaft, and injection system components.
Transmission Code
All North American market Tiguan MQB models from 2018 to 2024 use the Aisin Warner 8-speed torque converter automatic transmission designated 09P in Volkswagen Group parts documentation. This is a completely different unit from the 6-speed 09M used in the first-generation 5N Tiguan. The two transmissions share no internal hardware, no filter kit, no pan gasket, and require different ATF specifications. Any catalog entry that does not distinguish between the 09M and the 09P by model generation will produce incorrect parts on transmission service orders for one of the two generations on every order.
The correct ATF specification for the 09P in the MQB Tiguan is VW G 055 540 A2. This specification is distinctly different from the G 055 025 A2 used in the 09M of the first-generation Tiguan. Sellers offering transmission ATF for the Tiguan across model years must maintain these as two separate product listings with clearly stated fitment boundaries. The 09P has a total dry fill capacity of approximately 7 liters; however, a standard pan-drop service drains only approximately 3 liters, with the remainder retained in the torque converter. Multiple service cycles are required to fully exchange the fluid.
The 09P transmission cross-references to other MQB-platform Volkswagen Group vehicles using the same unit, including the Volkswagen Atlas in some configurations. As with all transmission cross-references, ATF specification, filter kit part numbers, and pan gasket dimensions must be confirmed against the specific vehicle application before listing.
No manual transmission was offered on the North American Tiguan MQB in the standard lineup. A small number of base FWD models were offered with a 6-speed manual transmission in specific model years; this is a low-volume application and the manual transmission uses its own gear oil specification distinct from the 09P ATF. Sellers encountering manual transmission service requests for this vehicle should confirm the presence of a manual gearbox before applying the standard 09P ATF listing.
Drivetrain Configurations: FWD and 4Motion
The Tiguan MQB was offered in two drivetrain configurations, and drivetrain is a mandatory qualifier for rear axle, Haldex system, rear differential, and seating configuration-related component listings.
Front-Wheel Drive (FWD): The base configuration available across all model years. FWD vehicles use front CV axle shafts and no rear differential, propshaft, or Haldex coupling. FWD is the only configuration on which the third-row seat option was available during the 2022 to 2024 post-facelift period. FWD vehicles in the pre-facelift period (2018 to 2021) could also be ordered with the third row. Body and floor components related to third-row seating, including the third-row seat assembly, third-row floor structure, and associated interior trim panels, apply only to FWD vehicles from 2022 onward.
4Motion All-Wheel Drive: The AWD configuration uses a Haldex Generation 5 rear coupling system. The Gen 5 Haldex operates as a primarily front-wheel-drive system under normal conditions, engaging the rear axle predictively and reactively through an electronically controlled hydraulic multi-plate clutch. The Gen 5 Haldex does not have a serviceable filter in the traditional sense; it contains an internal strainer that can be cleaned but not replaced as a conventional filter element. The Haldex coupling fluid specification is VW G 052 175 A2 or equivalent Haldex-specific fluid. The rear final drive requires its own gear oil service using VW G 052 145 A2 specification. From the 2022 model year onward, 4Motion models are not available with the third-row seat configuration in North America.
Drivetrain configuration must be confirmed for all rear axle shaft listings, rear wheel bearing and hub listings, all Haldex system components including the coupling unit and fluid, rear differential components and gear oil, and any body or floor components associated with the third-row seating package. Front axle hardware, front wheel bearings, front brake hardware, and front suspension components are shared between FWD and 4Motion variants.
The Haldex Gen 5 fluid service interval is commonly omitted from dealer maintenance schedules, repeating the pattern from the first-generation 5N application. Neglected Haldex fluid leads to pump wear and coupling degradation over time. Haldex service kits including fluid and strainer cleaning procedure are a commercially meaningful aftermarket item for 4Motion applications. Sellers should list Haldex fluid as a clearly separate product from the 09P ATF and the rear differential gear oil, as these three fluids have three distinct specifications and are frequently confused in generic catalog searches.
Third-Row Seating Configuration
The third-row seating variable is a catalog qualifier unique to the MQB Tiguan among VW passenger vehicles in North America. The third-row seat package, when fitted, adds a fold-flat third-row bench seat, associated floor structure and latching hardware, modified rear quarter trim panels, a revised cargo area floor, and on some configurations a modified rear HVAC distribution system.
Third-row fitment applies only to FWD vehicles. On pre-facelift models (2018 to 2021), 4Motion vehicles could be ordered with or without the third row; from the 2022 model year onward, the third row was restricted to FWD models exclusively. This means that for the 2018 to 2021 production period, drivetrain alone does not determine whether a third row is present; third-row fitment must be confirmed directly for all affected component categories during this window.
Component categories affected by third-row fitment include: rear seat assemblies and mounting hardware, rear interior trim panels and cargo area flooring, rear HVAC distribution components on equipped models, and cargo area tie-down and anchor hardware. Rear suspension, rear brake hardware, and rear axle components are not affected by third-row fitment and are consistent across seating configurations.
Suspension and Brake Configurations
The Tiguan MQB uses MacPherson strut front suspension and a multi-link independent rear suspension across all variants and model years. There is no air suspension option at any point in the 2018 to 2024 North American production run. Coil spring suspension is universal, and suspension type is not a catalog qualifier on this application, consistent with the first-generation 5N.
Front strut assemblies, front lower control arms, front sway bar, and front subframe hardware are shared between FWD and 4Motion variants. Rear shock absorbers and rear springs are also consistent across drivetrain configurations, as the multi-link rear suspension geometry is the same regardless of whether the rear axle is driven.
Front brake rotor diameter for the MQB Tiguan is 340 mm as the standard specification. Some higher trim levels and performance packages use a 345 mm front rotor with a correspondingly larger front caliper. Rotor diameter is a mandatory qualifier for front brake rotor and front brake caliper listings, as the two specifications use different caliper mounting brackets and the parts are not interchangeable. Rear brake rotor diameter is 310 mm on standard configurations.
Rear brake calipers on the MQB Tiguan use an integrated electric parking brake actuator across all trim levels and model years. EPB piston retraction requires a scan tool capable of accessing the VW EPB module before rear pad replacement can proceed. This is a consistent characteristic of the entire 2018 to 2024 production run and must be noted in all rear brake pad and rear brake service kit listings. Sellers who do not flag the EPB requirement in rear brake listings will generate customer confusion and returns on a regular basis.
Common ACES/PIES Mistakes for the Tiguan MQB (2018 to 2024)
1. Merging the 2018 MQB Tiguan with the 2018 Tiguan Limited (5N platform) in a shared model year catalog entry. These two vehicles share no mechanical components. The 2018 model year must be split by chassis or model name for every mechanical application.
2. Applying 09M transmission service components (filter kits, pan gaskets, ATF) to the MQB Tiguan 09P transmission, or vice versa. The two units are architecturally unrelated. ATF specifications differ (G 055 025 A2 for the 09M versus G 055 540 A2 for the 09P) and the two fluids must be listed as separate products with explicit generation-specific fitment boundaries.
3. Not distinguishing pre-facelift (2018 to 2021 model year) from post-facelift (2022 to 2024 model year) for headlight assemblies, front bumper covers, front grille assemblies, the illuminated light bar module, rear badging and tailgate trim, and infotainment and instrument cluster components.
4. Listing third-row seating components without specifying FWD fitment. From the 2022 model year onward, the third row is exclusive to FWD models. For 2018 to 2021 applications, third-row fitment must be confirmed against the specific vehicle's option list, as 4Motion models could also carry the third row during this window.
5. Not specifying drivetrain configuration for rear axle shafts, rear wheel bearings, Haldex coupling components, and rear differential gear oil.
6. Conflating Haldex Gen 5 fluid, 09P ATF, and rear differential gear oil under a shared transmission fluid listing. These are three distinct specifications. Selling or listing them as one product will cause incorrect fluid application on two of the three systems on every order.
7. Applying EA888 Gen 1 component cross-references (from the first-generation 5N Tiguan parts pool) to the MQB Tiguan. The DGUA EA888 Gen 3 B-Cycle is a different engine architecture. Turbochargers, camshafts, timing chain components, and emissions hardware from Gen 1 do not cross to Gen 3 and must not be listed as interchangeable.
8. Treating all EA888 Gen 3 sub-variants as interchangeable for turbocharger, camshaft, and injection system components. The Gen 3 family spans multiple sub-variants; confirm the DGUA code specifically before applying cross-references from other Gen 3 applications such as the Golf GTI or Golf R.
9. Not noting the EPB scan tool requirement in rear brake pad and rear brake service kit listings. The electric parking brake is present on all MQB Tiguan models from 2018 to 2024; failing to communicate the scan tool requirement results in returns and negative customer experience at a predictable rate.
10. Applying MQB Tiguan component cross-references to the third-generation MQB Evo Tiguan (2025 and later). The MQB and MQB Evo are related but distinct platforms with their own part numbers for many components. The 2025 model year marks a hard platform boundary.
Catalog Checklist for Tiguan MQB (2018 to 2024)
• Require chassis code or model year range to explicitly separate the 2018 MQB Tiguan from the 2018 Tiguan Limited (5N) for all mechanical applications
• Maintain separate ATF listings for 09P (G 055 540 A2) and 09M (G 055 025 A2) with clearly stated model generation fitment boundaries; never combine under a generic Tiguan ATF heading
• Require model year for facelift distinction (2018 to 2021 pre-facelift versus 2022 to 2024 post-facelift) for all exterior lighting, bumper, grille, light bar module, and interior electronics component listings
• Require drivetrain configuration (FWD versus 4Motion) for all rear axle, rear wheel bearing, Haldex system, and rear differential component listings
• Require seating configuration (two-row versus three-row) for all rear interior, cargo area floor, and third-row seat component listings; note that for 2022 to 2024 applications the third row is FWD-only
• Maintain three separate fluid listings: 09P ATF (G 055 540 A2), Haldex fluid (G 052 175 A2), and rear differential gear oil (G 052 145 A2)
• Require front brake rotor diameter (340 mm versus 345 mm) as a mandatory qualifier for all front brake rotor and front caliper listings
• Flag EPB scan tool requirement on all rear brake pad and rear brake service kit listings; the EPB is present on all MQB Tiguan models across the full production run
• Confirm DGUA engine code specifically for turbocharger, camshaft, and injection system cross-references; do not apply broad EA888 Gen 3 cross-references without sub-variant confirmation
• Explicitly exclude the 2025 and later MQB Evo Tiguan from all AX1 catalog entries; use a hard 2024 production year cutoff for all MQB Tiguan fitment ranges
Final Take
The second-generation Tiguan MQB is the highest-volume Volkswagen sold in North America across most of its production run, which creates both a large opportunity and an elevated cost for catalog errors. The two highest-risk catalog situations are the 2018 model year platform split with the Tiguan Limited and the 09M versus 09P ATF distinction, both of which generate incorrect parts on every affected order when not properly structured.
The 2022 facelift boundary is the third-highest-risk variable, affecting all exterior lighting and body components as well as the interior electronics that changed significantly at the update. The third-row seating variable is narrow in scope but consequential for interior parts sellers, particularly because the 4Motion restriction introduced at the 2022 facelift means that drivetrain and seating configuration must be cross-checked for any 2022 to 2024 interior order involving third-row components.
The EA888 Gen 3 B-Cycle engine simplifies some aspects of catalog management compared to the first-generation 5N: there is one engine code for North America, no secondary air injection split, and a consistent single-transmission setup across the production run. The trade-off is that the Gen 3 cross-reference pool requires more careful validation than the broad Gen 1 pool, as the Gen 3 sub-variant structure creates meaningful component differences across applications that share the same top-level engine family designation. Sellers who enforce engine code confirmation at the sub-variant level will avoid a category of returns that less careful catalogs generate consistently.
Disclaimer: This guide is based on publicly available specifications, manufacturer documentation, and independent research. Part interchangeability should always be confirmed via VIN and OEM part number lookup. Specifications may change without notice. This document does not constitute official Volkswagen parts catalog data.
