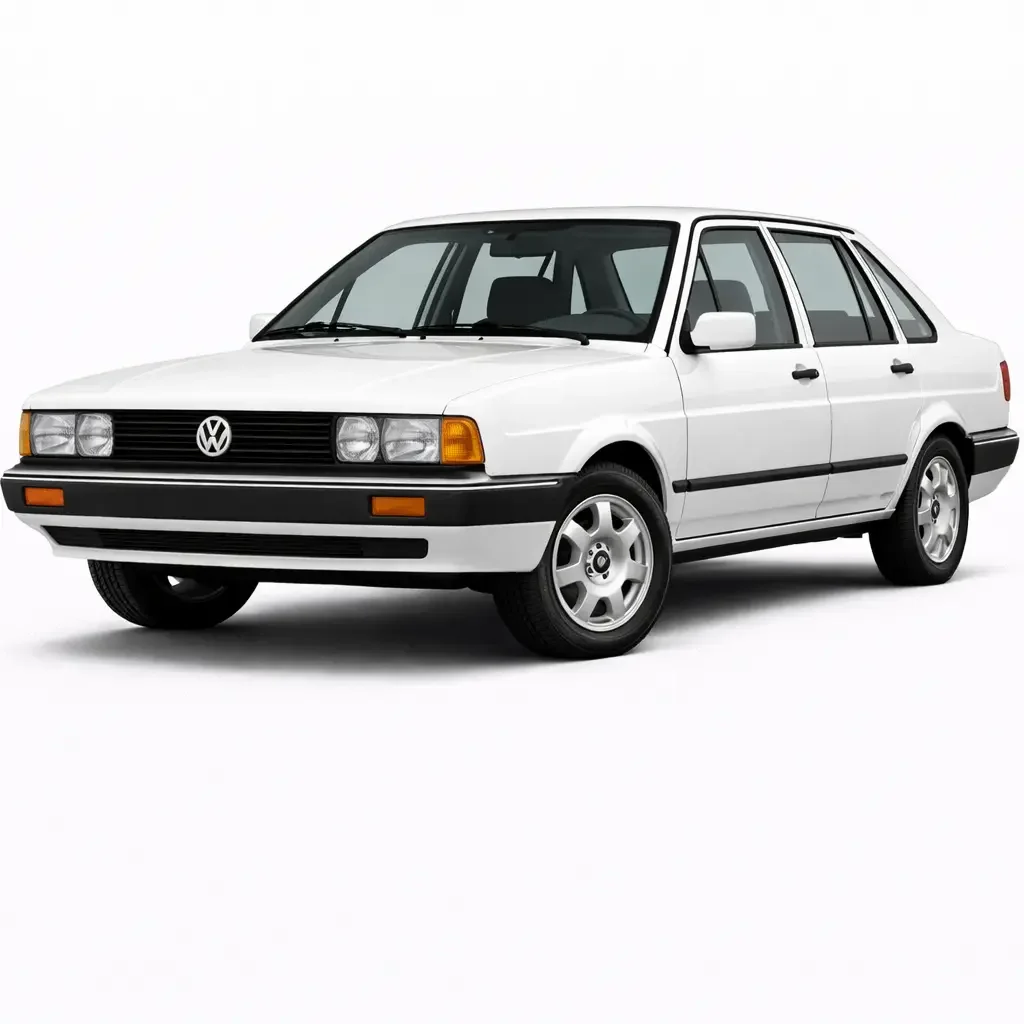

Volkswagen Quantum (1986–1988): Late Passat B2 Fitment Guide for North America
Written by Arthur Simitian | PartsAdvisory
The 1986 to 1988 Volkswagen Quantum represents the final three model years of the B2 Passat platform in North America, sold exclusively in the United States under the Quantum name. The US market did not receive the B3 Passat until the 1990 model year, meaning the Quantum name and the B2 platform ran through 1988, one full European generation behind schedule. This closing window is mechanically distinct from the 1982 to 1985 window covered in the companion guide: the four-cylinder and turbodiesel engines are gone, the fuel injection system on the five-cylinder has been updated from K-Jetronic to KE-Jetronic, the sedan lineup was briefly reduced and then restored with the wagon, and composite headlamps are standard throughout. The 1988 model year is the last Quantum sold in the United States.
The catalog risk in this window is concentrated in two areas. The first is the fuel injection system change: K-Jetronic and KE-Jetronic use related but non-interchangeable components, and a catalog that does not separate the 1985 K-Jetronic application from the 1986 to 1988 KE-Jetronic application will supply the wrong fuel distributor, wrong pressure actuator, and wrong lambda control components for every fuel system service call in this window. The second is the wheel bolt pattern: the Quantum Syncro retained the 4x100 bolt pattern of the FWD Quantum rather than adopting the 4x108 pattern of the Audi 4000 quattro, and any catalog that assumes the Syncro uses Audi quattro wheel specifications will supply wheels and wheel hardware that do not fit.
Year-by-Year Window Overview: 1986, 1987, and 1988
Each of the three years in this window carries a distinct lineup configuration. Treating 1986, 1987, and 1988 as an undifferentiated block will produce application errors for body style availability and equipment specifications in at least one of the three years.
1986: Sedan Only, Five-Cylinder Only
For 1986, Volkswagen dramatically simplified the US Quantum lineup. The four-cylinder gasoline engine and the 1.6L turbodiesel were both discontinued after the 1985 model year. The three-door Coupe had already been gone for several years. The 1986 US Quantum lineup consisted of the four-door GL sedan only, powered exclusively by the 2.2L five-cylinder engine. The Syncro wagon was technically available as a mid-year 1985.5 product but for catalog purposes is correctly listed under 1986 as well. No FWD wagon was offered for 1986. A catalog that lists four-cylinder or turbodiesel applications for a 1986 Quantum is carrying forward discontinued engine entries from the prior window.
1987: Sedan and Wagon Return, Composite Headlamps Standard
For 1987, Volkswagen restored the wagon to the US lineup, now badged as the GL Wagon and available in both FWD and Syncro configurations. The sedan continued as the GL Sedan. Wikipedia's B2 Passat entry confirms that for 1987 the Quantum received European-style composite headlamps and the wagon made a comeback, equipped at the GL Sedan level. This makes 1987 the first year in which the FWD wagon is available again after a gap. Headlamp listings for 1987 and 1988 must specify composite assemblies across all body styles. Sealed beam headlamp listings are not applicable to any 1986 to 1988 Quantum.
1988: Final Model Year, Production Ends March 1988
The 1988 model year is the last Quantum sold in the United States. Standard B2 production ended on March 31, 1988, while Syncro model production continued until June 1988. The lineup for 1988 mirrors 1987: GL Sedan, GL Wagon, and Syncro Wagon, all five-cylinder only. No mechanical changes of note distinguish the 1988 from the 1987. The production cutoff date matters for ACES purposes because some catalog providers extend the Quantum application into 1989 or attempt to bridge it to the B3 Passat. The B3 Passat did not arrive in North America until the 1990 model year and is a completely different platform. There is no 1989 Quantum in the North American market, and no component crosses from the B2 Quantum to the B3 Passat.
The 2.2L Five-Cylinder and the KE-Jetronic Transition
The sole gasoline engine offered in the 1986 to 1988 US Quantum is the 2.2L inline five-cylinder from the EA827 family, the same engine family used in the Audi 4000 five-cylinder and, from 1987, the Audi 90. The engine is longitudinally mounted, as it was throughout the Quantum's US production run, and all cross-reference rules established for the 1982 to 1985 window regarding longitudinal versus transverse mounting apply unchanged here. No transversely mounted VW fuel system or exhaust component crosses to the Quantum five-cylinder.
The critical change from the 1985 window is the fuel injection system. The 1985 Quantum five-cylinder used Bosch K-Jetronic, the purely mechanical continuous injection system. Beginning with the 1986 model year, the five-cylinder Quantum transitioned to Bosch KE-Jetronic, which adds an electro-hydraulic pressure actuator to the mechanical K-Jetronic base, allowing electronic lambda (oxygen sensor) feedback to trim fuel delivery in real time. This electronic addition changes several specific components that share a visual and functional resemblance to their K-Jetronic counterparts but are not interchangeable with them.
Engine Codes: JT and KX
The VW engine code database confirms two engine codes for the 1986 to 1988 US Quantum, both 2.2L KE-Jetronic five-cylinders: engine code JT (KE-Jetronic without catalyst) and engine code KX (KE-Jetronic with catalyst). The distinction between the catalyzed KX and the non-catalyzed JT matters for oxygen sensor listings, exhaust manifold specifications, and downstream exhaust system compatibility. A single undifferentiated 2.2L five-cylinder listing for the 1986 to 1988 Quantum will supply wrong exhaust and emissions components for whichever code is not the one physically in the vehicle.
The Audi engine code reference database lists engine code JT and KX as appearing on the Audi 90 (Typ 89) for the same 1986 to 1988 period, confirming the Audi 90 as the primary cross-reference sibling for the late Quantum five-cylinder in the KE-Jetronic era. The Audi 4000 (Typ 81/85) also used the 2.2L five-cylinder in its final years and remains a valid cross-reference for shared components, but the Audi 90 directly overlaps the 1987 and 1988 Quantum years with matching engine codes.
K-Jetronic vs. KE-Jetronic: What Is and Is Not Interchangeable
Both K-Jetronic and KE-Jetronic use a mechanical airflow sensor plate, a mechanical fuel distributor, and continuous injection into the intake port. The metering slit geometry, the control pressure regulator, and the cold-start injector circuit are present in both systems. At a visual inspection level, the two systems appear similar, and this similarity is the source of most cross-system parts errors.
KE-Jetronic adds an electro-hydraulic pressure actuator mounted on the fuel distributor body that receives signals from the engine control unit and adjusts the differential pressure across the metering slits to enrich or lean the mixture beyond what the purely mechanical system can do. This actuator, its wiring harness connector, and the engine control unit that drives it are all KE-Jetronic-specific components with no equivalent in the K-Jetronic system. A fuel distributor from a K-Jetronic application does not have the actuator port, making it physically incompatible with a KE-Jetronic installation. An oxygen sensor is required by the KE-Jetronic system to close the lambda feedback loop; K-Jetronic installations in this era did not require an oxygen sensor for basic fuel system function. Listing oxygen sensor applications for 1985 K-Jetronic Quantum entries and omitting them from 1986 to 1988 KE-Jetronic entries, or vice versa, produces wrong emissions system listings for both windows.
Components that are shared between K-Jetronic and KE-Jetronic applications within the same engine displacement and code family include the airflow sensor plate, the fuel accumulator, the fuel filter, and the injector bodies themselves. These cross freely between the 1985 K-Jetronic and 1986 to 1988 KE-Jetronic five-cylinder Quantum applications under the same part numbers. Fuel pump specifications and fuel pressure service values differ between the two systems and must be confirmed against the system designation before listing.
Syncro Wagon: Five-Cylinder Only, 4x100 Bolt Pattern Throughout
The Quantum Syncro Wagon continued through the full 1986 to 1988 window and is the most catalog-intensive sub-application within it. All Syncro wagons sold in North America used the five-cylinder engine exclusively. No four-cylinder Syncro and no turbodiesel Syncro was offered in the US market at any point. The Syncro was never offered in sedan form. These constraints narrow the Syncro application sharply: it is always a five-cylinder wagon, always with the longitudinal drivetrain and Transporter-derived rear axle described in the 1982 to 1985 guide.
Wheel Bolt Pattern: 4x100, Not 4x108
The most persistent wheel fitment error in the Quantum Syncro catalog is the assumption that its AWD drivetrain ancestry translates to the Audi quattro's wheel bolt pattern. It does not. The Quantum Syncro uses the same 4x100 bolt pattern as the standard FWD Quantum, not the 4x108 pattern used by the Audi 4000 quattro. This is confirmed by community sources including a Curbside Classic discussion thread where an owner notes that the Audi 4000 quattro went to a five-lug wheel while the Quantum Syncro retained the 4x100 pattern shared with the FWD Quantum and FWD Audi 4000.
The practical consequence for catalog entries is significant: wheel listings, wheel bearing hub assemblies, lug bolt hardware, and brake rotor hat dimensions that are specified for the Audi 4000 quattro 4x108 application do not cross to the Quantum Syncro. Wheel and hub listings for the Quantum Syncro must be confirmed against the 4x100 FWD Quantum specification. The Syncro's Transporter-derived rear axle uses rear wheel hubs and rear bearings that are specific to the Syncro rear end and do not cross to either the FWD Quantum rear axle or the Audi 4000 rear axle.
Syncro Drivetrain Cross-References in the 1986 to 1988 Window
The Syncro AWD system's center section, front differential, center viscous coupling, and front driveshafts share their engineering with the Audi quattro drivetrain and cross to Audi quattro applications at those points. The Syncro's rear end, using the adapted Volkswagen Transporter rear axle, does not cross to the Audi quattro rear end. This split cross-reference pattern is unchanged from the 1985 introduction of the Syncro through the end of production in June 1988.
The Syncro wagon's relocated fuel tank and entirely different floor pan from the FWD wagon remain in effect throughout 1986 to 1988. Fuel tank assemblies, fuel filler necks, and fuel sending units are Syncro-specific and do not cross to the FWD wagon fuel system. The FWD wagon returned to the lineup in 1987, making it particularly important that 1987 and 1988 catalog entries correctly separate the Syncro wagon fuel system from the FWD wagon fuel system. A single 1987 Quantum wagon fuel tank listing that does not distinguish between FWD and Syncro configurations will supply the wrong tank assembly for one of the two applications.
Suspension, Brakes, and the Audi 4000 Boundary
The suspension architecture of the 1986 to 1988 Quantum is unchanged from the earlier window: MacPherson struts at the front and a torsion beam rear axle on FWD models, with the Transporter-derived rear axle on Syncro models. The Audi 4000 cross-reference is valid at the front suspension level (strut cartridges, front control arms, front wheel bearings, steering rack) and invalid at the rear suspension level (torsion beam versus Audi's trailing arm independent rear). This boundary is carried forward from the 1982 to 1985 window without change.
Brake specifications on the FWD Quantum use vented front discs and solid rear drums, a configuration consistent with the B2 platform's FWD specification throughout the US run. The five-cylinder engine's additional weight over the four-cylinder means the brake booster and master cylinder specifications are matched to the heavier powertrain. Wikipedia's B2 Passat entry notes that all five-cylinder Passats received power steering as standard equipment, reflecting the additional nose weight of the five-cylinder. Power steering rack listings for the 1986 to 1988 Quantum must specify five-cylinder applications, as no four-cylinder Quantum was sold in these years and the four-cylinder did not carry power steering as standard.
Brake rotor specifications for the FWD Quantum cross to the Audi 4000 five-cylinder FWD front application and, within the B2 platform family, to the European Passat B2 specification. Brake pad applications follow the same cross-reference. The Syncro wagon's front brake setup is shared with the FWD five-cylinder application at the caliper and rotor level; the rear brakes on the Syncro are specific to the Transporter-derived rear axle and do not cross to the FWD Quantum rear brake application.
Cross-Reference: Audi 4000 and Audi 90 in the Late Window
The Audi 4000 (Typ 81/85) was sold in the United States through the 1987 model year, overlapping with the 1986 and 1987 Quantum. The Audi 90 (Typ 89) replaced the 4000 in North America beginning with the 1988 model year, overlapping with the final 1988 Quantum. Both Audi models use the 2.2L five-cylinder with KE-Jetronic in their US configurations for this period, making them valid cross-reference siblings for engine internal components, fuel system hardware, ignition components, and cooling system parts under matching engine codes.
The Audi 90 is a closer engine cross-reference match for the 1988 Quantum than the Audi 4000, because the 4000 was not sold that year in North America and its final specifications may differ from the 1988 Quantum in minor calibration details. For 1987, both the Audi 4000 and the Audi 90 were in market simultaneously, and either may be a valid cross-reference depending on engine code and specification version. Parts researchers should confirm engine code (JT or KX) and then cross-reference to the Audi application carrying the same engine code in the same model year rather than assuming either Audi model is always the correct cross-reference for all 1986 to 1988 Quantum applications.
The rear suspension boundary remains identical to the earlier window: Audi rear suspension components do not cross to the Quantum torsion beam rear. The front suspension cross-reference to the Audi 4000 and Audi 90 remains valid for struts, control arms, and front wheel bearings. The steering rack cross-reference to the Audi 4000 five-cylinder power steering application is valid for 1986 and 1987; the 1988 Quantum should be cross-referenced to the Audi 90 power steering rack for that model year.
End of Production and the B3 Passat Boundary
German B2 Passat production ended on March 31, 1988, with Syncro model production continuing at Graz until June 1988. The North American market received the B3 Passat beginning with the 1990 model year, with no B2 Quantum or B3 Passat sold in the US as a 1989 model. The 1989 calendar year is a gap year for the Passat nameplate in North America.
The B3 Passat is a completely different vehicle from the B2 Quantum. The B3 uses a stretched Golf platform with transverse engine mounting, eliminating the longitudinal drivetrain that defined every Quantum sold in North America. No mechanical component from the B2 Quantum crosses to the B3 Passat. A catalog that bridges the 1988 Quantum and the 1990 Passat into a continuous application, or that applies B3 Passat parts to 1986 to 1988 Quantum entries based on model name continuity, will produce wrong parts for all drivetrain, fuel system, and suspension service categories.
For ACES year range purposes, the correct terminal year for all Quantum applications is 1988. A Quantum application that continues into 1989 is incorrect. An ACES range that uses 1988 as the opening year of a bridged Quantum/Passat application is also incorrect; the B3 Passat begins as a separate application in 1990 with no carry-forward from the Quantum.
Common ACES/PIES Catalog Mistakes
1. Applying K-Jetronic fuel system components to the 1986 to 1988 Quantum. The 1986 to 1988 five-cylinder Quantum uses KE-Jetronic (engine codes JT and KX), not the K-Jetronic used in 1985 and earlier. The KE-Jetronic fuel distributor includes an electro-hydraulic pressure actuator port that the K-Jetronic distributor does not have. These are different parts that cannot substitute for each other. A catalog that carries the 1985 K-Jetronic fuel distributor listing forward into 1986 without updating to the KE-Jetronic part number will supply the wrong fuel distributor for every 1986 to 1988 Quantum fuel system order.
2. Omitting the electro-hydraulic pressure actuator from 1986 to 1988 fuel system listings. The KE-Jetronic pressure actuator is a distinct service part with no equivalent in K-Jetronic applications. It is a primary diagnostic and replacement item on aging KE-Jetronic vehicles. A catalog that covers fuel injectors and fuel distributor for the 1986 to 1988 Quantum without listing the KE-Jetronic pressure actuator as a separate catalog entry is missing a common service component for this window.
3. Treating JT and KX as interchangeable engine code applications. JT is the non-catalyzed 2.2L KE-Jetronic; KX is the catalyzed version. Oxygen sensor listings, catalytic converter listings, and exhaust manifold specifications are different between the two codes. A single merged 2.2L Quantum entry for 1986 to 1988 that does not split by engine code will supply wrong emissions components for one of the two applications on every order.
4. Assigning four-cylinder or turbodiesel applications to 1986 to 1988 Quantum entries. Both engine types were discontinued after the 1985 model year. No 1986, 1987, or 1988 US Quantum was equipped with a four-cylinder gasoline engine or a 1.6L turbodiesel. A catalog that carries 1985 four-cylinder or diesel application entries forward into 1986 without removing them is listing components for engines that were never installed in these vehicles.
5. Assuming the Quantum Syncro uses the Audi 4000 quattro 4x108 wheel bolt pattern. The Quantum Syncro retained the 4x100 bolt pattern used by the FWD Quantum throughout its production run. The Audi 4000 quattro and later Audi 90 quattro used 4x108. Wheel listings, hub assemblies, and lug bolt hardware from the Audi quattro application will not fit the Quantum Syncro's 4x100 hubs.
6. Applying a single 1987 or 1988 Quantum wagon fuel tank listing to both FWD and Syncro configurations. The FWD wagon returned to the US lineup in 1987 with a standard fuel tank location. The Syncro wagon uses a relocated fuel tank in a completely different floor pan position. These are different fuel tank assemblies, different filler neck routing, and different fuel sender unit positions. A unified wagon fuel tank listing for 1987 and 1988 will supply the wrong assembly for one of the two configurations.
7. Extending the Quantum application into 1989. No Quantum was sold in the United States as a 1989 model. The final Quantum is a 1988. An ACES year range that includes 1989 for any Quantum application is incorrect. The B3 Passat did not arrive in North America until the 1990 model year and is a separate application with no parts commonality with the B2 Quantum.
8. Bridging B2 Quantum and B3 Passat applications. The B3 Passat uses a transverse engine layout on a Golf-derived platform. The B2 Quantum uses a longitudinal engine layout on a B2 Audi 80-derived platform. These are different platforms, different engine orientations, and different suspension designs with no parts commonality. Any catalog entry that applies 1990 Passat parts to 1988 Quantum applications, or vice versa, is crossing a platform boundary that has no legitimate parts bridge.
9. Using sealed beam headlamp listings for any 1986 to 1988 Quantum. The January 1985 facelift brought composite headlamps to the US Quantum. All 1986, 1987, and 1988 Quantum models use composite headlamp assemblies. Sealed beam headlamp listings from the pre-facelift 1982 to 1984 window do not apply to any vehicle in this closing window.
Pre-Listing Checklist for the 1986–1988 Quantum
• Platform confirmed as B2 Passat; B3 Passat (1990+) confirmed as a separate platform with no parts commonality; no 1989 Quantum application exists in the US market
• Engine confirmed as 2.2L five-cylinder KE-Jetronic only for all three years; four-cylinder and turbodiesel excluded as discontinued after 1985
• Engine code confirmed as JT (non-catalyzed) or KX (catalyzed); oxygen sensor and catalytic converter listings applied only to KX applications
• Fuel injection system confirmed as KE-Jetronic throughout 1986 to 1988; KE-Jetronic fuel distributor with actuator port, electro-hydraulic pressure actuator, and oxygen sensor listed as distinct service items; K-Jetronic fuel distributor from 1985 and earlier excluded
• Body styles confirmed by year: 1986 is sedan and Syncro wagon only; 1987 and 1988 are sedan, FWD wagon, and Syncro wagon
• Headlamp listings confirmed as composite throughout 1986 to 1988; sealed beam listings from pre-facelift window excluded
• Syncro wagon confirmed as five-cylinder only, wagon only; 4x100 bolt pattern confirmed for Syncro wheel and hub listings; Audi quattro 4x108 wheel hardware excluded
• Syncro rear axle confirmed as Transporter-derived; Syncro fuel tank confirmed as separate part from FWD wagon fuel tank due to relocated position in different floor pan
• Audi cross-reference confirmed: Audi 4000 (through 1987) and Audi 90 (1987 to 1988) are valid engine, fuel system, and front suspension cross-references; Audi rear suspension excluded due to torsion beam vs. trailing arm difference
• Power steering confirmed as standard on all 1986 to 1988 Quantum applications; non-power steering rack listings excluded
Final Take
The 1986 to 1988 Quantum is a simplified vehicle by US Quantum standards. After four years of managing four different engine configurations, three body styles, and two fuel system types in the same application window, the closing years collapse to a single engine, a single fuel injection system in two catalyst variants, and a straightforward three-body-style lineup. The catalog work is correspondingly narrower, but the errors that do occur in this window tend to be structural rather than incidental: conflating K-Jetronic and KE-Jetronic, misapplying the Audi quattro bolt pattern to the Syncro, or bridging the B2 Quantum into the B3 Passat application.
The Quantum Syncro Wagon is the vehicle that has retained the most catalog interest out of this window. Surviving examples are actively maintained by enthusiasts who know the parts landscape well and will identify a wrong application quickly. The bolt pattern error in particular is one that surfaces regularly in wheel and hub listings, because the visual and mechanical similarity between the FWD Quantum, the Syncro, and the Audi 4000 quattro leads catalog builders to group their wheel specifications together when the Syncro's 4x100 pattern is actually the outlier that demands its own distinct entry.
