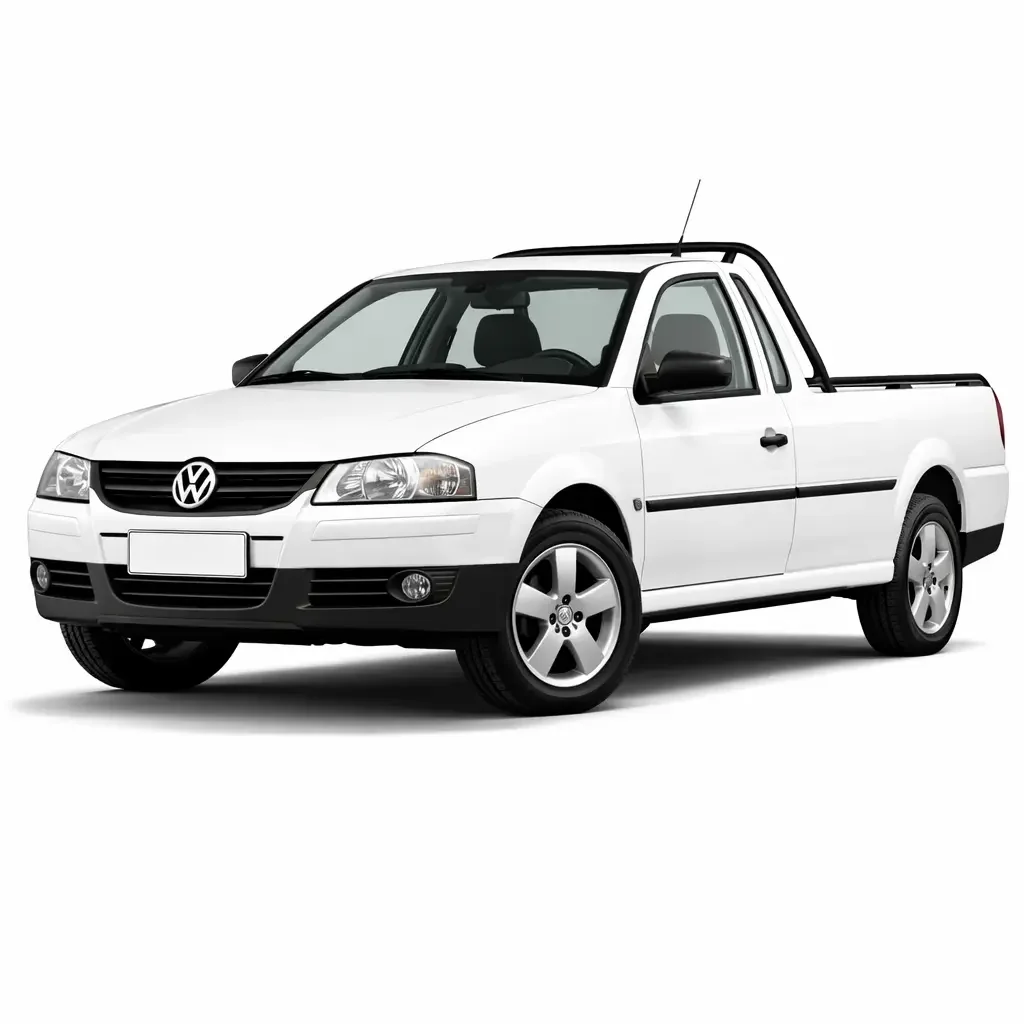

Volkswagen Pointer Truck (2006–2010): Mexico-Market Saveiro G4 Fitment Guide

Written by Arthur Simitian | PartsAdvisory

The Volkswagen Pointer Truck for the 2006 through approximately 2008 model years is the Mexican market designation for the Saveiro G4, the second facelift of the G2 body family and the final iteration of the BX/AB9 platform Saveiro sold under the Pointer name in Mexico. The G4 facelift appeared in Brazil as the 2006 model year, introduced in 2005, and was applied to the Mexican Pointer Pick Up simultaneously. The Pointer name in Mexico was retired when Volkswagen de Mexico replaced it with the Gol G5 in late 2008 or early 2009 — a completely different vehicle on a different platform. The ACES window for this application is shown as 2006 to 2010, which encompasses both the Mexican market years and the continuing Brazilian and global market production of the G4 Saveiro, which remained in production in Brazil until 2014 when new safety legislation required dual airbags and ABS as standard equipment.

This guide builds directly on the mechanical foundations established in the 1999 G2 and 2000 to 2005 G3 guides. The BX/AB9 platform identity, the longitudinal engine orientation, the solid rear leaf-spring axle, the Gol family cross-reference rules, and the Mexico-versus-Brazil engine market split all carry through unchanged from the G3 window. What the G4 adds to the catalog is a new forward body boundary, a simplified interior with a different dashboard design, and the approaching end of the Pointer nameplate in Mexico that creates a terminal year question within the ACES window.

The G3 to G4 Transition: Fox Styling, Simplified Interior

The G4 facelift was applied to the Gol family in August 2005 for the 2006 model year and drew its styling from the contemporaneous Volkswagen Fox, a separate Latin American market hatchback positioned above the Gol. The G4 front end adopted large circular headlamp units and a prominent V-shaped grille, a design contrast to the G3's angular Golf Mk4-inspired headlamps and horizontal-bar grille. The hood, front bumper, and front grille pressing are all new at the G3-to-G4 boundary. None of these cross to G3 components.

The G4 interior change is the other major boundary event. The G3's blue-backlit instrument cluster and higher-quality dashboard, which had been a genuine selling point of the G3 generation, were replaced in the G4 with a simpler, lower-cost hard-plastic dashboard and a simpler single-gauge instrument cluster layout. Brazilian automotive sources including the Car Origins Gol history describe this interior downgrade as the G4's most criticized characteristic. For catalog purposes, the dashboard assembly, instrument cluster, switch panels, and center console are all G4-specific parts that do not cross to the G3 interior. G3 interior components similarly do not fit the G4 dashboard structure.

Structurally, the G4 is identical to the G3 aft of the A-pillar. The cab back panel, cargo bed, rear axle assembly, and all underbody components behind the firewall are unchanged. Windscreen glass, door glass, and door assemblies carry through from the G3 without change and cross to the G3 and G2 applications at the glass and door level. All undercar mechanical components — suspension, brakes, drivetrain, and engine bay hardware — are continuous with the G3 specification and cross freely between the two windows within matching engine applications.

Platform Continuity: BX/AB9 Through the G4's Final Years

The G4 Saveiro retains the BX/AB9 platform throughout the 2006 to 2010 ACES window. The Notícias Automotivas Saveiro G4 article explicitly states that the legacy of the original 1974 Passat-derived BX platform continued in the Saveiro G4 until 2009, when the G5 arrived on the new PQ24 platform. The G4 is therefore the last Saveiro to use the longitudinal engine layout, the solid rear axle on leaf springs, and the BX/AB9 chassis architecture that has been the foundation of this series since 1982.

This platform continuity means that for all undercar service categories — front suspension, front brakes, rear suspension, rear brakes, driveshafts, and engine bay hardware — the G4 Saveiro carries the same cross-references as the G3: valid to the Gol G4 hatchback and to earlier G3 and G2 applications within the same engine specification. The only restriction is that G4 forward body panels and the G4 interior dashboard must not be cross-referenced to G3 or G2 counterparts.

The G5 Boundary: A Complete Platform Break Within the ACES Window

The ACES window for this application runs to 2010, but within that window the Saveiro underwent a full generation change. The Saveiro G5 was introduced in Brazil in 2009 on the entirely new PQ24 platform with a transversely mounted EA111 1.6 VHT engine, a new MQ200 transmission, and an available extended cab body configuration for the first time. This is not a facelift of the G4. It is a new vehicle on a new platform with a new engine in a new mounting orientation. Every mechanical component is different.

The key mechanical distinctions between the G4 and G5 Saveiro are: the G4 uses a longitudinally mounted AP engine; the G5 uses a transversely mounted EA111 VHT engine. The G4 uses the BX/AB9 platform with MacPherson front struts and a solid rear axle on leaf springs; the G5 uses the PQ24 platform with a different front suspension geometry and a different rear axle configuration. The G4 uses a five-speed manual; the G5 uses the MQ200. No mechanical component crosses between the G4 and G5 Saveiro at the engine, transmission, suspension, or drivetrain level.

For the Mexican market specifically, the G5 Saveiro did not arrive under the Pointer name. When Volkswagen de Mexico replaced the G4-generation Pointer with the new G5-generation vehicle, it dropped the Pointer nameplate entirely and sold the vehicle as the Gol or Saveiro. The VW Fox Wikipedia article confirms this: Volkswagen de Mexico replaced the Pointer with the Novo Gol. The Pointer name ceased to be used in Mexico in late 2008 or early 2009.

A catalog entry labelled Pointer Truck for the years 2009 or 2010 therefore requires careful qualification: for Mexico, no Pointer Truck was sold in those years; the G4 Saveiro continued in Brazil and other global markets without the Pointer name. Any 2009 or 2010 entry for this application in a global catalog reflects the G4 Saveiro sold outside Mexico, not a Mexican Pointer Truck. A catalog that applies G5 Saveiro mechanical listings to a 2009 or 2010 Pointer Truck entry is applying PQ24 components to a BX/AB9 vehicle.

Engine: 1.8L AP in Mexico, Flex-Fuel AP in Brazil

The Mexican-market Pointer Truck in the G4 window continued with the 1.8L AP gasoline engine, mechanically continuous with the G3 and G2 applications. No change to the AP engine specification occurred at the G3-to-G4 facelift boundary. Timing belt, water pump, spark plugs, fuel filter, oil filter, air filter, and ignition components carry through from the G3 window without revision.

In Brazil, the Saveiro G4 was offered with the 1.6L AP TotalFlex and 1.8L AP TotalFlex, both carrying the flex-fuel capability introduced during the G3 window. A TriFlex variant was also available in Brazil, capable of running on gasoline, ethanol, or compressed natural gas (CNG). The Notícias Automotivas Saveiro G4 article confirms the AP TriFlex option for the Brazilian market. The CNG fuel system adds high-pressure gas storage cylinders, a CNG pressure regulator, CNG injectors in parallel with the petrol injectors, and a bi-fuel or tri-fuel engine management strategy. None of these CNG-specific components apply to the Mexican gasoline-only application.

The market separation rule established for the G3 window therefore applies with greater force in the G4 window: the Brazilian AP TotalFlex fuel system, the CNG TriFlex system, and the gasoline-only Mexican AP system are three distinct fuel system configurations that must not be merged. A globally unified G4 Saveiro AP engine entry will produce wrong fuel system components for at least two of the three configurations on any given order.

The 1.6L VHT Is Not an AP: A G5-Only Engine

The 1.6L VHT (Volkswagen High Torque) engine that became the primary powerplant for the Saveiro G5 from 2009 is a transversely mounted EA111 family unit. It is not a development of the longitudinal AP engine. VHT refers to Volkswagen's Flex-fuel total ethanol technology applied to EA111 engines in the Latin American market; the designation was introduced with the G5 Gol family. Any catalog that lists a 1.6L VHT engine application for the G4 Saveiro or the G4-era Pointer Truck is applying a G5 engine to a G4 vehicle. The AP and VHT engines are different families, different mounting orientations, and different engine management systems with no component crossover.

Suspension, Brakes, and the Unchanged Rear Axle

Front MacPherson strut suspension, front disc brakes, and all front axle components are unchanged from the G3 specification and cross to the Gol G4 hatchback under matching engine weight applications. The solid rear axle on leaf springs continues as the defining structural feature of the Saveiro across the G4 window, unchanged from its G2 introduction in 1999. Rear leaf springs, rear shock absorbers, rear axle assembly, rear drum brakes, and rear wheel bearings are all G4 Saveiro-specific and share no cross-reference with the Gol G4 hatchback rear suspension.

When the G5 Saveiro arrived in 2009, it brought a different rear suspension configuration to match its new PQ24 platform. No G4 rear suspension component crosses to the G5. For catalog entries covering 2009 or 2010 in this ACES window, the rear suspension specification must be confirmed against the G4 BX/AB9 architecture for vehicles built before the G5 transition, and against the G5 PQ24 architecture for vehicles built after. The solid rear axle on leaf springs is the clearest diagnostic indicator: if the vehicle has leaf springs at the rear, it is a G4 or earlier. If it has a different rear suspension, it is a G5 or later.

Cross-Reference Family: Gol G4 Hatchback and G3 Mechanical Continuity

The primary cross-reference family for the G4 Pointer Truck is the Gol G4 hatchback, sold in Mexico during this window. The Parati wagon was discontinued in Mexico in 2005 and does not participate in this window's cross-reference family. In Brazil, the Parati was discontinued in 2006 and replaced by the SpaceFox. The Gol G4 hatchback therefore stands as the sole Gol-family body variant sharing the G4 AB9/BX platform and AP engine family with the Saveiro G4 in this window.

For mechanical undercar components — AP engine service items, front suspension, front brakes, and driveshafts — the G4 Pointer Truck also cross-references freely to the G3 (2000 to 2005) and G2 (1999) applications within the same 1.8L AP gasoline engine specification. The AP engine timing belt kit, water pump, thermostat housing, ignition components, and fuel system parts are continuous across the G2, G3, and G4 windows without change for the Mexican gasoline specification.

The G4 headlamp units and front bumper do not cross to the G3 (Golf Mk4-styled headlamps) or G2 (rounded four-lamp clusters) applications, as each generation used a visually distinct front end design with different mounting geometry.

Special Editions and Trim Variants

The Saveiro G4 carried several special edition trim packages during its production run. The Super Surf series appeared briefly in 2006, inherited from the G3 with 15-inch six-spoke alloy wheels, a rear cab guard, marine hood, and Super Surf badging. The Crossover series appeared in 2007 with black bumpers, grille, a push bar, and fog lights. The Surf series was introduced in 2008 as a regular production version with a partially black bumper, integrated fog lights, gray lower grille, black rear bumper, side sills, and framed wheel skirts.

None of these special editions introduced mechanical changes. They are exterior trim packages on the standard G4 mechanical specification. The Surf's 15-inch alloy wheels and the standard G4's 14-inch steel wheels differ in size; wheel arch liner and tire specification listings must account for this trim-level wheel size variation. Whether these Brazilian special editions were offered in Mexico on the Pointer Pick Up is not confirmed in available sources and should be flagged as Brazil-confirmed, Mexico-unconfirmed unless specific market documentation is available.

ACES Window 2006–2010: What the Terminal Year Actually Represents

The ACES window of 2006 to 2010 for this application requires careful qualification at both ends. The opening year of 2006 correctly reflects the G4 facelift introduction for the 2006 model year. The terminal year of 2010 reflects the continued availability of G4 Saveiro in markets outside Mexico beyond the Pointer nameplate's retirement. Three distinct situations exist within this window that a catalog must handle separately.

First: Mexico market 2006 to approximately 2008. The Pointer Pick Up continued under the Pointer name during these years as a G4-specification vehicle with the 1.8L AP gasoline engine. Second: Mexico market 2009 onward. No Pointer Truck was sold in Mexico in 2009 or 2010; the G5-generation vehicle was sold as the Gol or Saveiro. Third: Global markets outside Mexico 2006 to approximately 2010. The G4 Saveiro continued in Brazil and other markets during this window, using AP TotalFlex or AP TriFlex engines distinct from the Mexican gasoline AP.

A catalog that assigns G5 PQ24 mechanical listings to any Pointer Truck entry labelled 2009 or 2010 is applying the wrong platform. A catalog that assigns Mexican gasoline AP fuel system listings to a 2009 or 2010 global G4 Saveiro entry is applying the wrong fuel system. Market confirmation and platform confirmation are both required before any listing is assigned to the 2009 or 2010 portion of this ACES window.

Common ACES/PIES Catalog Mistakes

1.    Applying G3 forward body panels to G4 applications or vice versa. The G4 introduced large circular headlamps and a Fox-derived V-grille that replaced the G3's angular Golf Mk4-styled headlamps and horizontal-bar grille. These are different headlamp housing geometries with different wiring connectors and different mounting brackets. G3 headlamps do not fit the G4 front end structure, and G4 headlamps do not fit the G3 structure.

2.    Applying G3 dashboard and instrument cluster listings to G4 applications. The G4 interior used a simplified, single-gauge instrument cluster and a lower-cost hard-plastic dashboard that replaced the G3's blue-backlit multi-gauge cluster and higher-quality panel. These are different physical assemblies with different mounting points. A G3 dashboard listing applied to a G4 vehicle will deliver a unit that does not fit the G4 dash structure.

3.    Applying G5 Saveiro mechanical listings to any Pointer Truck entry within this window. The G5 Saveiro is a different vehicle on the PQ24 platform with a transversely mounted EA111 VHT engine. No front suspension, rear suspension, engine, transmission, or driveshaft component crosses from the G5 to the G4 Saveiro. A catalog that extends G5 mechanical listings backward into the 2006 to 2010 window without platform qualification will generate PQ24 components for a BX/AB9 vehicle.

4.    Listing the 1.6L VHT engine as an application for the G4 Pointer Truck. The 1.6L VHT is the G5's transversely mounted EA111-family engine, introduced in 2009 with the PQ24-platform Saveiro. The G4 uses the longitudinal AP engine family throughout its production. A 1.6L VHT application listed against a G4-era Pointer Truck applies a G5 engine to a G4 vehicle.

5.    Assigning AP TotalFlex or AP TriFlex CNG fuel system components to the Mexican Pointer Truck. Mexico did not receive the TotalFlex or TriFlex variants; these are Brazilian and South American market applications. CNG storage cylinders, CNG pressure regulators, alcohol sensors, and tri-fuel engine management units do not apply to the Mexican gasoline-only 1.8L AP specification.

6.    Applying Gol G4 hatchback rear suspension listings to the Saveiro G4. The Gol G4 hatchback uses a semi-independent rear suspension; the Saveiro G4 uses a solid rear axle on leaf springs. This distinction is unchanged from G2 through G4. Rear spring, shock, axle, and drum brake listings for the hatchback are incompatible with the pickup's solid axle.

7.    Assigning any mechanical Pointer Truck listing to a 2009 or 2010 Mexico-market entry. The Pointer nameplate was retired in Mexico in late 2008 or early 2009. No Pointer Truck was sold in Mexico for the 2009 or 2010 model years. A Mexico-specific Pointer Truck catalog entry for these years is applying a nameplate to a market where the vehicle was no longer sold.

Pre-Listing Checklist for the 2006–2010 Pointer Truck

•       Generation confirmed as G4 (2006 model year onward, Fox-derived V-grille and circular headlamps); G3 body panels and interior components excluded

•       Platform confirmed as BX/AB9 for all G4 applications; G5 PQ24 listings excluded from G4 entries; G5 Saveiro confirmed as a different platform with no mechanical carry-forward to G4

•       Market confirmed: Mexico Pointer Truck runs 2006 to approximately 2008 only; 2009 and 2010 entries apply to global G4 Saveiro outside Mexico, not to Mexican Pointer Truck

•       Engine confirmed as 1.8L AP gasoline for Mexico; AP TotalFlex and AP TriFlex CNG excluded as Brazil/South America-only variants; 1.6L VHT excluded as G5-only engine

•       AP engine service items (timing belt, water pump, spark plugs, fuel filter, oil filter) confirmed as continuous with G3 and G2 specifications for the Mexican 1.8L gasoline application

•       Front suspension confirmed as crossing to Gol G4 hatchback and to G3 Pointer Truck mechanical applications within matching engine specification

•       Rear suspension confirmed as solid axle on leaf springs throughout G4 window; no cross-reference to Gol G4 hatchback rear suspension; no cross-reference to G5 Saveiro rear suspension

•       G4 headlamps confirmed as Fox-derived circular units specific to G4; not crossing to G3 (Golf Mk4-styled angular units) or G2 (four-lamp round clusters)

•       Windscreen glass, door glass, and door assemblies confirmed as unchanged from G3 and G2; these carry through all generations

•       Special edition trim packages (Super Surf, Crossover, Surf) confirmed as cosmetic-only; no mechanical differences from standard G4 specification

Final Take

The 2006 to 2010 Pointer Truck window is the closing chapter of the BX/AB9 platform Saveiro under the Pointer name, and its catalog complexity comes primarily from two events that occur within the window itself rather than at its boundaries. The first is the retirement of the Pointer name in Mexico in late 2008 or early 2009, which means that the 2009 and 2010 years in the ACES window represent global G4 Saveiro production rather than the Mexican Pointer Truck specifically. The second is the G5 Saveiro's 2009 arrival on an entirely new PQ24 platform, which creates a hard mechanical break within a window that ACES has registered as a single continuous application.

A catalog that correctly handles this window will maintain the G4 BX/AB9 mechanical specification for all entries within it, resist the pull toward G5 PQ24 components for the 2009 and 2010 years, and keep the Mexico gasoline AP and the Brazil flex-fuel and TriFlex AP as separate market-specific fuel system entries. The forward body boundary from G3 to G4 is the most routine catalog update in this window, and the long mechanical continuity of the AP engine and the solid rear axle through G2, G3, and G4 makes the undercar cross-reference work the most stable part of the entire Pointer Truck series.
