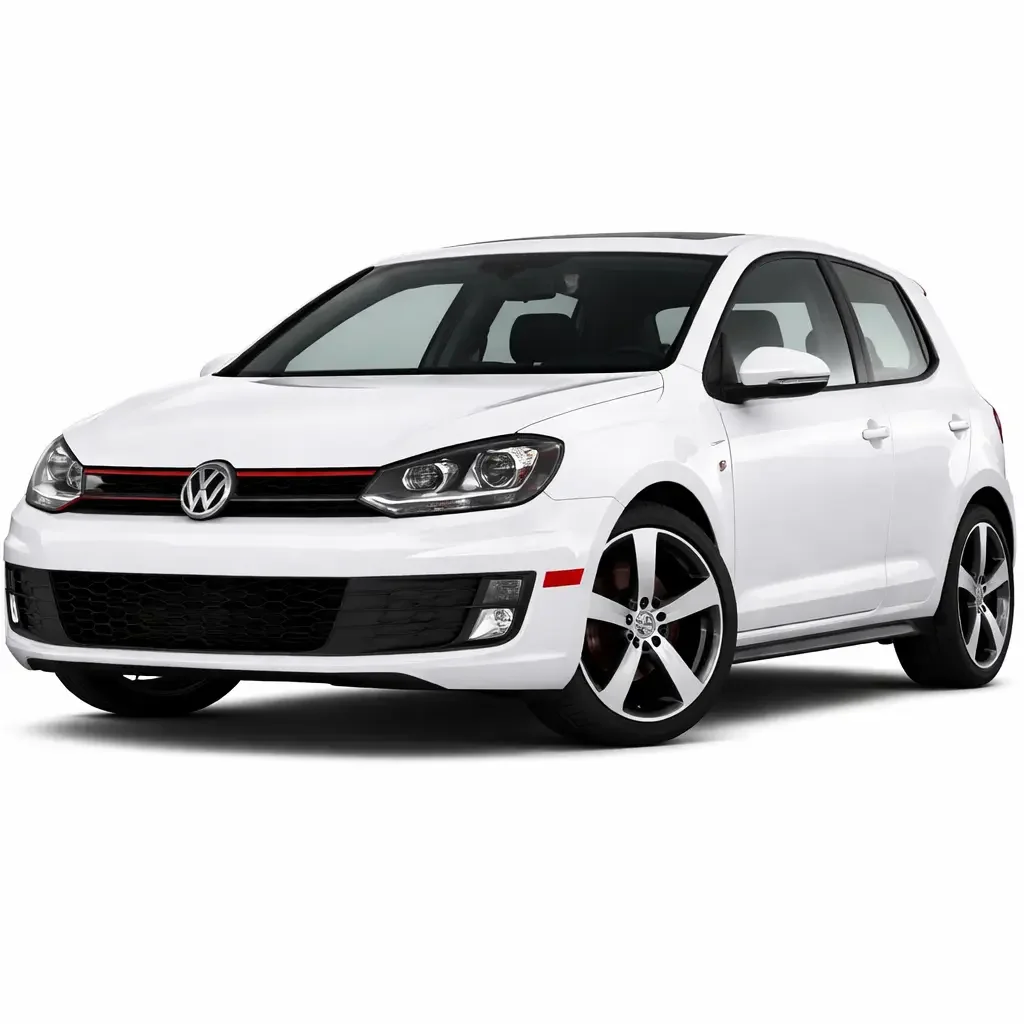

Volkswagen GTI (2010-2014): Mk6 PQ35 Platform Fitment Guide for North America
Written by Arthur Simitian | PartsAdvisory
The Volkswagen GTI sold in North America from 2010 through 2014 is the sixth generation of the nameplate, marketed as the Golf GTI in Europe but sold in the United States and Canada simply as the GTI, continuing the naming convention established with the Mk5. Internally designated Typ 5K, the Mk6 GTI arrived in North American showrooms in late 2009 as a 2010 model year vehicle, replacing the Mk5 and restoring the Golf nameplate to the base hatchback lineup after the Rabbit interlude. The Mk6 GTI is built in Wolfsburg, Germany and imported throughout its North American production run.
The Mk6 is built on the same PQ35 platform as the Mk5 GTI, making it one of two consecutive generations to share the same fundamental architecture. This platform continuity creates a meaningful cross-reference family with the Mk5 at the front suspension and front brake level, but it also creates a catalog risk: the Mk6 GTI moved from the EA113 FSI engine family of the Mk5 to the EA888 Gen1 TSI family as its sole powertrain throughout the window, and several service component families that cross between the two platform generations at the structural level do not cross at the drivetrain level. The most immediately consequential distinction is the flywheel: the Mk5 BPY FSI engine uses a six-bolt flywheel pattern while the Mk6 EA888 TSI uses an eight-bolt pattern. Clutch and flywheel components confirmed for the Mk5 do not cross to the Mk6 manual transmission application.
The five-year North American window contains two catalog boundaries worth careful attention: the CCTA versus CBFA engine code split driven by state-level emissions jurisdiction rather than model year, and the discontinuation of the 2-door body style after the 2013 model year, leaving the 2014 GTI as a 4-door-only application.
This guide addresses the United States market throughout. Canadian specifications are mechanically identical within this window.
Platform: PQ35 Continuity and What It Does and Does Not Mean
The Mk6 GTI uses the same PQ35 transverse, front-wheel-drive platform as the Mk5. Front strut geometry, front control arm specifications, front wheel bearing specifications, and front brake rotor and caliper dimensions are continuous across the Mk5 and Mk6 GTI at matching equipment specifications. This is one of the broader inter-generational cross-reference families in the compact VW performance catalog and can be treated as confirmed at the platform level, though individual part numbers should be verified before publication.
The platform continuity does not extend to powertrain components, transmission clutch components, or engine service items. The Mk5 GTI uses the EA113 BPY FSI engine with a timing belt, six-bolt flywheel, and combined port-and-direct injection. The Mk6 GTI uses the EA888 Gen1 TSI engine with a timing chain, eight-bolt flywheel, and pure direct injection. These are different engine families. No timing drive component, fuel system component, flywheel, or clutch kit crosses between the Mk5 and Mk6 GTI at the drivetrain level.
The Mk6 also shares the PQ35 platform with the Mk6 Jetta GLI, creating a cross-reference family for front suspension and front brake components between those two vehicles within matching specifications. The Mk6 Golf TDI sold alongside the GTI uses the same platform but different engine mounts, different front subframe loads, and different rear suspension tuning. Golf TDI suspension and brake specifications are not assumed to cross to the GTI without individual confirmation.
Engine: EA888 Gen1, CCTA and CBFA, and the Emissions Jurisdiction Split
The Mk6 GTI uses a single engine family throughout the entire North American window: the 2.0-litre turbocharged EA888 Gen1 direct-injection four-cylinder producing 200 hp and 207 lb-ft of torque. The EA888 Gen1 uses a timing chain rather than a timing belt. There is no scheduled timing belt replacement interval on the Mk6 GTI. A timing belt kit listing assigned to any Mk6 GTI application is assigning a service component that does not exist on the vehicle.
Within the EA888 Gen1 family, the North American Mk6 GTI carries one of two engine codes depending on the emissions certification of the selling state at time of purchase: CCTA or CBFA. This split is not a model year boundary. It is a jurisdiction boundary. The CCTA is the 49-state LEV-certified variant. The CBFA is the PZEV-certified variant required in California and the states that have adopted California emissions standards, including Connecticut, Maine, Massachusetts, New Hampshire, New Jersey, New York, Rhode Island, Vermont, Pennsylvania, and others. Both produce 200 hp with identical output specifications.
The practical catalog differences between CCTA and CBFA are concentrated in the emissions system hardware. The CBFA adds a secondary air injection system with a secondary air pump, secondary air valve, and a dedicated port in the cylinder head. The CBFA also has a third oxygen sensor mounted at the turbo outlet housing, in addition to the two downstream sensors shared with the CCTA. The CCTA has two oxygen sensors, both on the downpipe. The CBFA lower oil pan uses a different sensor mounting location than the CCTA lower oil pan, creating a part number split in the oil pan assembly.
For the majority of engine service components, including oil filter, air filter, spark plugs, coolant thermostat, water pump, timing chain tensioner, and high-pressure fuel pump, CCTA and CBFA are functionally identical and share the same part numbers. The components that must be confirmed against engine code before a listing is assigned are: oxygen sensor count and location, secondary air pump and secondary air valve (CBFA only), and lower oil pan assembly.
A catalog that assigns a single engine code application for all North American Mk6 GTI without the CCTA/CBFA distinction will generate incorrect oxygen sensor and emissions hardware listings for one or the other jurisdiction group. The correct approach is to maintain separate listings for emissions-specific components by engine code, while treating the shared service items as common across both codes.
The EA888 Gen1 timing chain tensioner is a documented service item on this engine family. Early production EA888 Gen1 engines exhibited timing chain stretch and tensioner wear at mileages where chain replacement is not expected. Any timing chain tensioner or timing chain listing for the Mk6 GTI should note the Gen1 chain stretch history as a relevant service context.
Transmissions: 02Q Six-Speed Manual and DQ250 Six-Speed DSG
The Mk6 GTI uses the same two transmission families as the Mk5: the 02Q six-speed manual and the DQ250 six-speed DSG. However, the clutch and flywheel hardware for the 02Q manual changed between the Mk5 and Mk6 due to the engine family change.
The Mk5 BPY FSI engine uses a six-bolt dual-mass flywheel. The Mk6 EA888 TSI engine uses an eight-bolt dual-mass flywheel. This flywheel bolt pattern difference means that clutch kits, flywheel assemblies, and pressure plate components for the Mk5 FSI application do not cross to the Mk6 TSI application. A clutch kit confirmed for the Mk6 02Q TSI application carries the eight-bolt specification and must not be applied to the Mk5 application.
The 02Q manual transmission itself is the same family across both generations, and some internal gearbox components cross between the Mk5 and Mk6 02Q within matching ratio sets. Gear oil, shift linkage, and gear selector cable components cross at the transmission-family level. The drivetrain mounts, which attach the transmission to the subframe, may differ between generations and must be confirmed by part number.
The DQ250 DSG carries forward from the Mk5 in the same wet-clutch architecture. DSG fluid, DSG filter, and mechatronic unit specifications are shared between the Mk5 and Mk6 DQ250 applications within the same fluid generation. DSG service interval confirmation is required before any fluid or filter listing is assigned, as VW issued revised service interval guidance for the DQ250 during this period.
No conventional automatic transmission was offered with the North American Mk6 GTI. A conventional automatic transmission component assigned to any Mk6 GTI application is incorrect.
Body: 2-Door and 4-Door, and the 2014 Discontinuation
The Mk6 GTI was available in both the 2-door three-door hatchback and the 4-door five-door hatchback for the 2010 through 2013 model years. For the 2014 model year, the 2-door was discontinued. The 2014 North American GTI is a 4-door-only application. A catalog entry that assigns a 2-door body style to the 2014 GTI is assigning a body configuration that was not sold in that model year.
The body style split carries the same component implications as in the Mk5: all front body components, front doors, front glass, windscreen, front suspension, front brake, and engine service components are shared between the 2-door and 4-door within matching trim. Rear door components, rear door glass, rear quarter panels on the 4-door, and rear door electrical hardware are 4-door-specific. The fixed rear quarter glass of the 2-door is a different assembly from the rear door glass of the 4-door.
Brakes: GTI Specification and the Mk6 Golf Distinction
The Mk6 GTI uses 312 mm front brake rotors with red-painted single-piston sliding calipers, the same front rotor diameter as the Mk5 GTI. Rear rotors are 286 mm solid discs with drum-in-hat integrated parking brake, also continuous with the Mk5 specification. The base Mk6 Golf uses smaller front brake hardware. A front rotor confirmed for the base Mk6 Golf does not cross to the GTI, and the PQ35 platform membership does not license that cross-reference.
The Mk6 GTI front brake caliper mounting bracket is shared with the Mk5 GTI within the same rotor diameter specification, a consequence of the PQ35 platform continuity. This is one of the practical cross-references created by the shared platform between the two generations.
Suspension: Sport Tuning and GTI-Specific Specifications
The Mk6 GTI suspension uses MacPherson struts at the front and a torsion beam rear axle, the same fundamental layout as the Mk5. The GTI-specific spring rates, damper valving, and rear anti-roll bar diameter are calibrated for the GTI and differ from the base Golf. Mk6 Golf rear springs and rear shock absorbers do not cross to the GTI. Front strut cartridges, as noted above, cross between the Mk5 and Mk6 GTI at the platform level within matching spring rates.
The Mk6 GTI did not receive the DCC adaptive damper system in North America. No DCC-specific suspension component listing applies to any North American Mk6 GTI application.
Trims: Base GTI, Autobahn, Wolfsburg Edition, and Driver's Edition
The Mk6 GTI North American lineup evolved across the five-year window but maintained a consistent mechanical platform throughout. The standard trim structure across most of the window consisted of the base GTI, the GTI with sunroof, the GTI with sunroof and navigation, and the GTI Autobahn. The Autobahn trim added dual-zone climate control, a Dynaudio premium audio system, leather seating, and other comfort upgrades. No Autobahn-specific mechanical component distinction exists.
The Wolfsburg Edition was introduced for the 2013 and 2014 model years as a value-oriented trim pairing the sunroof and navigation package at a lower price point. The Driver's Edition was offered late in the window as a performance-focused package adding upgraded wheels and sport-oriented content. Neither edition creates a mechanical component catalog boundary at the engine, transmission, or suspension level.
The GTI Edition 35, a European limited production celebrating the 35th anniversary of the GTI, was not sold in North America as a standalone variant. Components specific to the European Edition 35, which used a higher-output version of the EA888, must not be applied to North American Mk6 GTI applications.
Cross-Reference Family: Mk5 GTI, Mk6 Jetta GLI, and the EA888 Ecosystem
The Mk6 GTI front suspension and front brake cross-reference family spans both the Mk5 GTI (same platform, same rotor diameter, same strut geometry) and the Mk6 Jetta GLI (same platform, same engine, same transmission). This is the broadest reliable cross-reference scope in the GTI series to this point in the nameplate's history.
For engine service components, the EA888 Gen1 CCTA and CBFA cross to the Mk6 Jetta GLI 2.0T, the Passat B6 late-production 2.0T, and the Audi A3 8P late-production 2.0T within the same engine code. Timing chain, water pump, thermostat, and spark plug listings confirmed for any of these applications cross to the Mk6 GTI within matching engine code.
Common ACES/PIES Catalog Mistakes
The first error is applying a timing belt kit to any Mk6 GTI application. The EA888 Gen1 uses a timing chain. No timing belt exists on this vehicle. A timing belt listing applied to any 2010 through 2014 GTI is assigning a service component that does not exist on the vehicle.
The second error is treating the CCTA and CBFA as identical for emissions hardware listings. The CBFA has a secondary air injection system, a third oxygen sensor at the turbo outlet, and a different lower oil pan assembly. Oxygen sensor listings, secondary air pump and valve listings, and oil pan listings must confirm engine code before the specification is assigned.
The third error is applying a Mk5 GTI clutch kit or six-bolt flywheel to a Mk6 GTI 02Q manual application. The Mk6 EA888 TSI uses an eight-bolt flywheel. A Mk5-specific clutch kit does not fit the Mk6 application.
The fourth error is assigning a 2-door body style to the 2014 GTI. The 2-door was discontinued after 2013. All 2014 North American GTI applications are 4-door only.
The fifth error is applying base Mk6 Golf front brake rotors to the GTI. The GTI uses 312 mm front rotors. The base Golf uses smaller front hardware. These are different components.
The sixth error is applying Mk6 Golf rear spring or rear shock specifications to the GTI. The GTI uses sport-tuned rear suspension calibrated for the performance application. The base Golf rear suspension specifications are different.
The seventh error is applying European Edition 35 engine or powertrain components to North American Mk6 GTI applications. The Edition 35 used a higher-output EA888 variant not sold in North America. Its engine internals, turbocharger, and fuel system specifications differ from the CCTA/CBFA standard production engine.
The eighth error is applying a conventional automatic transmission component to any North American Mk6 GTI. No conventional automatic was offered in this generation. A torque converter, conventional fluid, or automatic filter listing applied to any Mk6 GTI is assigning hardware that was never installed in the vehicle.
The ninth error is treating all Mk6 GTI applications as mechanically identical to Mk5 GTI applications on the basis of shared PQ35 platform. The platform is shared; the engine family, flywheel pattern, clutch specification, and timing drive type are not.
The tenth error is applying DCC adaptive damper suspension components to any North American Mk6 GTI. The DCC system was not offered on the North American Mk6 GTI. Any DCC-specific strut, spring, or damper listing applied to this application is assigning hardware from a configuration that was not sold in this market.
Pre-Listing Checklist for the 2010-2014 Mk6 GTI
Platform confirmed as PQ35 transverse, front-wheel drive throughout; front suspension and front brake cross-references to Mk5 GTI and Mk6 Jetta GLI confirmed at platform level within matching specifications.
Engine confirmed as EA888 Gen1, timing chain throughout; no timing belt applies; engine code confirmed as CCTA (49-state LEV) or CBFA (CARB/PZEV states) before oxygen sensor, secondary air system, and oil pan listings are assigned.
Transmission confirmed as 02Q six-speed manual with eight-bolt TSI flywheel or DQ250 six-speed DSG; no conventional automatic applies; clutch and flywheel confirmed as eight-bolt TSI pattern, not six-bolt FSI pattern from Mk5.
Body style confirmed as 2-door or 4-door for 2010 through 2013; 2014 confirmed as 4-door only; rear door and rear quarter glass confirmed as body-style-specific for 2010 through 2013 applications.
Front brake confirmed as 312 mm rotor; base Mk6 Golf brake specifications confirmed as not applicable.
Suspension confirmed as GTI sport-tuned specification; base Mk6 Golf suspension specifications confirmed as not applicable; DCC adaptive damper system confirmed as not available on North American Mk6 GTI.
Wolfsburg Edition and Driver's Edition confirmed as equipment-level trims with no mechanical component distinctions from the standard GTI; European Edition 35 components confirmed as not applicable to North American applications.
Final Take
The 2010 to 2014 Mk6 GTI is among the cleaner windows in the GTI catalog series, with a single engine family throughout, no mid-window engine code or output change, and only two catalog boundaries requiring active management. The CCTA versus CBFA split is the subtler of the two because it is jurisdiction-driven rather than year-driven and is invisible at the trim, output, and nameplate level. A buyer in Massachusetts and a buyer in Texas are purchasing the same vehicle by every external measure, but their oxygen sensor, secondary air system, and oil pan catalog entries are different. The second boundary, the 2014 2-door discontinuation, is a clean annual cut that is straightforward to manage but generates an error in any catalog that treats the full five-year window as having consistent body style availability.
The broader structural story of the Mk6 in catalog terms is the transition it represents from the FSI engine family of the Mk5 to the TSI family that will carry through every subsequent GTI generation covered in this series. The flywheel pattern change, the timing chain introduction, and the elimination of the cam follower wear concern that defined FSI service intervals all originate with the Mk6, making this the generational boundary point for a large category of powertrain service component cross-references.
