Center High Mount Stop Light (PartTerminologyID 2804): Where Bulb Type, Housing Configuration, and FMVSS 108 Compliance Determine Whether the Third Brake Light Signals Braking Correctly
Written by Arthur Simitian | PartsAdvisory

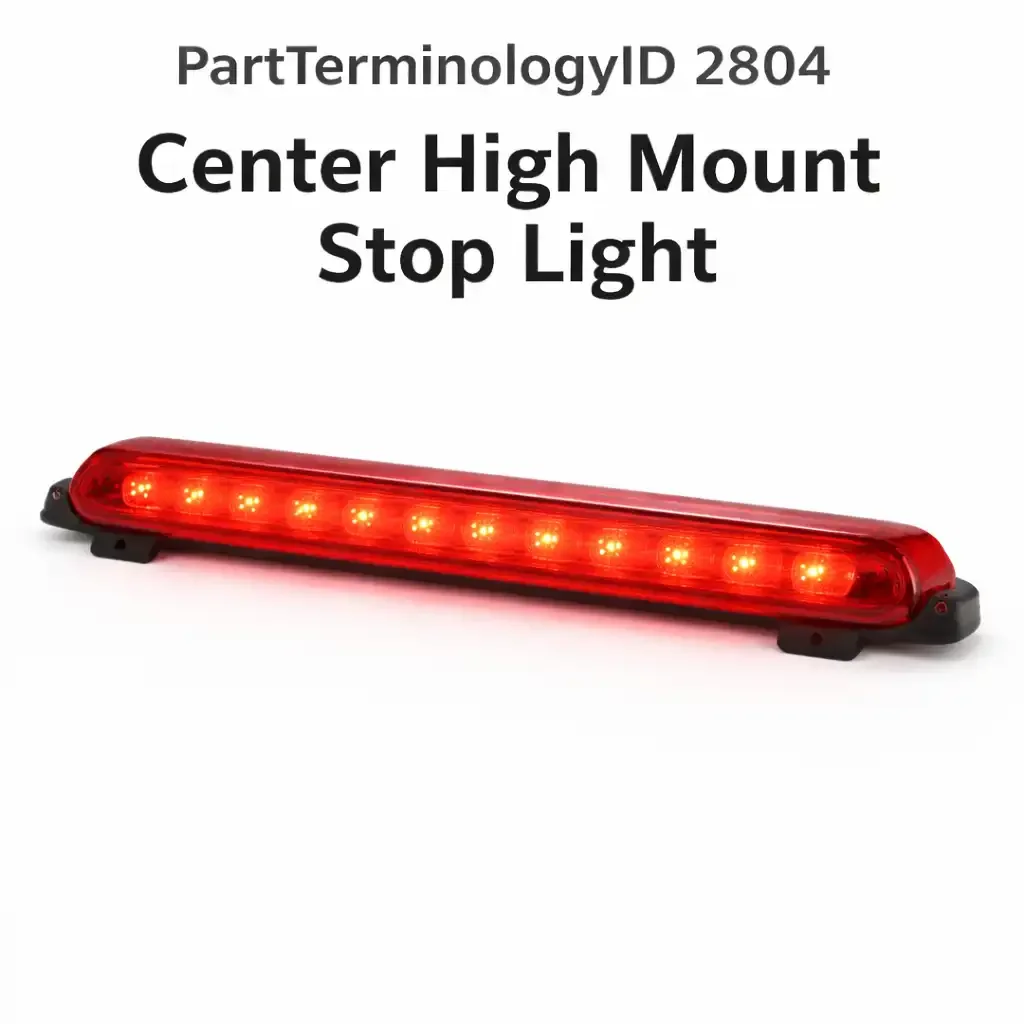

PartTerminologyID 2804, Center High Mount Stop Light, is the red stop lamp mounted on the vehicle's longitudinal centerline at an elevated position above the primary rear stop lamps, federally mandated by FMVSS 108 on all passenger cars after 1985 and light trucks after 1993, that activates simultaneously with the primary stop lamps when the brake pedal is depressed, providing following drivers with a braking signal visible above the roofline of the vehicle directly ahead and reducing rear-end collision frequency by giving following drivers additional reaction time from the elevated, unobstructed braking signal. That definition covers the federal mandate and the safety function correctly and leaves unresolved every question that determines whether the replacement part covers a single replaceable bulb or a complete LED assembly, whether the housing configuration matches the CHMSL mounting cavity in the vehicle's rear window shelf, rear spoiler, or rear glass, whether the replacement is designed for an interior-mounted or exterior-mounted CHMSL position, whether the lens color is red as required by FMVSS 108 for stop lamps, whether the assembly bears DOT certification markings, whether the LED board replacement requires the complete assembly or allows board-level replacement on vehicles where the LED circuit board is separately available, whether the connector type matches the vehicle's CHMSL circuit harness, and whether the mounting hardware is included for assemblies that mount through the rear glass or spoiler with specific fastener requirements.
It does not specify whether the part is a bulb or complete assembly, the mounting position type, the lens color, the DOT certification status, the connector type, whether the LED board is separately replaceable, the mounting hardware inclusion, or the housing dimensions required for the specific CHMSL cavity in the vehicle. A listing under PartTerminologyID 2804 that states only year, make, and model without part type and mounting position type cannot be evaluated by a buyer whose CHMSL is mounted through the rear spoiler on a specific trim level that used a different CHMSL housing depth than the base trim's rear window shelf mounting position.
For sellers, PartTerminologyID 2804 is the rear exterior lighting PartTerminologyID with the most distinct part type population split between the aftermarket segments. Older vehicles with incandescent CHMSLs have a large bulb-replacement buyer population because the bulb access is often achievable through the interior without removing the housing. Vehicles with integrated LED CHMSLs have a complete assembly replacement population because there is no discrete bulb to replace. And vehicles with standalone LED assemblies mounted in the rear window have a spoiler-mounted versus window-shelf-mounted split that creates two physically incompatible housings under the same vehicle application. All three populations order under the same PartTerminologyID and a catalog that does not distinguish them with part type and mounting position will generate returns from all three.
What the Center High Mount Stop Light Does
Federal mandate, mounting height, and the reaction time benefit
FMVSS 108 requires the CHMSL to be mounted on the vehicle's longitudinal centerline within a specified height range above the vehicle's rear axle centerline, with the lamp visible through a horizontal arc of at least 45 degrees to each side of the vehicle centerline. The elevated center position serves a specific and documented safety function: when a vehicle is braking in a line of traffic, the CHMSL of each vehicle is visible above the roofline of the vehicle immediately ahead because of its elevated mounting height. A following driver can see the braking signal from two or three vehicles ahead in the line rather than only from the vehicle immediately in front, providing additional reaction time to begin braking before the vehicle directly ahead's primary stop lamps become visible.
Studies conducted by NHTSA after the initial CHMSL mandate documented a measurable reduction in rear-end collision frequency attributable to the CHMSL's elevated signal. The reduction was most pronounced in daylight conditions where the CHMSL's unobstructed centerline position gave following drivers reaction time they would not have had from the primary stop lamps alone. The safety benefit is direct and the federal mandate reflects it. A non-functional CHMSL on a vehicle operated on public roads is not a cosmetic lighting deficiency. It is an FMVSS 108 non-compliance that removes a documented collision-reduction benefit from every following driver behind the vehicle.
Incandescent versus LED CHMSL and the replacement method distinction
On vehicles equipped from the factory with an incandescent CHMSL, the housing contains one or more bulb sockets holding standard automotive bulbs, typically 921 or 912 wedge base or 1156 single-contact bayonet base, behind a red lens. The bulbs are replaceable through an access panel in the headliner, the rear cargo area trim, or the rear spoiler interior, depending on the mounting position. Replacing the bulb does not require removing the CHMSL housing from the vehicle exterior. The buyer needs only the correct bulb base type, wattage, and quantity.
On vehicles equipped from the factory with an LED CHMSL, the LED elements are mounted on a circuit board integrated into the housing assembly. The circuit board is not separately serviceable in most applications. When the LED elements fail, the entire assembly must be replaced. The buyer needs the complete assembly with the correct mounting configuration, connector type, and lens color. A listing that covers a bulb replacement for an LED CHMSL application will generate returns from buyers who discover no bulb socket in the housing after receiving the bulb. A listing that covers a complete assembly for an incandescent application may generate returns from buyers who needed only a bulb and receive an assembly that requires exterior housing removal to install.
Mounting positions: rear window shelf, spoiler-integrated, and exterior roof mount
The CHMSL mounting position varies significantly across vehicle body styles and trim levels. On sedans and coupes, the CHMSL is typically mounted in the rear window shelf area, either on the interior surface of the rear deck behind the rear glass, on the exterior surface of the rear deck lid between the rear glass and the trunk lip, or in a spoiler mounted at the trunk lid edge. On hatchbacks and wagons, the CHMSL is typically mounted in the rear cargo area trim panel at the upper edge of the cargo door opening, or in a rear spoiler at the hatchback roofline. On SUVs and trucks, the CHMSL is often mounted in the cab rear glass or in an exterior housing on the roof above the rear window.
Each mounting position uses a housing with specific dimensions, mounting tab configurations, and connector positions adapted to the cavity or surface at that position. A rear window shelf housing is typically a low-profile rectangular assembly that sits flush against the inside of the rear deck. A spoiler-integrated CHMSL is a housing specifically designed to fit the spoiler's internal cavity, which varies by spoiler design. An exterior roof-mount CHMSL uses a sealed weatherproof housing with a gasketed mounting flange and external mounting screws. These three designs are not interchangeable at different positions and a catalog that covers a CHMSL for a vehicle where the same model year offered spoiler and non-spoiler trim levels without distinguishing mounting positions will deliver the wrong housing to one of the two trim level buyer populations in every transaction.
DOT certification and lens color compliance
FMVSS 108 requires stop lamps to emit red light. The CHMSL lens must be red or the assembly must produce red output through a clear lens and red LED elements. A smoked or darkened lens over the CHMSL position may appear to produce red output under bright conditions but may fall below the FMVSS 108 minimum photometric values at the required test angles when the tint reduces total output below the minimum candela threshold. A complete CHMSL assembly must bear DOT certification markings confirming compliance with FMVSS 108 stop lamp photometric requirements. An assembly without DOT markings has not been certified and is not verifiably legal for street use. The smoked CHMSL assemblies common in the aftermarket styling segment must carry an explicit off-road or show use only disclosure and must not be represented as street-legal replacements for FMVSS 108 compliant original equipment.
Why This Part Generates Returns
Buyers return CHMSLs because the part is a complete LED assembly and the buyer needed only a bulb for an incandescent housing that has an intact lens, the part is a single 921 wedge bulb and the vehicle has an LED CHMSL with no socket, the assembly is designed for the rear window shelf mounting position and the buyer has the spoiler trim level whose CHMSL cavity is 35mm deeper, the lens is smoked and the vehicle fails a stop lamp output inspection, the assembly does not bear DOT markings and the buyer's jurisdiction requires certified replacement stop lamps, the connector is a two-pin bare pigtail and the vehicle harness uses a weatherproof sealed connector requiring an adapter, the housing is for the sedan body style and the buyer has the wagon whose CHMSL position is in the cargo area trim panel at a different height, the LED board within the assembly has partial element failure with three of eight LEDs dark and the buyer wants a board-level replacement that the assembly design does not allow, and the mounting hardware is not included and the buyer's original fasteners were destroyed during removal of the cracked housing.
Status in New Databases
PIES/PCdb: PartTerminologyID 2804, Center High Mount Stop Light
PIES 8.0 / PCdb 2.0: No change in PartTerminologyID or terminology label.
Top Return Scenarios
Scenario 1: "LED assembly delivered, buyer needed bulb for incandescent housing, assembly requires exterior removal"
The buyer's CHMSL bulb has burned out in an intact incandescent housing mounted in the rear window shelf. The listing title reads "Center High Mount Stop Light" without specifying bulb or assembly. The delivered part is a complete LED assembly. Installing the LED assembly requires removing the original incandescent housing from the rear deck and installing the LED assembly in its place, which requires access from inside the vehicle and removal of the rear headliner panel. The buyer needed only a 921 wedge bulb accessible through a small interior access panel. The LED assembly is returned unused.
Prevention language: "Part type: [replacement bulb only / complete LED assembly]. This listing covers a [part type]. For a burned-out bulb in an intact incandescent CHMSL housing, order the replacement bulb. For a cracked or damaged housing, or for an LED CHMSL assembly replacement, order the complete assembly. Verify the original CHMSL type before ordering."
Scenario 2: "Spoiler trim level, shelf housing delivered, cavity depth mismatch"
The buyer's vehicle has the optional rear spoiler trim level. The CHMSL is integrated into the spoiler cavity with a housing 40mm deeper than the rear window shelf housing used on the base trim. The listing covers the vehicle year and model without noting the spoiler versus non-spoiler distinction. The delivered assembly is the shelf-mount housing. It does not fit the spoiler cavity depth and cannot be seated in the spoiler mounting position without leaving a 40mm gap between the housing rear face and the spoiler cavity bottom.
Prevention language: "Mounting position: [rear window shelf / spoiler integrated / exterior roof mount / cargo area trim panel]. This assembly is designed for [mounting position]. Vehicles offered with optional rear spoilers typically use a different CHMSL housing depth than non-spoiler variants. Verify the mounting position before ordering."
Scenario 3: "Smoked lens assembly, stop lamp output below FMVSS 108 minimum at inspection"
The buyer installs a smoked CHMSL assembly for cosmetic purposes. At the annual safety inspection, the inspector measures the CHMSL photometric output and finds it below the FMVSS 108 minimum candela requirement for stop lamps because the smoked tint absorbs a portion of the red LED output. The vehicle fails the inspection. The buyer must remove the smoked assembly and install a red-lens DOT-certified replacement to pass reinspection.
Prevention language: "Lens color: [red, FMVSS 108 compliant / smoked, not certified to FMVSS 108 photometric minimums, for show or off-road use only]. FMVSS 108 requires stop lamps to meet minimum photometric output. A smoked lens reduces output below the minimum and the assembly is not legal for street use. Smoked CHMSL assemblies are for show or off-road use only."
Scenario 4: "Partial LED board failure, board not separately replaceable, complete assembly required"
Three of the eight LED elements on the buyer's CHMSL circuit board have failed, leaving the CHMSL partially illuminated. The buyer orders LED board replacement components expecting to replace only the failed elements. The assembly design does not allow board-level servicing. The LED circuit board is potted into the housing and cannot be removed without destroying the assembly. The complete assembly must be replaced to restore full CHMSL function.
Prevention language: "LED board serviceability: [LED board separately replaceable / LED board integrated, complete assembly replacement required for any LED failure]. On assemblies where the LED board is potted or permanently integrated into the housing, partial LED element failure requires complete assembly replacement. Verify serviceability before ordering individual LED components for a partially failed CHMSL."
Listing Requirements
PartTerminologyID: 2804
component: Center High Mount Stop Light
part type: bulb only or complete assembly (mandatory, in title)
light source type: incandescent or LED (mandatory)
mounting position: rear window shelf, spoiler-integrated, exterior roof mount, cargo area trim panel (mandatory)
lens color: red with FMVSS 108 compliance note, or smoked with off-road use note (mandatory)
FMVSS 108 compliance and DOT certification status (mandatory for complete assemblies)
bulb base type and wattage for incandescent listings (mandatory)
LED board serviceability: separately replaceable or complete assembly required (mandatory for LED assemblies)
connector type (mandatory for complete assembly listings)
mounting hardware included: yes or no (mandatory for complete assembly listings)
housing dimensions for position-specific assemblies (mandatory)
quantity per package (mandatory)
OEM part number cross-reference (mandatory)
Catalog Checklist for ACES/PIES Teams
PartTerminologyID = 2804
require part type: bulb or assembly (mandatory, in title)
require light source type (mandatory)
require mounting position (mandatory)
require lens color with FMVSS 108 compliance note or smoked off-road disclosure (mandatory)
require DOT certification status for complete assemblies (mandatory)
require LED board serviceability note for LED assemblies (mandatory)
require connector type for assembly listings (mandatory)
require mounting hardware inclusion status (mandatory)
prevent incandescent-LED part type conflation: a bulb listing for an LED assembly generates a return from every LED-equipped buyer; part type and light source type must be required without exception
prevent spoiler versus non-spoiler omission: the two mounting positions use different housing depths; a single listing without mounting position distinction will deliver the wrong assembly to one trim population in every transaction
prevent smoked lens compliance omission: a smoked CHMSL does not meet FMVSS 108 stop lamp minimums; the off-road use only disclosure is mandatory for all smoked listings
differentiate from Brake Light (PartTerminologyID 2860): the brake light is the primary rear stop lamp in the tail lamp assembly; the CHMSL is the elevated center-mounted third stop lamp; both activate on brake application but are at different positions with different housings
differentiate from Back Up Light (PartTerminologyID 2748): the back up light activates in reverse and emits white light; the CHMSL activates on braking and emits red light; both are rear exterior lamps but have entirely different functions, activation circuits, and color requirements
FAQ (Buyer Language)
What is the CHMSL and is it required by law?
The center high mount stop light, or third brake light, is federally required by FMVSS 108 on all passenger cars since 1986 and light trucks since 1994. It mounts on the vehicle centerline above the primary stop lamps and activates simultaneously with them when the brake pedal is depressed. Its elevated position is visible over the roofline of the vehicle ahead in traffic, giving following drivers additional reaction time to begin braking.
What is the difference between a CHMSL bulb and assembly?
On incandescent CHMSLs, the bulb is replaceable through an interior access point without removing the housing. On LED CHMSLs, the LED elements are integrated into the housing and cannot be replaced separately. The entire assembly must be replaced for any LED element failure. The listing must state which it covers. Verify the original CHMSL type before ordering.
Can I replace an incandescent CHMSL with an LED?
Yes, if the LED replacement is DOT certified to FMVSS 108 stop lamp requirements and designed for the mounting position. A DOT-certified LED replacement provides faster illumination response time than the incandescent original, which gives following drivers marginally more reaction time. Confirm the connector matches the original harness before ordering.
Why would the CHMSL fail while the primary brake lights work?
The CHMSL is typically on a separate circuit branch from the primary stop lamps. A blown fuse at the CHMSL branch, a failed bulb or LED board in the housing, or a wiring fault at the CHMSL position can produce a non-functional CHMSL without affecting the primary stop lamps on the separate branch.
Cross-Sell Logic
Brake Light (PartTerminologyID 2860): the primary rear stop lamps in the tail lamp assembly that activate simultaneously with the CHMSL; buyers replacing the CHMSL for a brake light failure symptom should confirm the primary stop lamps are also functional before concluding the CHMSL alone was at fault
Rear Spoiler: for vehicles where the CHMSL is integrated into the rear spoiler housing; a cracked spoiler that damages the CHMSL may require both the spoiler and the CHMSL assembly to be replaced simultaneously for a complete repair
Wiring Repair Connector: for assemblies where the vehicle's CHMSL harness connector is damaged and cannot accept the replacement assembly's connector; a repair connector restores harness continuity without replacing the complete harness
Tail Light (PartTerminologyID 2864): companion rear lighting replacement for collision damage cases where both the tail lamp assembly and the CHMSL housing are damaged in the same impact
Final Take for PartTerminologyID 2804
Center High Mount Stop Light (PartTerminologyID 2804) is the rear exterior lighting PartTerminologyID where the part type distinction between a bulb and a complete assembly is most consequential and most frequently omitted. The incandescent CHMSL buyer and the LED CHMSL buyer are ordering under the same PartTerminologyID and expecting entirely different products. The incandescent buyer expects a small wedge or bayonet bulb accessible through an interior trim panel without tools. The LED buyer expects a complete housing assembly requiring exterior removal and harness connection. A listing that does not state the part type and light source type in the title will deliver the wrong product to one of these two buyer populations in every ambiguous transaction.
State the part type in the title. State the light source type. State the mounting position. State the lens color with FMVSS 108 compliance note. State the DOT certification status. State the LED board serviceability. State the connector type. State the mounting hardware inclusion. State the spoiler versus non-spoiler mounting distinction for trim levels that differ. For PartTerminologyID 2804, part type, mounting position, and DOT certification are the three attributes that determine whether the replacement is the correct product for the buyer's housing type, fits the CHMSL cavity at the correct mounting position on the vehicle, and meets the federal stop lamp requirement that makes it legal for use on a vehicle operated on public roads.
