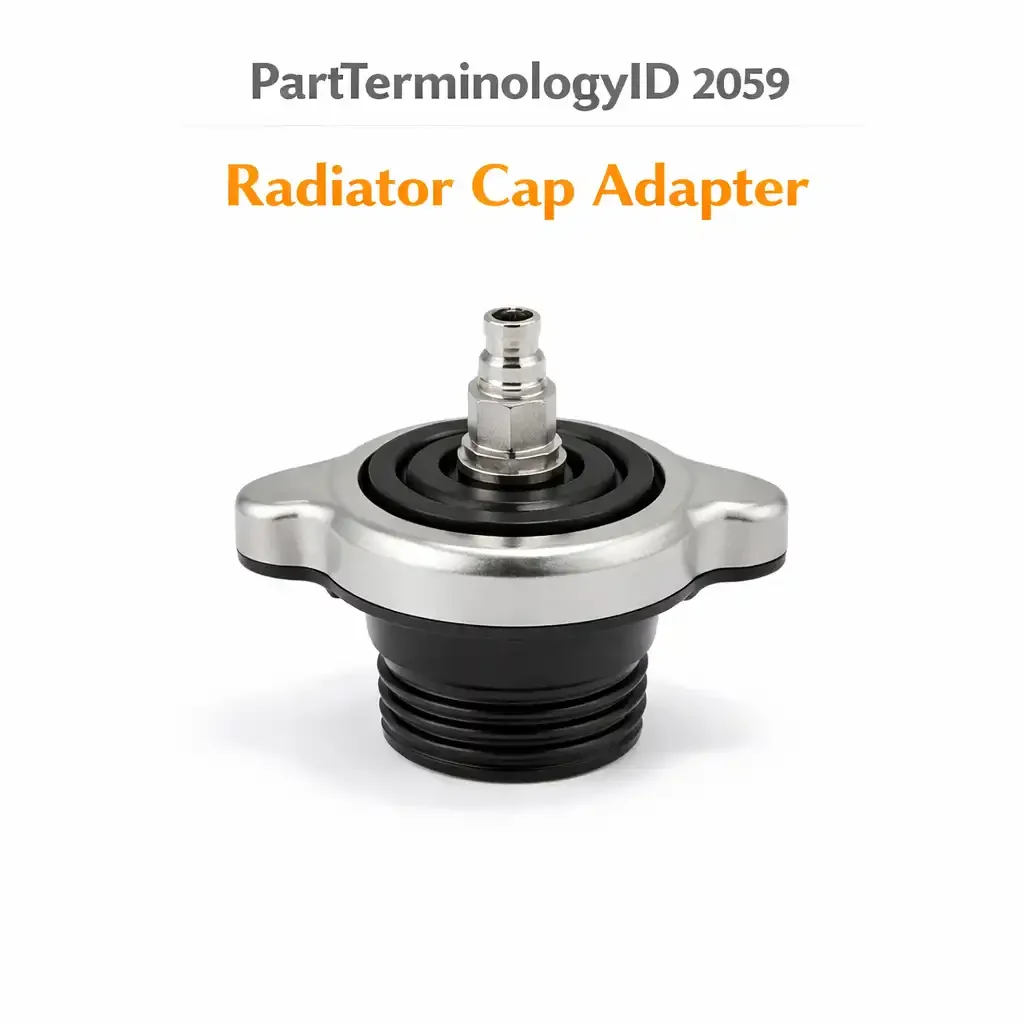

Radiator Cap Adapter (PartTerminologyID 2059): The PartTerminologyID That Covers Four Different Adapter Functions on the Same Neck

Written by Arthur Simitian | PartsAdvisory

PartTerminologyID 2059, Radiator Cap Adapter, is an adapter that fits a radiator cap neck. That is the complete definition the PartTerminologyID provides. It does not specify what the adapter does at that neck, what diameter neck it fits, what locking style it requires, or whether it is a service adapter, a test adapter, a fill adapter, or a conversion adapter. The radiator cap neck is the connection point for multiple adapter types, each with a different function and a different downstream connection. A listing under PartTerminologyID 2059 that does not define the function and the neck diameter is asking the buyer to guess what the adapter does before guessing whether it fits their vehicle, the same problem that PartTerminologyID 2056 (Cooling System Adapter) creates across the broader cooling system, now focused on a single neck location.

For sellers, the challenge with this PartTerminologyID is that the neck location is already implied in the name, which can create a false sense that the listing is specific enough. It is not. Two adapters can both fit the same radiator cap neck and serve entirely different functions. Without a function attribute and a neck diameter, the listing tells the buyer where the adapter goes but nothing about what it does or whether it will fit.

What Falls Under This PartTerminologyID

Pressure tester adapter at the radiator cap neck

An adapter that seats in the radiator cap neck and connects to a hand pump to pressure test the cooling system. This is the function covered by PartTerminologyID 2054 (Engine Cooling System Pressure Tester Adapter) when that PartTerminologyID is applied specifically to the radiator cap neck. PartTerminologyID 2059 may be used for the same physical part by a different data supplier or catalog system. The two PartTerminologyIDs can map to the same product. If a listing exists under both 2054 and 2059 for the same adapter, the catalog has a duplication problem. If a buyer searching under 2059 receives a pressure tester adapter when they needed a flush adapter, the listing created the return by not stating the function.

Flush and fill adapter at the radiator cap neck

An adapter that seats in the radiator cap neck and connects to a coolant flush machine or a vacuum fill tool. The physical seating profile at the neck end may be identical to the pressure tester adapter. The difference is the pump connection end and the internal flow path, which are designed for coolant flow rather than sustained pressure. A buyer who receives a flush adapter when they needed a pressure tester adapter, or vice versa, has a return that the function attribute would have prevented.

Radiator cap neck conversion adapter

An adapter that allows a cap with one neck profile to seat on a neck with a different profile. The most common application is converting a domestic two-lug bayonet neck to accept a cap with a different lug count or a different outer diameter, or converting a neck to accept an aftermarket cap that was not designed for that vehicle. These adapters are used when a radiator is replaced with an aftermarket unit that has a different neck profile than the original. The conversion adapter is a permanent or semi-permanent fitment part, not a service tool. A buyer ordering a service adapter who receives a conversion adapter has a mismatch in both function and installation intent.

Radiator cap neck reducer or expander insert

An insert adapter that changes the effective bore diameter of the cap neck so that a smaller or larger cap can seat correctly. These are used when a replacement radiator cap of a different diameter is available and the buyer wants to use it on the existing neck, or when a service tool adapter needs to fit a neck that is outside its standard diameter range. Inserts are not standalone adapters. They require a host neck or a host adapter to function. A listing that does not identify the product as an insert, and does not specify the inlet and outlet bore diameters, will be ordered by buyers who need a full standalone adapter.

Why This Part Generates Returns

Buyers order the wrong radiator cap adapter because:

• the listing does not specify the function: pressure test, flush and fill, conversion, or insert

• the neck location is stated in the name but the buyer cannot determine what the adapter does at that neck

• buyers confuse this PartTerminologyID with PartTerminologyID 2054 (Engine Cooling System Pressure Tester Adapter) and PartTerminologyID 2055 (Radiator Cap Tester Adapter) because all three involve the radiator cap neck

• the listing does not specify the neck outer diameter, so buyers order based on cap PSI rating rather than neck size

• buyers receive a conversion adapter when they needed a service tool adapter because the listing did not state that the part is a permanent fitment component rather than a removable service tool

• buyers receive an insert when they needed a standalone adapter because the listing did not specify the product form

• the downstream connection end is not described, so buyers cannot verify whether the adapter will connect to the pump or machine they already own

Status in New Databases

• PIES/PCdb: PartTerminologyID 2059, Radiator Cap Adapter

• PIES 8.0 / PCdb 2.0: No change

Top Return Scenarios

Scenario 1: "I needed a pressure tester adapter, this is a flush adapter"

Function mismatch at the same neck location. The adapter seats correctly on the radiator cap neck but the downstream connection end is for a flush machine, not a pressure pump. The buyer could not determine the function from the listing.

Prevention language: "Function: coolant flush and fill adapter. Seats on the radiator cap neck and connects to [flush machine brand / model]. Not a pressure tester adapter. For cooling system pressure testing, see PartTerminologyID 2054 adapter sold separately."

Scenario 2: "This is a conversion adapter, I needed a service tool adapter"

The buyer needed a removable service tool adapter. They received a conversion adapter designed to be installed permanently or semi-permanently to change the neck profile. The listing did not state that the part is a fitment component rather than a service tool.

Prevention language: "Product type: radiator cap neck conversion adapter. Installs on the radiator cap neck to allow a [X]mm [lug profile] cap to seat on a [Y]mm [lug profile] neck. This is a fitment component, not a removable service tool adapter."

Scenario 3: "Wrong neck diameter"

The buyer's radiator cap neck is 38mm and the adapter is designed for a 54mm neck, or the reverse. The listing did not include the neck outer diameter. The buyer selected the adapter based on cap PSI rating, which does not determine neck diameter.

Prevention language: "Fits radiator cap necks with [X]mm outer diameter. Cap PSI rating does not determine neck diameter. Verify your radiator cap neck outer diameter before ordering."

Scenario 4: "I received an insert, not an adapter"

The buyer needed a standalone adapter to seat directly on the radiator cap neck. They received a bore reducer insert that requires a host adapter to function. The listing described it as a radiator cap adapter without specifying that the product is an insert.

Prevention language: "Product type: bore reducer insert. Fits inside [host adapter brand / model] to reduce the effective bore diameter from [X]mm to [Y]mm. Requires a compatible host adapter sold separately. This is not a standalone adapter that seats directly on the vehicle radiator cap neck."

Scenario 5: "The downstream connection does not fit my pump"

The adapter seats correctly on the radiator cap neck but the pump connection end does not fit the buyer's pump handle. The listing did not describe the pump connection end specification.

Prevention language: "Pump connection end: [thread specification / quick-connect type / push-fit diameter]. Compatible with [brand / model] pump handles. Verify pump connection compatibility before ordering if purchasing as a replacement or expansion adapter."

What to Include in the Listing

Core essentials

• PartTerminologyID: 2059

• component: Radiator Cap Adapter

• function: pressure test, flush and fill, cap neck conversion, or bore insert (mandatory)

• product form: standalone adapter, conversion adapter, or insert (mandatory)

• neck outer diameter the adapter fits in mm (mandatory)

• locking style at the neck end: two-lug bayonet, three-lug bayonet, threaded, friction-fit

• downstream connection type: pump thread, machine fitting, quick-connect, or bare for conversion adapters

• material: aluminum, brass, reinforced plastic

• quantity: 1 or specify if sold as part of a set

Fitment essentials

• year/make/model/submodel when vehicle-specific

• market application: domestic, European, Asian

• compatible service machine or pump brand and model for service tool adapters

• host adapter brand and model for insert-type adapters

• original neck diameter and target cap diameter for conversion adapters

Dimensional essentials

• radiator cap neck outer diameter the adapter seals against in mm

• adapter bore diameter at the neck end in mm

• adapter bore diameter at the downstream end in mm

• overall adapter height in mm

• lug geometry: lug count, lug width, lug engagement angle for bayonet-style fittings

• thread specification for threaded neck or pump connection ends: nominal diameter, pitch, thread form

Image essentials

• adapter in isolation with dimensional callouts at both ends

• adapter seated on a radiator cap neck showing the lug engagement and seal contact

• downstream connection end detail showing thread, quick-connect, or machine fitting profile

• for insert adapters, the insert shown inside the host adapter to clarify the product form

• for conversion adapters, before and after showing the original cap profile and the cap the adapter allows

Catalog Checklist for ACES/PIES Teams

• PartTerminologyID = 2059

• require function attribute: pressure test, flush and fill, conversion, or insert (mandatory, non-negotiable)

• require product form: standalone adapter, conversion adapter, or insert

• require neck outer diameter in mm

• require locking style with lug count and geometry

• require downstream connection specification: thread, quick-connect, or machine fitting

• require market application: domestic, European, or Asian

• require compatible pump or machine brand and model for service tool adapters

• require host adapter specification for insert-type adapters

• differentiate from PartTerminologyID 2054 (Engine Cooling System Pressure Tester Adapter): 2054 is the pressure tester adapter at the neck; 2059 may overlap but also covers non-tester functions at the same neck location

• differentiate from PartTerminologyID 2055 (Radiator Cap Tester Adapter): 2055 accepts and tests the cap off the vehicle; 2059 adapters seat on the vehicle neck with the cap removed

• differentiate from PartTerminologyID 2056 (Cooling System Adapter): 2056 covers all cooling system adapter functions across all connection points; 2059 is constrained to the radiator cap neck location

• flag that neck outer diameter and cap PSI rating are independent specifications: PSI rating does not determine neck diameter

FAQ (Buyer Language)

How is PartTerminologyID 2059 different from PartTerminologyID 2054 and 2055?

PartTerminologyID 2054 is specifically a pressure tester adapter that connects a pump to the cooling system at the neck with the cap removed. PartTerminologyID 2055 is specifically an adapter that accepts the removed cap and connects it to a pump so the cap can be tested off the vehicle. PartTerminologyID 2059 is a broader term that covers any adapter that fits the radiator cap neck, including pressure tester adapters, flush adapters, conversion adapters, and inserts. A 2059 listing may overlap with 2054 for the same physical part, but 2059 also covers adapter types that 2054 does not.

How do I find the right radiator cap adapter for my vehicle?

Identify the function first. Determine whether you need to pressure test the cooling system, flush the coolant, convert the neck to a different cap profile, or insert a bore reducer. Then measure the radiator cap neck outer diameter. Note the locking style and lug count. Match those three pieces of information to the listing: function, neck outer diameter, and locking style. Do not select based on cap PSI rating alone.

Can a radiator cap adapter be used to convert my neck to a different cap size?

Yes, if the adapter is specifically a conversion adapter. A conversion adapter is a fitment part that installs on the neck and changes the effective profile so a different cap can seat correctly. It is not a service tool. Verify the original neck diameter, the target cap diameter, and the lug profile of the cap you want to use before ordering a conversion adapter.

My radiator was replaced with an aftermarket unit that has a different cap neck size. What do I need?

A conversion adapter or a new cap sized for the aftermarket radiator neck. A conversion adapter allows the original cap to seat on the new neck if the diameters and lug profiles are compatible through the adapter. Alternatively, replacing the cap with one sized for the new neck eliminates the need for a conversion adapter. Verify the aftermarket radiator cap neck outer diameter and locking style before ordering either solution.

Will a domestic radiator cap adapter fit my European vehicle?

Only if the neck outer diameter and lug profile match. European radiator cap necks commonly use larger outer diameters and different lug profiles than domestic applications. An adapter specified for a domestic 38mm two-lug bayonet neck will not seat correctly on a European 48mm or 52mm neck regardless of the cap PSI rating.

Cross-Sell Logic

• Engine Cooling System Pressure Tester Adapter (PartTerminologyID 2054: if the buyer needs the pressure tester function specifically rather than the broader 2059 adapter category)

• Radiator Cap Tester Adapter (PartTerminologyID 2055: test the cap off the vehicle while the 2059 adapter is seated on the neck for system testing)

• Radiator Cap (if the 2059 adapter is a conversion adapter, verify the target cap fits the converted neck profile; the cap itself is the next purchase)

• Coolant (if the 2059 adapter is a flush and fill adapter, coolant is the consumable the adapter delivers)

• Radiator (if the 2059 adapter is a conversion adapter necessitated by a radiator replacement, the radiator is the upstream cause)

• Thermostat (commonly replaced during a coolant flush service when the system is already open at the cap neck)

Frame as "the function determines the cross-sell. A service tool adapter cross-sells the test or flush consumables and the parts the service reveals. A conversion adapter cross-sells the cap and the radiator if the radiator is the source of the neck profile change."

Final Take for PartTerminologyID 2059

Radiator Cap Adapter (PartTerminologyID 2059) is a PartTerminologyID constrained to one neck location but covering four distinct adapter functions at that location: pressure testing, flush and fill, cap neck conversion, and bore insertion. Stating the neck location in the name does not make the listing usable. The buyer knows the adapter goes on the radiator cap neck. They do not know what it does there, what diameter neck it fits, or what it connects to on the other end.

State the function. State the neck outer diameter. State the downstream connection. State the product form. Distinguish this PartTerminologyID from 2054, 2055, and 2056 in the listing copy. That is the same listing strategy as PartTerminologyID 2052 (Transmission Clutch Spring): the PartTerminologyID identifies a location but not a function, and without the function attribute the listing cannot be acted on.
