VW T-Cross (2020 to 2024): MQB A0 Platform Fitment Guide
Written by Arthur Simitian | PartsAdvisory

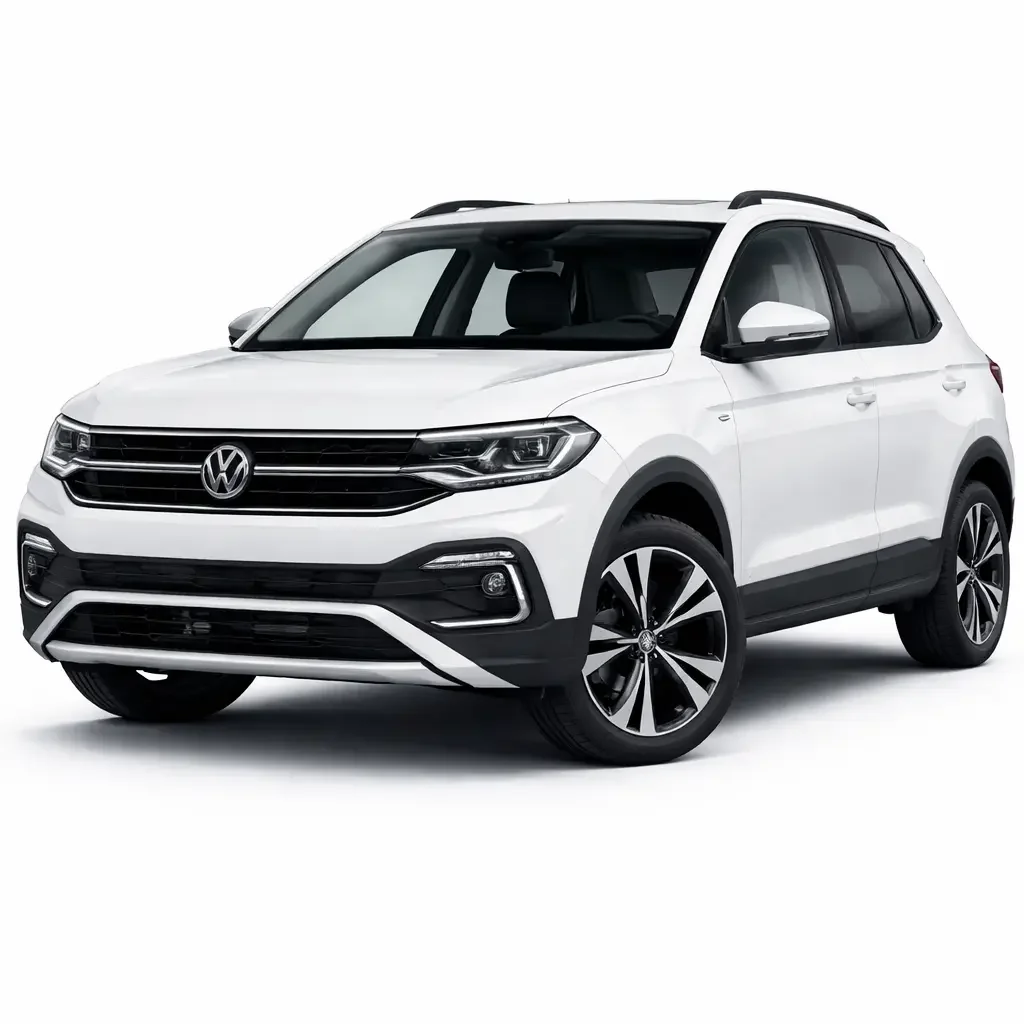

The Volkswagen T-Cross is a subcompact crossover SUV built on the MQB A0 platform and produced in multiple countries for simultaneous sale in multiple regions. It was officially launched in April 2019 and received a significant facelift for the 2024 model year that introduced new integrated LED headlights, updated bumper geometry, a fully redesigned dashboard, and a digital instrument cluster as standard across all trims. The guide covers the 2020 to 2024 production window, encompassing both the pre-facelift and post-facelift production phases.
The T-Cross is the most geographically dispersed production vehicle in this entire Volkswagen SUV series. It is produced in Spain, Brazil, and China, with each production stream generating vehicles that share the MQB A0 platform name but differ significantly in wheelbase, body dimensions, engine options, rear suspension architecture, and exterior styling. A catalog entry that treats all T-Cross production as a single application will generate incorrect parts on every order where the European short-wheelbase and Brazilian or Chinese long-wheelbase versions differ, which covers every exterior body and suspension component.
This guide maps the production stream split, the body dimension and suspension architecture differences, the engine and transmission matrix across regions, the 2024 facelift boundary, the Polo Mk6 cross-reference scope, and the catalog accuracy requirements for the T-Cross across the 2020 to 2024 production window.
Platform Overview: MQB A0
The MQB A0 is the smallest-wheelbase variant of the Volkswagen Group's Modular Transverse Matrix architecture, designed for the B-segment and sharing its front axle geometry, pedal box positioning, and engine mounting conventions with the Polo Mk6. The platform supports a range of wheelbases and body lengths by adjusting the front and rear overhang while maintaining the core chassis geometry, and this flexibility is what allows the same MQB A0 designation to apply to vehicles as dimensionally different as the European T-Cross and the Brazilian T-Cross.
All T-Cross variants use MacPherson strut front suspension, consistent across all production regions. The rear suspension differs by production region and is one of the most commercially significant catalog variables on this application. The European T-Cross uses a compound torsion beam rear axle (semi-independent trailing arms). The Brazilian T-Cross uses a torsion beam rear suspension shared with the Virtus sedan, with specific calibrations for the higher ride height and SUV application. These two rear suspension architectures use different shock absorber geometry, different spring specifications, and different mounting hardware. No rear suspension component crosses between the European and Brazilian production streams without individual part number confirmation.
The T-Cross is exclusively front-wheel drive across all production regions, engine configurations, and model years within the 2020 to 2024 window. The MQB A0 platform as used on the T-Cross does not accommodate all-wheel drive, and no AWD variant was offered in any market. Sellers must not apply AWD drivetrain component listings to this vehicle.
Production Streams and the Wheelbase Split
Understanding the production stream of a given T-Cross is the foundational discipline for accurate catalog management on this application. Three primary production streams exist within the 2020 to 2024 window, each with distinct body dimensions.
European Short-Wheelbase: Spain Production (Pamplona)
The European market T-Cross is produced at Volkswagen Navarra S.A. in Pamplona, Spain, alongside the Polo Mk6. This is the short-wheelbase variant with a wheelbase of approximately 2551 mm on the pre-facelift body and 2563 mm on the post-facelift 2024 body. Overall length on the pre-facelift is approximately 4108 mm. The 2024 facelift added 27 mm of length through bumper reshaping, bringing the post-facelift body to approximately 4135 mm. The European T-Cross is the reference vehicle for most of the aftermarket catalog infrastructure that exists for this model, including suspension parts, brake hardware, and powertrain service components. It serves European markets, Australia, South Africa, and various other global markets outside Latin America and China.
Brazilian Long-Wheelbase: Brazil Production (Sao Jose dos Pinhais)
The Brazilian T-Cross is produced at the Volkswagen plant in Sao Jose dos Pinhais, Parana state. It shares its 2651 mm wheelbase with the Virtus sedan and is therefore significantly longer than the European version at approximately 4190 mm overall. The longer wheelbase translates into a longer body with different proportions and different rear door cutlines compared to the European version. This body difference means that all exterior panels, door glass, rear bumper covers, tail light assemblies, and body-mounted trim are specific to the Brazilian production stream and cannot cross to the European version. The Brazilian T-Cross also uses a torsion beam rear suspension shared architecturally with the Virtus rather than the European compound torsion beam, though both are technically torsion beam arrangements at a high level, the specific shock absorber travel, spring rates, and mounting geometry differ. The Brazilian production stream serves Brazil, Mexico (where it was imported and sold until replaced by the India-built Taigun in 2023), and some African markets.
Chinese Long-Wheelbase: SAIC-VW China Production
The Chinese market T-Cross, produced by SAIC-Volkswagen, also uses the long-wheelbase 2651 mm body, broadly comparable in overall dimensions to the Brazilian T-Cross but with different front and rear styling. The Chinese market T-Cross has different bumpers, different headlight graphics, and different grille treatment from both the European and Brazilian versions. Engine options in China include the 1.4-litre TSI and a 1.5-litre MPI naturally aspirated engine, neither of which is offered in European or Brazilian production. The Chinese production stream is entirely distinct from both the European and Brazilian streams for exterior, powertrain, and in some cases suspension specifications.
Production stream (European short-wheelbase, Brazilian long-wheelbase, or Chinese long-wheelbase) is a mandatory qualifier for all exterior body components, tail light assemblies, rear bumper covers, rear suspension components, and any body-mounted trim. Sellers who do not apply this qualifier will generate incorrect parts on a high proportion of orders in any market where multiple production streams have been sold.
Production Periods and the 2024 Facelift
Within the European production stream specifically, the 2024 facelift creates a hard catalog boundary for exterior and interior components. The pre-facelift T-Cross (approximately 2019 to 2023 production for European markets, corresponding to early 2020 through 2023 in the guide window) uses halogen headlights on base trims, separate daytime running lights with rectangular lower bumper scoops, and an analog or early digital instrument cluster depending on trim. The post-facelift 2024 T-Cross standardizes integrated LED headlights across all trims, introduces triangular LED daytime running light elements in the lower bumper scoops, updates the rear light cluster graphics, adds 27 mm of length through bumper reshaping, redesigns the dashboard with standard digital instrument cluster and a free-standing infotainment display, and updates interior materials quality.
The facelift boundary affects: headlight assemblies (halogen base trim pre-facelift versus LED standard on all post-facelift), front bumper covers (rectangular DRL integration pre-facelift versus triangular LED integration post-facelift), rear light clusters (revised graphics post-facelift), dashboard and instrument cluster hardware (partial digital pre-facelift versus full digital standard post-facelift), and infotainment head units (integrated pre-facelift on many trims versus free-standing post-facelift across all trims).
The 2024 facelift applies to the European production stream and was followed in the Brazilian stream with its own independent update timing. Sellers covering multiple markets must apply both the production stream qualifier and the facelift boundary qualifier for exterior and interior components.
Engine Variants by Production Stream
Engine options vary meaningfully by production stream. Engine family is a mandatory qualifier for all fuel system, turbocharger, and associated service component listings.
European Production: 1.0 TSI (Two Output States), 1.5 TSI, 1.6 TDI
The European T-Cross is offered with the widest engine range of any production stream. The 1.0-litre three-cylinder TSI is available in two output states: a 95 PS lower-output version paired with a 5-speed manual, and a 115 PS higher-output version paired with a 6-speed manual or 7-speed DSG. Both are EA211 family engines from the same 999cc displacement, but they carry different engine codes and different turbocharger calibrations. The 95 PS version and the 115 PS version must not be treated as interchangeable for turbocharger or fuel system component listings; both are distinct applications within the EA211 family.
The 1.5-litre four-cylinder TSI producing 150 PS is the range-topping petrol for the European T-Cross and is paired exclusively with the 7-speed DSG. This is an EA211 Evo family engine and shares the variable geometry turbocharger characteristic of the EA211 Evo 1.5T as discussed in the Taos and Taigun guides. The VGT on the 1.5 TSI must not be cross-referenced to the wastegate turbocharger of the 1.0 TSI.
A 1.6-litre TDI diesel producing 95 PS is available on the pre-facelift European T-Cross. This engine is a four-cylinder diesel from the EA288 family and shares no engine service components with any of the petrol engine options. The 1.6 TDI was not carried over to the post-facelift 2024 T-Cross in all markets due to tightening emissions regulations. Sellers must apply engine type (petrol versus diesel) as a hard qualifier before applying any engine service component cross-reference.
Brazilian Production: 1.0 TSI Flex, 1.4 TSI, 1.6 MSI
The Brazilian T-Cross powertrain lineup is entirely different from the European stream. The primary engine is a 1.0-litre three-cylinder TSI producing 128 PS on ethanol (E85-compatible flex fuel) and approximately 116 PS on gasoline, using a flex-fuel calibration specific to the Brazilian market. This engine is not the same unit as the European 1.0 TSI in either the 95 PS or 115 PS tune; the flex-fuel system, fuel delivery hardware, and emissions calibration are all Brazil-specific and must not be cross-referenced to European 1.0 TSI applications. The Brazilian 1.0 TSI is paired with either a 6-speed manual or a 6-speed torque converter automatic, not a DSG.
The 1.4-litre TSI producing 150 PS uses a different engine family from the Brazilian 1.0 TSI and is produced at the Sao Carlos plant in Sao Paulo. A 1.6-litre MSI naturally aspirated petrol engine producing 110 PS serves the lowest-cost Mexican and some African export variants from the Brazilian plant. The 1.6 MSI is a naturally aspirated unit and carries no turbocharger. Sellers listing turbocharger applications for any T-Cross must confirm engine code and production stream to exclude the 1.6 MSI from all turbocharger listings.
Chinese Production: 1.4 TSI and 1.5 MPI
The Chinese market T-Cross from SAIC-Volkswagen uses a 1.4-litre TSI producing 150 PS as its primary petrol option, and a 1.5-litre MPI naturally aspirated engine producing 113 PS as an entry option. The 1.5 MPI is a multi-point injection naturally aspirated engine with no turbocharger. Chinese production engine specifications and part numbers are specific to the SAIC-VW manufacturing context and should not be cross-referenced to European or Brazilian engine applications without individual OEM part number confirmation.
Transmission Configurations
Transmission configuration varies by production stream and engine pairing. Production stream and engine family are both required to correctly identify the transmission type on any given T-Cross order.
5-speed manual (European, 1.0 TSI 95 PS only): The entry-level European T-Cross with the base 1.0 TSI uses a 5-speed manual transmission. This is specific to the lowest-output European application. No other T-Cross in any production stream uses a 5-speed manual.
6-speed manual (European 1.0 TSI 115 PS; Brazilian 1.0 TSI and 1.4 TSI): A 6-speed manual is available on the mid-output European 1.0 TSI and on both the 1.0 TSI and 1.4 TSI Brazilian applications. The European and Brazilian 6-speed manual units differ in their final drive ratios and service specifications to accommodate the different engine outputs and vehicle weights. Gear oil specifications should be confirmed against the specific production stream and engine pairing.
6-speed torque converter automatic (Brazilian production only): The Brazilian T-Cross 1.0 TSI flex-fuel and 1.4 TSI use a 6-speed torque converter automatic, not a DSG. This is the same unit architecture as other Brazilian-production Volkswagen Group applications with this engine family, including the Virtus. ATF specification follows the VW Group standard for this unit. This transmission does not appear in any European or Australian T-Cross configuration.
7-speed DSG (European 1.0 TSI 115 PS and 1.5 TSI): The 7-speed wet dual-clutch DSG is available on the mid and high-output European production stream engines. DSG fluid specification is VW G 052 182 A2 or equivalent wet DSG specification. The 7-speed DSG does not appear in the Brazilian production stream, where the torque converter automatic is used instead. Sellers must not apply DSG service components to Brazilian T-Cross orders.
Polo Mk6 Cross-Reference Scope
The Polo Mk6 is the primary cross-reference vehicle for the T-Cross across all production streams, as both are built on the MQB A0 platform and share engine families, transmission families, front suspension geometry, and brake hardware. The cross-reference scope between the T-Cross and Polo Mk6 is meaningful and commercially important: spark plugs, ignition coils, oil filters, air filters, front strut assemblies, front control arms, front wheel bearings, and front brake hardware carry validated cross-reference potential.
The rear suspension cross-reference is more limited. The European T-Cross rear suspension components cross to the European Polo Mk6 rear suspension within the same production stream. The Brazilian T-Cross rear suspension components cross to the Brazilian Virtus and Polo production using the same torsion beam architecture, not to the European Polo Mk6. Sellers applying rear suspension cross-references must confirm production stream alignment; European Polo Mk6 rear suspension components must not be cross-referenced to Brazilian T-Cross rear suspension and vice versa.
Exterior body and lighting components do not cross between the T-Cross and the Polo Mk6 despite the shared platform. The two vehicles have completely different body structures, doors, hood, and exterior trim above the sill line. Similarly, the T-Cross must not be cross-referenced to the Audi A1 (also MQB A0 based) for any body or lighting component.
Skoda Kamiq Cross-Reference (European Stream)
The Skoda Kamiq is the European-market platform sibling of the T-Cross, built at the same Pamplona plant using the same MQB A0 short-wheelbase architecture as the European T-Cross. The Kamiq cross-reference is therefore valid for the European production stream, covering underbody components, front suspension, brake hardware, and engine service components. It is not valid for the Brazilian or Chinese T-Cross, as the Kamiq is exclusively a European production vehicle with the short-wheelbase body.
Exterior components and interior trim do not cross between the T-Cross and Kamiq, as the two brands use different front fascias, different lighting designs, and different interior color and trim specifications. The cross-reference discipline is identical to the Taigun and Kushaq relationship described in the Taigun guide: mechanical crosses; brand-specific exterior and interior does not.
Common ACES/PIES Mistakes for the T-Cross (2020 to 2024)
1. Not specifying production stream (European short-wheelbase, Brazilian long-wheelbase, or Chinese long-wheelbase) for any exterior body component, rear suspension component, tail light assembly, or rear bumper cover. These are the highest-volume incorrect order categories on this application.
2. Cross-referencing rear suspension components between the European and Brazilian production streams. The European compound torsion beam and the Brazilian torsion beam shared with the Virtus use different shock absorber geometry, spring rates, and mounting hardware. They are not interchangeable.
3. Applying European T-Cross exterior panel cross-references to the Brazilian T-Cross or vice versa. The two bodies have a 100 mm wheelbase difference and different overall proportions. No exterior panel, door, or body-mounted trim crosses between these two production streams.
4. Applying Brazilian production stream engine service cross-references (1.0 TSI flex-fuel, 1.4 TSI, 1.6 MSI) to European production stream engines, or vice versa. The Brazilian flex-fuel 1.0 TSI and the European 1.0 TSI in either output state are different applications with different fuel system and emissions hardware.
5. Not distinguishing the European 1.0 TSI 95 PS from the 1.0 TSI 115 PS for turbocharger and fuel system applications. The two output states within the same 999cc displacement use different turbocharger calibrations and must be listed as separate applications.
6. Cross-referencing the 1.5 TSI VGT turbocharger to the 1.0 TSI wastegate turbocharger. These are architecturally different units; the 1.5 TSI uses a variable geometry turbocharger while the 1.0 TSI uses a conventional wastegate design.
7. Applying DSG service components to Brazilian production stream T-Cross orders. The Brazilian T-Cross uses a 6-speed torque converter automatic, not a DSG. DSG fluid, DSG filter kits, and DSG mechatronic units have no application in the Brazilian production stream.
8. Not distinguishing the pre-facelift (2020 to 2023) from the post-facelift (2024 onward) European T-Cross for headlight assemblies, front bumper covers, infotainment head units, and dashboard hardware. The 2024 facelift created a hard boundary for all of these component categories.
9. Applying Chinese market T-Cross engine applications (1.4 TSI SAIC calibration, 1.5 MPI) to European or Brazilian engine service listings. Chinese production engine hardware is specific to the SAIC-VW manufacturing context and must not be assumed to cross to other production streams.
10. Listing AWD drivetrain components for any T-Cross variant. The T-Cross is exclusively front-wheel drive across all production streams, all engine configurations, and the entire 2020 to 2024 production window. No Haldex, rear differential, or AWD service component applies to this vehicle.
Catalog Checklist for T-Cross (2020 to 2024)
• Require production stream (European Spain, Brazilian Sao Jose dos Pinhais, or Chinese SAIC-VW) as the primary qualifier for all exterior body, rear suspension, and body-mounted trim component listings
• Require model year or facelift boundary (pre-2024 versus 2024 onward) for European stream headlight, bumper, infotainment, and interior dashboard component listings
• Require engine family and output level (1.0 TSI 95 PS, 1.0 TSI 115 PS, 1.5 TSI 150 PS, 1.6 TDI 95 PS for European; 1.0 TSI flex, 1.4 TSI, 1.6 MSI for Brazilian) for all turbocharger, fuel system, and transmission pairing listings
• Apply Polo Mk6 cross-references as valid for front suspension, front brake hardware, and engine service components within the same production stream; confirm rear suspension cross-references against production stream alignment
• Apply Skoda Kamiq cross-references as valid for European stream mechanical and underbody components only; explicitly exclude Brazilian and Chinese stream T-Cross from Kamiq cross-references
• List DSG service components as European production stream only; apply 6-speed torque converter automatic service listings to Brazilian production stream only
• Confirm Brazilian 1.0 TSI flex-fuel engine service components against Brazilian-specific part numbers; do not apply European 1.0 TSI cross-references to the flex-fuel application
• List all T-Cross variants as front-wheel drive only; do not include AWD drivetrain component categories for any T-Cross application
• Confirm Chinese market T-Cross engine applications against SAIC-VW specific part numbers before applying any cross-reference to European or Brazilian production stream engine listings
• Note the rear seat sliding adjustment feature present on the Brazilian long-wheelbase T-Cross as creating a separate interior component set for rear seat rails and associated hardware versus the fixed rear bench of the European short-wheelbase version
Final Take
The T-Cross is the most production-geographically dispersed vehicle in the entire Volkswagen SUV catalog covered in this series. The fundamental catalog challenge is the two-body split: the European short-wheelbase body built in Spain and the Brazilian long-wheelbase body built in Sao Jose dos Pinhais differ in overall length, wheelbase, rear suspension architecture, and exterior styling to a degree that makes them catalog-separate vehicles despite sharing the MQB A0 platform name. Every seller covering the T-Cross must establish production stream as the first qualifier in their catalog structure, before engine, before model year, and before any other variable.
The rear suspension distinction between the European compound torsion beam and the Brazilian torsion beam shared with the Virtus is the most technically consequential body-variant split for underbody parts. The exterior body split is the most commercially consequential for collision and cosmetic parts. Both require production stream confirmation on every order.
Within the European stream, the 2024 facelift creates the standard boundary catalog challenges that apply to any mid-cycle refresh: headlights, bumpers, infotainment, and dashboard hardware all changed at the model year boundary and must be qualified accordingly. The transmission configuration split between the 6-speed torque converter in Brazil and the 7-speed DSG in Europe is the most operationally significant fluid and filter catalog distinction, and sellers who handle this correctly will avoid the returns that a generic automatic transmission service listing would generate across both markets.
Disclaimer: This guide is based on publicly available specifications, manufacturer documentation, and independent research. Part interchangeability should always be confirmed via VIN and OEM part number lookup. Specifications may vary between regional production variants. This document does not constitute official Volkswagen parts catalog data.
