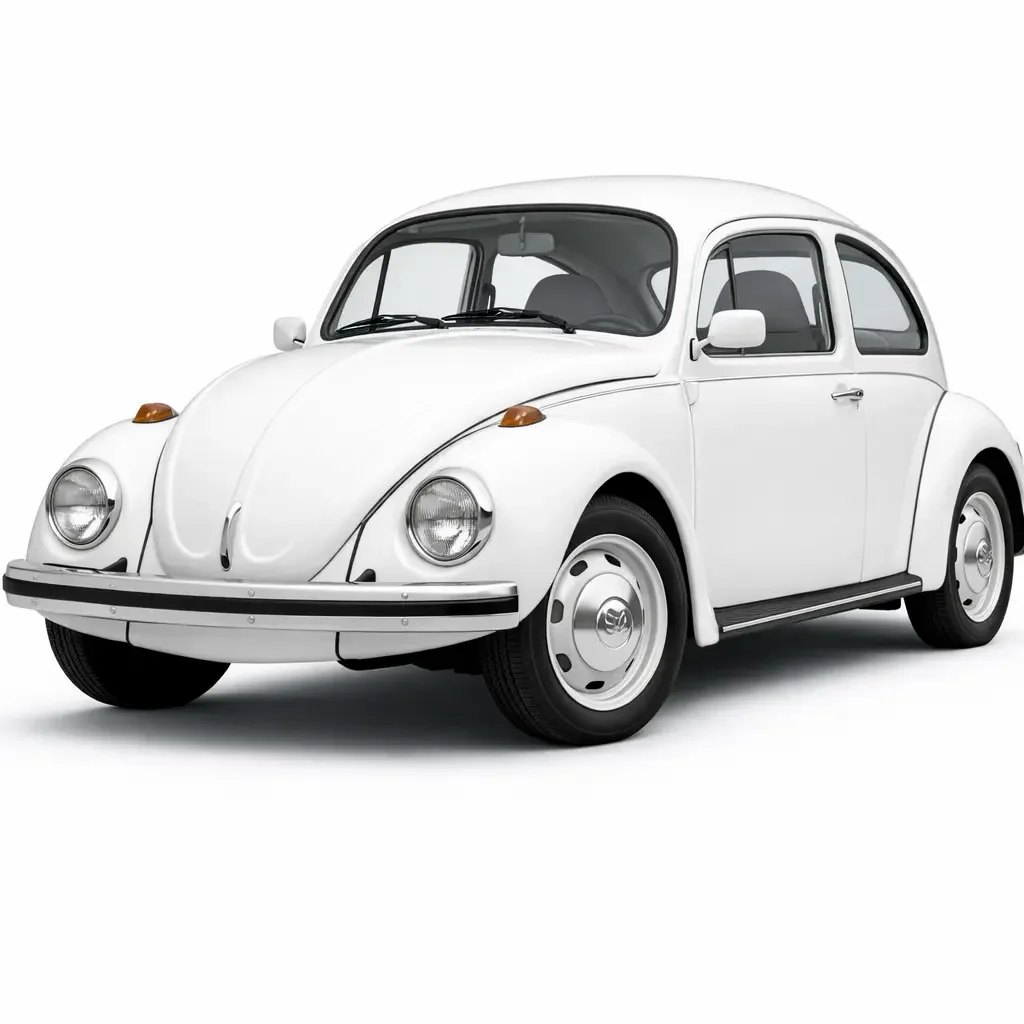

Volkswagen Sedan (1978 to 1997): Mexico Beetle Middle Generation Fitment Guide
Written by Arthur Simitian | PartsAdvisory
Position Within the Three ACES Sedan Entries
The ACES Volkswagen Sedan 1978 to 1997 is the middle chapter of three consecutive entries all referring to the Mexico-market air-cooled Beetle produced at the Volkswagen de Mexico plant in Puebla. The 1961 to 1977 ACES Sedan covers the Type 3 Notchback, a completely different vehicle on a different platform. The 1998 to 2004 entry covers the final Sedan Unificado and Ultima Edicion. This 1978 to 1997 entry covers the long middle period of Mexico Beetle production beginning exactly when German production ended and running through the year before the Unificado consolidated the two remaining trim lines.
The 1978 start date is not accidental: it is the year the Wolfsburg and Emden plants ceased producing the standard Beetle sedan, leaving Puebla as the sole surviving production site in the world for the air-cooled Type 1. From that point Volkswagen de Mexico assumed sole responsibility for technical development of the Beetle, and all emissions updates, engine revisions, and regulatory compliance changes from 1978 onward were implemented exclusively in Puebla. The 1997 end date closes just before the mid-1998 Sedan Unificado consolidation.
The catalog significance of this window is that it spans twenty years during which the Mexico Sedan underwent one of the most consequential mechanical transitions in the vehicle's entire production history: the complete replacement of the carburetor fuel system with the Digifant electronic fuel injection system for the 1993 model year. This transition is the hard boundary that divides the 1978 to 1997 ACES window into two fundamentally different fuel system applications, and no fuel system component crosses that boundary in either direction.
Platform Continuity: Swing Axle Rear, Torsion Bar Front, Throughout
The mechanical architecture of the Mexico Sedan from 1978 through 1997 is continuous with the 1998 to 2004 window in every respect: torsion bar trailing arm front suspension with ball joints, swing axle rear suspension, four-bolt 4 x 130mm wheel pattern, and four-speed fully synchronized manual gearbox. No suspension architecture change occurred anywhere in the 1978 to 1997 or 1998 to 2004 production windows. The swing axle rear suspension was the configuration when Puebla assumed sole production in 1978 and it remained unchanged through the last car built in 2003.
This platform continuity means that all rear suspension, rear driveline, front suspension, brake system, transmission, and wheel hardware cross-references established for the 1998 to 2004 window apply equally and continuously to the 1978 to 1997 window. The pre-1969 US-market standard Type 1 swing axle parts pool covers the rear end throughout. The post-1966 US-market Type 1 ball-joint front suspension pool covers the front throughout. The 4 x 130mm four-bolt wheel and hub specification applies throughout. None of these categories has a year-specific qualifier within the 1978 to 1997 window; they are stable across the entire production period.
Brakes are front disc and rear drum throughout 1978 to 1997, continuing the front disc specification that had been established on the Mexico Sedan in the early 1980s. The front disc brake pool from the post-1966 US-market Type 1 applies continuously. The dual-circuit brake master cylinder, introduced in 1990 per the VW Newsroom timeline, represents a brake system architecture change within this window that sellers must apply: pre-1990 Mexico Sedan production uses a single-circuit master cylinder, and 1990 and later production uses a dual-circuit master cylinder. These are different components and must be listed with the appropriate year qualifier.
The Carburetor Era: 1978 to 1992
From 1978 through the 1992 model year the Mexico Sedan uses carbureted fuel delivery on the 1600cc air-cooled flat-four engine. The carburetor specification evolved across this period as emissions regulations tightened and the engine management was incrementally updated.
Engine and Carburetor Specification 1978 to 1986
Through the mid-1980s the Mexico Sedan uses a downdraft carburetor in the 30 PICT or 34 PICT family on the 1584cc dual-port engine. The automatic height adjustment feature on the carburetor float was introduced in the course of 1977, so it is present from the beginning of this window. The engine is the same 1584cc dual-port architecture with belt-driven crankshaft cooling fan, sharing long-block consumables with the post-1966 US-market 1600cc Type 1 Beetle pool. Ignition is contact-point distributor through 1987. Jet, needle and seat, float, and carburetor gasket kit specifications apply from the 30 PICT or 34 PICT carburetor pool as appropriate to the specific carburetor model fitted, which must be confirmed by the part number stamped on the float bowl housing.
The European export Beetle supplied from Puebla from 1978 through approximately 1985 used a 1200cc 34-horsepower engine rather than the 1600cc Mexican domestic specification, because Volkswagen built 1200cc engines specifically for the European market even as the Mexican domestic car used 1600cc units. This creates a potential confusion for European-sourced parts catalogs: a European catalog entry for the Mexico Beetle may reference 1200cc specifications that have no application to the domestic Mexico market 1600cc car. Any parts sourced for the Mexico-specification 1600cc domestic Sedan must be confirmed against the 1600cc dual-port specification, not the European export 1200cc specification.
Electronic Ignition: 1987 to 1988 Transition
In October 1987 the Mexico Sedan transitioned from a contact-point distributor ignition to an electronic ignition system. The 1988 model year is typically cited as the full implementation year for the electronic ignition across production. This creates a boundary for distributor, contact point, condenser, and rotor specifications within the 1978 to 1997 window. Pre-1988 production uses points-based ignition and requires contact points, condenser, and associated tune-up components. 1988 and later production uses the electronic ignition and requires no contact points. A single tune-up kit listing spanning the full 1978 to 1997 window without this qualifier will produce incorrect ignition parts for either the pre-1988 or post-1988 cars.
Catalytic Converter Without Lambda: 1991 to 1992
In 1991 the Mexican government mandated catalytic converters on new vehicles as part of urban air quality legislation, driven primarily by the severe air pollution crisis in Mexico City. The Mexico Sedan complied by adding an unregulated catalytic converter, meaning a converter without an oxygen sensor and without closed-loop fuel control. The carburetor remained the fuel delivery system. This combination, a carbureted engine with an unregulated catalytic converter, is unusual and creates a specific parts requirement: the catalytic converter fitted to 1991 and 1992 Mexico Sedans is a pre-oxygen-sensor unit requiring no lambda sensor wiring. Any catalytic converter listing for 1991 and 1992 production must specify the unregulated non-lambda specification. The regulated three-way catalytic converter with lambda sensor belongs only to the post-1993 Digifant injection cars.
The 1993 Boundary: Digifant Fuel Injection
From 19 August 1993, the Mexico Sedan received the Digifant electronic fuel injection system with engine code ACD, replacing the carburetor entirely. This is the single most consequential catalog boundary in the 1978 to 1997 window, and it requires the same discipline established for the 1998 to 2004 window: no carbureted fuel system component applies to 1993 and later production, and no Digifant injection component applies to 1992 and earlier production. The two fuel systems are completely incompatible architectures with no shared components in the fuel delivery path.
The 1993 Digifant system introduced simultaneously: the fuel injection system replacing the carburetor, hydraulic valve lifters replacing the mechanical adjustable lifters, and a regulated three-way catalytic converter with a lambda oxygen sensor replacing the unregulated catalytic converter of 1991 to 1992. These three changes arrive together as a package. A seller must treat 1993 as the boundary year for all three of these system changes: fuel delivery, valve train service, and catalytic converter specification all change simultaneously.
The Digifant system on the Mexico Sedan uses a single-point throttle body injection architecture. It is a different injection system from the Bosch D-Jetronic used on the Type 3 Squareback and Fastback, and it is also different from the Bosch Monotronic used on the 1998 to 2004 Sedan Unificado. There is ongoing terminology confusion in the aftermarket between Digifant and Monotronic: VW Mexico press materials and Wikipedia describe the 1993 introduction as Digifant, while the 1998 to 2004 guide refers to Monotronic. Contemporaneous sources including the VW-Kafer-Club's detailed technical documentation confirm the ACD engine code and Digifant designation for the 1993 to 1997 (and 1998 to 2003) production. The practical catalog implication is that the fuel injection system on the 1993 to 1997 Sedan and the 1998 to 2003 Sedan Unificado is the same Digifant architecture, making the injection component cross-reference pool consistent across the two ACES windows for the injection era cars.
From 1993 onward the valve adjustment maintenance operation is eliminated, as it is on the 1998 to 2004 cars. Valve adjustment tools and specifications do not apply to any 1993 and later Mexico Sedan. Additionally the front disc brake hub specification was updated at the 1993 model year: the VW Newsroom and VW-Kafer-Club source both note that 1993 introduced front disc brakes with separate wheel hub geometry. Sellers listing front brake hub, rotor, and caliper components for the Mexico Sedan must apply a pre-1993 versus 1993 and later qualifier for the front brake assembly where hub geometry differs.
Year-by-Year Summary of Catalog Boundaries Within 1978 to 1997
The following boundaries define the discrete year-specific qualifiers a seller must apply within this window. All other mechanical components not listed here are continuous from 1978 through 1997 with no year-specific change:
1978: European export version begins with 1200cc engine; Mexican domestic specification remains 1600cc. Sellers must distinguish the European export market version from the domestic Mexico market version when sourcing from European catalogs.
1982: Engine cover loses exterior vents, making it visually similar to the pre-1970 Mexico Beetle and the German-market 1200. Body vent hardware from 1978 to 1981 production does not apply to 1982 and later.
1986: Rear window enlarged to the larger specification used on German Beetles from 1972 onward. Rear window glass and seal for pre-1986 and 1986 and later are different specifications.
1987 to 1988: Electronic ignition replaces contact-point distributor. All ignition tune-up components requiring points, condenser, and rotor do not apply from 1988 onward.
1989: Official relaunch as Volkswagen Sedan with simplified equipment. Body vents removed, wheel caps deleted, quality fittings reduced. The Sedan name becomes the official model designation for the first time.
1990: Dual-circuit brake master cylinder introduced. Single-circuit master cylinder applies only to pre-1990 production; dual-circuit applies from 1990 onward.
1991: Unregulated catalytic converter added without oxygen sensor or closed-loop fuel control. Carbureted fuel delivery retained. Catalytic converter listings for 1991 and 1992 must specify non-lambda unregulated specification.
1993: Digifant electronic fuel injection with engine code ACD replaces carburetor. Hydraulic valve lifters replace mechanical lifters. Regulated three-way catalytic converter with lambda sensor replaces unregulated unit. Front disc brake hub geometry updated to separate hub specification. All four changes arrive simultaneously.
Cross-Reference Logic Across the 1978 to 1997 Window
Long-block internal engine components cross to the 1600cc dual-port Type 1 pool for the full 1978 to 1997 window, with the hydraulic lifter boundary at 1993 applying to camshaft and lifter specifications as in the 1998 to 2004 window. Pistons, cylinders, cylinder heads, crankshaft, bearings, and pushrod tube seals are confirmed cross-references from the Type 1 1600cc dual-port pool throughout.
Carburetor components for the 1978 to 1992 carbureted era cross to the 30 PICT and 34 PICT carburetor pool from the broader air-cooled VW market, with the specific carburetor model confirmed by the part number on the float bowl. These carburetors are widely available in the general air-cooled aftermarket and cross-reference broadly across Type 1 and Type 2 applications of the same carburetor model.
Digifant injection components for the 1993 to 1997 era share the same injection architecture as the 1998 to 2003 Sedan Unificado, making the injection component cross-reference pool continuous across the two ACES windows for injection-era cars. Sellers covering both the 1978 to 1997 and 1998 to 2004 windows should maintain a unified Digifant injection pool for all 1993 to 2003 production.
The swing axle rear suspension, torsion bar front suspension, four-bolt wheel pattern, and four-speed gearbox cross-references apply continuously from the pre-1969 US-market Type 1 standard Beetle pool for rear suspension, and the post-1966 US-market Type 1 pool for front ball-joint suspension and front disc brakes, as established for the 1998 to 2004 window. No rear IRS components from post-1968 US-market Beetles apply to any Mexico Sedan in this window.
Brazil Production Overlap and Cross-Reference Caution
Brazil produced the air-cooled Beetle from 1953 through 1986, then briefly resumed from 1993 through 1996. The Brazilian Beetle used the same basic Type 1 architecture and shares long-block engine components with the Mexico Sedan of the same era. However, Brazilian production specifications diverged from the Mexico Sedan in fuel system, emissions equipment, and some body details. Sellers must not apply Brazilian-market fuel injection specifications or Brazilian-specific body components to the Mexico Sedan without part number confirmation. The Brazil resumption of 1993 to 1996 coincides with the Mexico Sedan's Digifant injection introduction, but the two markets used different fuel injection calibrations and may use different component specifications. Brazilian Beetle parts catalogs should be treated as may-also-fit sources requiring part number verification rather than confirmed cross-references for fuel system and emissions components.
US Import Context: DOT Restrictions and Pan-Swap Registration
Post-1978 Mexico Sedan production does not meet US Department of Transportation safety standards, primarily because it lacks the side-impact door reinforcement, energy-absorbing bumper systems, and emissions equipment required for US market certification. Direct importation and registration of post-1978 Mexico Sedans as the model year they were built is therefore prohibited by US federal regulation.
In practice, Mexico Sedans do appear on US roads through a well-documented workaround: the body and mechanical components of a later Mexico Sedan are mated to the floor pan of a pre-1979 US-registered Beetle, and the vehicle is registered with the DMV using the VIN of the older floor pan. The resulting title shows the year of the floor pan rather than the year of the body and mechanical components. This creates a direct catalog problem: a buyer may present documentation showing a 1972 Beetle that is mechanically a 1995 Mexico Sedan. Engine, fuel system, and emissions components ordered on the basis of the 1972 title will be wrong for the actual 1995 mechanical specification.
Sellers should be aware of this workaround and should ask any Mexico Sedan buyer to confirm whether the vehicle has been pan-swapped before serving fuel system, ignition, or emissions components based on title year alone. The correct approach is to ask for the engine number stamp from the crankcase to confirm the actual production year and engine specification, regardless of what the title says.
Common ACES/PIES Catalog Mistakes for the VW Sedan 1978 to 1997
1. Listing carburetor components for 1993 and later production. The Digifant injection system replaced the carburetor entirely from August 1993. No carburetor jets, needle and seat, float bowl, or choke applies to 1993 and later production.
2. Listing Digifant injection components for 1992 and earlier production. The carburetor was the exclusive fuel delivery system through the 1992 model year. No injector, throttle body, ECU, or fuel rail applies to pre-1993 production.
3. Applying mechanical valve adjustment tools or specifications to 1993 and later production. The 1993 Digifant transition introduced hydraulic lifters eliminating periodic valve adjustment. This maintenance procedure and its associated tools and specifications do not apply from 1993 onward.
4. Not applying the 1990 dual-circuit brake master cylinder boundary. Pre-1990 production uses single-circuit master cylinder; 1990 and later uses dual-circuit. A single master cylinder listing spanning the full 1978 to 1997 window will produce incorrect parts for one or the other era.
5. Applying post-1968 IRS rear suspension components from US-market Beetles to the Mexico Sedan 1978 to 1997. The Mexico Sedan uses swing axle rear suspension throughout this entire window. IRS rear axle shafts, trailing arms, and hub hardware do not apply.
6. Not distinguishing the 1991 to 1992 unregulated catalytic converter from the 1993 and later regulated three-way converter with lambda sensor. These are different catalytic converter specifications requiring different associated emissions hardware.
7. Not applying the 1988 electronic ignition boundary for distributor and tune-up component listings. Pre-1988 production requires contact points, condenser, and associated tune-up items. 1988 and later production uses electronic ignition with none of those components.
8. Applying the 1986 enlarged rear window specification to pre-1986 production. The smaller rear window was used through 1985. The larger rear window glass and seal from 1986 onward are a different specification.
9. Cross-referencing European export 1200cc Mexico Beetle specifications to the Mexican domestic market 1600cc application. From 1978 through approximately 1985 the European export version used a different 1200cc engine not sold in the domestic Mexico market. Engine, carburetor, and fuel system components from European market parts catalogs for the Mexico Beetle of this era may reference 1200cc specifications inapplicable to the domestic 1600cc car.
10. Trusting title year on US-registered Mexico Sedans for fuel system and ignition component ordering. The pan-swap registration practice produces titles showing pre-1979 US Beetle years on vehicles that are mechanically later Mexico Sedans. Engine number confirmation from the crankcase stamp is the only reliable method for determining actual production year and fuel system specification.
Catalog Checklist for the VW Sedan 1978 to 1997
• Apply 1993 as the hard fuel system boundary: carburetor pool for 1978 to 1992, Digifant injection pool for 1993 to 1997; no component crosses this boundary
• Apply 1993 as the valve train service boundary: mechanical lifter adjustment applies only through 1992; hydraulic lifters with no adjustment required from 1993 onward
• Apply 1993 as the catalytic converter type boundary: unregulated non-lambda converter for 1991 to 1992; regulated three-way with lambda sensor from 1993 onward
• Apply 1993 as a front brake hub geometry qualifier: front disc hub specification changed to separate hub design at the 1993 model year
• Apply 1990 as the brake master cylinder boundary: single-circuit pre-1990, dual-circuit from 1990 onward
• Apply 1988 as the ignition system boundary: contact-point distributor tune-up items through 1987; electronic ignition from 1988 onward
• Apply 1986 as the rear window size boundary: smaller rear window glass through 1985; larger rear window glass from 1986 onward
• Apply swing axle rear suspension pool (pre-1969 US Type 1 standard Beetle) continuously throughout the 1978 to 1997 window with no exceptions
• Distinguish domestic Mexico 1600cc specification from European export 1200cc specification when sourcing from European market parts catalogs
• Request engine number crankcase stamp confirmation before serving fuel system or ignition components for any US-registered Mexico Sedan, as pan-swap registration may disguise actual production year
Final Take
The 1978 to 1997 Mexico Sedan is the longest and most technically layered of the three ACES Sedan windows. Twenty years of sole-source production in Puebla meant that Volkswagen de Mexico handled every emissions update, powertrain revision, and regulatory response independently, producing a vehicle that evolved incrementally through multiple meaningful catalog boundaries while retaining the same basic chassis architecture from first year to last.
The 1993 fuel injection transition is the boundary that matters most commercially, because it creates two mechanically distinct eras within a single ACES window. A catalog that does not split at 1993 for fuel system, valve train, and catalytic converter specification will generate incorrect parts on a substantial fraction of orders in those categories. The secondary boundaries at 1990 for the master cylinder, 1988 for the ignition, and 1986 for the rear glass are each narrower in scope but equally absolute within their respective categories.
The pan-swap US registration issue is unique to this application and represents a catalog risk that sellers of other vehicles never encounter. It means that the title-year-based ordering approach that works reliably for officially imported vehicles is unreliable for the Mexico Sedan in the US market. A seller who builds a verification step for engine number confirmation into the ordering process for this application will catch pan-swap mismatches before they become returns, and will build trust with the knowledgeable buyers who present these vehicles precisely because they know the title year issue exists and expect a seller who understands it.
Disclaimer: This guide is based on publicly available specifications, manufacturer documentation, and independent research. Year boundaries for production changes are based on model year introductions and may vary by exact production date within a given model year. Engine number confirmation from the crankcase stamp is recommended for all fuel system and ignition component orders for US-registered Mexico Sedan vehicles. This document does not constitute official Volkswagen parts catalog data.
