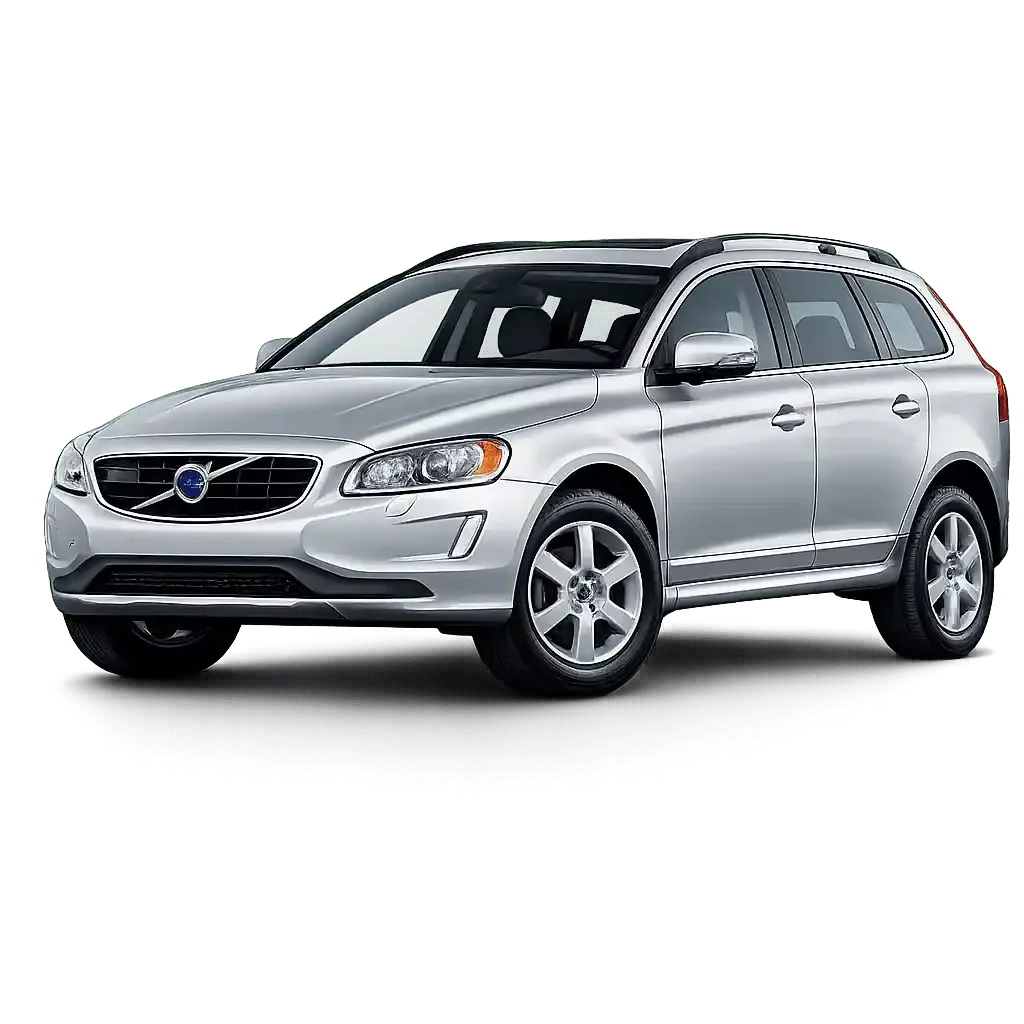

Volvo XC60 (P3 Platform) 2010-2017: The Complete Fitment Guide for Parts Sellers
The P3-generation XC60 was Volvo’s best-selling model for most of its eight-year production run, and during that time Volvo fitted it with four different engine families from three different engine architectures. It launched in North America for the 2010 model year with the SI6 inline-6 (3.2L naturally aspirated and 3.0L turbocharged T6), both designed by Volvo but built by Ford at the Bridgend plant in Wales. Then the 2.0L VEA four-cylinder “Drive-E” T5 and twin-charged T6 arrived as FWD options for 2015. And the old “white block” 2.5L turbo inline-5 appeared for 2015.5 as an AWD-specific T5 option. That means a “2016 XC60 T5” could have either a 2.0L four-cylinder or a 2.5L five-cylinder depending on whether it is FWD or AWD. Add in the FWD option (starting 2013 on the 3.2), a facelift (2014 model year), Haldex AWD generation changes (Gen 4 to Gen 5), the transition from the RTI navigation system to Sensus, and the introduction of Drive-E engines alongside the legacy SI6, and this compact crossover has at least six distinct fitment splits that generate returns. This guide maps every one.
Brand and Platform Background
The P3-generation XC60 debuted at the 2008 Geneva Motor Show and went on sale in Europe in Q3 2008. It arrived in North America for the 2010 model year, built at Volvo’s Ghent, Belgium plant. It was built on Volvo’s P3 platform, shared with the second-generation S80 sedan (2007-2016), the XC70 wagon (2008-2016), the third-generation V70 wagon (2008-2010 in North America), and later the S60 (2011-2018) and V60 (2015-2018). The P3 platform was developed under Ford ownership, and several Ford-era engineering decisions carry through the production run, including the SI6 engine (built at Ford’s Bridgend plant in Wales) and the Aisin TF-80SC transmission family.
The XC60 shared technology with the Land Rover Freelander of 2007, as both Land Rover and Volvo were under Ford’s Premier Automotive Group during development. Much of the engineering and chassis tuning was done by Volvo in Sweden, while off-road capabilities were developed at Land Rover in England.
Volvo introduced the City Safety system as standard on the XC60-the first implementation of this low-speed autonomous emergency braking technology. This became a defining feature of the model.
For the 2014 model year, the XC60 received a significant facelift with redesigned exterior styling from the windshield forward, new Drive-E engine options, and interior updates. Production of the first-generation XC60 continued through the 2017 model year (with some markets receiving the final units as 2018 models). The second-generation XC60, on Volvo’s SPA platform, replaced it starting with the 2018 model year.
Complete Powertrain Reference (US Market)
3.2L Naturally Aspirated Inline-6 “SI6” (2010-2015)
• Engine code: B6324S (2010, 235 hp) / B6324S5 (2011-2015, 240 hp, with B6324S4 PZEV variant)
• Displacement: 3.2L (3,192cc) inline-6
• Design: Volvo-designed SI6 (“Short Inline 6”) engine, built by Ford at Bridgend, Wales
• Aspiration: Naturally aspirated
• Valvetrain: DOHC, 24 valves, CVVT (Continuous Variable Valve Timing), variable valve lift on intake side
• Output: 235 hp (2010), 240 hp (2011-2015, ULEV II) or 230 hp (PZEV markets)
• Transmission: Aisin TF-80SC 6-speed automatic
• Drive: FWD (from 2013) or AWD (Haldex, all years)
• Notes: This was the base/standard engine for most of the production run. The 2011+ B6324S5 received DLC-coated valvetrain components, revised engine mapping, Denso Super Ignition spark plugs, ball bearings replacing needle bearings in the Rear Extension Accessory Drive (READ), and an electric power steering pump. Not a “white block” engine; the SI6 is a completely different engine family.
3.0L Turbocharged Inline-6 “T6” (2010-2016)
• Engine code: B6304T2 (2010, 281 hp) / B6304T4 (2011-2016, 300 hp; R-Design 325 hp with overboost)
• Displacement: 3.0L (2,953cc) inline-6
• Design: Volvo-designed, Ford-built at Bridgend (same SI6 family as 3.2L, shorter stroke, with turbo)
• Aspiration: Twin-scroll turbocharged, intercooled (BorgWarner turbocharger)
• Output: 281 hp / 295 lb-ft (2010); 300 hp / 325 lb-ft (2011-2016); 325 hp with overboost (R-Design)
• Transmission: Aisin TF-80SC 6-speed automatic
• Drive: AWD only (Haldex, all years)
• Notes: The T6 received a power increase for 2011 (from 281 to 300 hp) along with the same DLC coating and reliability upgrades as the 3.2. The split exhaust manifold and twin-scroll turbo housing virtually eliminate turbo lag. Turbo-related service items (wastegate, intercooler, boost plumbing) apply only to the T6 and do not apply to the 3.2.
2.0L Turbocharged Inline-4 “Drive-E” T5 (2015-2017, FWD)
• Engine code: B4204T11 (VEA / Volvo Engine Architecture family)
• Displacement: 2.0L (1,969cc) inline-4
• Design: Volvo’s new modular 2.0L Drive-E engine (same family as second-gen XC90 engines)
• Aspiration: Turbocharged, direct injection
• Output: 240 hp, 258 lb-ft
• Transmission: Aisin 8-speed automatic (TG-81SC, note: 8-speed, not 6-speed)
• Drive: FWD only
• Notes: This is the same VEA/Drive-E engine family used in the SPA-platform XC90/S90/XC60. It is completely unrelated to the SI6 inline-6 or the white block inline-5. The 8-speed automatic transmission paired with the Drive-E engine is different from the 6-speed used with the SI6 engines.
2.0L Twin-Charged Inline-4 “Drive-E” T6 (2015-2017, FWD and AWD)
• Engine code: B4204T9 (turbocharged and supercharged)
• Displacement: 2.0L (1,969cc) inline-4
• Design: VEA / Drive-E family, twin-charged (supercharger + turbocharger)
• Aspiration: Supercharged at low RPM, turbocharged at higher RPM
• Output: 302 hp, 295 lb-ft
• Transmission: Aisin 8-speed automatic (TG-81SC)
• Drive: FWD (2015) or AWD (2015-2017)
• Notes: The mechanically linked supercharger provides instant low-RPM response while the turbo spools up. Starting 2015, this twin-charged Drive-E T6 was offered alongside the SI6 T6 3.0L on AWD models. On FWD models, it replaced the SI6 entirely. These engines share nothing with the SI6 T6 despite both carrying the “T6” badge.
2.5L Turbocharged Inline-5 “White Block” T5 (2015.5-2017, AWD)
• Engine code: B5254T12
• Displacement: 2.5L (2,522cc) inline-5
• Design: Volvo’s legacy “white block” modular engine, a descendant of the same inline-5 family used in the P2 XC70
• Aspiration: Turbocharged
• Output: 250 hp, 266 lb-ft
• Transmission: Aisin TF-80SC 6-speed automatic
• Drive: AWD only (Haldex)
• Notes: This engine appeared mid-cycle when the 3.2L NA six was discontinued on AWD models for 2015.5. In the 2016 and 2017 model years, the “T5” designation was used for two completely different engines: the 2.0L Drive-E four-cylinder (FWD) and the 2.5L white block five-cylinder (AWD). These engines share nothing. A buyer with a “2016 XC60 T5 AWD” has the 2.5L five-cylinder; a buyer with a “2016 XC60 T5 FWD” has the 2.0L four-cylinder.
Engine Summary
The five engines span three completely different engine architectures:
• SI6 inline-6 (3.2 and T6): Volvo/Ford design. Unique to the P3 era. Does not cross-reference to white block or Drive-E parts.
• White block inline-5 (2.5T): Legacy Volvo design. Cross-references to P2 XC70/V70 2.5T, XC90 2.5T, S60 2.5T, and other white-block applications.
• Drive-E inline-4 (T5 FWD and T6 twin-charged): New Volvo modular design. Cross-references to SPA-platform models (second-gen XC90, S90, XC60, S60, V60).
No engine internals, turbochargers, intake components, or exhaust manifolds interchange between these three engine families.
Transmission
All P3 XC60s use the Aisin transmission family, but in two different configurations:
• TF-80SC 6-speed automatic: Used with all SI6 inline-6 engines (3.2 and T6) and the 2.5L white block T5 AWD.
• TG-81SC 8-speed automatic: Used with all 2.0L Drive-E engines (T5 FWD and T6 Drive-E).
The 6-speed and 8-speed are different physical units with different gear sets, valve bodies, and TCM calibrations. They are not interchangeable.
Drive Configuration: FWD vs. AWD
• 2010-2012: AWD only on 3.2 base model. AWD standard on T6. FWD was not offered on the US-market XC60.
• 2013-2014: FWD available on the 3.2 base model (as a lower-cost option). AWD optional on the 3.2, standard on the T6.
• 2015-2017: FWD standard on Drive-E T5. AWD standard on white block T5 and SI6 T6. Drive-E T6 offered in both FWD and AWD.
• AWD-only engines: The SI6 T6 (3.0L) was always AWD. The 2.5L white block T5 was always AWD.
• FWD-only engines: The 2.0L Drive-E T5 was always FWD.
For parts fitment, FWD models lack the entire AWD drivetrain: no angle gear/bevel gear on the transmission, no center driveshaft, no Haldex coupling, no rear differential. Rear subframe and exhaust routing may also differ.
AWD System: Haldex Generations on P3
The P3 XC60 used Haldex AWD across its entire production run for AWD models:
• 2010 (MY): Haldex Generation 4. Proactive torque pre-charging (Volvo marketed this as “Instant Traction”).
• Approximately 2012-2017: Haldex Generation 5 (designed by BorgWarner after acquiring Haldex Traction in 2011). Gen 5 eliminated the accumulator, solenoid valves, and filter found in earlier generations, replacing them with a centrifugal electro-hydraulic actuator.
The Gen 4 to Gen 5 transition did not happen on a clean model-year boundary and may vary by specific production date. Haldex service components (fluid, filter, DEM cover, pump assembly) differ between generations. Gen 5 notably eliminated the serviceable filter present in Gen 4, simplifying maintenance but changing the service procedure. Always verify the specific Haldex generation by part number or VIN before ordering AWD service components.
Body Style Eras
Pre-Facelift (2010-2013)
• Original headlight design with integrated fog lights
• Original front grille proportions with smaller Iron Mark badge
• Black lower body cladding along the doorsills
• RTI navigation system (available, not Sensus)
• Original instrument cluster design (analog)
• Original taillight design
• City Safety standard from launch (first Volvo to include it)
Post-Facelift (2014-2017)
• Redesigned front end: new hood shape with wider, more confident look
• New headlamps with LED daytime running lights, more focused design
• Wider grille with larger Iron Mark badge, chrome bars replacing louvres
• Body-color lower trim replacing previous black cladding
• Redesigned front and rear bumpers with integrated tailpipes
• Updated taillights with new signature
• Sensus infotainment system with 7-inch display (replacing RTI)
• Adaptive digital instrument cluster available (TFT display) on upper trims
• Corner Traction Control (CTC) by torque vectoring now standard on all models
• Drive-E engine options introduced (2015+)
The practical split for body panel fitment is 2010-2013 vs. 2014-2017. Headlights, taillights, front bumper cover, grille, hood, and fog light assemblies do not interchange between pre-facelift and post-facelift.
Step-by-Step Fitment Splits
Split 1: Engine Family (Three-Way Split)
This is the primary mechanical split:
• SI6 Inline-6 (3.2 and T6): 2010-2016 (T6), 2010-2015 (3.2). Volvo/Ford-designed. Engine internals, turbo components (T6 only), exhaust manifold, and accessories are SI6-specific.
• Drive-E Inline-4 (T5 FWD and T6 FWD/AWD): 2015-2017. Completely different engine architecture. Nothing interchanges with SI6 or white block.
• White Block Inline-5 (T5 AWD): 2015.5-2017. Legacy Volvo engine. Cross-references to P2 applications, not to SI6 or Drive-E.
Split 2: Within SI6 (3.2 NA vs. T6 Turbo)
Within the SI6 engine family:
• 3.2 (naturally aspirated): No turbocharger, no intercooler, no boost plumbing. Simpler intake and exhaust.
• T6 (turbocharged): BorgWarner twin-scroll turbocharger, intercooler, wastegate, boost plumbing, different exhaust manifold. The T6 also received a power increase for 2011 (B6304T2 to B6304T4), which involves different turbo specifications, ECU calibration, and related components.
Turbocharger, intercooler, wastegate, and boost piping are T6-specific and have no application on the 3.2.
Split 3: Drive Configuration (FWD vs. AWD)
• FWD (2013-2017, 3.2 base, Drive-E T5, Drive-E T6): No angle gear, no center driveshaft, no Haldex coupling, no rear differential.
• AWD (2010-2017, 3.2 AWD, SI6 T6, white block T5, Drive-E T6 AWD): Full Haldex AWD system.
Rear subframe, exhaust routing, and drivetrain components differ between FWD and AWD.
Split 4: Transmission (6-Speed vs. 8-Speed)
• 6-speed (all SI6 and white block engines): TF-80SC 6-speed.
• 8-speed (Drive-E engines only): TG-81SC 8-speed.
These are different transmissions with different internal components.
Split 5: Body Era (Pre-Facelift vs. Post-Facelift)
• 2010-2013: Pre-facelift. Original headlights, taillights, grille, bumpers, black body cladding.
• 2014-2017: Post-facelift. LED DRLs, redesigned lights, wider grille, body-color trim, updated bumpers.
Headlights, taillights, grille, front bumper, hood, and fog light assemblies do not interchange between these eras.
Split 6: The “T5” and “T6” Name Ambiguity (2015-2017)
In 2015-2017, both “T5” and “T6” mean two completely different things:
• T5 FWD: 2.0L Drive-E inline-4, 8-speed automatic, FWD only.
• T5 AWD: 2.5L white block inline-5, 6-speed automatic, AWD only.
• T6 Drive-E (FWD or AWD): 2.0L twin-charged Drive-E inline-4, 8-speed automatic.
• T6 AWD (SI6): 3.0L turbocharged SI6 inline-6, 6-speed automatic.
Every engine component, every transmission component, and the entire drivetrain differs between the SI6 and Drive-E variants despite sharing the same badge names.
Biggest Return Traps
Trap 1: “T5” Parts Without Specifying Which T5
Why they get returned: A seller lists “2016 XC60 T5 turbocharger” or “2015 XC60 T5 air filter.” The 2.0L Drive-E T5 and the 2.5L white block T5 are completely different engines from different decades of engineering. A turbocharger for one has zero application on the other.
How to stop returns: For any engine component on a 2015-2017 XC60 T5, always specify: “T5 FWD (2.0L Drive-E inline-4)” or “T5 AWD (2.5L turbo inline-5).” Never list “XC60 T5” without the engine specification.
Trap 2: “T6” Parts Without Specifying Which T6 (SI6 vs. Drive-E)
Why they get returned: From 2015-2016, the XC60 offered two completely different T6 engines simultaneously: the 3.0L SI6 turbo inline-6 and the 2.0L Drive-E twin-charged inline-4. A “2016 XC60 T6 turbo” listing could match either engine. They share no components.
How to stop returns: Always specify engine type: “T6 3.0L SI6 inline-6” or “T6 2.0L Drive-E inline-4 (twin-charged).” Verify drive configuration: SI6 T6 is always AWD; Drive-E T6 was offered in both FWD and AWD.
Trap 3: SI6 Engine Parts Listed as Fitting White Block Applications (or Vice Versa)
Why they get returned: The SI6 inline-6 is a completely different engine family from the white block inline-5. They share no internal components, no accessories, no gaskets, no sensors. A seller listing a generic “Volvo inline engine oil filter” or “XC60 turbo” without specifying the engine family can easily ship the wrong part.
How to stop returns: Always specify engine family: “SI6 3.2” or “SI6 T6” or “Drive-E 2.0T” or “Drive-E 2.0 Twin-Charged” or “White Block 2.5T.” Do not use generic “XC60 engine part” listings.
Trap 4: 3.2L NA Parts Listed for T6 Turbo (or Vice Versa)
Why they get returned: Within the SI6 family, the 3.2 and T6 share the same basic block architecture but differ in turbocharger, intercooler, exhaust manifold, and intake components. A seller lists an “XC60 3.0/3.2 exhaust manifold” and ships a 3.2 NA manifold to a T6 buyer (whose manifold integrates with the turbocharger housing).
How to stop returns: For intake, exhaust, and turbo-related components, always specify “3.2 (naturally aspirated)” or “T6 (turbocharged).”
Trap 5: Pre-Facelift Body Parts for Post-Facelift Vehicles
Why they get returned: The 2014 facelift changed the hood, headlights (LED DRLs), taillights, grille (wider, larger Iron Mark, chrome bars), bumpers, and eliminated the black body cladding. A seller lists a “2010-2017 XC60 headlight” and ships a pre-facelift unit to a 2015 XC60 buyer.
How to stop returns: For headlights, taillights, grille, bumpers, hood, and fog lights, always split: “2010-2013 (pre-facelift)” vs. “2014-2017 (facelift).”
Trap 6: AWD Components for FWD Models
Why they get returned: Starting in 2013, the base XC60 3.2 was available as FWD. A seller lists a “2014 XC60 angle gear” without specifying AWD. The FWD model has no angle gear, no center driveshaft, and no Haldex system.
How to stop returns: For any AWD drivetrain component (angle gear, center driveshaft, Haldex coupling, DEM, rear differential), specify “AWD models only.” Note that the SI6 T6 is always AWD but the 3.2 can be either FWD or AWD from 2013 onward.
Trap 7: Second-Generation (SPA) XC60 Parts Listed for First-Generation (P3)
Why they get returned: The P3 XC60 (2010-2017) and SPA XC60 (2018+) are completely different platforms. No body panels, suspension components, or drivetrain assemblies interchange. However, the Drive-E engine family carries over to the SPA platform, so some engine-internal components may cross-reference.
How to stop returns: Always specify “First Generation / P3 (2010-2017)” or “Second Generation / SPA (2018+)” for any XC60 listing.
Fitment Rules Block
Required attributes for every P3 Volvo XC60 parts listing:
• Model year(s)
• Engine: 3.2 SI6 / T6 SI6 3.0L / T5 Drive-E 2.0L / T6 Drive-E 2.0L Twin-Charged / T5 White Block 2.5L
• Drive: FWD or AWD
• Transmission: 6-speed or 8-speed automatic
• Body era: Pre-facelift (2010-2013) or post-facelift (2014-2017)
• Platform: P3 (not SPA)
Buyer Confirmation Prompts
Before shipping any part for a P3 XC60, confirm:
1. 1. "What is your exact model year?"
2. 2. "What is your engine: 3.2 six-cylinder, T6 turbo six-cylinder, T5 four-cylinder (FWD), T5 five-cylinder (AWD), or T6 twin-charged four-cylinder?" (For 2015-2017 T5/T6 models, also ask: "Is your vehicle FWD or AWD?" The answer determines the engine.)
3. 3. "Is your vehicle FWD or AWD?" (Relevant for 2013+ 3.2 models and all 2015-2017 models.)
4. 4. "For exterior body parts: Is your vehicle pre-facelift (2010-2013) or facelift (2014 or newer, with LED daytime running lights and body-color lower trim)?"
Quick Identification Guide
Engine Identification
• 3.2: Check engine cover badge. Six-cylinder, no turbocharger visible. Available 2010-2015.
• T6 (SI6): Check engine cover badge. Six-cylinder with visible turbocharger and intercooler plumbing. Available 2010-2016.
• T5 FWD (Drive-E): Four-cylinder, transverse-mounted. Smaller engine with no center driveshaft underneath. 2015-2017.
• T6 Drive-E (Twin-Charged): Four-cylinder with both a supercharger and turbocharger visible. Compact engine with Drive-E cover. 2015-2017.
• T5 AWD (White Block): Five-cylinder, visually distinct from the inline-6 (shorter engine, different head cover shape). Center driveshaft present underneath. 2015.5-2017.
FWD vs. AWD from Underneath
• FWD: No center driveshaft visible. No angle gear on the transmission. No rear differential.
• AWD: Center driveshaft from front to rear. Angle gear visible on the side of the transmission. Haldex coupling and rear differential visible at the rear axle.
Pre-Facelift (2010-2013) vs. Post-Facelift (2014-2017)
• Pre-facelift: No LED daytime running lights. Smaller Iron Mark badge in the grille. Black lower body cladding. Standard headlight shape with integrated fog lights.
• Post-facelift: LED daytime running lights integrated into headlight assembly. Wider grille with larger, bolder Iron Mark badge and chrome bars. Body-color lower trim. Redesigned hood, bumpers, and taillights.
Parts Sourcing Notes
P3 platform cross-references: The XC60 shares its P3 platform with the second-gen S80 (2007-2016), the XC70 (2008-2016), the S60 (2011-2018), and the V60 (2015-2018). Suspension components (struts, control arms, tie rods, sway bar links), steering rack, and brake components cross-reference broadly across P3 models, subject to weight and specification differences. The XC60 has a unique ride height and weight compared to the S60 and sedan models, so spring rates and shock absorbers may be XC60-specific.
SI6 engine cross-references: The 3.2L naturally aspirated SI6 was also used in the S80 3.2, XC70 3.2, and XC90 3.2 (2007-2014). The 3.0L turbocharged SI6 was also used in the S80 T6, XC70 T6, and S60 T6. Engine components cross-reference between these applications for the matching engine code.
Drive-E cross-references: The 2.0L Drive-E engines in the P3 XC60 cross-reference broadly to the SPA-platform models (second-gen XC90, S90, second-gen XC60, second-gen S60, V60) for engine-specific components. However, the P3 XC60’s chassis and body components do not cross to SPA models.
White block cross-references: The 2.5L turbo inline-5 in the 2015.5-2017 XC60 shares its engine family with the P2 XC70 2.5T, P2 XC90 2.5T, S60 2.5T, and other white-block applications. Engine internals may cross-reference, but accessories and mounting hardware are specific to the P3 installation.
Specialist sources: FCP Euro carries extensive P3 XC60 inventory with lifetime replacement warranty. IPD stocks P3-specific performance and maintenance parts. SwedeSpeed and MatthewsVolvoSite forums maintain P3 technical databases and community expertise.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
