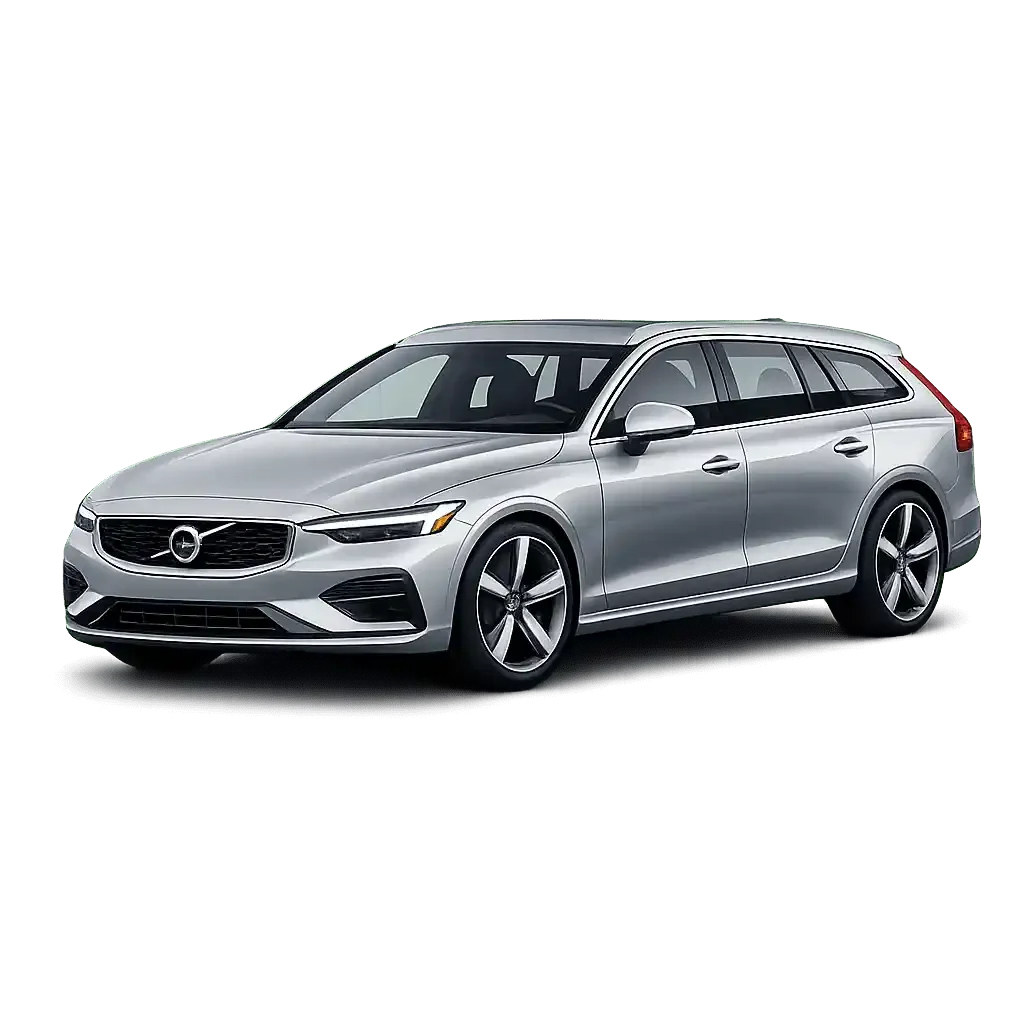

Volvo V60 Standard Wagon (SPA Platform) 2019-Present
The Complete Fitment Guide
Returns destroy margins. The second-generation Volvo V60 standard wagon (SPA platform, 2019-present) presents a uniquely complex fitment landscape because of its fragmented US availability. The standard-height V60 wagon was sold in the US with T5 FWD and T6 AWD powertrains for 2019, lost the T6 for 2020, gained the T8 PHEV Polestar Engineered for 2020, then was discontinued as a standard wagon after 2020 - with only the Cross Country continuing (from 2021). However, the V60 T8 Polestar Engineered plug-in hybrid continued as a separate model through the present. This means the "V60" nameplate in the US simultaneously covers: standard wagons (2019-2020), Cross Country raised wagons (2019-present), and T8 Polestar Engineered plug-in hybrids (2020-present) - three fundamentally different vehicles sharing one name. This guide maps the standard-height V60 wagon and the T8 Polestar Engineered, isolating the fitment splits that prevent returns.
Generation Overview
The second-generation V60 launched on the SPA (Scalable Product Architecture) platform for the 2019 model year, replacing the P3-generation V60. It shares the SPA platform with the XC90, XC60, S90, V90, S60, and V90 Cross Country. Assembly takes place in Torslanda (Sweden) and Ghent (Belgium).
Critical US market timeline:
• 2019: V60 T5 FWD (250 hp turbo) + V60 T6 AWD (316 hp twin-charged) in Momentum, R-Design, Inscription trims
• 2020: V60 T5 FWD only (T6 discontinued from standard V60) + NEW V60 T8 Polestar Engineered (415 hp PHEV)
• 2021: Standard V60 wagon discontinued for US. V60 Cross Country continues as sole non-PHEV V60. V60 T8 Recharge Polestar Engineered continues (renamed from "Polestar Engineered" to "Recharge")
• 2022-present: V60 Cross Country (T5/B5 AWD) + V60 T8 Polestar Engineered (PHEV) only in US. Standard-height V60 wagon no longer sold
Key platform facts:
• Platform: SPA (Scalable Product Architecture)
• US standard wagon model years: 2019-2020 only
• US T8 Polestar Engineered model years: 2020-present (ongoing)
• Engine family: VEA (Volvo Engine Architecture) 2.0L inline-4 exclusively
• Transmission: Aisin TG-81SC 8-speed automatic (all variants)
• Drive: FWD (T5), AWD (T6), eAWD (T8 PHEV)
Why the SPA V60 Causes Catalog Errors
• Three V60 body types under one name: "V60" in the US can mean the standard wagon (2019-2020), the Cross Country (2019-present), or the T8 Polestar Engineered (2020-present). Each has different suspension, body panels, and in the T8's case, an entirely different drivetrain.
• Four distinct powertrains in two years: The standard V60 alone offered T5 FWD (turbo only), T6 AWD (turbo + mechanical supercharger), and T8 PHEV (turbo + supercharger + electric motor + high-voltage battery). Plus the B5 mild hybrid on the Cross Country from 2023.
• T8 PHEV is a completely different animal: The T8 Polestar Engineered has a high-voltage battery (11.6 kWh Gen 2, then 18.8 kWh Gen 3), rear electric motor (ERAD), orange high-voltage cabling, Ohlins dampers, and Brembo/Akebono brakes. No T8-specific component fits a T5 or T6.
• T8 PHEV battery generation change: The T8 powertrain was updated mid-2022 from the Gen 2 system (313 hp gas + 87 hp electric = 400/415 hp combined) to the Gen 3 Extended Range system (300 hp gas + 155 hp electric = 455 hp combined, 18.8 kWh battery, approximately 41 miles EV range). Battery, motor, and power electronics differ between generations.
• P3 vs. SPA platform collision: The P3 V60 (2015-2018) and SPA V60 (2019+) share the name but zero components.
• Infotainment transition: Sensus (2019-2021) replaced by Android/Google built-in (2022+). Different head units, different wiring.
• Standard V60 rarity: Only approximately 2,000-3,000 standard-height SPA V60 wagons were sold in the US across 2019-2020. Many catalogs may not list the standard V60 at all, defaulting to Cross Country fitment.
Complete Powertrain Reference (US Market)
T5 FWD - 2.0L Turbocharged (Standard V60 2019-2020)
• Engine code: B4204T23 (VEA family)
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Turbocharged only (no supercharger)
• Output: 250 hp at 5,500 rpm, 258 lb-ft at 1,500-4,800 rpm
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: FWD only (no driveshaft, no rear differential)
• Fuel economy: EPA 23/34/27 MPG (city/hwy/combined)
• Hybrid system: None. Pure ICE. Conventional alternator and starter.
• Notes: Shared with S60 T5, V60 Cross Country T5 (AWD version), XC60 T5. The standard V60 T5 was FWD only; the Cross Country T5 was AWD. Same engine, different driveline.
T6 AWD - 2.0L Twin-Charged (Standard V60 2019 Only)
• Engine code: B4204T27 (VEA family)
• Displacement: 2.0L (1,969cc) inline-4
• Aspiration: Turbocharged + mechanically driven Eaton supercharger (twin-charged)
• Output: 316 hp at 5,700 rpm, 295 lb-ft at 2,100-4,800 rpm
• Transmission: Aisin TG-81SC 8-speed automatic
• Drive: AWD (driveshaft, rear differential, transfer case)
• Fuel economy: EPA 21/31/25 MPG (city/hwy/combined)
• Hybrid system: None. Pure ICE.
• Notes: Available on the standard V60 for 2019 ONLY. Dropped from the US V60 lineup for 2020. The mechanical supercharger, supercharger clutch, and intercooler plumbing are absent on the T5. Shared with S60 T6, XC60 T6 of the same era.
T8 PHEV - Polestar Engineered (2020-Present)
The T8 powertrain underwent a significant mid-cycle upgrade. Two distinct generations exist:
T8 Gen 2 (2020 - mid-2022):
• Gas engine: B4204T27 2.0L twin-charged (turbo + supercharger), 313 hp
• Electric motor: Rear-mounted ERAD (Electric Rear Axle Drive), 87 hp
• Combined output: 415 hp (2020 Polestar Engineered), 400 hp (2021 Recharge)
• Battery: 11.6 kWh lithium-ion
• EV range: Approximately 22 miles
• Transmission: Aisin TG-81SC 8-speed automatic (front axle)
• Drive: eAWD (gas engine drives front wheels, electric motor drives rear wheels)
T8 Gen 3 Extended Range (mid-2022 - present):
• Gas engine: 2.0L twin-charged (turbo + supercharger), 300 hp (lower than Gen 2)
• Electric motor: Rear-mounted ERAD, 155 hp (higher than Gen 2)
• Combined output: 455 hp
• Battery: 18.8 kWh lithium-ion (larger than Gen 2)
• EV range: Approximately 41 miles
• Transmission: Aisin TG-81SC 8-speed automatic (front axle)
• Drive: eAWD
• Notes: VIN-decode required to determine Gen 2 vs. Gen 3 for 2022 models (transition happened mid-model-year). Gen 3 has different battery pack, different motor, different power electronics. The engine codes differ between Gen 2 (BR prefix) and Gen 3 (H6 prefix).
Polestar Engineered Performance Equipment (all T8 years):
• Suspension: Ohlins adjustable dampers with manual 22-position adjustment (2020-2022), later electronically adjustable
• Brakes: Upgraded calipers and rotors (larger than standard V60)
• Wheels: Forged 19-inch Polestar-specific design
• Exhaust: Unique Polestar-tuned dual exhaust
• Chassis: Polestar-tuned strut brace and front spring geometry
Infotainment and Trim Eras
Sensus Era (2019-2021)
• Volvo Sensus infotainment with 9-inch portrait touchscreen.
• Physical climate control buttons below touchscreen.
• Trim levels: Momentum, R-Design, Inscription (standard V60); Polestar Engineered (T8).
Android/Google Era (2022-Present)
• Android-based infotainment with Google built-in (Maps, Assistant, Play Store).
• Updated ADAS sensor hardware.
• Trim levels restructured: Core/Plus/Ultimate (2022-2024), then Plus/Ultra (2025+).
• Wireless Apple CarPlay and Android Auto.
The infotainment transition (2021/2022 boundary) means head units, display panels, and infotainment wiring harnesses do not interchange across this boundary.
Standard V60 vs. Cross Country vs. T8 Polestar Engineered
Components That Cross-Reference Across All Three
• Engine block and internals: The T5 and T6 gas engines are shared across standard V60, Cross Country, and other SPA models for the same engine code.
• Interior forward of B-pillar: Dashboard, infotainment, steering wheel, front seats, front door panels for same model year and infotainment era.
• Front body panels: Hood, front fenders, headlights above bumper line are shared (standard V60 and Cross Country use same upper body forward of A-pillar).
Standard V60 vs. V60 Cross Country
• Suspension: Different. Cross Country has raised springs and dampers (+2.5 inches ride height). NOT interchangeable.
• Bumpers and cladding: Different. Cross Country has unique bumper designs with body cladding.
• Drive: Standard T5 was FWD; Cross Country T5 is AWD. Driveshaft, rear differential, transfer case present on Cross Country, absent on standard T5 FWD.
Standard V60 / Cross Country vs. T8 Polestar Engineered
• Drivetrain: Completely different. T8 has high-voltage battery, rear electric motor (ERAD), orange HV cabling, onboard charger, DC-DC converter. None of these exist on T5 or T6.
• Suspension: T8 Polestar Engineered has Ohlins dampers, unique springs, strut brace. NOT shared with standard V60 or Cross Country.
• Brakes: T8 Polestar Engineered has upgraded calipers and rotors. Standard V60 and Cross Country have smaller brake components.
• Exhaust: Different routing due to battery pack and electric motor placement.
• Floor and underbody: T8 has battery pack under the floor, different underbody panels and crash structure.
Catalog Accuracy - The Fitment Splits That Matter
Split 1: P3 V60 (2015-2018) vs. SPA V60 (2019+)
Completely different platforms. The P3 used 5-cylinder, 6-cylinder, and VEA 4-cylinder engines with either 6-speed or 8-speed transmissions. The SPA uses VEA 4-cylinder engines exclusively with 8-speed transmissions. Zero components interchange across the platform boundary. Body, electrical, suspension, interior - everything differs.
Split 2: T5 FWD vs. T6 AWD vs. T8 PHEV
Three fundamentally different powertrains. The T5 (turbo only, FWD, no driveshaft) differs from the T6 (turbo + mechanical supercharger, AWD, driveshaft + rear diff) differs from the T8 (turbo + supercharger + electric motor, eAWD, high-voltage battery, ERAD). No supercharger components fit the T5. No HV/electric components fit the T5 or T6. No conventional alternator fits the T8 (which may use CISG).
Split 3: T8 Gen 2 vs. T8 Gen 3 Extended Range
The T8 PHEV system was upgraded mid-2022. Gen 2 (11.6 kWh battery, 87 hp motor, 415 hp combined) and Gen 3 (18.8 kWh battery, 155 hp motor, 455 hp combined) use different battery packs, different rear motors, and different power electronics. For 2022 models, VIN decode is required to determine which generation. Engine codes differ: Gen 2 uses BR prefix, Gen 3 uses H6 prefix.
Split 4: Standard V60 vs. V60 Cross Country
Different suspension (ride height), bumpers, body cladding. Standard T5 was FWD; Cross Country is AWD. Springs, dampers, and bump stops do not interchange.
Split 5: Polestar Engineered Suspension/Brakes vs. Standard
Ohlins dampers, unique springs, upgraded calipers and rotors are exclusive to the T8 Polestar Engineered. Standard V60 and Cross Country components do not fit the Polestar Engineered, and vice versa.
Split 6: Infotainment Era
Sensus (2019-2021) vs. Android/Google (2022+). Head units, display panels, and infotainment wiring harnesses do not interchange.
Biggest Return Traps and How to Prevent Them
Trap 1: P3 V60 (2015-2018) Parts for SPA V60 (2019+)
What happens: Parts from the P3 V60 (5-cylinder timing belt kit, TF-80SC transmission filter, Haldex coupling service kit) ship to an SPA V60 owner. Nothing fits.
Prevention: Always split at 2018/2019. P3 = 2015-2018. SPA = 2019+.
Trap 2: T5 or T6 Parts for T8 PHEV (or Vice Versa)
What happens: A conventional alternator or starter ships to a T8 owner, or a high-voltage battery cooling pump ships to a T5 owner. The T8 is a plug-in hybrid with components that do not exist on pure ICE models.
Prevention: Always specify: T5 (turbo only, FWD), T6 (twin-charged, AWD), or T8 (PHEV, eAWD). T8 drivetrain components are unique.
Trap 3: T8 Gen 2 Battery/Motor for T8 Gen 3
What happens: A Gen 2 battery pack (11.6 kWh) or Gen 2 rear motor (87 hp) ships to a 2023+ T8 owner whose vehicle has the Gen 3 Extended Range system (18.8 kWh, 155 hp motor). These do not interchange.
Prevention: For 2022 T8 models, VIN-decode to determine Gen 2 vs. Gen 3. For 2023+, all are Gen 3.
Trap 4: Standard V60 Suspension for Cross Country
What happens: Standard-height springs or dampers ship to a Cross Country owner, dropping ride height approximately 2.5 inches.
Prevention: Always specify: V60 standard or V60 Cross Country for suspension.
Trap 5: Standard Brakes/Suspension for Polestar Engineered
What happens: Standard V60 brake pads, rotors, or dampers ship to a Polestar Engineered owner with Ohlins dampers and upgraded brake hardware.
Prevention: Always ask: standard V60 or Polestar Engineered? Polestar brake and suspension components are unique.
Trap 6: Cross Country Parts Listed as "V60" Default
What happens: Because the standard V60 was discontinued for the US after 2020, many catalogs default "V60" to Cross Country. A 2019 standard-height V60 T5 FWD owner orders suspension or body parts and receives Cross Country components (different ride height, different bumpers, different cladding).
Prevention: Always verify: standard V60 (2019-2020 only in US) or V60 Cross Country (2019+). These are different body configurations.
Trap 7: Sensus Infotainment for Android/Google System
What happens: A Sensus head unit ships to a 2022+ V60. Or an Android/Google unit ships to a 2020 V60.
Prevention: Always specify: 2019-2021 (Sensus) or 2022+ (Android/Google).
Data Quality Checklist for Catalog Managers
Required attributes for every SPA V60 parts listing:
• Model year(s)
• Platform: SPA (2019+) - MUST distinguish from P3 (2015-2018)
• Powertrain: T5 (turbo only, FWD), T6 (twin-charged, AWD, 2019 only), T8 (PHEV, eAWD)
• T8 generation: Gen 2 (2020 - mid-2022) or Gen 3 Extended Range (mid-2022+)
• Body variant: V60 standard, V60 Cross Country, or V60 T8 Polestar Engineered
• Infotainment era: Sensus (2019-2021) or Android/Google (2022+)
• Drive type: FWD (T5 standard), AWD (T6, Cross Country), eAWD (T8)
Buyer Confirmation Prompts
Before shipping any part for an SPA V60, confirm:
• "What is your exact model year?" - Critical: 2015-2018 = P3, 2019+ = SPA
• "Is your V60 the standard wagon, the Cross Country, or the T8 Polestar Engineered?"
• "What is your powertrain - T5, T6, T8, or B5?"
• "For T8 owners: What is your EV range? ~22 miles = Gen 2, ~41 miles = Gen 3"
• "Is your vehicle FWD or AWD?" - FWD = T5 standard wagon only
Aftermarket Parts Cross-Reference Notes
SPA platform cross-references: The V60 shares the SPA platform with the XC90, XC60, S90, V90, S60, and V90 Cross Country. Many chassis components (control arms, tie rods, wheel bearings, steering rack) cross-reference across SPA models. However, the standard V60's lower ride height means springs and dampers differ from the Cross Country and from SUV models.
T5 engine cross-references: The B4204T23 is shared across SPA T5 models (S60, XC60, V60, V60 Cross Country) for the same era. Engine internals, turbocharger, and management cross-reference.
T8 PHEV cross-references: The T8 system is used across SPA PHEV models (XC90 T8, XC60 T8, S60 T8, V60 T8). The rear ERAD motor, battery management system, and HV components may cross-reference for the same T8 generation. However, battery pack geometry may differ by model.
Specialist sources: FCP Euro carries extensive SPA V60 inventory with lifetime replacement warranty. IPD stocks maintenance and performance parts. SwedeSpeed V60 forums maintain detailed parts databases. Volvo Parts Webstore (parts.volvocars.com) provides OE part number lookup by VIN.
The Business Case: Why Fitment Data Pays for Itself
The SPA V60 nameplate in the US covers three fundamentally different vehicles: the standard wagon (rare, 2019-2020 only), the Cross Country (ongoing, highest volume), and the T8 Polestar Engineered (PHEV, ongoing, niche but high-value). The standard V60's rarity makes it particularly prone to catalog omission - parts sellers may not list it at all, defaulting to Cross Country fitment that does not match the standard wagon's lower ride height or FWD driveline. Meanwhile, the T8 Polestar Engineered's mid-cycle battery generation change (Gen 2 to Gen 3 in mid-2022) creates a hidden fitment split that most catalogs do not capture.
The P3/SPA platform boundary, the T5/T6/T8 powertrain split, the T8 battery generation change, the standard/Cross Country/Polestar Engineered body variant split, and the Sensus/Android infotainment transition are the minimum fitment attributes required. If your catalog does not capture these, you are shipping wrong parts to one of the most complex V60 populations in the aftermarket.
Disclaimer: This guide is based on publicly available specifications, Volvo press materials, and independent research. Part interchangeability should always be confirmed via VINand OEM part number lookup. Specifications may change without notice. This document does not constitute official Volvo parts catalog data. Visuals and illustrations in this article were generated using AI for representative purposes and may not reflect exact technical schematics.
