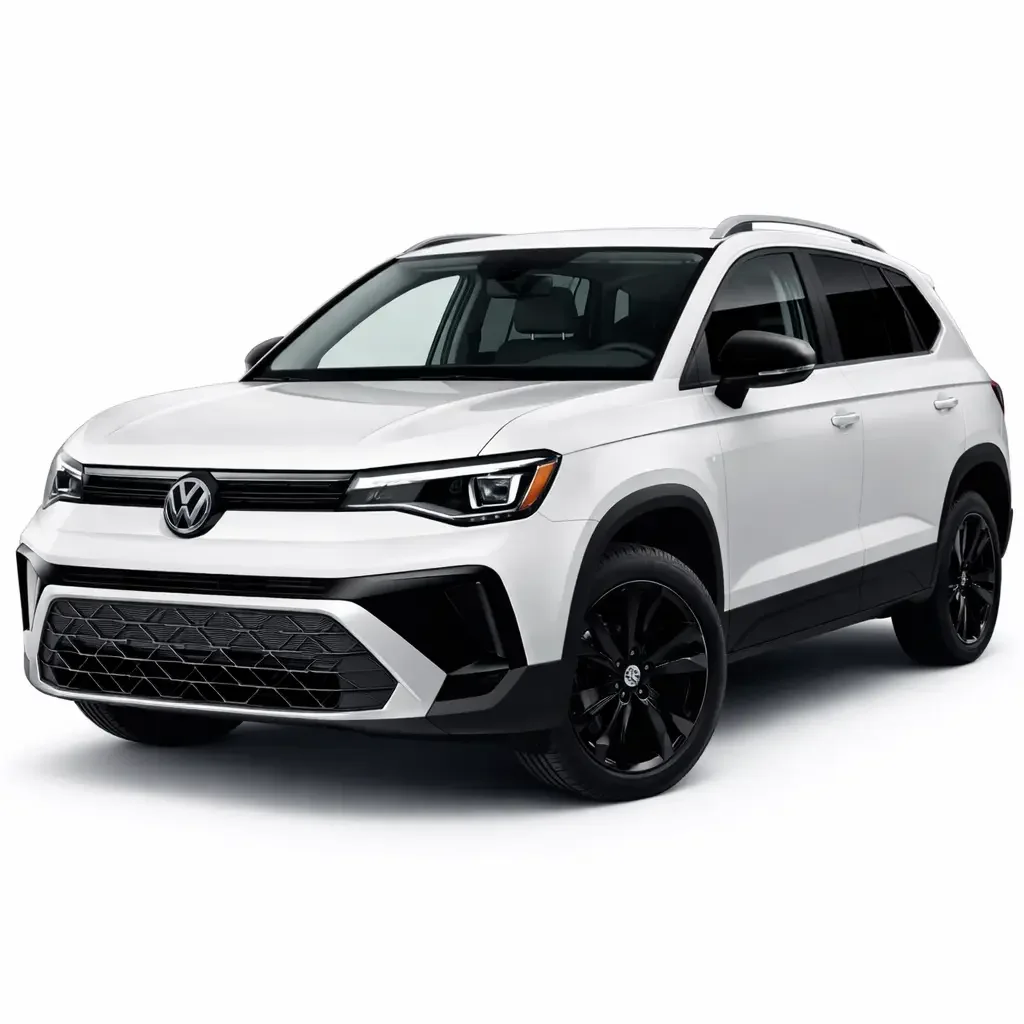

Volkswagen Taos (2021 to 2026): MQB A0 Platform Fitment Guide
Written by Arthur Simitian | PartsAdvisory
The Volkswagen Taos is a subcompact crossover SUV that launched for the North American market as a 2022 model year vehicle, with first deliveries beginning in mid-2021. It slots below the Tiguan in the Volkswagen SUV lineup and was positioned as an indirect replacement for the discontinued standard Golf in the North American market. All North American market Taos models are built at the Volkswagen plant in Puebla, Mexico. The vehicle is produced on the Volkswagen Group MQB A0 platform, a shorter-wheelbase variant of the MQB architecture sized for the subcompact segment, and is related to the global Tharu sold in China and Russia and the same-platform Taos sold in Argentina and Mexico with different powertrain configurations.
The Taos received a significant mid-cycle refresh for the 2025 model year that introduced a revised engine with higher output, updated exterior styling, and a meaningful drivetrain change: the 7-speed DSG used on AWD models from 2022 to 2024 was replaced by an 8-speed torque converter automatic across all configurations. This transmission change creates a hard catalog boundary between the 2022 to 2024 and 2025 onward production periods that affects transmission fluid, filter kits, and all transmission-related service components for AWD applications. It also resolves a well-documented performance concern with the 7-speed DSG on this application that generated significant owner feedback across the 2022 to 2024 model years.
This guide covers the platform, engine, the transmission split and its catalog implications, drivetrain configurations, brakes, the EA211 Evo timing belt, and the catalog accuracy requirements for the Taos across the 2021 to 2026 production window.
Platform Overview
The MQB A0 platform is the smallest-wheelbase variant of the Volkswagen Group's Modular Transverse Matrix architecture. The North American Taos rides on a 105.9-inch wheelbase, making it 11 inches shorter than the long-wheelbase MQB Tiguan and positioning it as a genuinely smaller vehicle rather than a rebodied Tiguan derivative. The overall length is 174.2 inches.
The platform shares the MQB family's transverse front-engine architecture, front MacPherson strut suspension, and rear multi-link independent suspension on AWD variants. A critical distinction for catalog accuracy: FWD Taos models may use a torsion beam rear suspension on lower trim levels in some global market variants, but the North American market Taos uses a multi-link independent rear suspension regardless of drivetrain in its primary production specification. Sellers should confirm rear suspension type against production documentation for specific model year and trim combinations rather than assuming a universal architecture.
The MQB A0 platform is distinct from the larger MQB A1 used in the second-generation Tiguan and Teramont, and from the full MQB used in the Golf Mk7 and Mk8. While all three share the MQB family's common engine positioning and front axle geometry, the A0 carries its own part numbers for suspension, brake hardware, and body components that do not cross to A1 or standard MQB applications without verification. Sellers should treat the Taos as a distinct platform family from the Tiguan and Atlas underbody components, despite the shared MQB branding.
Production Periods and the 2025 Refresh Boundary
The Taos has two distinct production phases separated by the 2025 model year refresh, which reached US dealers in late 2024.
2022 to 2024 model years (pre-refresh): The original Taos design features a front fascia with LED headlights and a chrome horizontal bar grille with available illuminated light bar, revised bumper geometry, and a conventional analog or digital instrument cluster depending on trim. The 7-speed wet DSG is fitted to all AWD 4Motion models and the 8-speed Aisin 09S torque converter automatic is fitted to FWD models. The engine produces 158 horsepower from the 1.5-litre EA211 Evo. Interior features include a 6.5-inch base infotainment display on the lowest trims, with 8-inch and 10.25-inch displays available on higher trims.
2025 to 2026 model years (post-refresh): The refreshed exterior introduces a new bumper design, revised grille, standard LED projector headlights on all trims, a connected full-width rear taillight treatment, and an illuminated VW badge at the rear, consistent with the design language introduced in the MQB Evo-based third-generation Tiguan. The engine receives hardware updates raising output to 174 horsepower from the same 1.5-litre EA211 Evo displacement. The 7-speed DSG is eliminated and replaced by the 8-speed Aisin torque converter automatic across all models including AWD. Interior updates include a standard 8-inch floating infotainment display on all trims and a redesigned dashboard.
The 2025 refresh creates a mandatory catalog qualifier for all transmission service components on AWD models, all exterior body and lighting components, and infotainment hardware. Drivetrain configuration (FWD versus AWD) remains a qualifier for all AWD-specific components, but the transmission type qualifier for AWD vehicles changes from 7-speed DSG to 8-speed automatic at the 2025 boundary. Sellers who maintain a single AWD transmission service listing across the full 2022 to 2026 production range without model year qualification will generate incorrect transmission service products on every AWD order.
Engine: EA211 Evo 1.5-litre TSI
A single engine family powers the North American Taos across the entire 2022 to 2026 production run: the 1.5-litre EA211 Evo turbocharged inline-four. This is an evolution of the 1.4-litre EA211 TSI that has powered Volkswagen Group compact vehicles globally for many years, enlarged to 1498cc for the Taos application and incorporating several technologies that make it catalogically distinct from the 1.4-litre predecessor.
Variable Geometry Turbocharger
The EA211 Evo in the Taos uses a Garrett Motion variable geometry turbocharger, described by Volkswagen as the first volume-production VGT application in a North American gasoline engine at the time of the Taos launch. This is the same fundamental turbocharger technology introduced in the EA888 Evo5 discussed in the Teramont Pro guide, though in an earlier and different application. The VGT allows the EA211 Evo to run the Miller combustion cycle across all operating conditions by enabling precise boost pressure control without a wastegate. For catalog purposes the VGT is specific to the EA211 Evo 1.5-litre application and must not be cross-referenced to the 1.4-litre EA211 TSI turbocharger, which uses a conventional wastegate design.
350-Bar High-Pressure Injection
The EA211 Evo raises fuel injection pressure from approximately 200 bar in the standard EA211 to 350 bar. This increase required a new high-pressure fuel pump specification. As with the turbocharger, the 350-bar high-pressure fuel pump for the EA211 Evo 1.5T is specific to this engine and must not be cross-referenced to 1.4-litre EA211 fuel pump applications.
Active Cylinder Management
The EA211 Evo 1.5T in the Taos incorporates active cylinder management (cylinder deactivation) that shuts off cylinders 2 and 3 under light and moderate loads. This technology is integrated into the valve actuation system and affects intake camshaft and rocker arm specifications. Sellers listing camshaft, rocker arm, or valvetrain components for the Taos must use EA211 Evo 1.5T specific part numbers and must not apply standard EA211 1.4T valvetrain cross-references.
Wet Timing Belt: A Critical Catalog Note
The EA211 Evo uses a timing belt running in oil (belt-in-oil or wet belt system), not a timing chain and not a conventional dry timing belt. This is a critically misrepresented specification in the aftermarket. Many sellers who know the EA888 defaults to a timing chain assume the EA211 Evo also uses a chain; it does not. The wet belt system uses a timing belt submerged in engine oil, which reduces friction and extends service intervals compared to a dry belt but requires the use of belt-specific oil that meets VW 508 00 or VW 509 00 specification. The timing belt kit for the EA211 Evo 1.5T is belt-in-oil specific hardware, and sellers listing timing components must specify wet belt application and must not list dry timing belt kits or timing chain kits as applicable to this engine.
Output Change at the 2025 Refresh
The pre-refresh EA211 Evo 1.5T (2022 to 2024) produces 158 horsepower. The post-refresh calibration (2025 onward) produces 174 horsepower through hardware updates to the intake, intercooler, and associated components. These updates mean that specific engine service components including intake manifold hardware and intercooler may differ between pre-refresh and post-refresh applications. Sellers should apply model year as a qualifier for intake system and intercooler component listings and confirm part numbers against the relevant production year specification.
EA211 Cross-Reference Pool
The EA211 Evo 1.5T shares its base engine family with the Volkswagen Jetta (which uses the same engine in a lower-output calibration), the Golf Mk7 and related MQB applications using the EA211 family, and various European market Volkswagen Group vehicles using the same 1.5 TSI Evo. Spark plugs, ignition coils, valve cover gasket, oil filter, and air filter cross-reference broadly across EA211 1.5T applications, noting the cylinder deactivation hardware on the Taos as a potential differentiator for valvetrain components. The wet timing belt kit is EA211 Evo specific across all 1.5T applications and should not be confused with 1.4T dry belt kits from the same engine family.
Transmission Configurations and the 2025 Boundary
The transmission configuration is the most commercially consequential catalog variable on the Taos, because it changed between model years and differed between drivetrains within the same model years.
2022 to 2024: FWD 8-Speed 09S and AWD 7-Speed DSG
FWD models (2022 to 2024): All FWD Taos models use the Aisin Warner 09S 8-speed torque converter automatic. ATF specification is VW G 053 001 A2 (a low-viscosity ATF that supersedes the earlier G 060 540 A2 part number). The 09S cross-references to the Volkswagen Jetta and Golf applications using the same Aisin unit. Filter kits, fluid, and service procedure are consistent across these applications. FWD drain-and-fill capacity is approximately 2.7 liters from a pan drop, with approximately 3.6 liters retained in the torque converter, requiring multiple service cycles for a full fluid exchange.
AWD models (2022 to 2024): All AWD 4Motion Taos models from 2022 to 2024 use a 7-speed wet dual-clutch DSG. ATF specification for this unit is VW G 055 529 A2. This fluid is the same wet DSG specification used in the Golf GTI and Golf R DSG applications and must not be confused with the G 053 001 A2 used in the FWD 09S automatic. The 7-speed DSG dry fill capacity is approximately 6.7 to 6.9 liters, with a drain and filter change capacity of approximately 6.0 liters. The 7-speed DSG in the 2022 to 2024 AWD Taos was the subject of significant documented owner complaints regarding hesitation, harsh cold-start behavior, and inconsistent low-speed behavior, which was the primary driver for its replacement in the 2025 refresh.
2025 Onward: 8-Speed Automatic for All Configurations
From the 2025 model year onward, the 7-speed DSG is eliminated and replaced by the 8-speed Aisin torque converter automatic on all Taos models including AWD. The ATF specification for this unit is VW G 053 001 A2, consistent with the pre-2025 FWD application. This means that from 2025 onward, FWD and AWD Taos models use the same transmission type and the same ATF specification, eliminating the two-fluid catalog split that applied to 2022 to 2024.
The transmission unification at 2025 simplifies ongoing catalog management for newer stock but creates a historical split that must be maintained for 2022 to 2024 AWD vehicles in the used car and parts market. A seller whose AWD Taos transmission service listing does not qualify by model year will apply the wrong transmission type and the wrong fluid specification to either the pre-2025 or post-2025 AWD vehicle population on every order.
Drivetrain Configurations: FWD and 4Motion
Front-Wheel Drive (FWD): Available across all Taos trims from the base S to the SEL. FWD models use the 09S 8-speed automatic from launch through the 2026 model year. No rear axle, Haldex coupling, or rear differential hardware applies to FWD vehicles.
4Motion All-Wheel Drive: Available across all trims as a paid option and standard on the SEL in some model year configurations. The 4Motion system uses a Haldex coupling at the rear axle. Haldex fluid specification is VW G 060 175 (note the specific G 060 175 designation for the Taos application, which should be confirmed against VIN before service as Haldex fluid designations can vary between generations and applications). The rear differential also requires its own gear oil service using GL5 75W-90 specification. The bevel box (front transfer case connecting the transaxle to the propshaft) is stated as lifetime-filled by Volkswagen but uses the same GL5 gear oil specification as the rear differential when serviced. Haldex, rear differential, and bevel box fluids are distinct products from the transmission ATF and must be listed separately.
AWD Taos drivetrain fluid service structure for 2022 to 2024 involves three fluid types: 7-speed DSG fluid (G 055 529 A2), Haldex coupling fluid (G 060 175 family), and rear differential gear oil (GL5 75W-90). From 2025 onward the structure changes to: 8-speed ATF (G 053 001 A2), Haldex coupling fluid, and rear differential gear oil. Sellers maintaining drivetrain service kits for the Taos must apply model year to separate the DSG-era AWD from the 8-speed ATF era AWD.
Brake Configuration
The Taos uses ventilated front disc brakes and solid rear disc brakes across all configurations. Front rotor diameter is 312 mm on standard configurations. Rear rotor diameter is 272 mm on standard configurations. Some higher-specification trim levels may use larger front rotors; sellers should confirm rotor diameter before listing.
Rear brake calipers use an electric parking brake actuator on all Taos variants in the North American market. EPB piston retraction requires a scan tool capable of accessing the VW brake system module before rear pad replacement. This is a consistent characteristic across all 2022 to 2026 production years and all trims. Sellers listing rear brake pads, rear rotor kits, or rear brake service kits must note the EPB scan tool requirement in all listings. The failure to communicate this requirement is a common source of customer returns and service frustration on this application.
Pre-mature rear brake wear was a documented pattern on 2022 and 2023 model year Taos vehicles, with a number of owners reporting rear pad replacement requirements at 25,000 to 35,000 miles. Volkswagen addressed this with an extended coverage period for rear brakes on early production vehicles. The relatively high turnover rate on rear brake components in the Taos used car population makes rear brake pads and rotors a higher-velocity aftermarket item on this platform than on similarly aged vehicles in other segments.
Common ACES/PIES Mistakes for the Taos (2021 to 2026)
1. Not qualifying AWD transmission service components by model year. The 2022 to 2024 AWD Taos uses a 7-speed DSG (G 055 529 A2 fluid), while the 2025 and later AWD Taos uses an 8-speed torque converter automatic (G 053 001 A2 fluid). These are different transmission types with different fluid specifications and different service hardware.
2. Cross-referencing the 2022 to 2024 AWD DSG fluid (G 055 529 A2) to the FWD 09S automatic fluid (G 053 001 A2). These two fluids serve two different transmission types on the same vehicle in the same model year range and must never be listed interchangeably.
3. Listing a timing chain kit or dry timing belt kit for the EA211 Evo 1.5T. The engine uses a wet timing belt (belt-in-oil system). Timing chain components and dry timing belt kits are both incorrect and potentially damaging if installed.
4. Cross-referencing the EA211 Evo 1.5T VGT turbocharger to the 1.4-litre EA211 TSI turbocharger. The VGT in the 1.5T is a fundamentally different unit from the wastegate turbocharger used in the 1.4T predecessor and must be listed separately with no cross-reference to 1.4T applications.
5. Applying the EA211 1.4T high-pressure fuel pump to the EA211 Evo 1.5T application. The 350-bar injection system of the Evo requires a different pump specification from the lower-pressure 1.4T system.
6. Not distinguishing pre-refresh (2022 to 2024) from post-refresh (2025 onward) for exterior body components, headlight assemblies, bumper covers, rear taillight assemblies, and infotainment system hardware.
7. Listing a single AWD drivetrain service kit that includes DSG fluid for a 2025 or later vehicle, or that includes 8-speed ATF for a 2022 to 2024 vehicle.
8. Not noting the EPB scan tool requirement in rear brake pad and rear brake service kit listings. The electric parking brake is universal across all Taos trims and model years and the scan tool requirement applies to every rear brake service on this application.
9. Treating the Taos as platform-equivalent to the MQB Tiguan for underbody part cross-references. The MQB A0 Taos and the MQB A1 Tiguan are different platform sizes with different suspension, brake hardware, and body part numbers. MQB Tiguan parts do not cross to the Taos without individual confirmation.
10. Conflating Haldex fluid, transmission ATF (09S or DSG), rear differential gear oil, and bevel box gear oil for AWD service. These are up to four distinct fluid types on the 4Motion Taos. Listing any combination of them under a shared transmission or drivetrain fluid designation will produce incorrect fluid on a share of orders.
Catalog Checklist for Taos (2021 to 2026)
• Require model year for all transmission service component listings for AWD models: 2022 to 2024 AWD uses 7-speed DSG (G 055 529 A2), 2025 and later AWD uses 8-speed automatic (G 053 001 A2)
• Require drivetrain configuration (FWD versus AWD) for rear axle, Haldex system, rear differential, bevel box, and all AWD-specific fluid listings; the transmission type qualifier for AWD also requires model year as above
• List EA211 Evo 1.5T timing components as wet belt (belt-in-oil) applications; explicitly exclude timing chain kits and dry timing belt kits from this application
• List the EA211 Evo 1.5T VGT turbocharger as specific to the 1.5T application; do not cross-reference to 1.4T EA211 turbocharger applications
• List the EA211 Evo 1.5T high-pressure fuel pump as 350-bar rated and application-specific; do not cross-reference to 1.4T EA211 fuel pump applications
• Require model year for facelift boundary on all exterior body, lighting, infotainment, and dashboard component listings: pre-refresh 2022 to 2024 versus post-refresh 2025 onward
• Flag EPB scan tool requirement on all rear brake pad and rear brake service kit listings for all model years and all configurations
• Maintain separate fluid listings for 4Motion AWD applications: transmission ATF by model year, Haldex fluid (G 060 175 family), and rear differential and bevel box gear oil (GL5 75W-90); do not combine any of these under a shared drivetrain fluid entry
• Confirm all underbody suspension and brake component part numbers against MQB A0 specific references; do not assume cross-application from MQB A1 Tiguan or full MQB Tiguan catalogs
• Note the EA211 Evo engine cross-reference pool includes the Volkswagen Jetta and MQB-platform Golf for base service items including spark plugs, ignition coils, and oil filter, while cylinder deactivation-specific valvetrain components must be confirmed as 1.5T Evo specific
Final Take
The Volkswagen Taos is a mechanically focused application whose most commercially significant catalog challenge is the transmission split. The 2022 to 2024 AWD configuration uses a 7-speed DSG with its own wet DSG fluid, while the 2025 onward AWD configuration uses an 8-speed torque converter automatic with a different ATF specification. These two transmission types require completely different service products. A seller who maintains a single AWD Taos transmission fluid listing without model year qualification will serve the wrong fluid on half of all AWD transmission service orders across the full production run.
The wet timing belt is the second highest-priority accuracy issue. The EA211 Evo belt-in-oil system is consistently misidentified in generic catalogs, with timing chain kits or conventional dry belt kits applied in error. The consequence for the end user of installing the wrong timing component type ranges from premature failure to engine damage. Sellers who clearly communicate wet belt application will build credibility with a Taos owner community that is frequently misled by less accurate catalog sources.
The 2025 refresh simplified the AWD transmission situation going forward but left a legacy split that will remain commercially relevant for the full lifecycle of the 2022 to 2024 used car population. The refresh also introduced exterior and infotainment changes that create a production boundary for body and electronics components. Sellers who handle both the transmission split and the refresh boundary accurately will serve this application correctly from launch through the useful life of the oldest production vehicles.
Disclaimer: This guide is based on publicly available specifications, manufacturer documentation, and independent research. Part interchangeability should always be confirmed via VIN and OEM part number lookup. Specifications may change without notice. This document does not constitute official Volkswagen parts catalog data.
